Factory parts data · Europe

Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 2 illustrations

Illustrations

Figure MEA394

MEA394 1977-08 → —

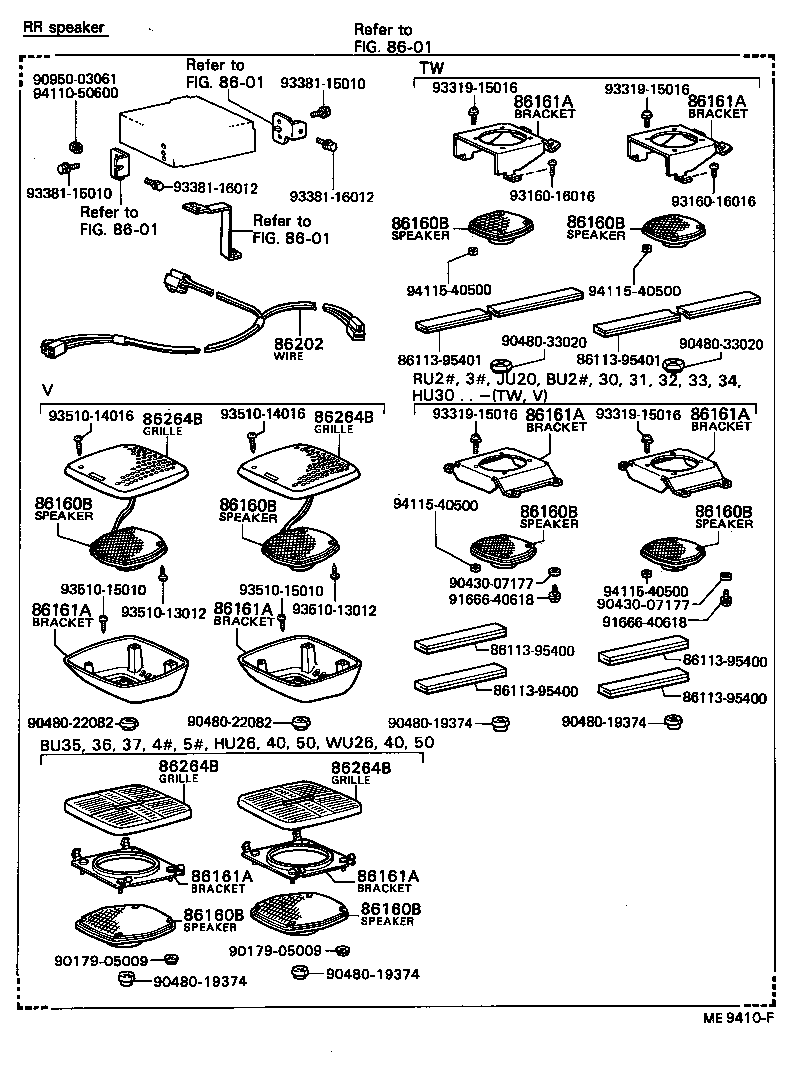

Figure ME9410F

ME9410F 1977-08 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86161A	Bracket, Speaker, Rear
86202	Wire, Speaker, NO.1
86264B	Grille, Speaker, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
