Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 2 illustrations

Illustrations

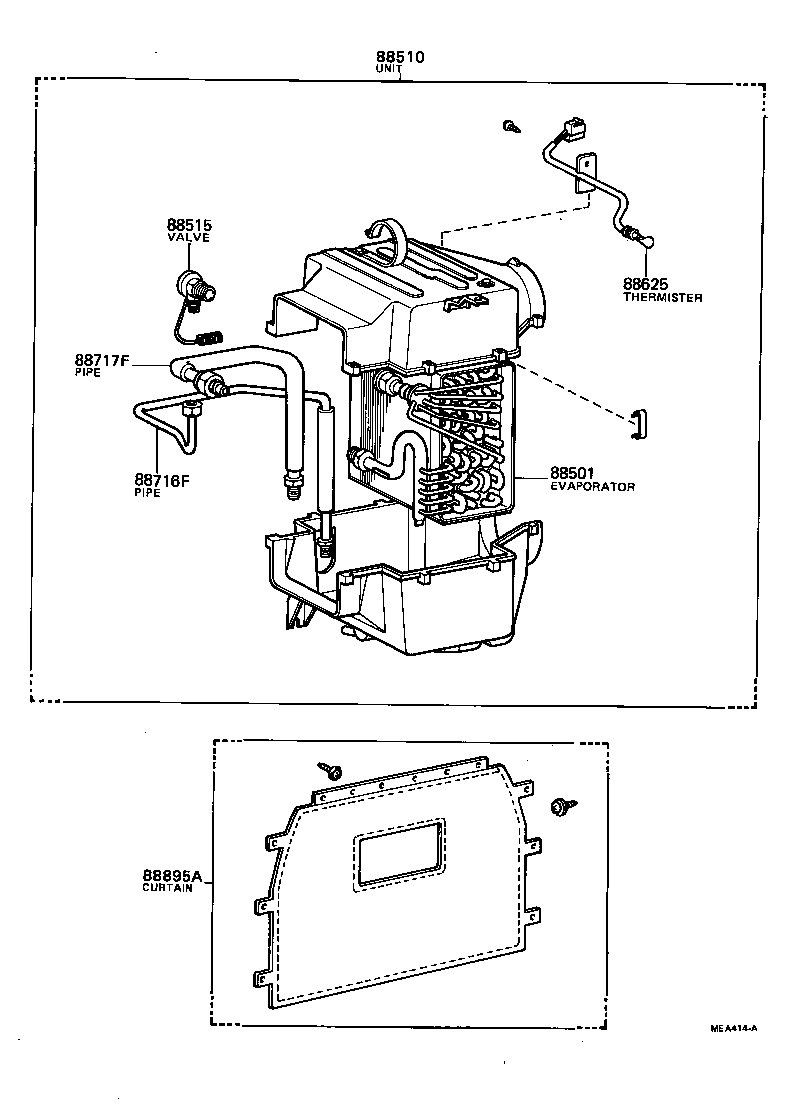

Figure ME6846H ME6846H 1977-08 → — Figure MEA414A MEA414A 1977-08 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630C Bracket, Cooler Relay
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88717F Pipe, Cooler Refrigerant Suction, F
88895A Curtain Assy, Separate
