Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

21 part groups · 5 illustrations

Illustrations

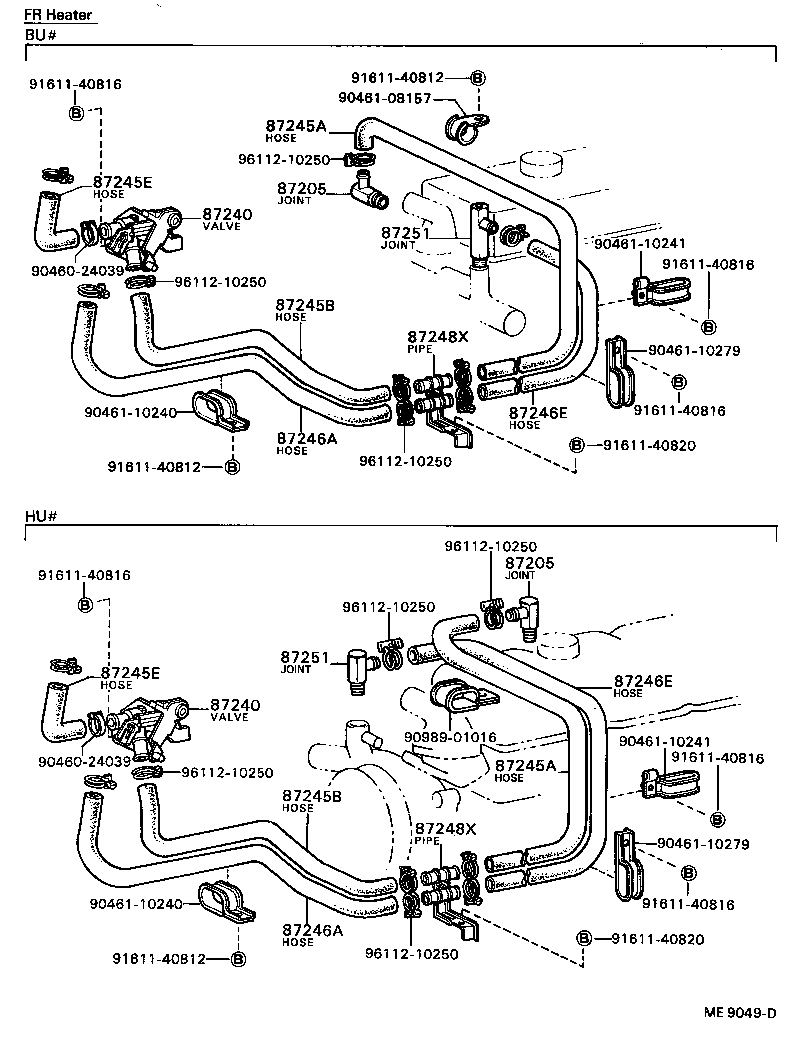

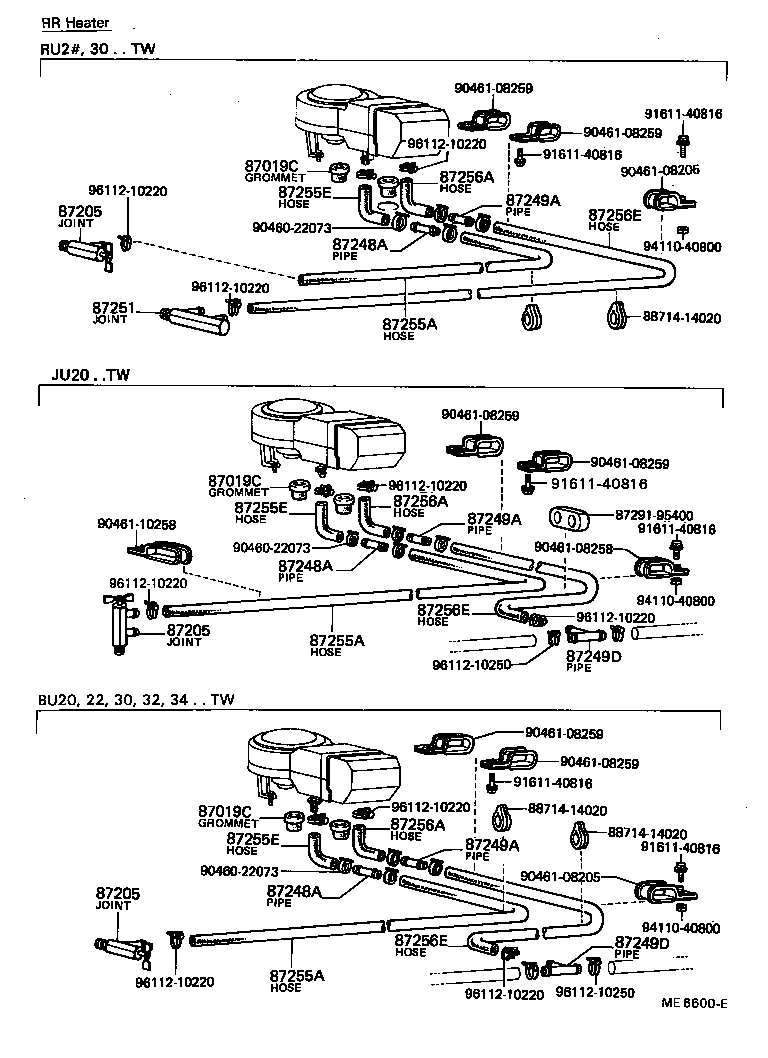

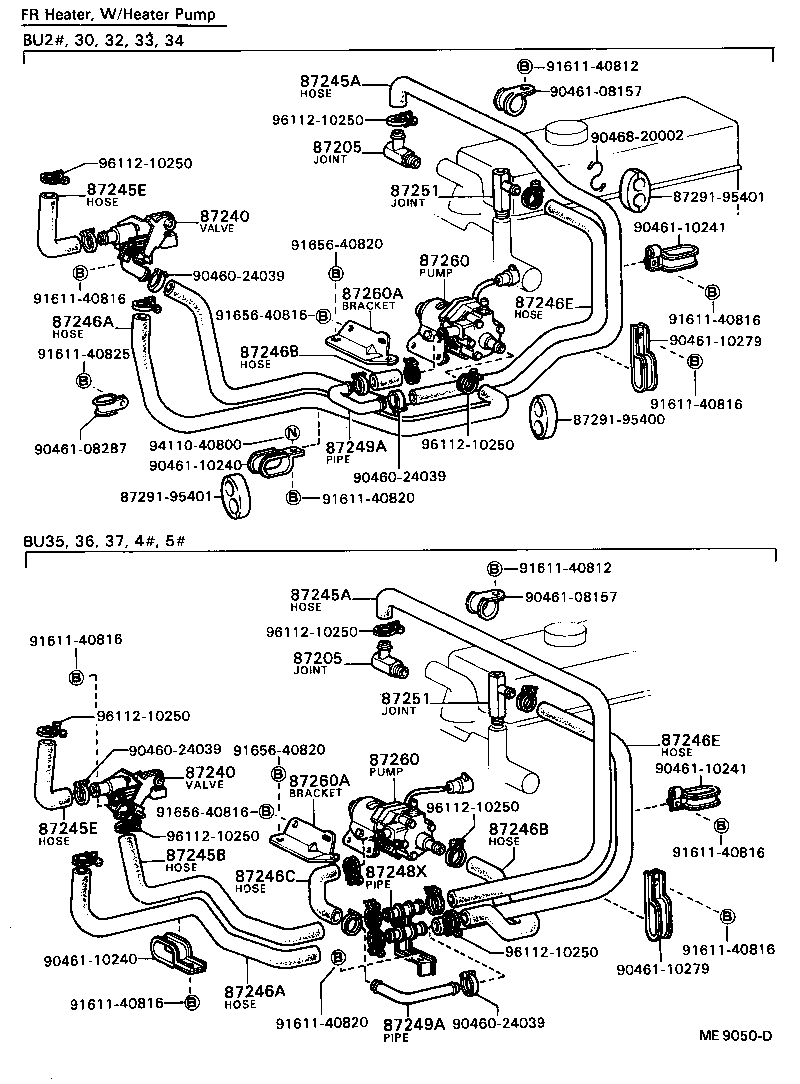

Figure ME6568G ME6568G 1977-08 → — Figure ME9049D ME9049D 1980-08 → — Figure ME9050D ME9050D 1980-08 → — Figure ME6600E ME6600E 1977-08 → — Figure ME9411C ME9411C 1980-08 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87260 Pump Assy, Heater
87260A Bracket, Heater Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
