Toyota Dyna
1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan
Discontinued model
Data version 1985-03
Heating & Air Conditioning - Compressor
14 part groups · 2 illustrations
Part groups

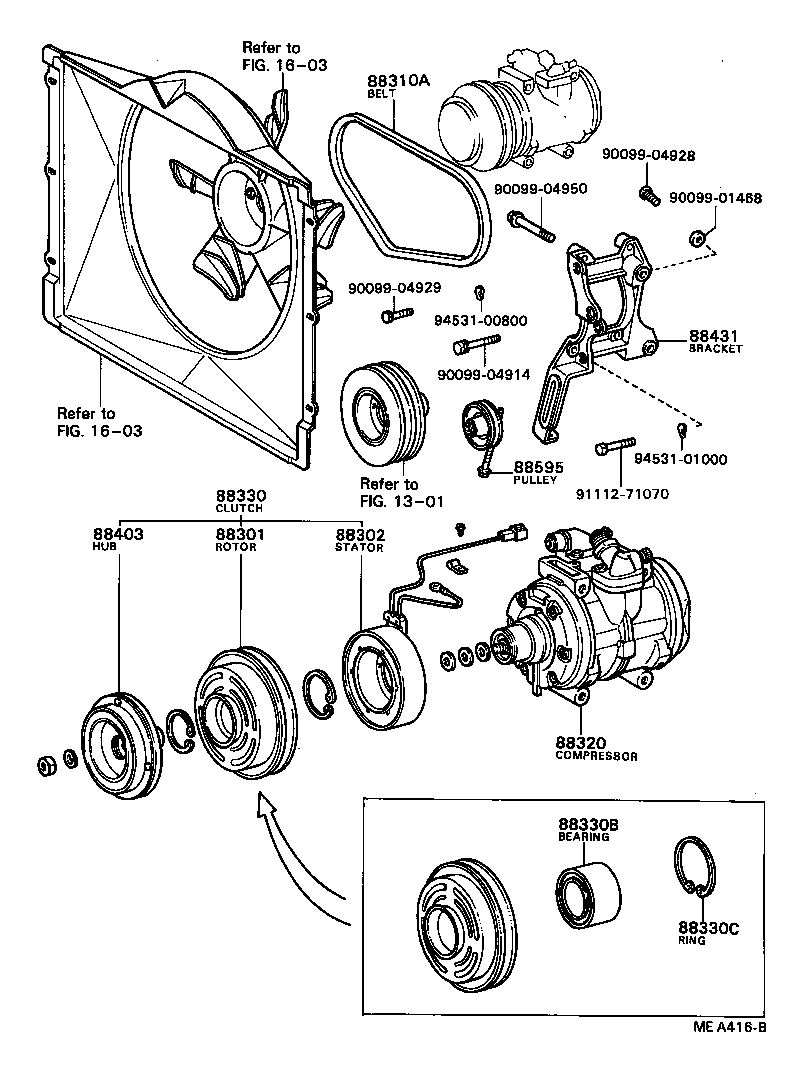

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88310A | Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 |
| 88320 | Compressor Assy, Cooler |
| 88330 | Clutch Assy, Magnet |
| 88330B | Bearing, Magnet Clutch |
| 88330C | Ring, Snap (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88414A | Ring, Shield Snap |
| 88415 | Retainer, Magnet Clutch Bearing, NO.1 |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88432 | Bracket, Compressor Mounting, NO.2 |
| 88437A | Attachment, Compressor |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
