Radiator & Water Outlet
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278A | Gasket, Water By-pass |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16309 | Shaft Sub-assy, Fan Drive |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331F | Cap Sub-assy(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16361 | Fan |
| 16365 | Spacer, Fan |
| 16381 | Bar, Fan Belt Adjusting |

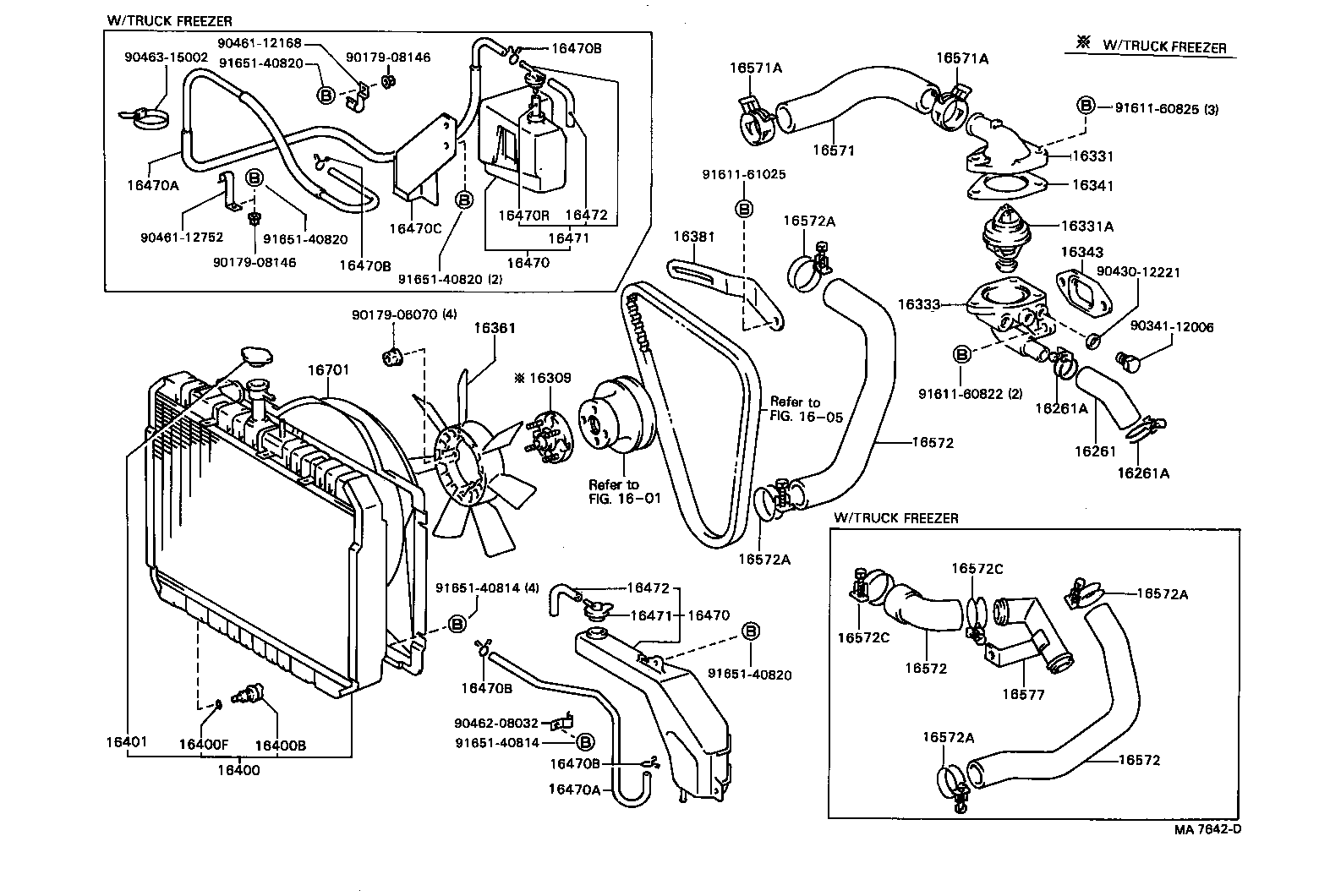

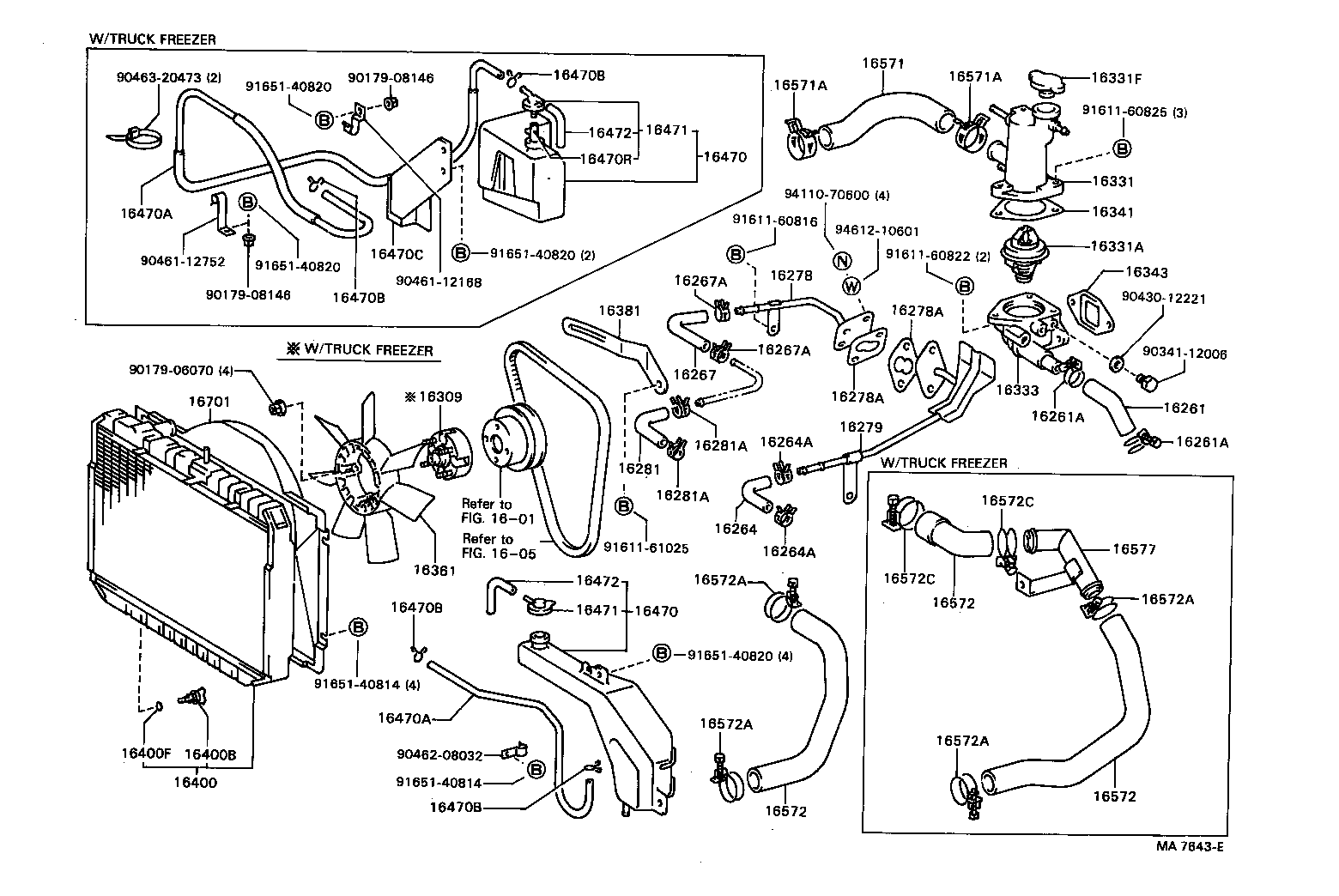

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403A | Seat(FOR SUB RADIATOR) |
| 16403B | Bracket, Sub Radiator |
| 16403S | Support, Sub Radiator Bracket |

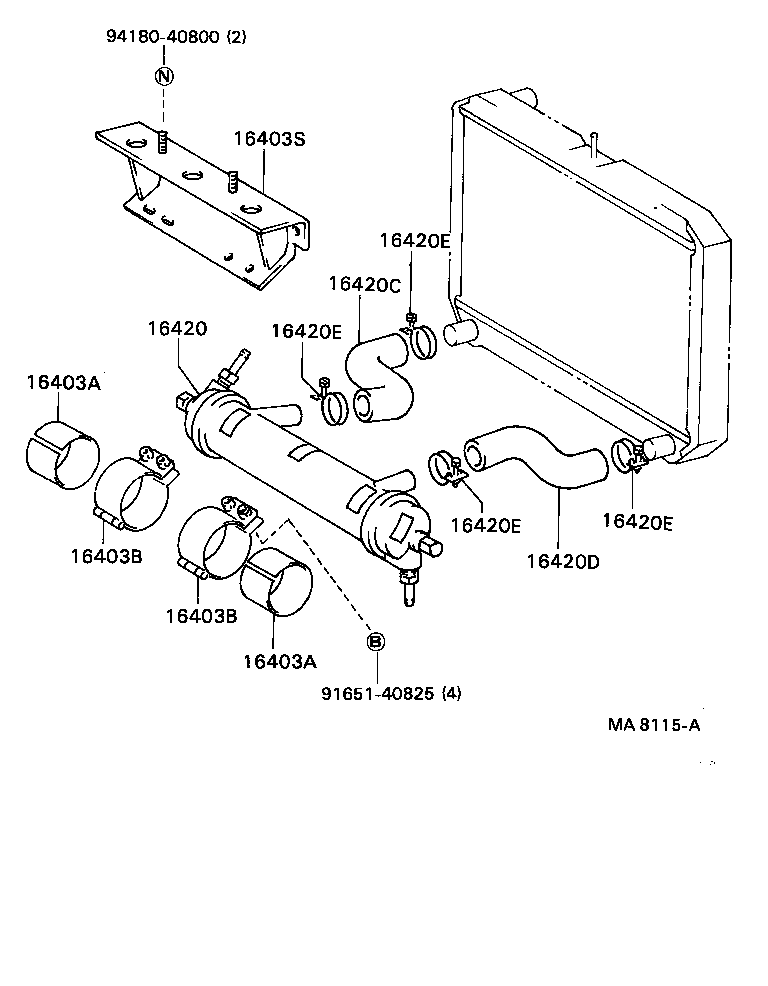

| 16420 | Radiator Assy, Sub |
| 16420C | Hose, Sub Radiator, NO.1 |
| 16420D | Hose, Sub Radiator, NO.2 |
| 16420E | Clamp OR Clip, Sub Radiator Hose |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16470E | Grommet, Radiator Reserve Tank Hose |
| 16470R | Hose, NO.2(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16577 | Pipe, Radiator, NO.7 |
| 16591 | Pipe, Radiator |
| 16701 | Shroud Sub-assy, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
