Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan
Discontinued model
Data version 1988-01
Exhaust Pipe
33 part groups · 14 illustrations

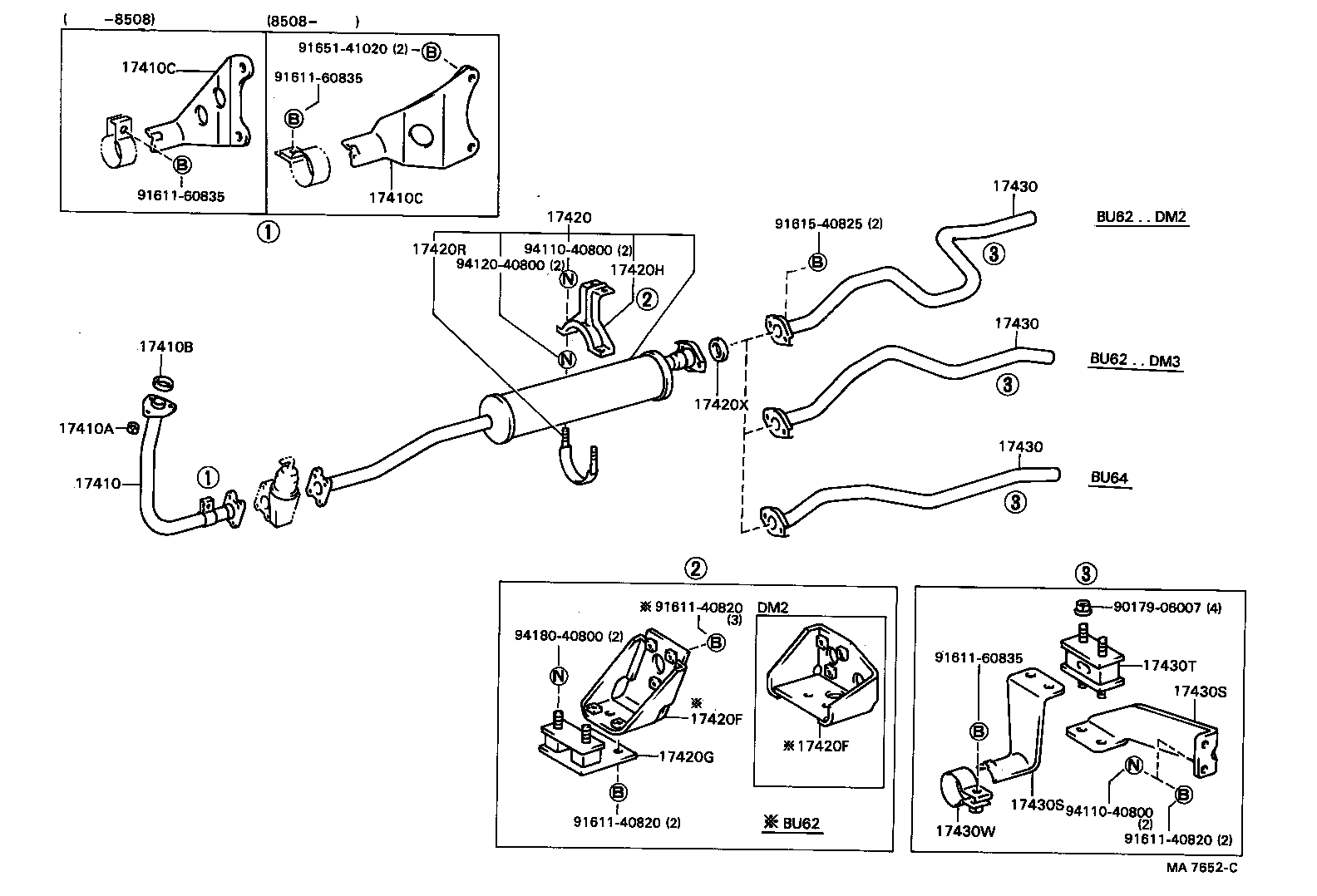

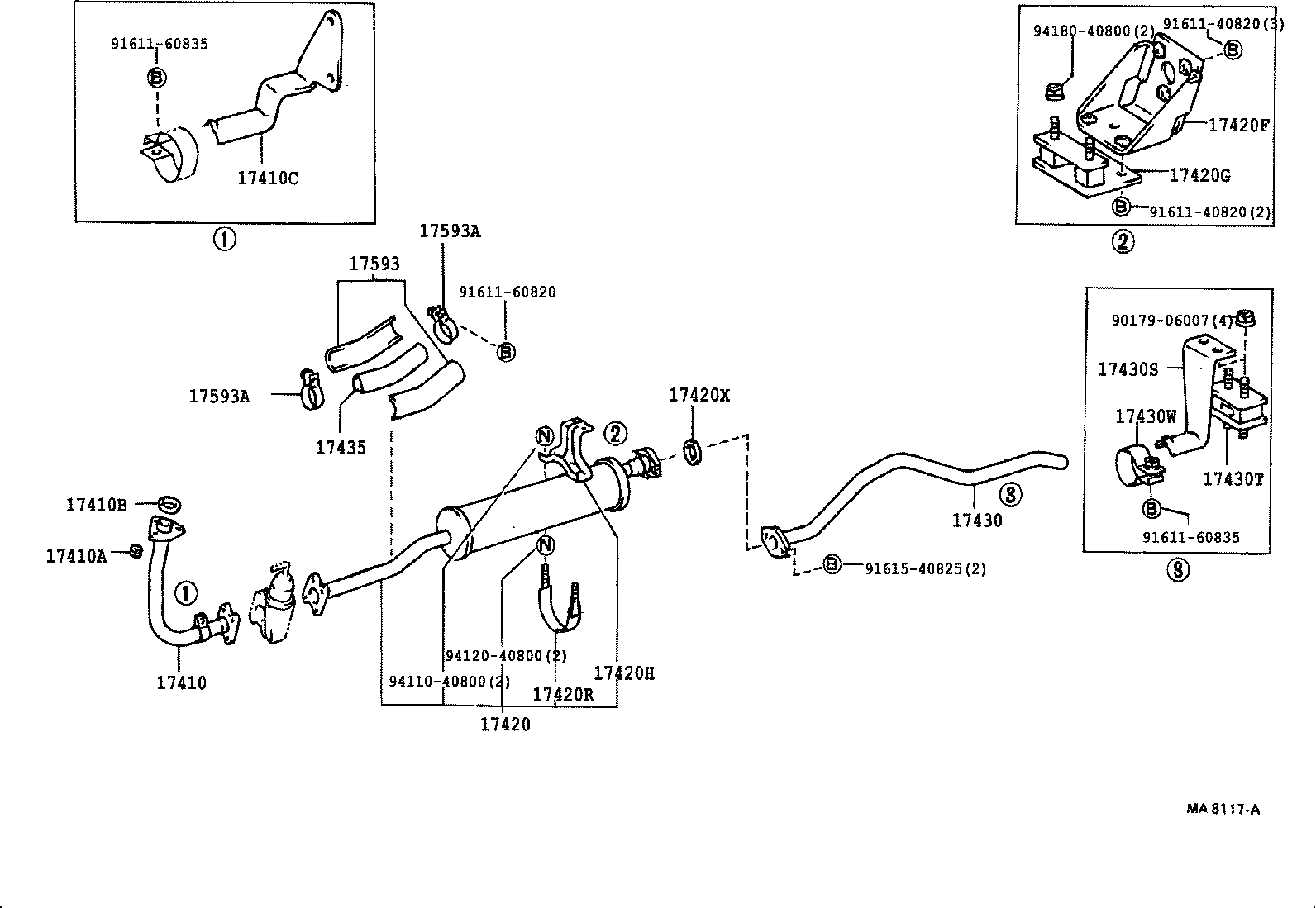

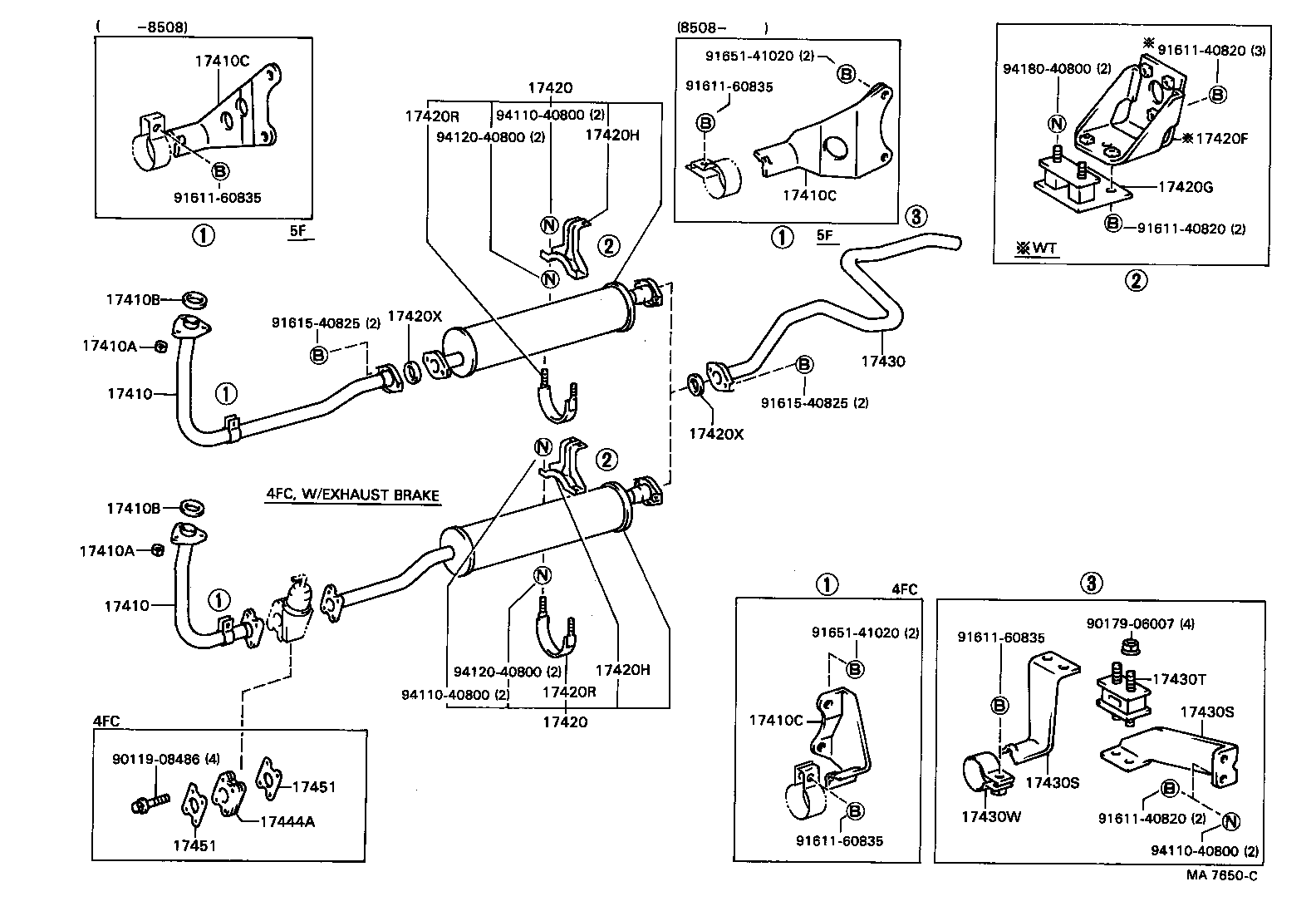

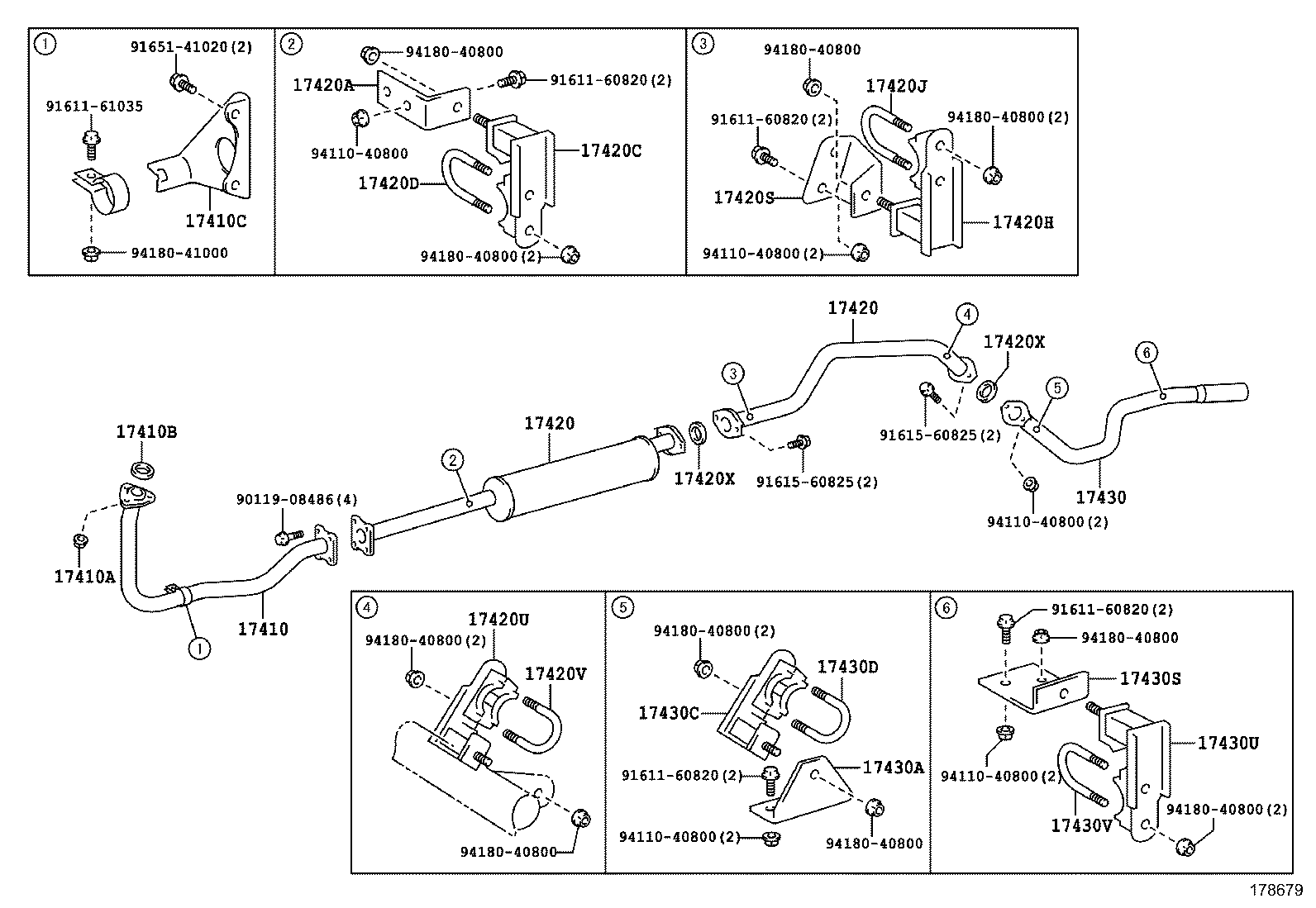

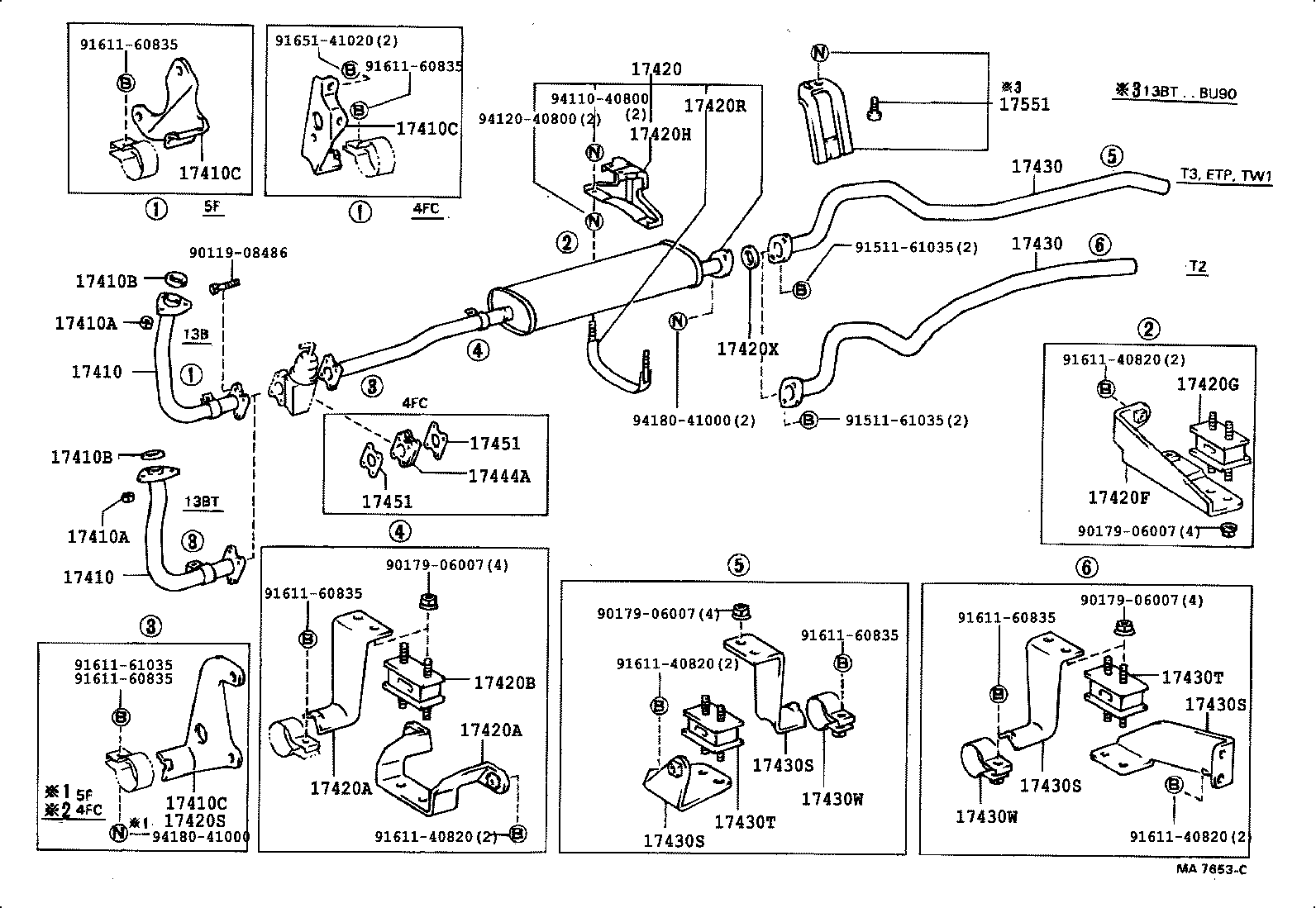

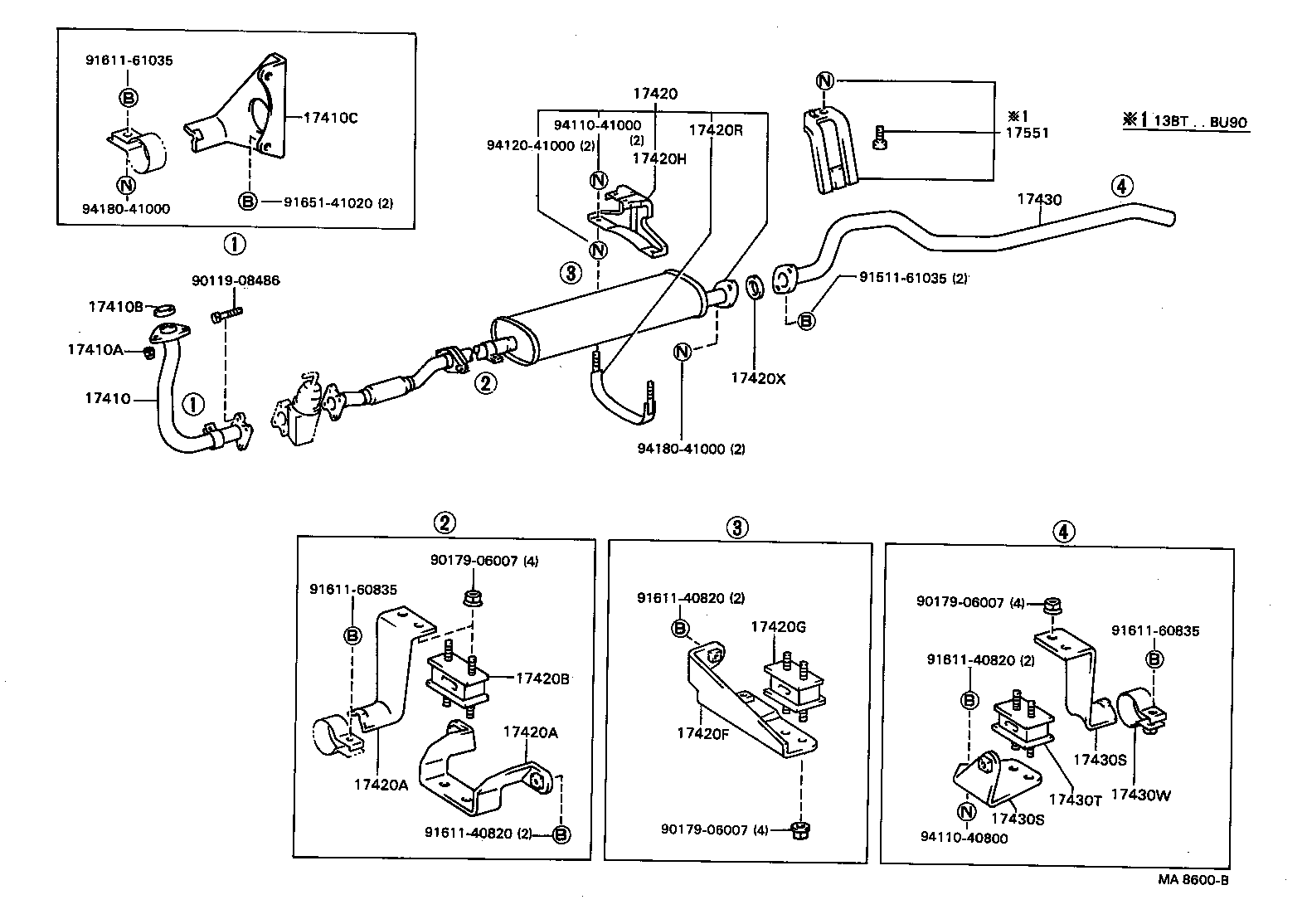

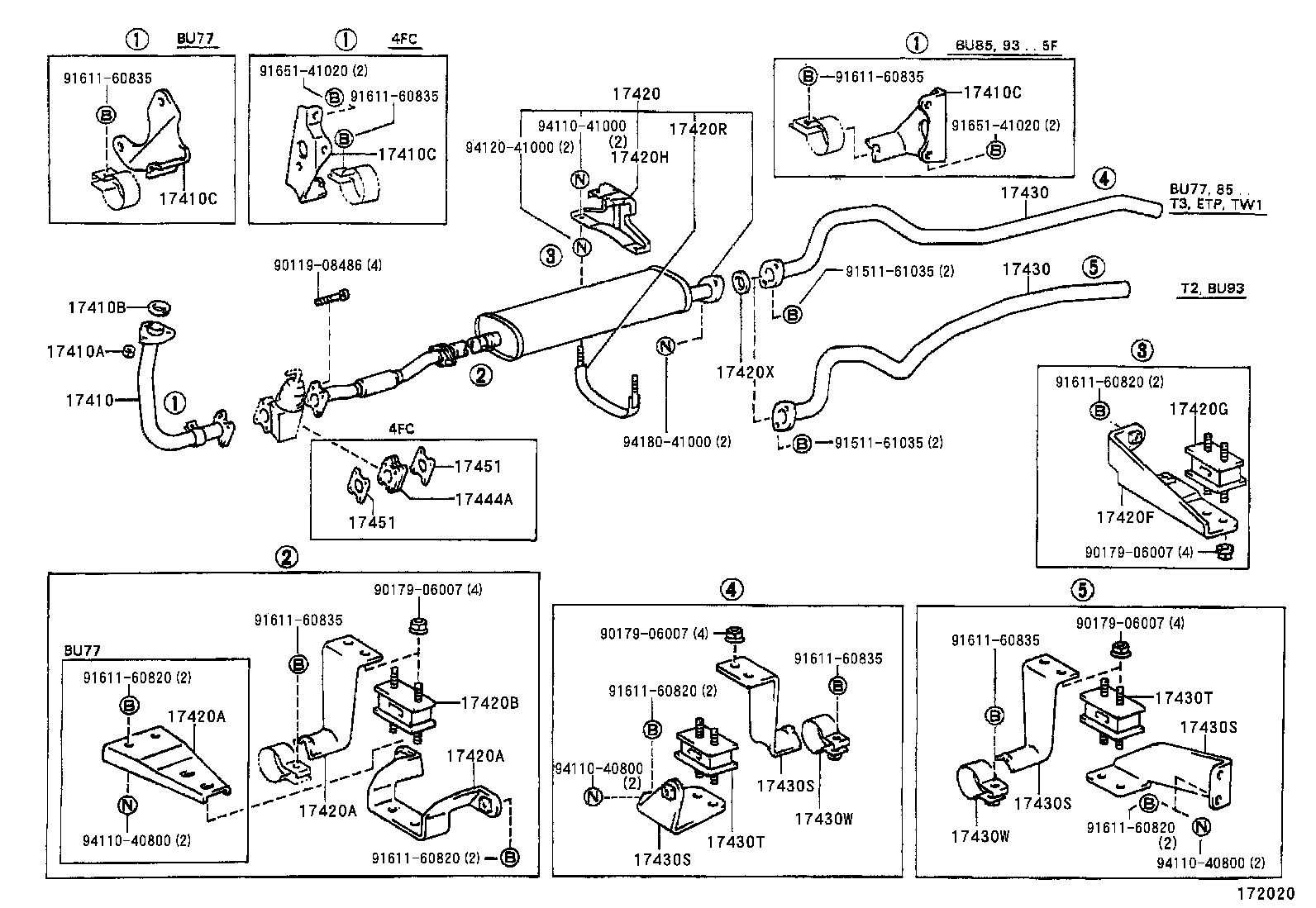

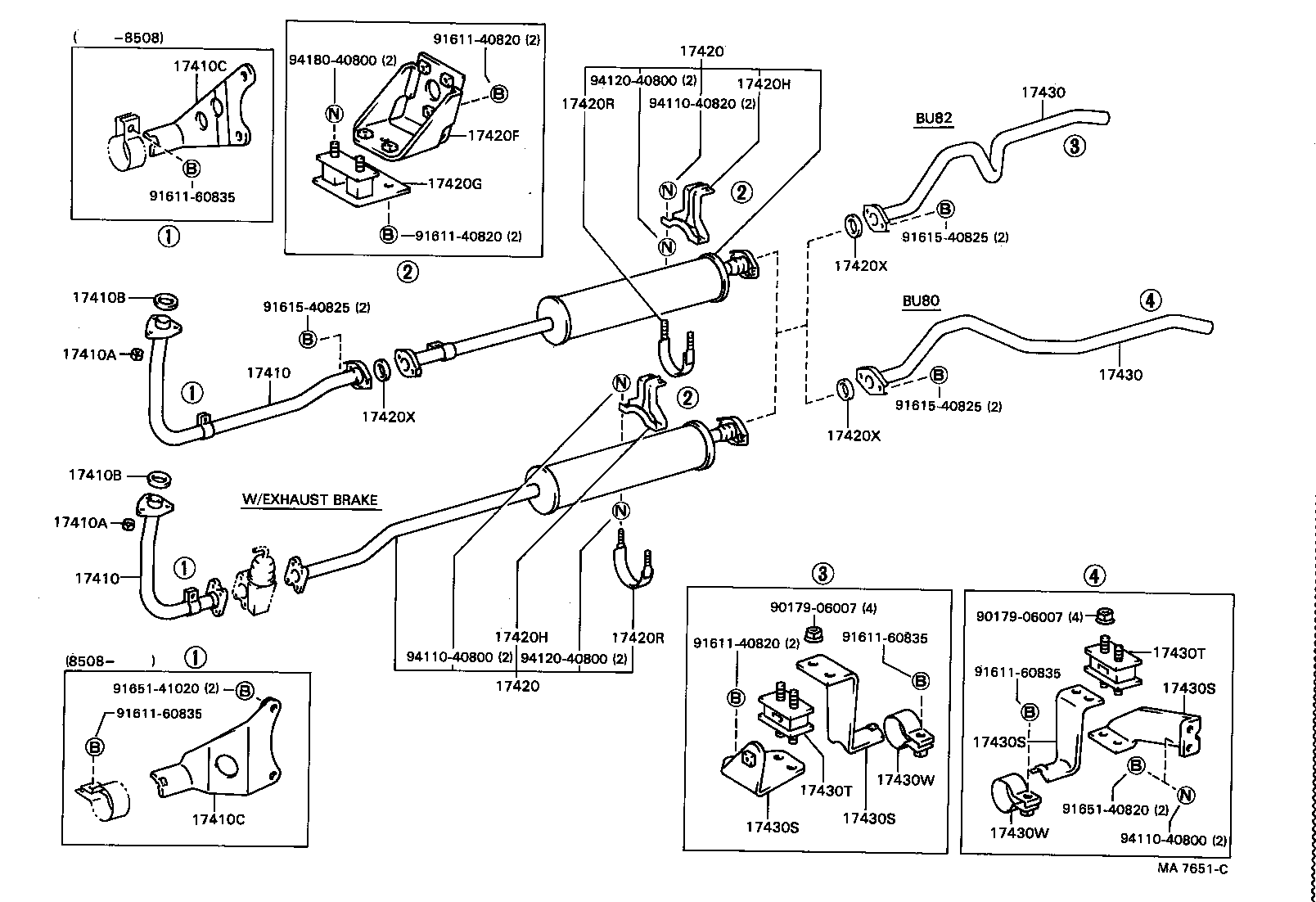

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420A | Bracket, Exhaust Pipe Center, Front |
| 17420B | Cushion, Exhaust Pipe Center, Front |
| 17420C | Clamp NO.1, Exhaust Pipe Center, Front |
| 17420D | Bolt OR Ring, Exhaust Pipe Center, Front |
| 17420F | Bracket, Exhaust Pipe, Center |
| 17420G | Cushion, Exhaust Pipe Center, Center |
| 17420H | Clamp NO.1, Exhaust Pipe Center, Center |
| 17420J | Bolt OR Ring, Exhaust Pipe Center |
| 17420R | Clamp NO.2, Exhaust Pipe Center, Center |
| 17420S | Bracket, Exhaust Pipe Center, Rear |
| 17420U | Clamp NO.1, Exhaust Pipe Center, Rear |
| 17420V | Bolt OR Ring, Exhaust Pipe Center, Rear |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430C | Clamp NO.1, Exhaust Tailpipe (FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430U | Clamp NO.1, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17430W | Clamp NO.2, Exhaust Tailpipe (FOR REAR) |
| 17435 | Insulator, Exhaust Pipe Heat |
| 17444A | Spacer, Exhaust Front Pipe |
| 17451 | Gasket, Exhaust Pipe |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17593 | Protector, Exhaust Pipe, NO.1 |
| 17593A | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
