Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

35 part groups · 6 illustrations

Illustrations

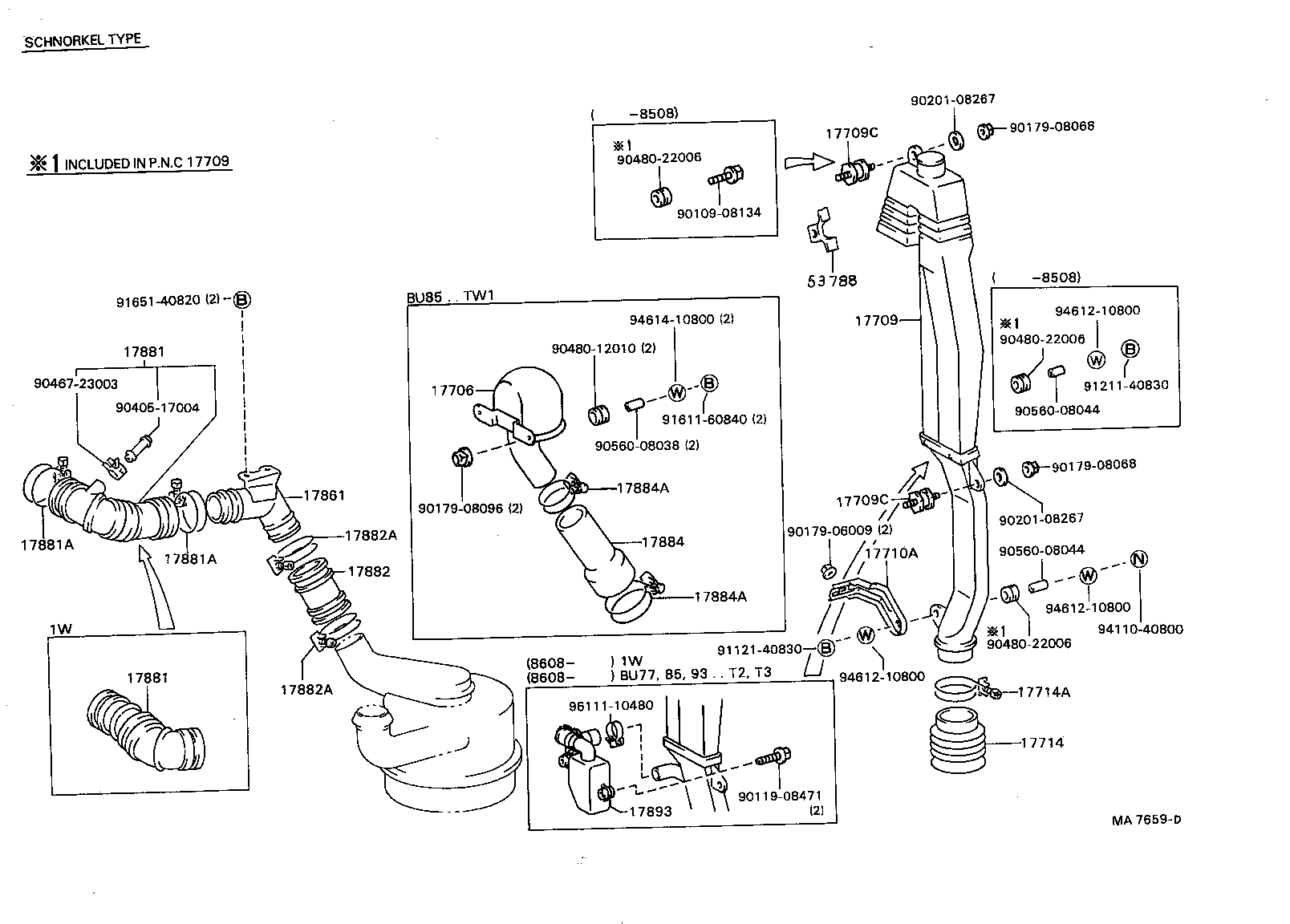

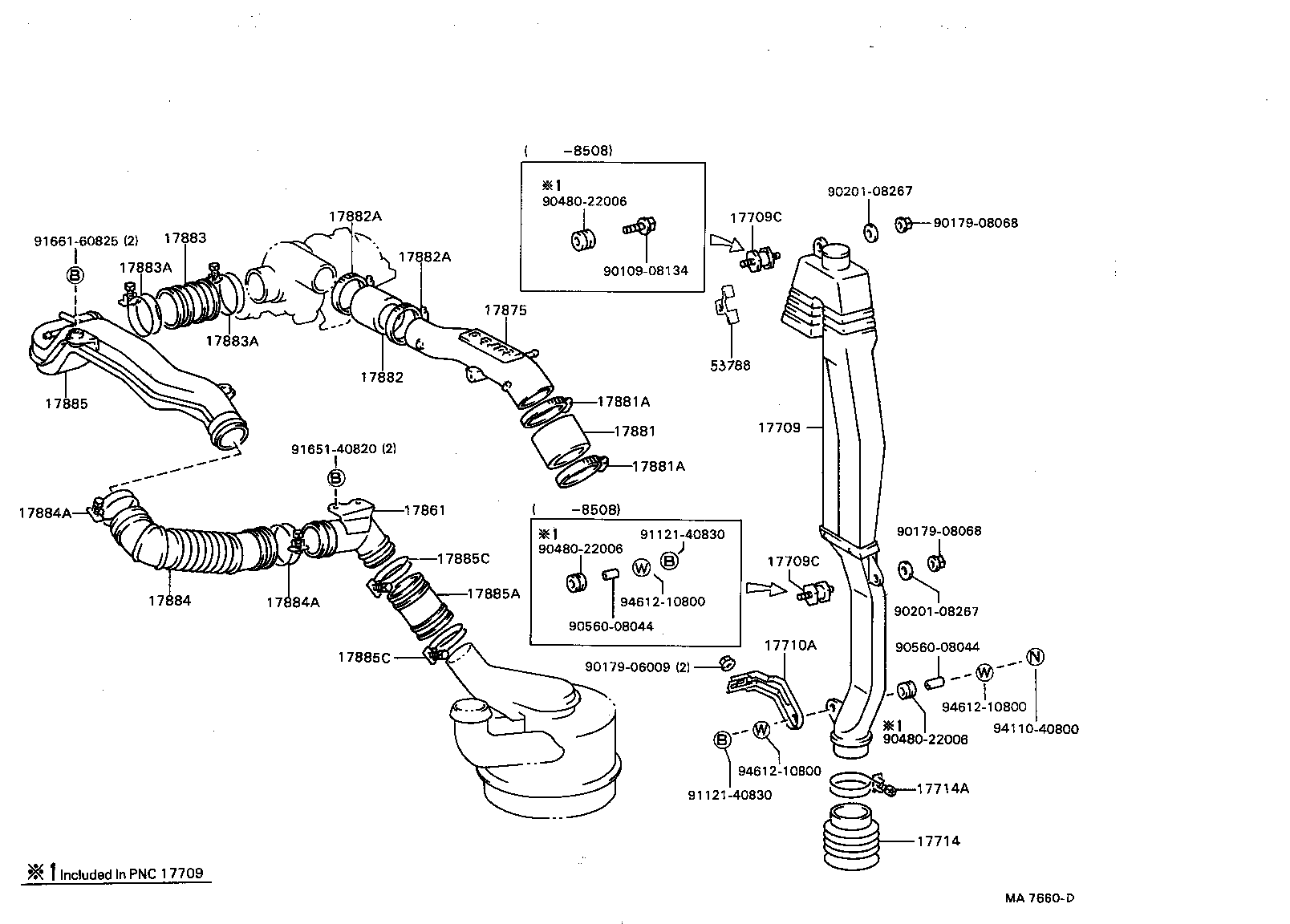

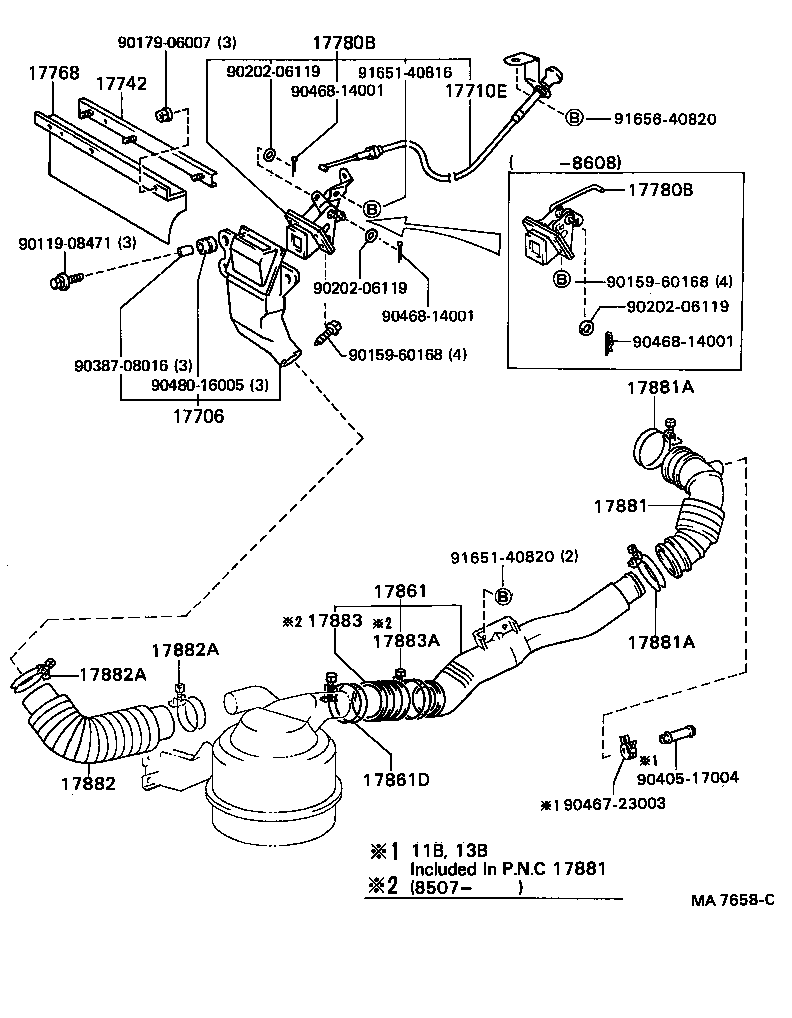

Figure MA7655D MA7655D 1984-09 → — Figure MA7656B MA7656B 1984-09 → — Figure MA7657C MA7657C 1984-09 → — Figure MA7658C MA7658C 1984-09 → — Figure MA7659D MA7659D 1984-09 → — Figure MA7660D MA7660D 1984-09 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17708 Baffle Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17709C Cushion, Air Cleaner Inlet
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17710E Cable Sub-assy
17714 Rubber Seal, Air Intake
17714A Clamp(FOR AIR INTAKE RUBBER SEAL)
17742 Plate, Air Cleaner Inlet Cover
17744 Cup, Precleaner
17768 Cover, Air Cleaner Inlet
17771 Bracket, Air Cleaner Inlet Duct
17780B Bracket Sub-assy, Air Cleaner Shutter
17801 Element Sub-assy, Air Cleaner Filter
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17893 Resonator, Intake Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
