Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan
Discontinued model
Data version 1988-01

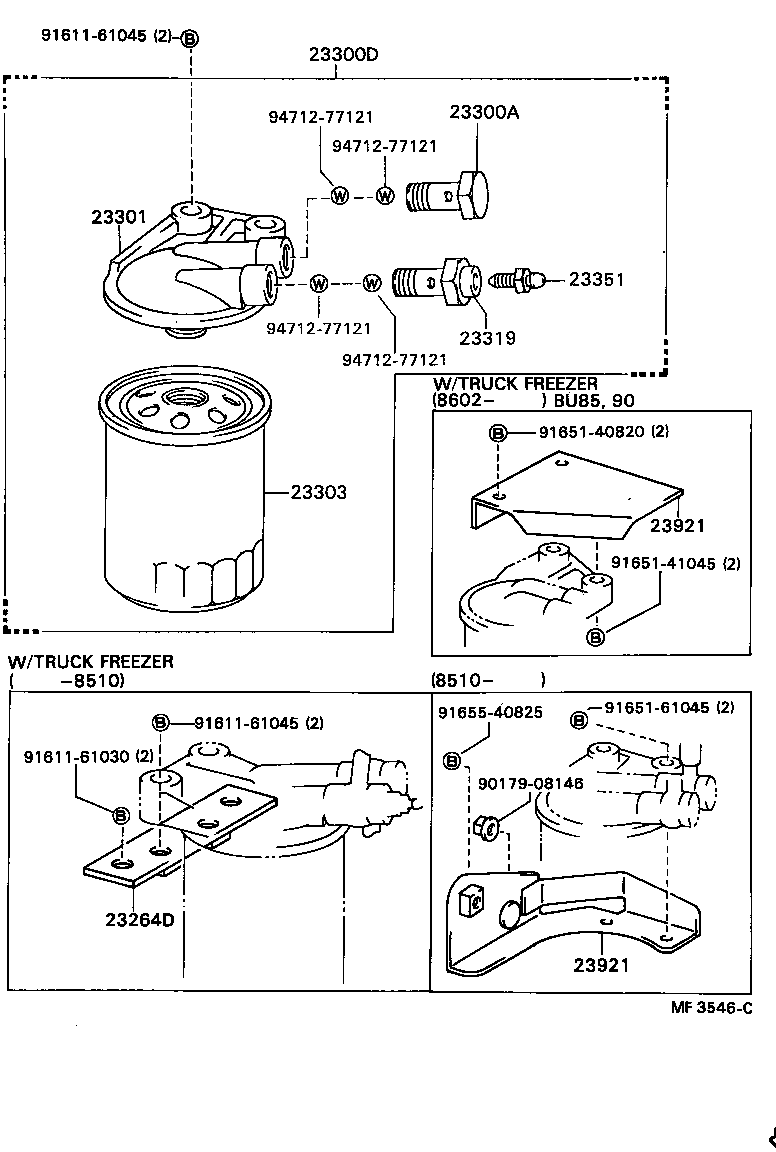

Fuel Filter
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23264D | Bracket, Fuel Filter |
| 23300A | Union, Nipple(FOR FUEL FILTER INLET) |
| 23300B | Union, Nipple(FOR FUEL FILTER OUTLET) |
| 23300C | Gasket, Nipple Union(FOR FUEL) |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23301 | Body Sub-assy, Fuel Filter |
| 23301A | Cap Assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23319 | Screw, Fuel Pipe Follow |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23351 | Plug, Air Vent |
| 23921 | Support, Fuel Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
