Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan
Discontinued model
Data version 1988-01

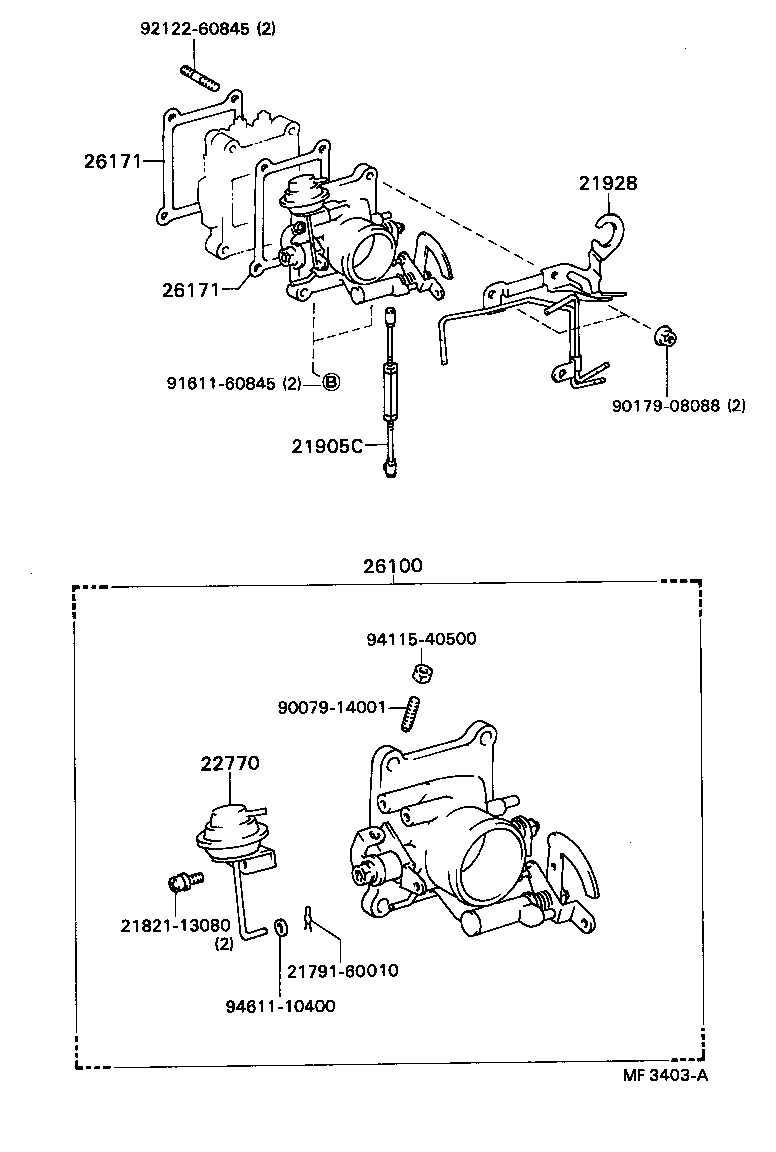

Venturi
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 21905C | Rod, Accelerator Connecting(FOR VENTURI) |
| 21928 | Support, Throttle Wire |
| 22770 | Actuator, Idel UP |
| 26100 | Venturi Assy |
| 26102 | Lever Sub-assy, Throttle Shaft Adjusting |
| 26113 | Collar, Throttle Valve Shaft |
| 26113A | Pin, Throttle Valve Shaft |
| 26114 | Washer, Throttle Valve Shaft Adjusting |
| 26131 | Spring, Return |
| 26132 | Pin |
| 26171 | Gasket, Venturi |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
