Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 4 illustrations

Illustrations

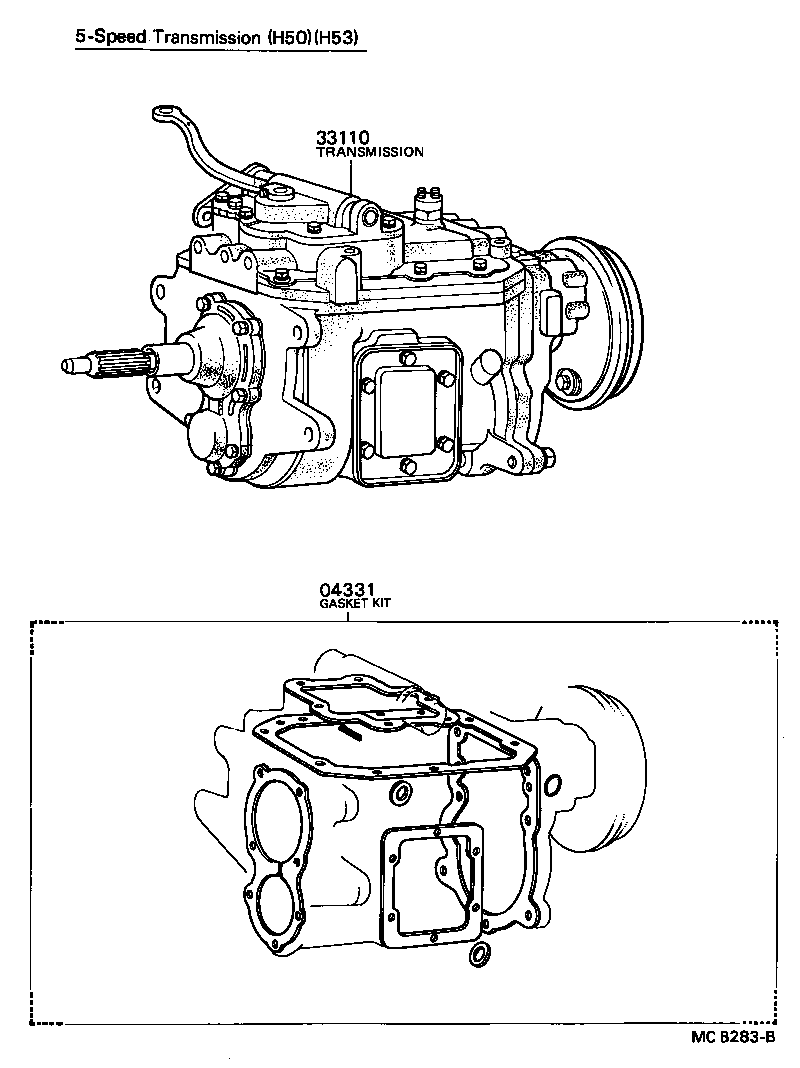

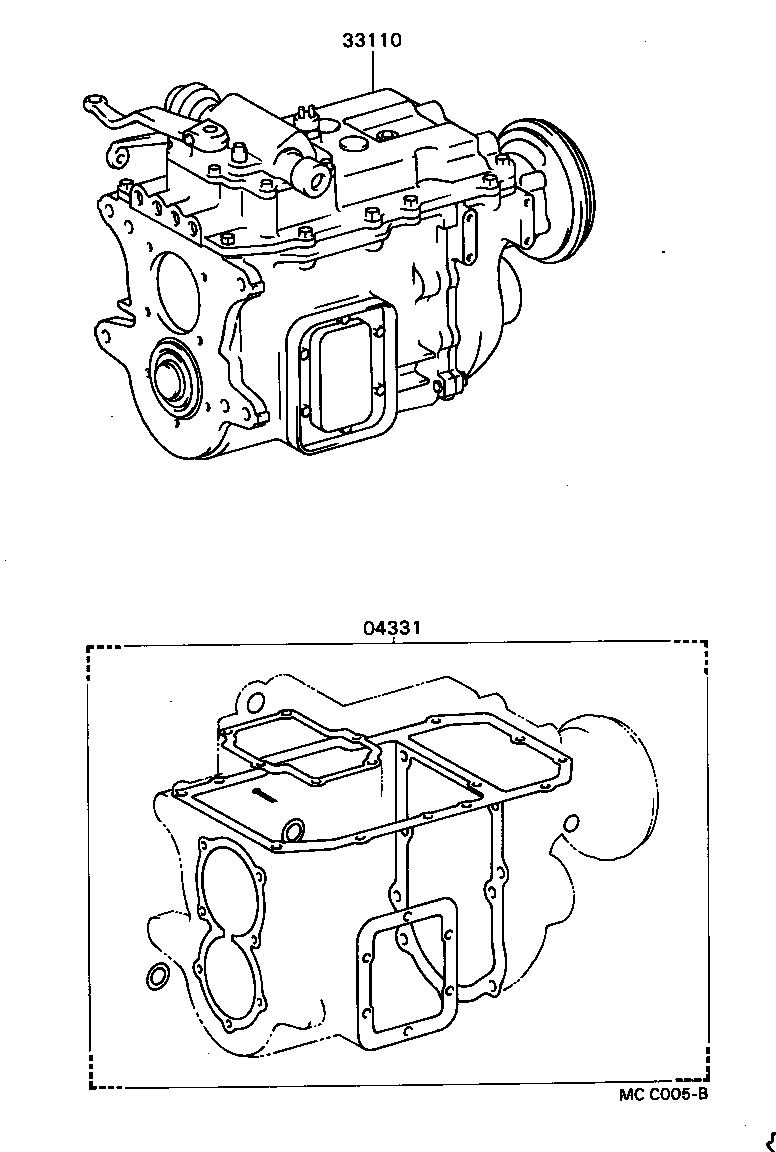

Figure MCB282B MCB282B 1984-09 → 1985-08 Figure MCC434A MCC434A 1985-08 → — Figure MCC005B MCC005B 1984-10 → — Figure MCB283B MCB283B 1984-09 → 1985-08

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
