Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

56 part groups · 9 illustrations

Illustrations

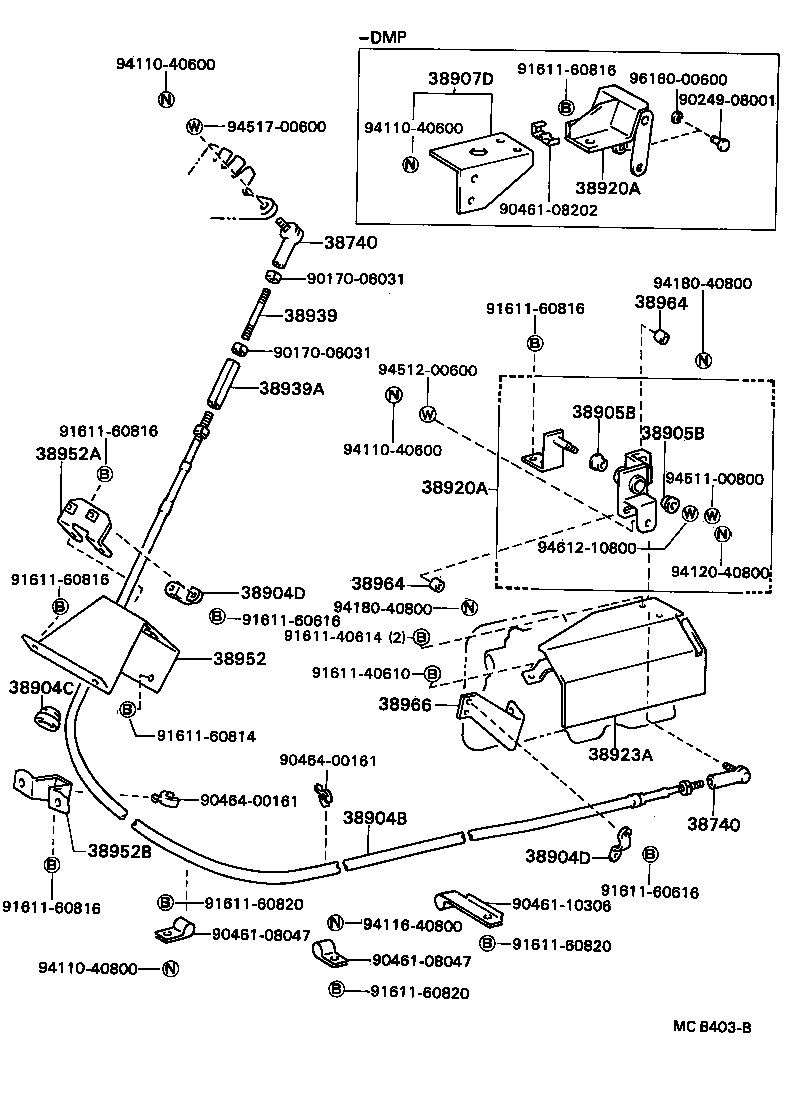

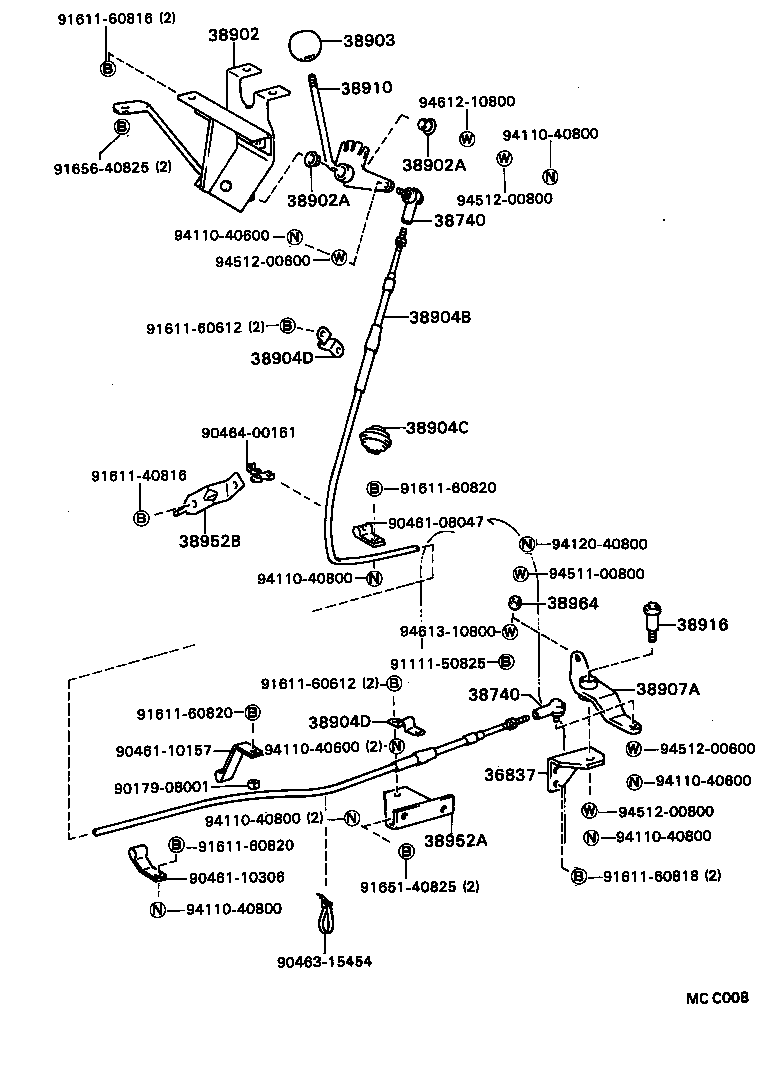

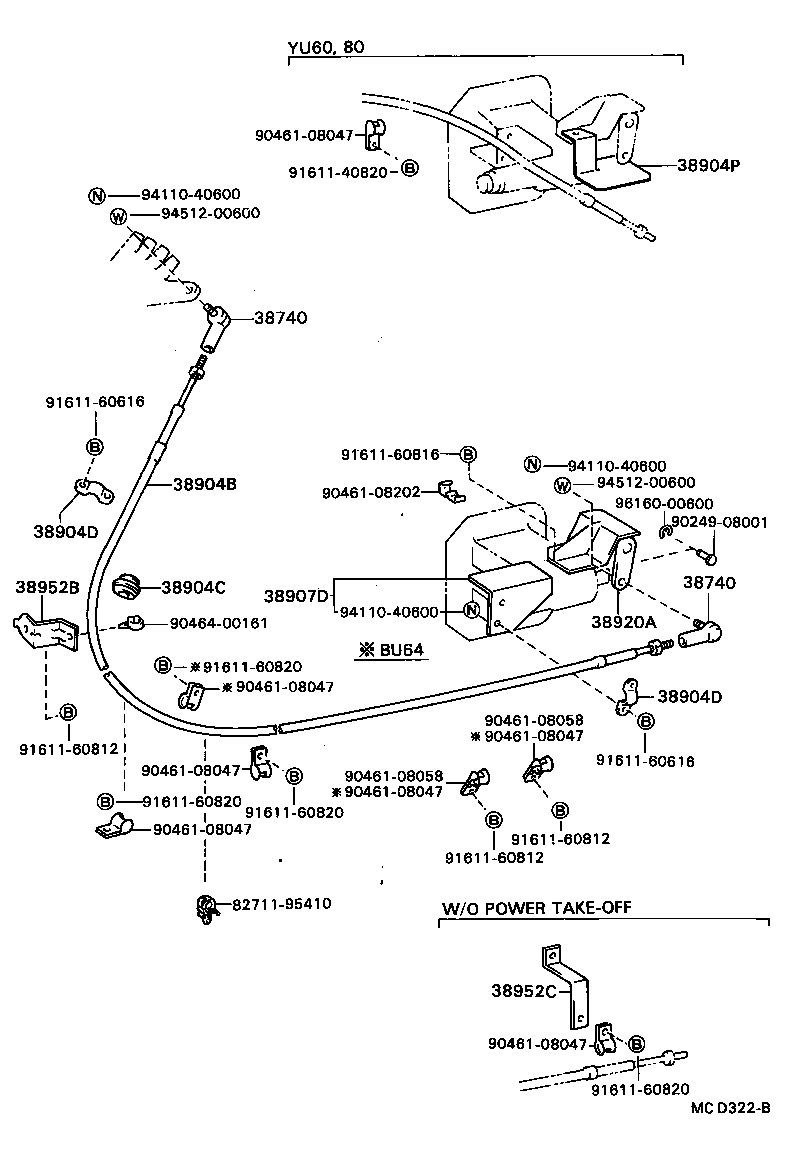

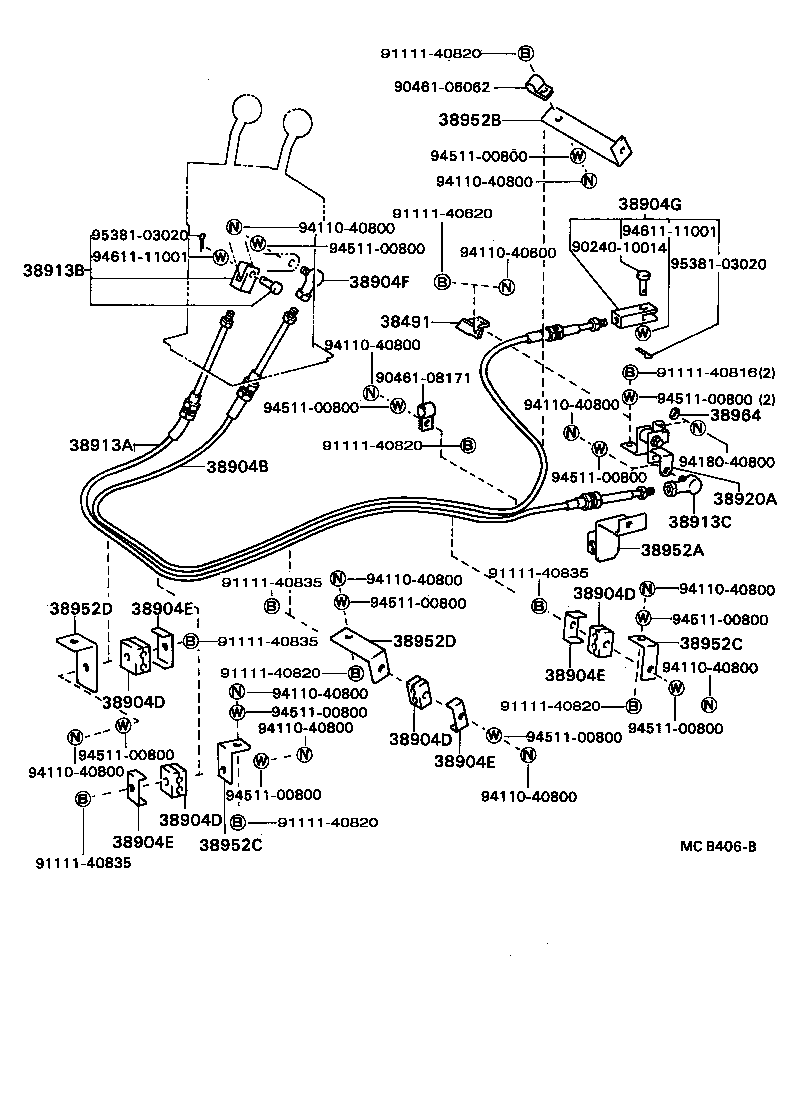

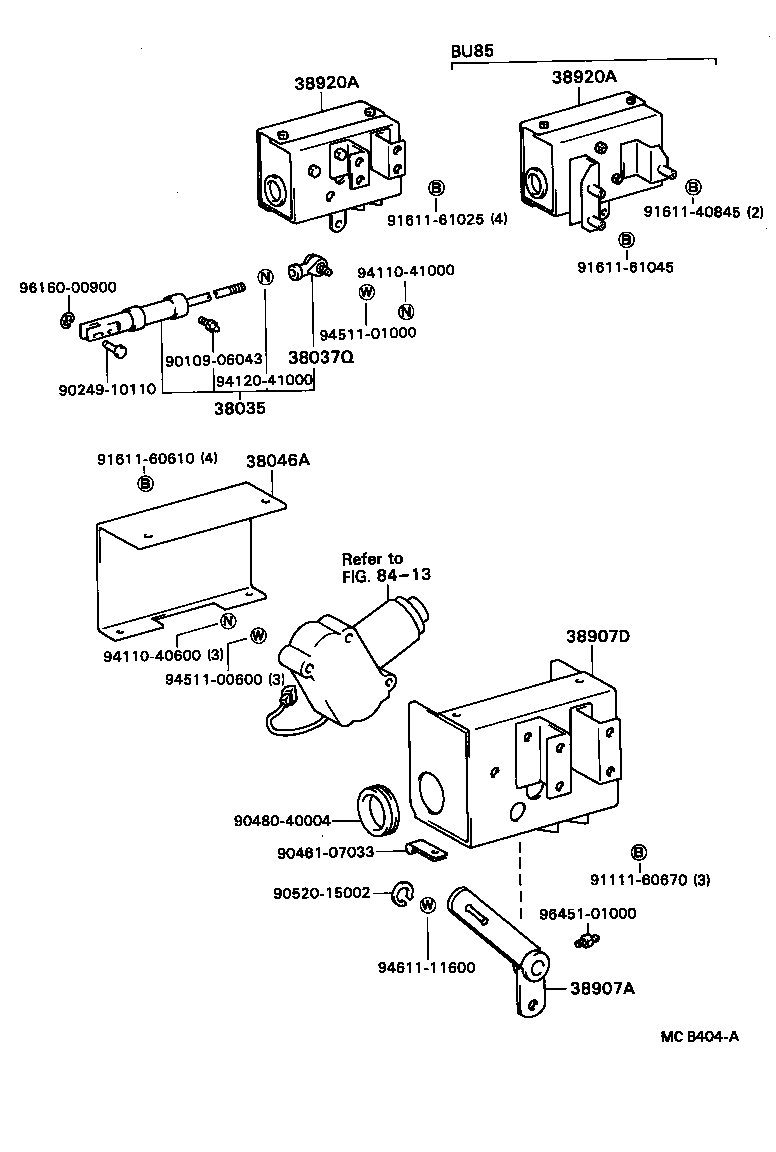

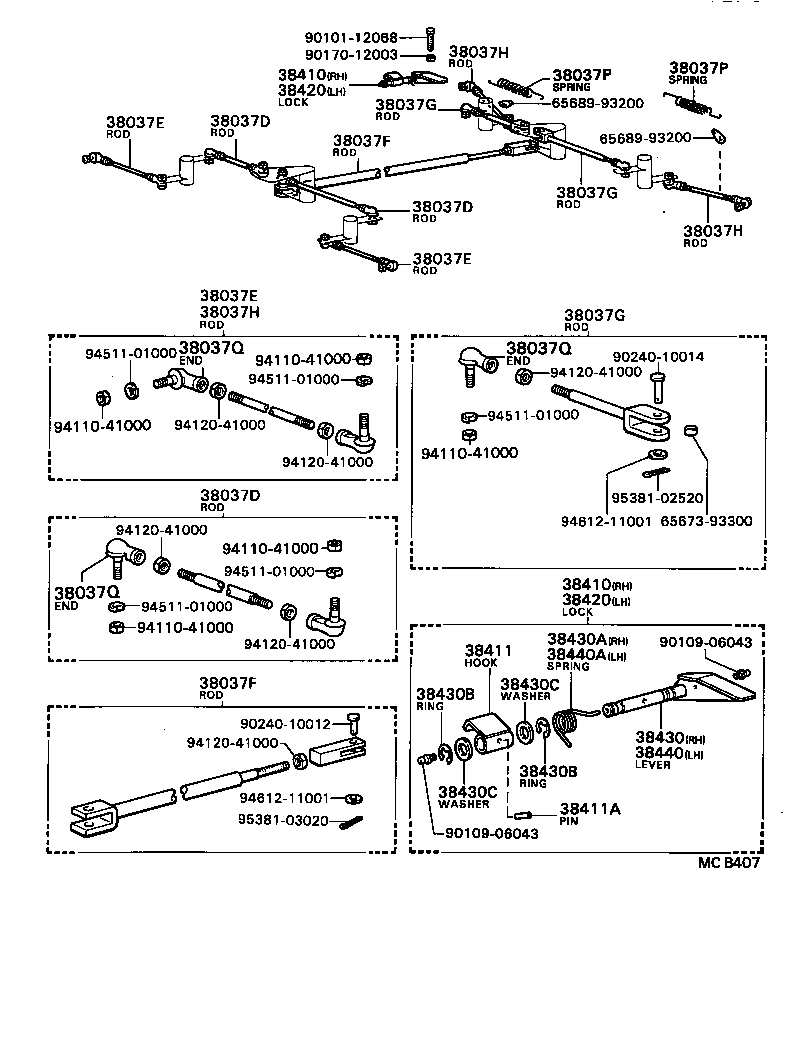

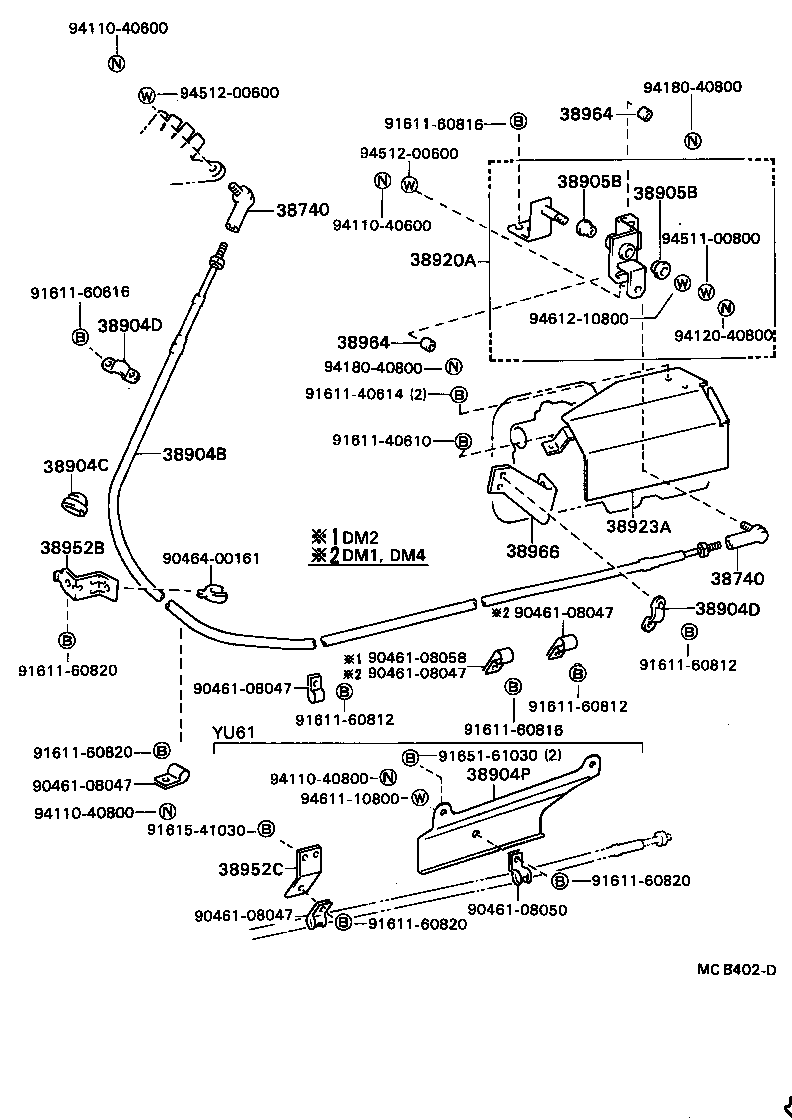

Figure MCB401C MCB401C 1984-09 → — Figure MCD322B MCD322B 1984-09 → — Figure MCB402D MCB402D 1984-09 → — Figure MCB403B MCB403B 1984-09 → — Figure MCC008 MCC008 1984-10 → — Figure MCB404A MCB404A 1984-09 → — Figure MCB405A MCB405A 1984-09 → — Figure MCB406B MCB406B 1984-09 → — Figure MCB407 MCB407 1984-09 → —

Part groups

PNCDescription
36837 Bracket, Power Take-off Shift Lever
38035 Rod Assy, Power Take-off Control
38037D Rod, Select Control NO.1
38037E Rod Assy, Select Control Front NO.2
38037F Rod, Select Control NO.3
38037G Rod, Select Control NO.4
38037H Rod, Select Control NO.5
38037P Spring, Tension (FOR SELECT CONTROL ROD)
38037Q Joint Assy, Ball
38046A Cover, Power Take-off Control Lever
38410 Lock Assy, Rear Hinge, RH
38411 Hook, Rear Hinge Lock
38411A Pin, Slotted Spring
38420 Lock Assy, Rear Hinge, LH
38430 Lever Assy, Rear Hinge Lock, RH
38430A Spring, Torsion, RH
38430B Ring, E (FOR HINGE LOCK LEVER)
38430C Washer, Plate (FOR HINGE LOCK LEVER)
38440 Lever Assy, Rear Hinge Lock, LH
38440A Spring, Torsion
38740 End Assy, Connecting Rod
38902 Bracket Sub-assy, Control Shaft, Upper
38902A Bush, Control Shaft Upper Bracket
38903 Knob Sub-assy, Control
38904B Cable Assy, Push Pull
38904C Grommet, Push Pull Cable
38904D Clamp, Cable Push Pull
38904E Holder, Cable Push Pull Clamp
38904F End Assy, Push Pull Cable, NO.1
38904G End Assy, Push Pull Cable, NO.2
38905B Bush (FOR POWER TAKE-OFF CONTROL ARM)
38906 Bracket Sub-assy, Control Shaft, Lower
38906A Bush, Control Link
38907A Lever Sub-assy, Power Take-off Control
38907D Stay Sub-assy, Power Take-off Control
38910 Lever Assy, Dump
38910B Shaft, Control Lever
38913 Lever, Pump Control
38913A Cable Sub-assy, Push Pull (FOR PUMP CONTROL)
38913B End Assy, Control Cable, NO.1 (FOR PUMP CONTROL)
38913C End Assy, Control Cable, NO.2 (FOR PUMP CONTROL)
38916 Pin, Control Shift
38916A Knob, Control Lever
38919 Lever, Power Take-off Control
38920A Lever Assy, Power Take-off Control, NO.1
38923A Protector, Power Take-off Control
38939 Rod, Cable Connecting
38939A Turnbuckle(FOR CABLE CONNECTING ROD)
38946A Knob, Valve Lock Lever
38952 Bracket, Control Link
38952A Bracket, Control Cable Clamp, NO.1
38952B Bracket, Control Cable Clamp, NO.2
38952C Bracket, Control Cable Clamp, NO.3
38952D Bracket, Control Cable Clamp, NO.4
38964 Collar, Control Lever
38966 Bracket, Cable Clamp, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
