Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan
Discontinued model
Data version 1988-01
Hoist Cylinder

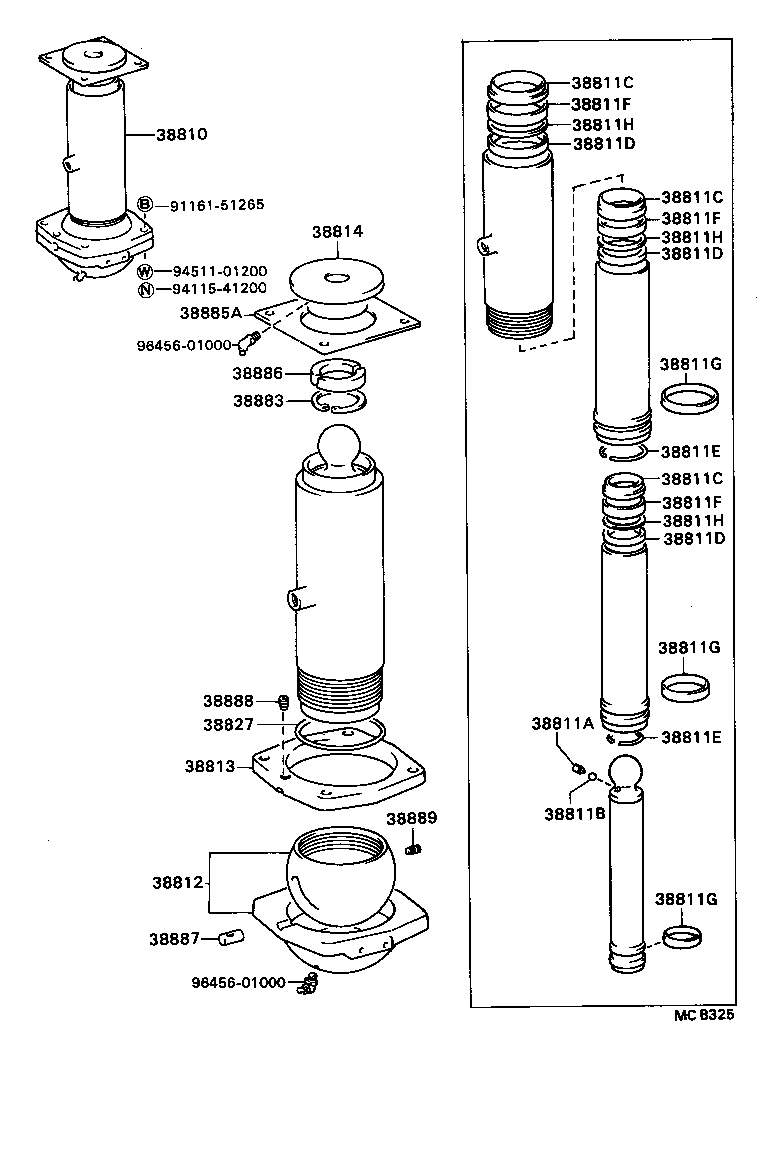

33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 38802 | Head Sub-assy, Cylinder |
| 38802B | Seal, Oil (FOR CYLINDER HEAD) |
| 38803 | Valve Sub-assy, Slow Return |
| 38804C | Retainer Sub-assy, Slow Return Spring |
| 38810 | Cylinder Assy, Hoist |
| 38810A | Plug, NO.1 (FOR HOIST CYLINDER) |
| 38810B | Screw (FOR HOIST CYLINDER) |
| 38810C | Ring, O (FOR HOIST CYLINDER) |
| 38811A | Plug (FOR HOIST CYLINDER) |
| 38811B | Ball (FOR HOIST CYLINDER) |
| 38811C | Seal, Dust, NO.1 (FOR HOIST CYLINDER) |
| 38811D | Seal, Dust, NO.2 (FOR HOIST CYLINDER) |
| 38811E | Ring, Hole Snap (FOR HOIST CYLINDER) |
| 38811F | Ring Wear, NO.1 |
| 38811G | Ring Wear, NO.2 |
| 38811H | Ring (FOR HOIST CYLINDER) |
| 38812 | Support, Hoist Cylinder End |
| 38813 | Cover, Hoist Cylinder Support (FOR END) |
| 38814 | Support, Hoist Cylinder Head |
| 38823 | Cover, Cylinder Head |
| 38827 | Ring, O (FOR HOIST CYLINDER) |
| 38831 | Rod, Hoist Cylinder Piston |
| 38834 | Nut, Dismounting |
| 38835 | Washer, Lock (FOR HOIST PISTON SET NUT) |
| 38841 | Piston, Hoist Cylinder |
| 38842 | Ring, Hoist Cylinder Piston |
| 38870 | Valve Assy, Flow Control |
| 38883 | Ring, Hole Snap (FOR HOIST CYLINDER) |
| 38885A | Cover, Hoist Cylinder Support (FOR HEAD) |
| 38886 | Collar, Hoist Cylinder Head |
| 38887 | Pin(FOR HOIST CYLINDER) |
| 38888 | Plug, Screw (FOR HOIST CYLINDER SUPPORT) |
| 38889 | Plug, Screw (FOR HOIST CYLINDER) |
