Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

14 part groups · 8 illustrations

Illustrations

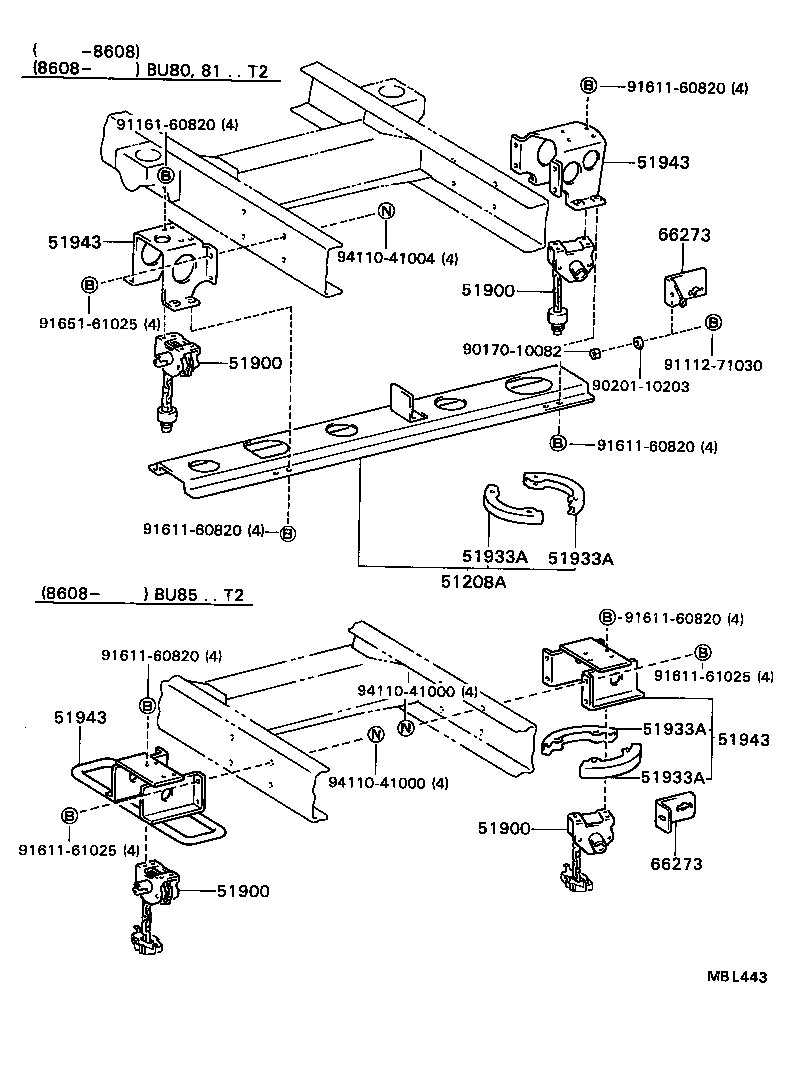

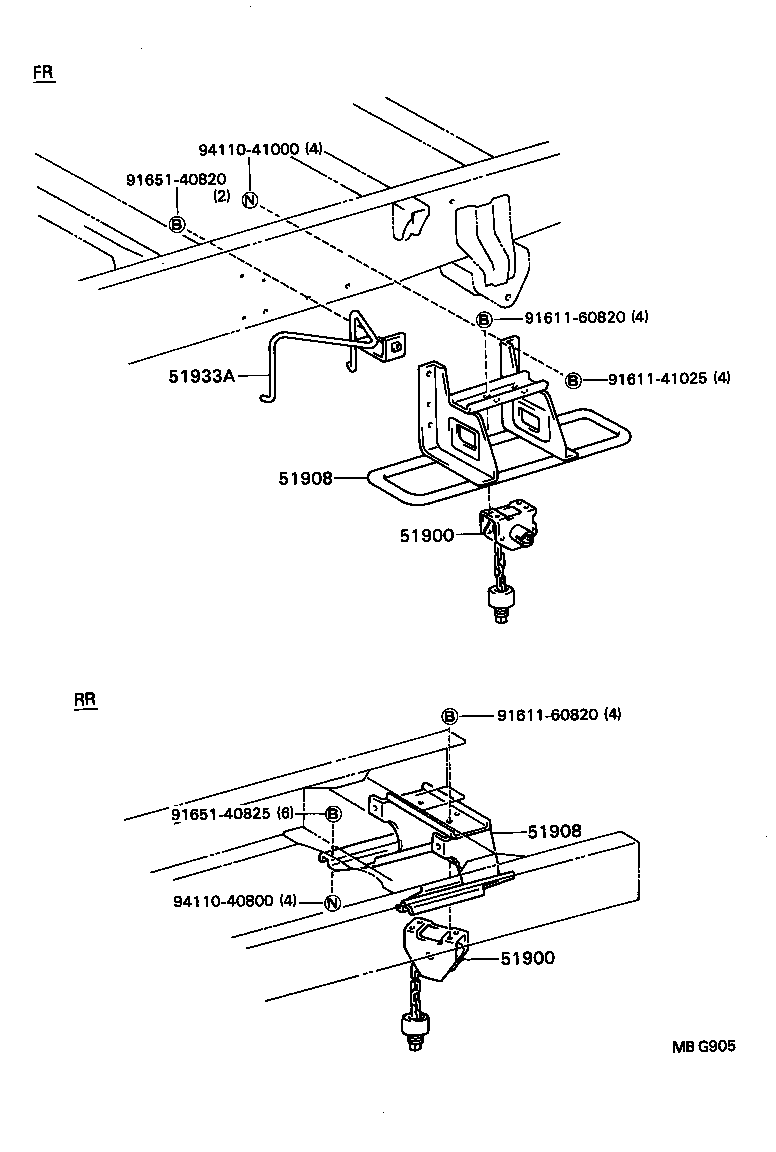

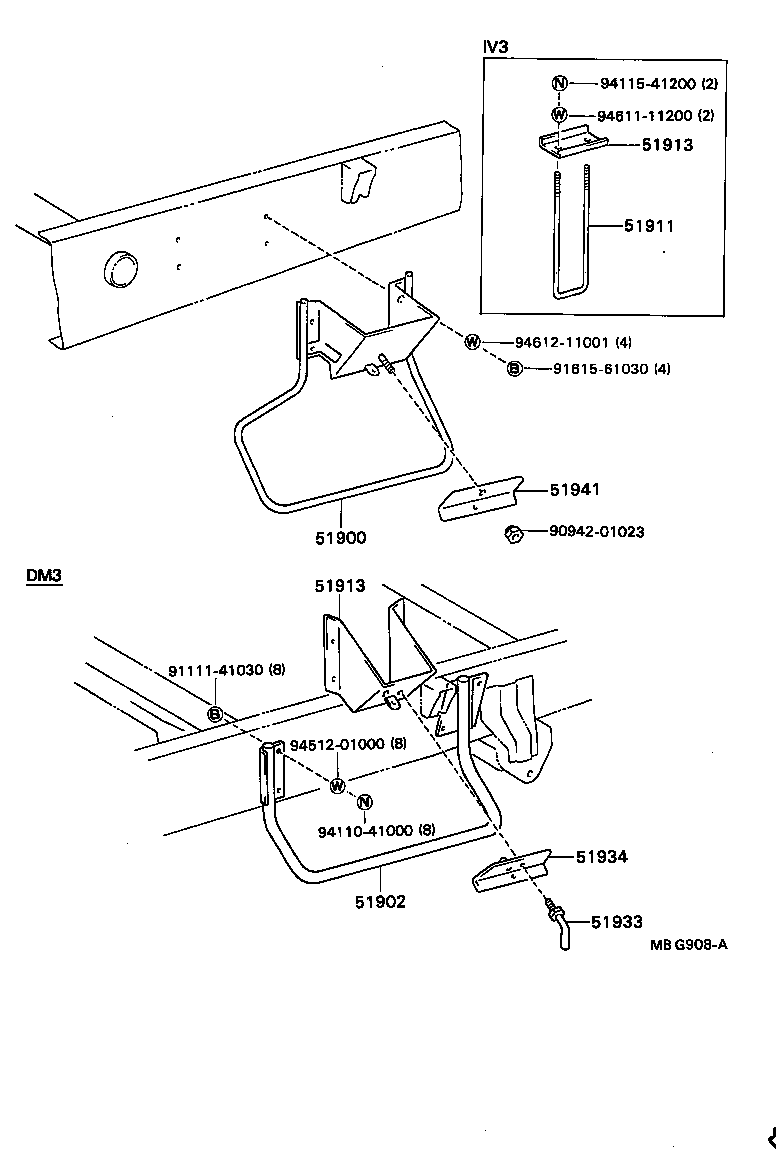

Figure MBG904A MBG904A 1984-09 → — Figure MBG905 MBG905 1984-09 → — Figure MBG906B MBG906B 1984-09 → — Figure MBG906B MBG906B 1984-10 → — Figure MBL443 MBL443 1984-09 → — Figure MBG908A MBG908A 1984-09 → — Figure MBJ846A MBJ846A 1985-08 → — Figure MBK560 MBK560 1985-10 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51902 Carrier Sub-assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51913 Plate, Spare Wheel Clamp
51933 Bolt, Spare Wheel Carrier Eye
51933A Stopper, Spare Wheel, NO.1
51934 Seat, Eye Bolt Clamp
51935 Nut, Spare Wheel Carrier Eye
51941 Stopper, Spare Wheel Carrier
51943 Bracket, Spare Wheel Carrier, NO.1
51948 Stopper, Spare Wheel Carrier Auxiliary
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
