Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 3 illustrations

Illustrations

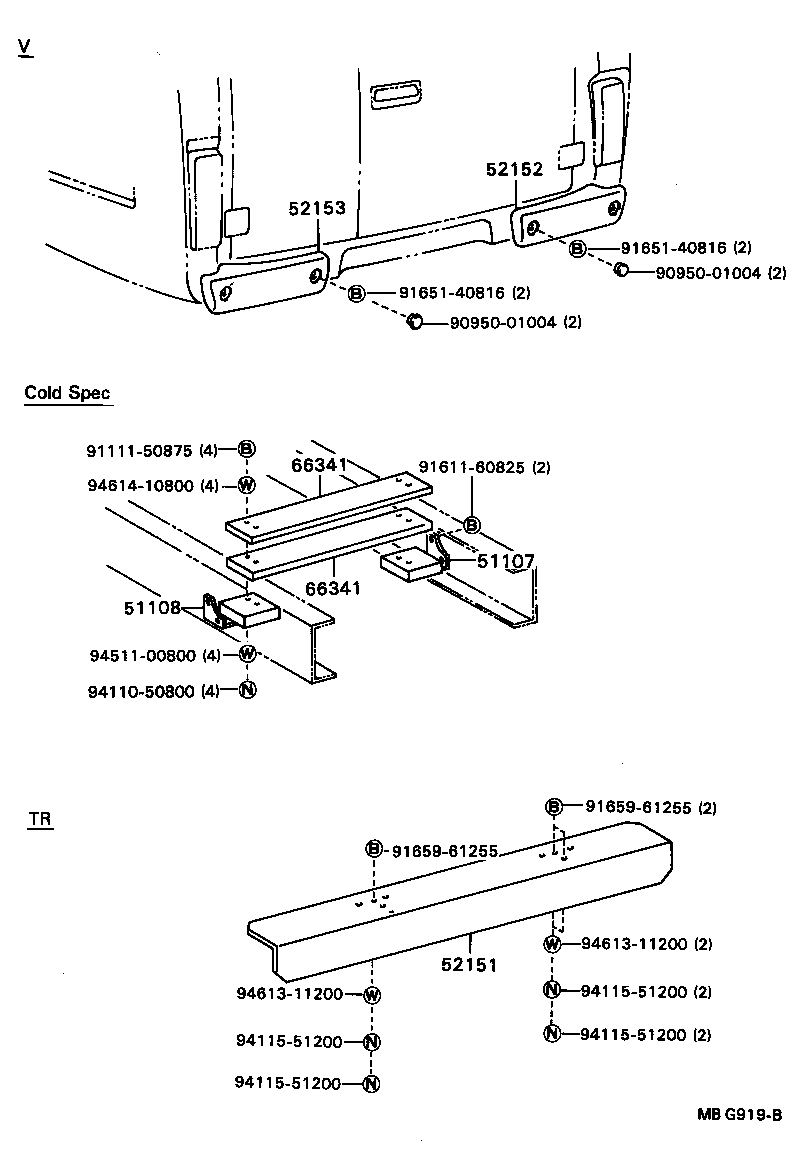

Figure MBG918C MBG918C 1984-09 → — Figure MBG919B MBG919B 1984-09 → — Figure MBG920B MBG920B 1984-09 → —

Part groups

PNCDescription
51107 Bracket Sub-assy, Frame Rear Weight, RH
51108 Bracket Sub-assy, Frame Rear Weight, LH
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52152 Bar, Rear Bumper, RH
52153 Bar, Rear Bumper, LH
66321 Bumper, Gate Rubber
66341 Weight, Frame, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
