Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

7 part groups · 4 illustrations

Illustrations

Figure MBG922B

MBG922B 1984-09 → —

Figure MBG923B

MBG923B 1984-09 → —

Figure MBG924A

MBG924A 1984-09 → —

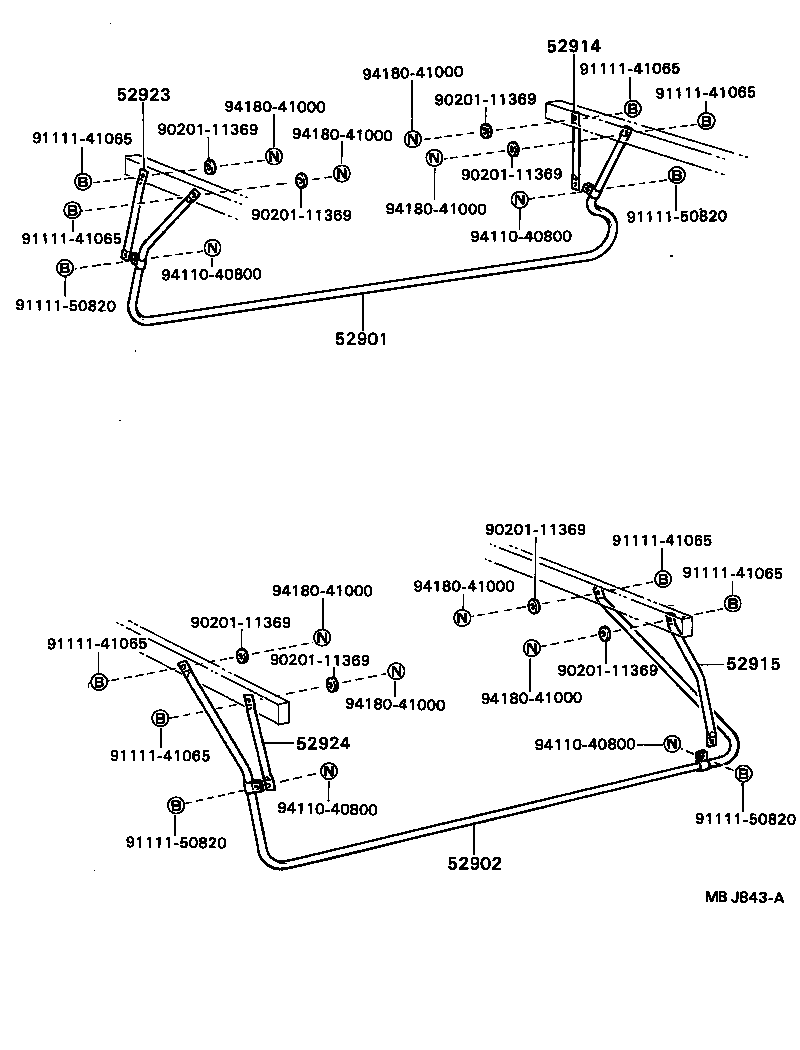

Figure MBJ843A

MBJ843A 1985-10 → —

Part groups

PNC	Description
52901	Bumper Sub-assy, Side, RH NO.1
52902	Bumper Sub-assy, Side, LH NO.1
52914	Stay, Side Bumper Rear, RH NO.1
52915	Stay, Side Bumper Rear, LH NO.1
52917	Stay, Side Bumper Center, NO.1
52923	Stay, Side Bumper, Front RH
52924	Stay, Side Bumper, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
