Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan
Discontinued model
Data version 1988-01

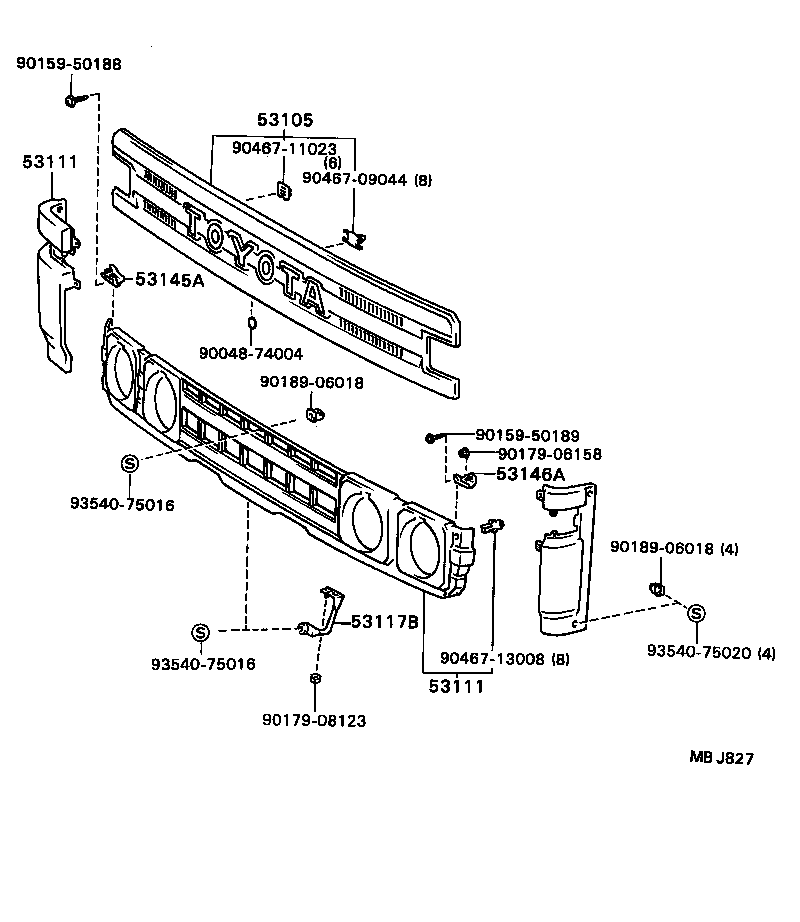

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53105 | Stay, Radiator Grille, Center |
| 53111 | Grille, Radiator |
| 53117B | Bracket, Radiator Grille, Lower |
| 53145A | Bracket, Radiator Grille, Garnish, NO.1 |
| 53146A | Bracket, Radiator Grille, Garnish, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
