Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

31 part groups · 2 illustrations

Illustrations

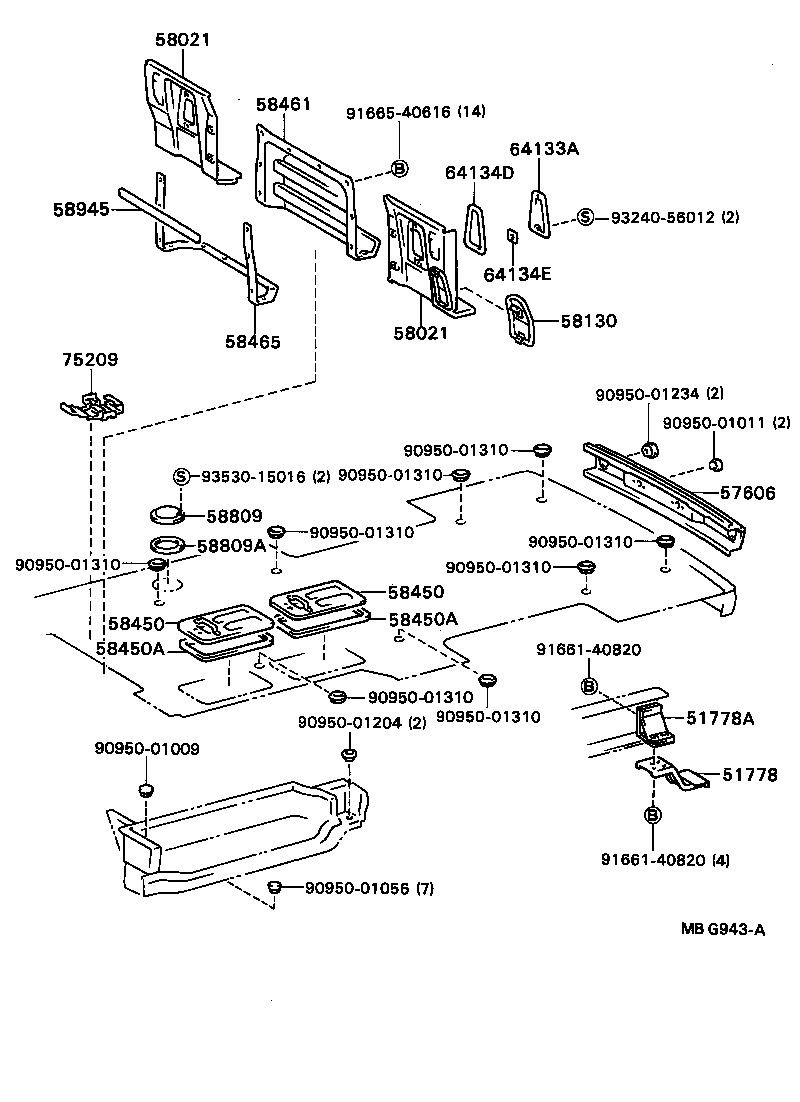

Figure MBG942D MBG942D 1984-09 → — Figure MBG943A MBG943A 1984-09 → —

Part groups

PNCDescription
51778 Step Assy, Back
51778A Retainer, Back Step
51790 Step Assy, Rear Floor
51790A Plate Sub-assy, Rear Step, RH
51790B Plate Sub-assy, Rear Step, LH
57101 Member Sub-assy, Front Side, RH
57606 Crossmember Sub-assy, Rear Floor Rear, Inner
58021 Panel Sub-assy, Header
58027B Reinforce Sub-assy, Seat Belt Anchor
58028A Reinforce Sub-assy, Seat Belt Anchor, NO.2
58130 Cover Assy, Reserve Tank Service Hole
58303B Step Sub-assy, Rear Floor, RH
58304B Step Sub-assy, Rear Floor, LH
58397B Stay, Rear Step, RH
58398B Stay, Rear Step, LH
58450 Cover Assy, Battery Service Hole
58450A Packing, Battery Service Hole Cover
58461 Cover, Transmission Service Hole
58465 Packing, Transmission Service Hole Cover, NO.1
58809 Cover Sub-assy, Fuel Tank
58809A Packing, Fuel Hole Cover
58945 Packing, Transmission Service Hole Cover
61335B Retainer, Seat Belt Anchor
61767C Retainer, Seat Belt Anchor, NO.2
64133A Cover, Header Panel
64134D Packing, Header Panel Cover
64134E Seal, Header Panel Cover
64177B Stopper, Rear Mounting Bracket, RH
64178B Stopper, Rear Mounting Bracket, LH
75209 Base Sub-assy, Jack Holder
75255 Cover, Step Plate Rear, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
