Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

26 part groups · 7 illustrations

Illustrations

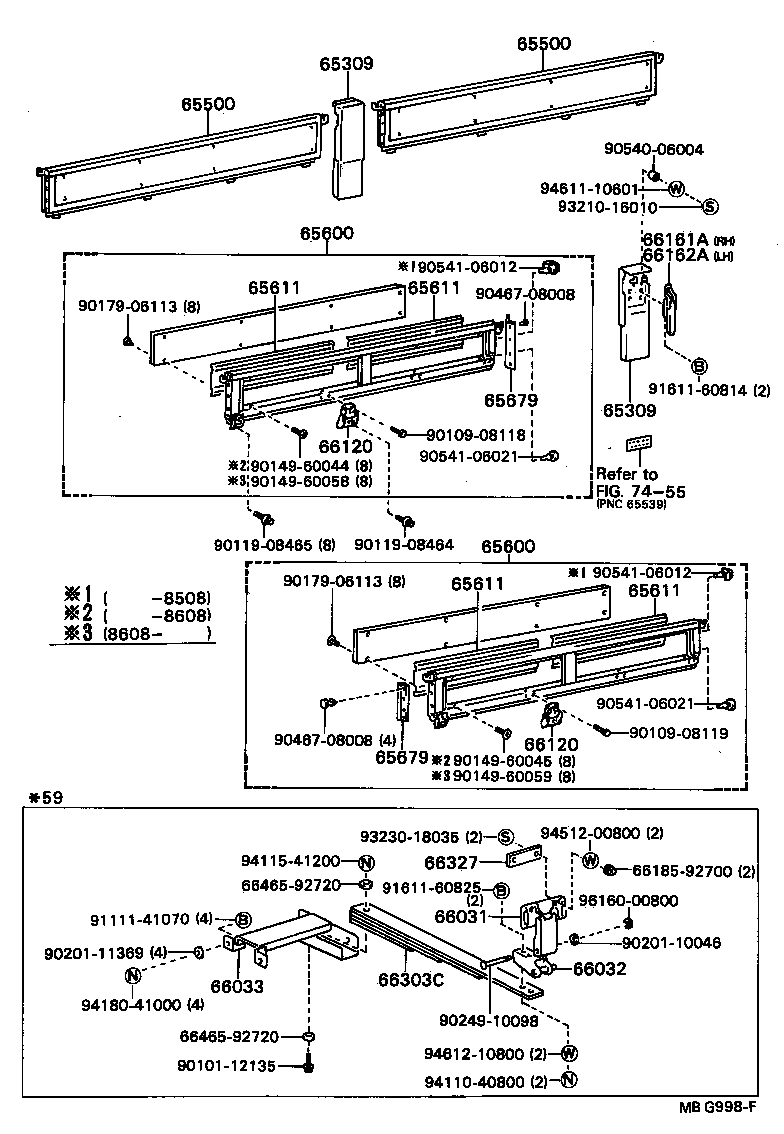

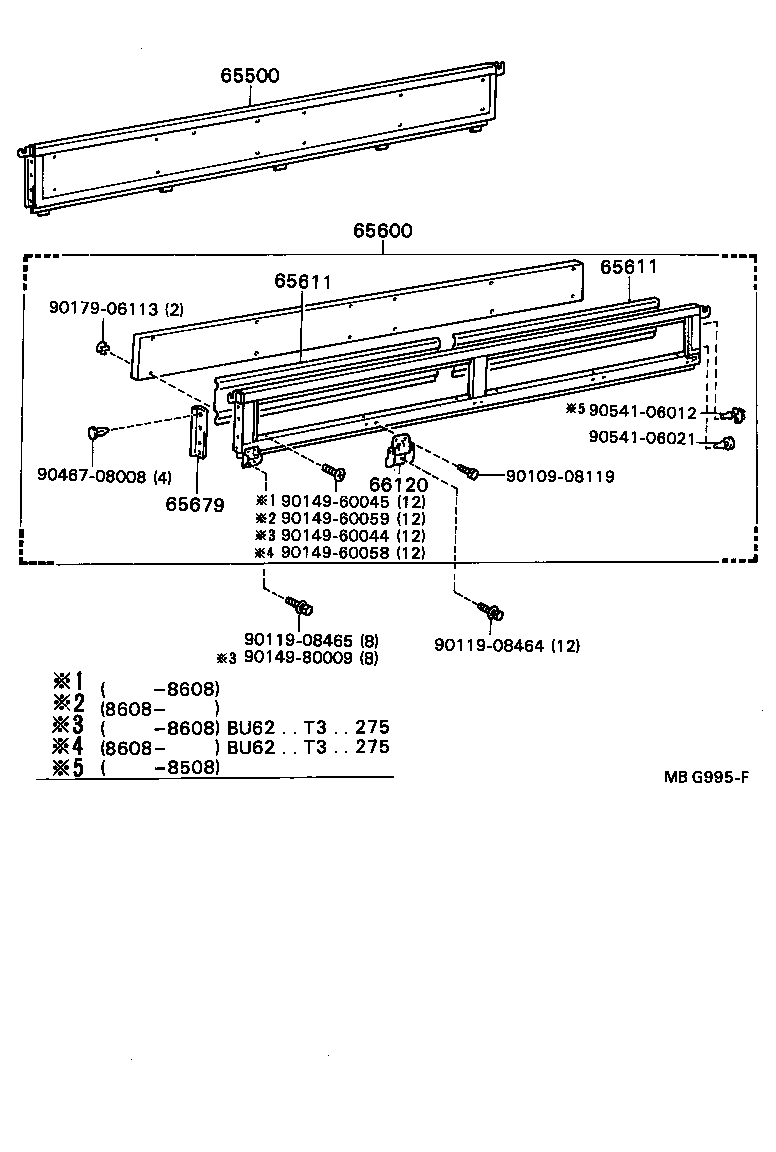

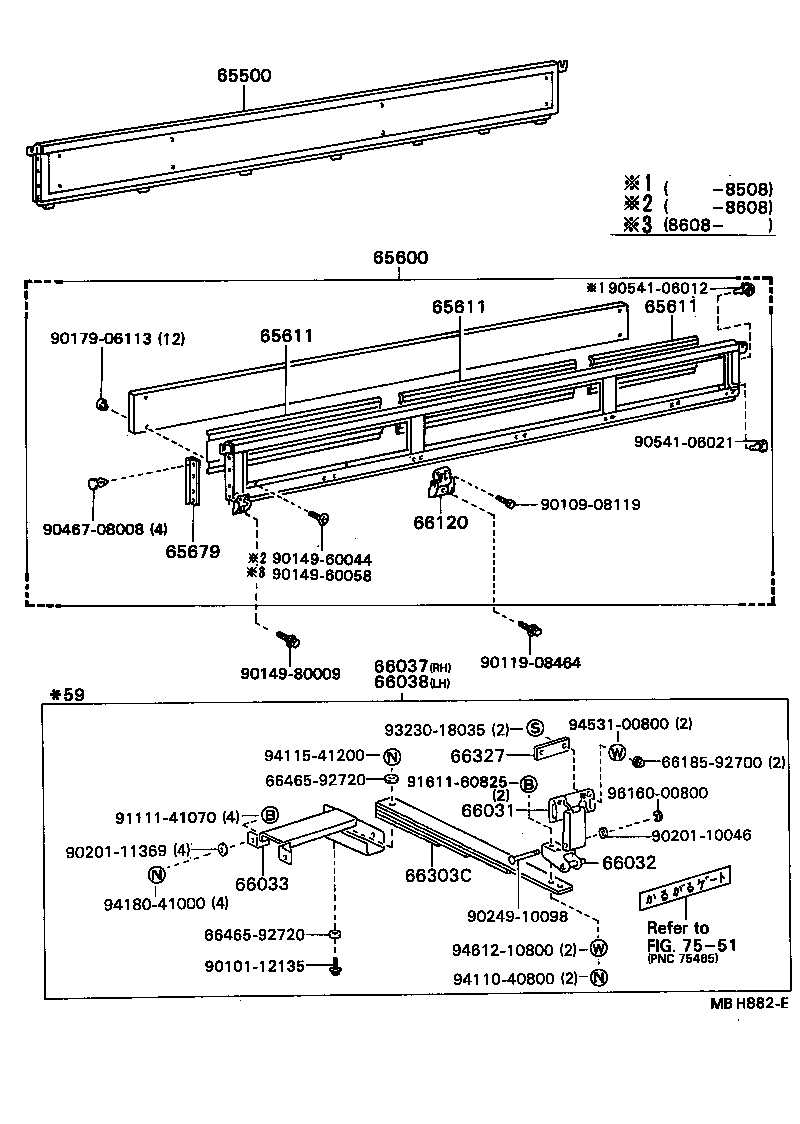

Figure MBG994B MBG994B 1984-09 → — Figure MBG995F MBG995F 1984-09 → — Figure MBG996F MBG996F 1984-09 → — Figure MBH882E MBH882E 1984-09 → — Figure MBG998F MBG998F 1984-09 → — Figure MBH001B MBH001B 1984-09 → — Figure MBH002 MBH002 1984-09 → —

Part groups

PNCDescription
65309 Post Sub-assy, Center
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65570 Post Assy, Side Panel Rear End, RH
65580 Post Assy, Side Panel Rear End, LH
65600 Panel Assy, Rear Body Side, LH
65611 Panel, Side Gate
65679 Drip, Side Gate
66031 Bracket Sub-assy, Gate Helper, NO.1
66032 Bracket Sub-assy, Gate Helper, NO.2
66033 Bracket Sub-assy, Gate Helper, NO.3
66037 Gate Helper Set, Side, RH
66038 Gate Helper Set, Side, LH
66120 Hinge Assy, Side Gate
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66161A Handle, Side Gate Latch, RH
66162A Handle, Side Gate Latch, LH
66303C Spring Sub-assy, Gate Helper Set
66311 Hook, Rope
66321B Bumper, Gate Rubber
66327 Plate, Gate Helper
66332 Cushion, Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
