Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

12 part groups · 5 illustrations

Illustrations

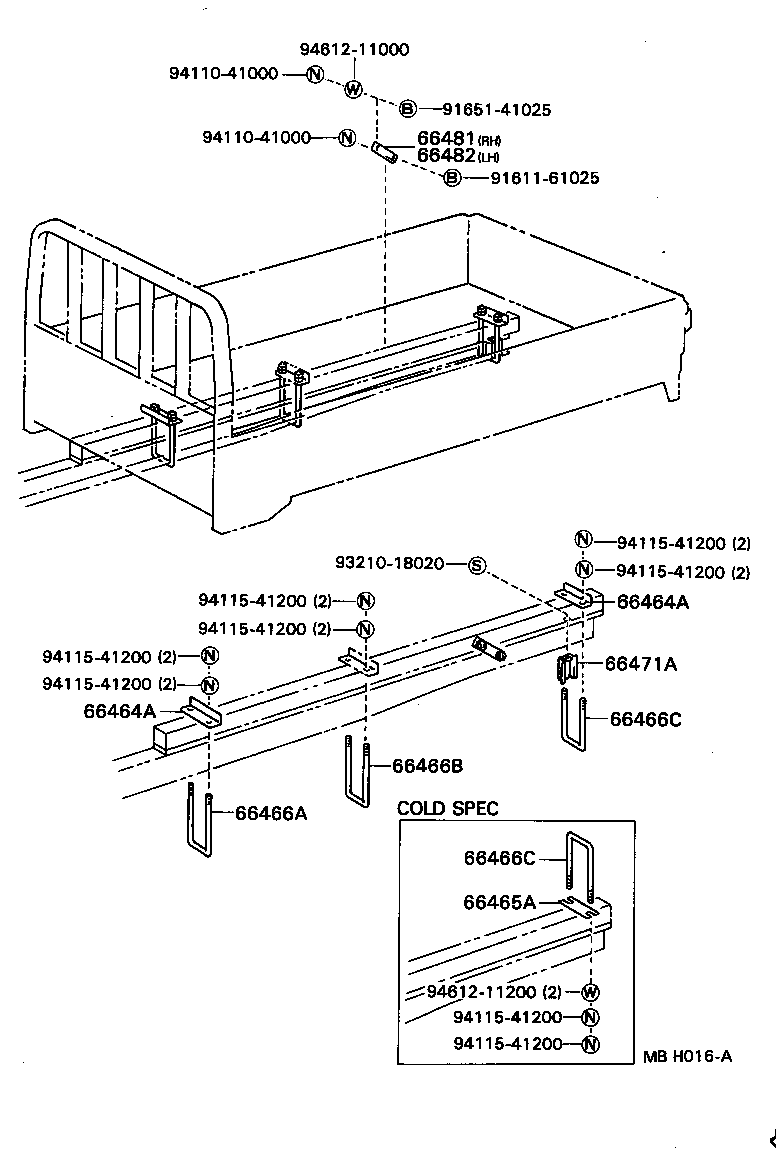

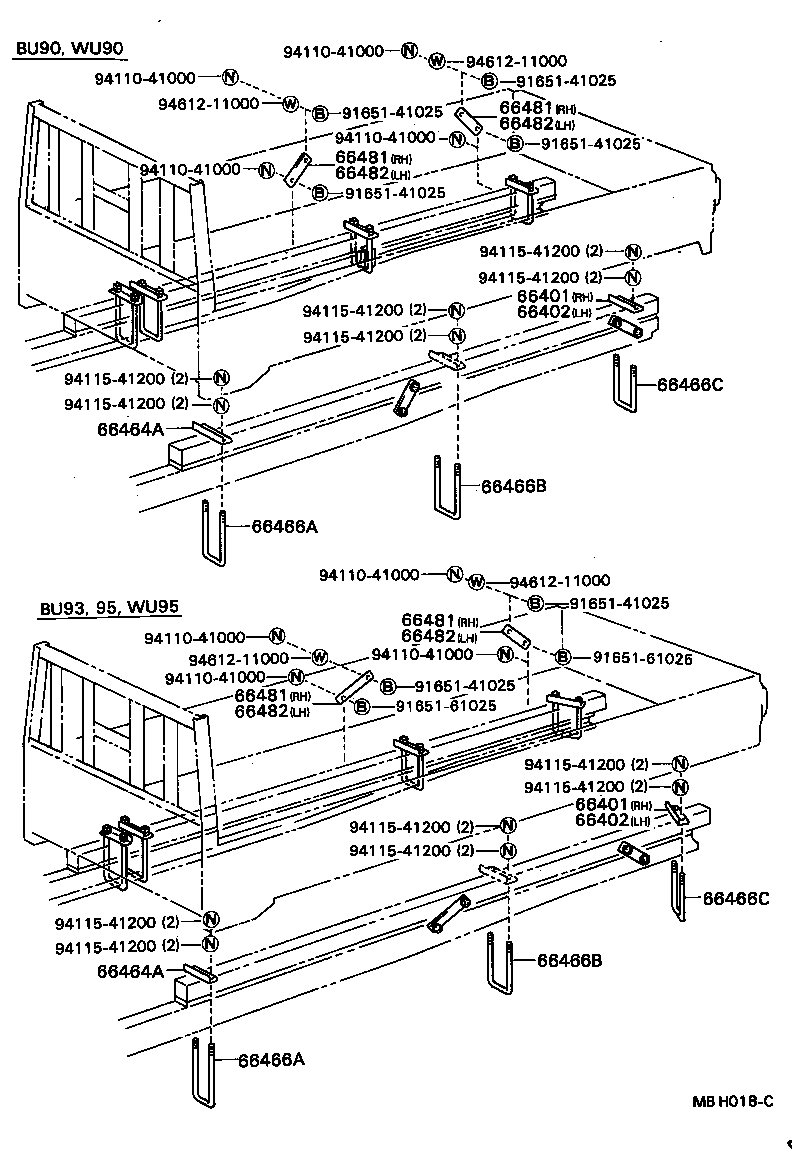

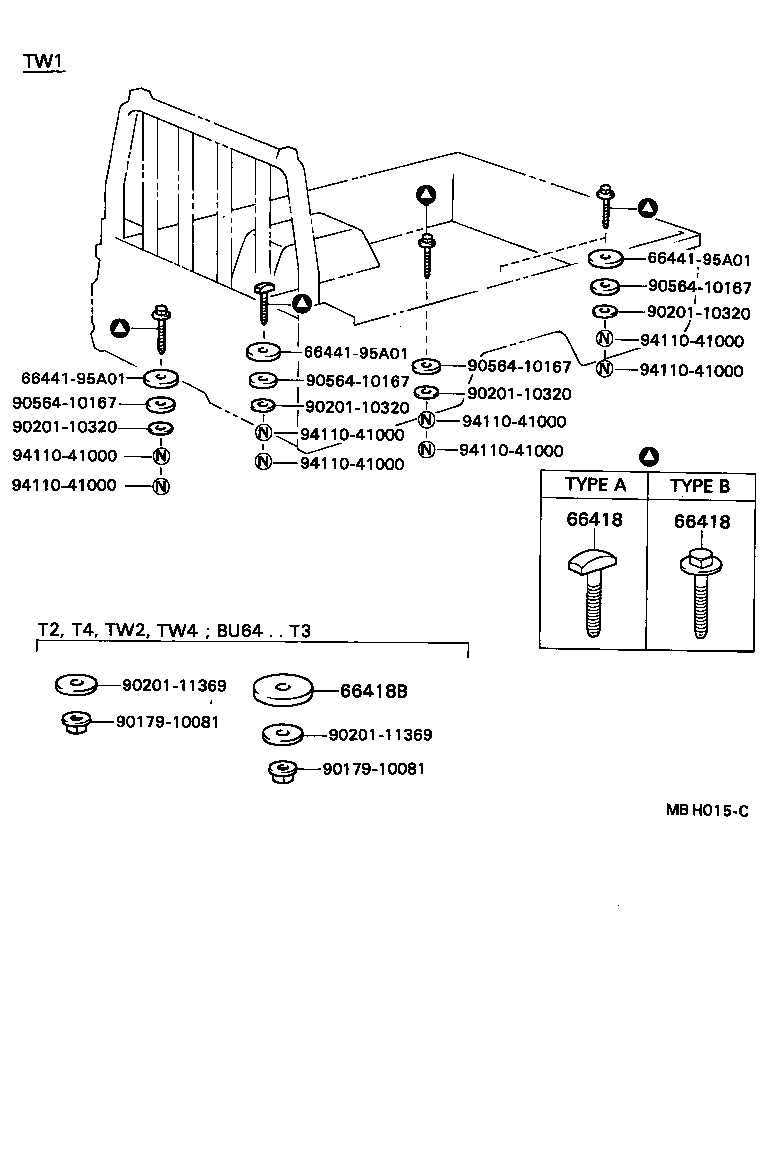

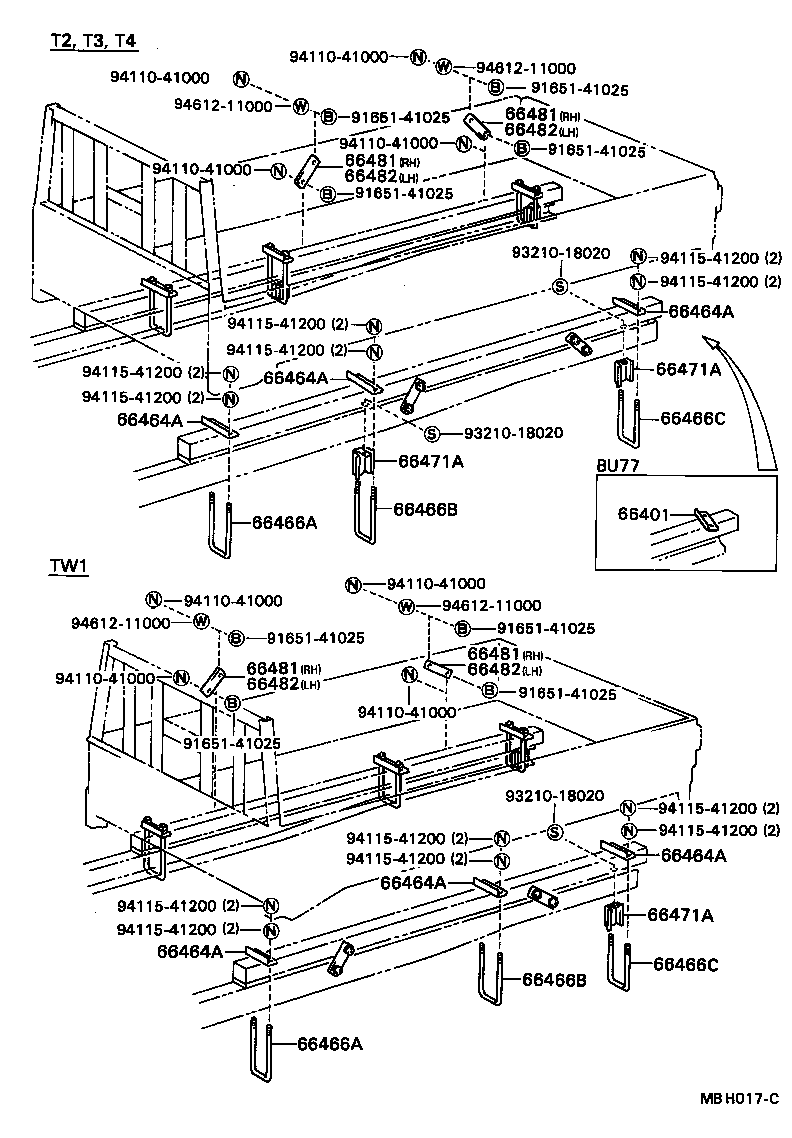

Figure MBH014A MBH014A 1984-09 → — Figure MBH015C MBH015C 1984-09 → — Figure MBH016A MBH016A 1984-09 → — Figure MBH017C MBH017C 1984-09 → — Figure MBH018C MBH018C 1984-09 → —

Part groups

PNCDescription
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66418 Bolt, Mounting
66418B Shim, Mounting
66464A Plate, U Bolt
66465A Protector, U Bolt
66466A Bolt, U, NO.1
66466B Bolt, U, NO.2
66466C Bolt, U, NO.3
66471A Reinforcement, Frame U Bolt
66481 Brace, Sill TO Frame, RH
66482 Brace, Sill TO Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
