Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

84 part groups · 6 illustrations

Illustrations

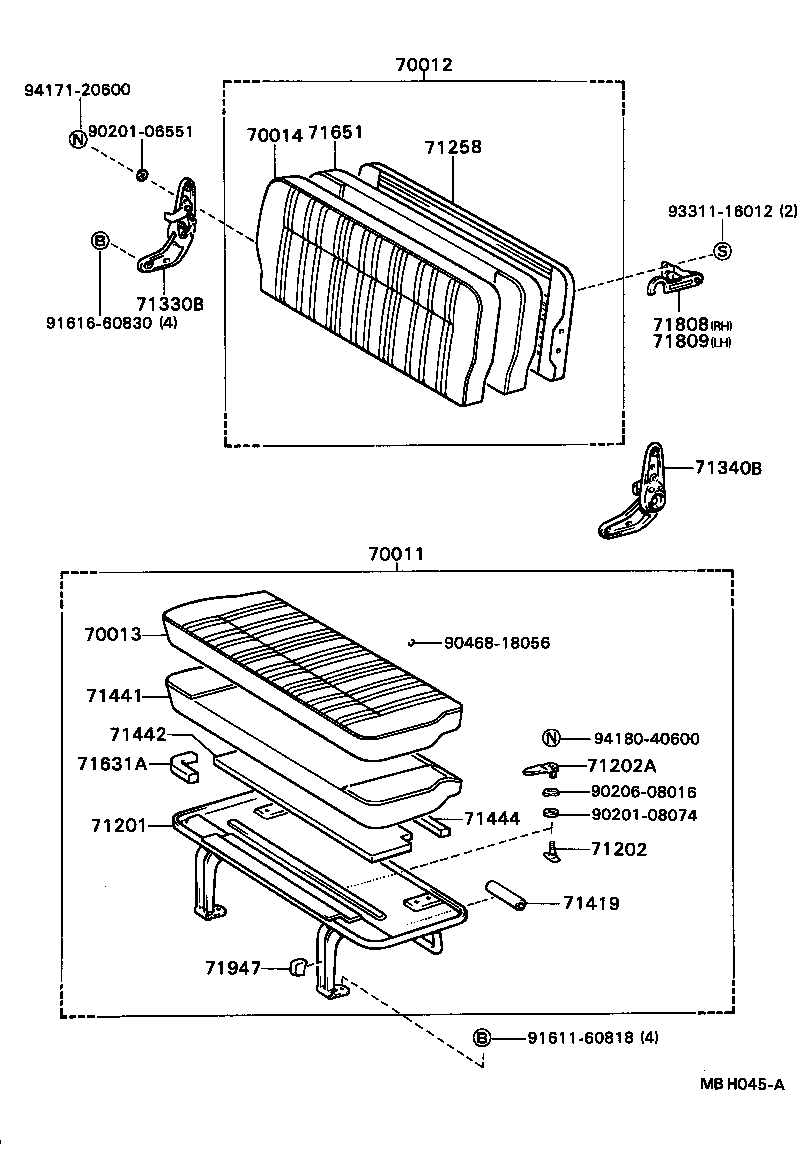

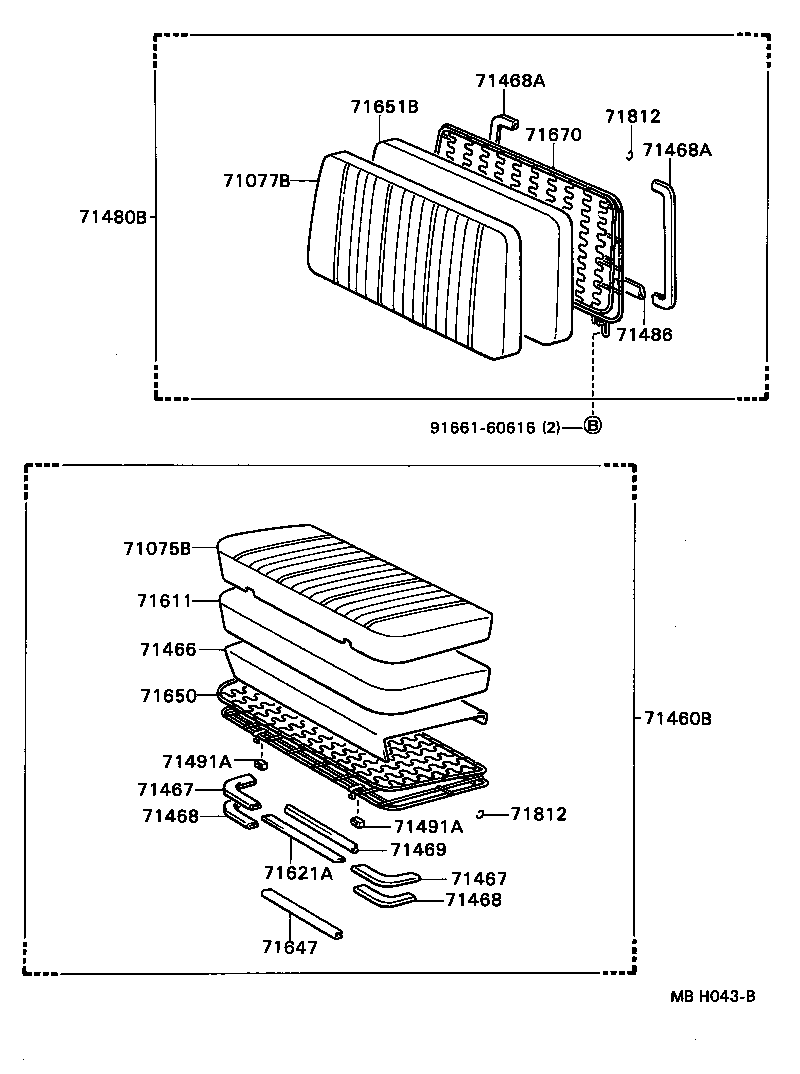

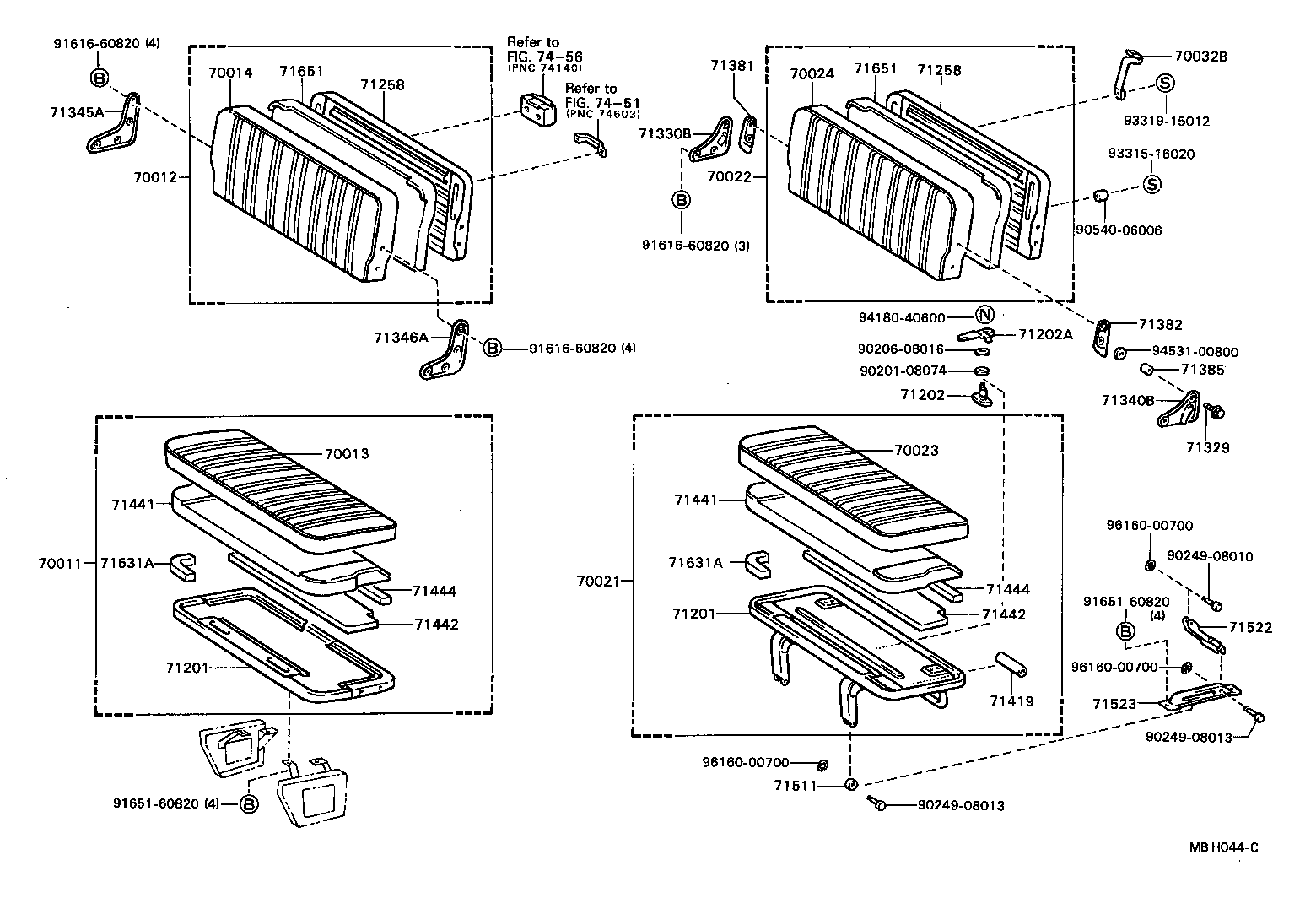

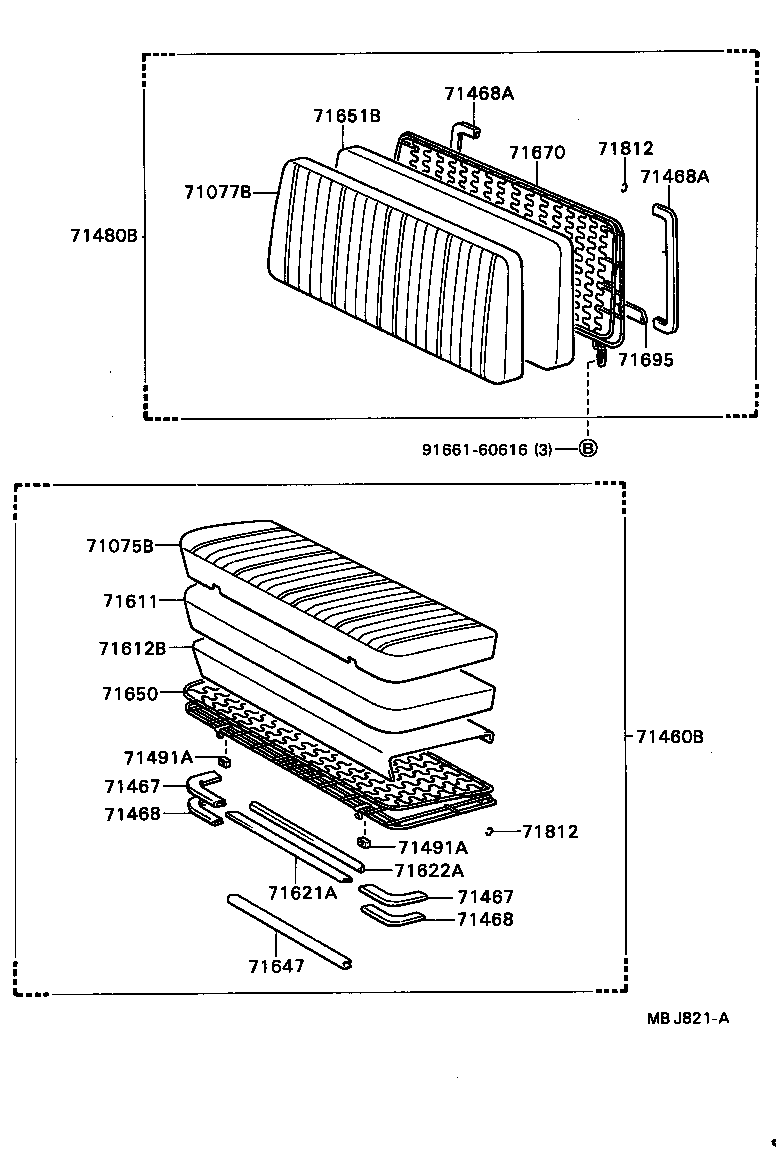

Figure MBH041D MBH041D 1984-09 → — Figure MBH042 MBH042 1984-09 → — Figure MBH043B MBH043B 1984-09 → — Figure MBJ821A MBJ821A 1984-09 → — Figure MBH045A MBH045A 1984-09 → — Figure MBH044C MBH044C 1984-09 → —

Part groups

PNCDescription
70011 Cushion Assy, NO.1 Seat
70012 Back Assy, NO.1 Seat
70012B Band, Engine Service Hole Cover Support
70013 Cover Assy, NO.1 Seat Cushion
70014 Cover Assy, NO.1 Seatback
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
70032B Band, Rear Seatback NO.2
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71202 Stopper Sub-assy, Rear Seat Leg
71202A Handle, Rear Seat Leg Stopper
71258 Panel Sub-assy, Rear Seatback
71319A Striker, Front Seatback
71329 Bolt, Rear Seat Hinge
71330B Hinge Assy, Rear NO.2 Seat, RH
71340B Hinge Assy, Rear NO.2 Seat, LH
71345A Stay, Rear Seatback, RH
71346A Stay, Rear Seatback, LH
71373B Cover, Front Seatback Lock
71381 Hinge, Rear Seatback Stop, NO.1
71382 Hinge, Rear Seatback Stop, NO.2
71385 Spacer, Rear Seat Hinge
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71419 Cushion (FOR REAR SEAT LEG)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71441 Pad, Rear Seat Cushion
71442 Pad, Rear Seat Cushion, Under
71444 Pad, Rear Seat Cushion, Rear
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71466 Pad, Rear Seat Cushion Under
71467 Pad, Corner
71468 Protector, Rear Seat, NO.1 (FOR SEAT CUSHION)
71468A Protector, Rear Seat, NO.1 (FOR SEATBACK)
71469 Protector, Rear Seat, NO.2
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71486 Protector, Rear Seat, NO.3
71491A Cushion, Rear Seat Set
71511 Roller, Rear Seat Leg
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71522 Link, Rear Seat
71523 Rail, Rear Seat
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71612B Pad, Rear Seat Cushion, B
71621A Pad, Rear Seat Cushion Silencer, A
71622A Pad, Rear Seat Cushion Silencer, B
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71631A Pad, Rear Seat Cushion Corner
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647 Protector, Rear Seat Cushion Edge
71650 Spring Assy, Rear Seat Cushion
71651 Pad, Rear NO.1 Seatback
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71695 Protector, Rear Seatback
71787 Band, Front Seatback Pocket
71791A Retainer, Front Seatback Pocket
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71815A Cover, Front Seat Cushion Hinge, RH
71821 Shield, Front Seat Side, RH
71947 Bumper, Passenger Seat Cushion
71950 Headrest Assy, Front Seat
72090 Lock Assy, Front Seatback
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72111 Rail, Seat Track Upper
72510 Adjuster Assy, Reclining Seatback, RH
73800 Suspension Assy, Seat, RH
73888 Handle, Seat Suspension Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
