Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

15 part groups · 2 illustrations

Illustrations

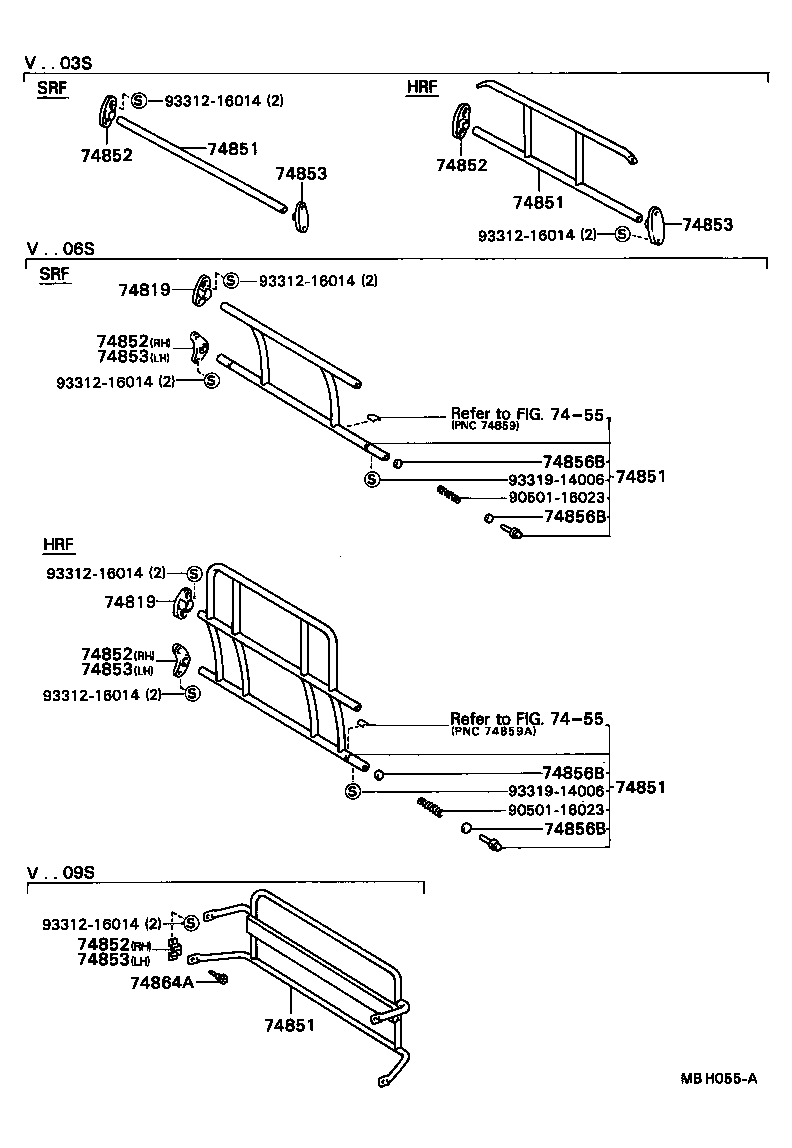

Figure MBH054B MBH054B 1984-09 → — Figure MBH055A MBH055A 1984-09 → —

Part groups

PNCDescription
65915A Bracket, Curtain Rail
65985 Holder, Curtain Rail
74655A Bar, Hand Rail
74657 Bracket, Hand Rail, NO.1
74658A Bracket, Hand Rail, NO.2
74805 Separator Sub-assy
74819 Bracket, Separator Frame
74845A Ornament, Front Seatback Panel
74851 Bar, Separator
74852 Bracket, Separator, RH
74853 Bracket, Separator, LH
74856B Plate, Spring Set
74860 Curtain Assy, Separate
74864A Handle, Rear Separator
74881D Rail, Separator Curtain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
