Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan
Discontinued model
Data version 1988-01

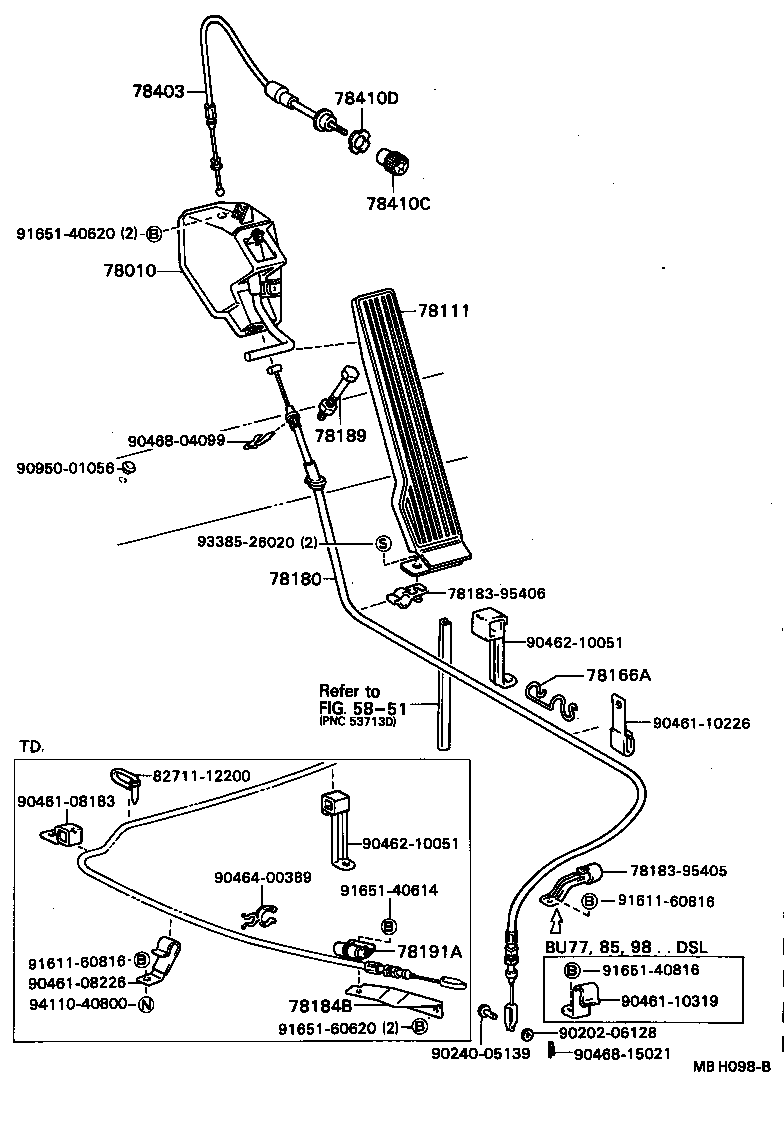

Accelerator Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010 | Link, Accelerator |
| 78111 | Pedal, Accelerator |
| 78166A | Spring, Clamp, NO.1 |
| 78180 | Wire Assy, Accelerator |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78191A | Clamp (FOR ACCELERATOR WIRE SET) |
| 78403 | Cable Sub-assy, Throttle Control |
| 78410C | Knob, Throttle Cable |
| 78410D | Nut, Throttle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
