Heating & Air Conditioning - Water Piping

31 part groups · 6 illustrations

Illustrations

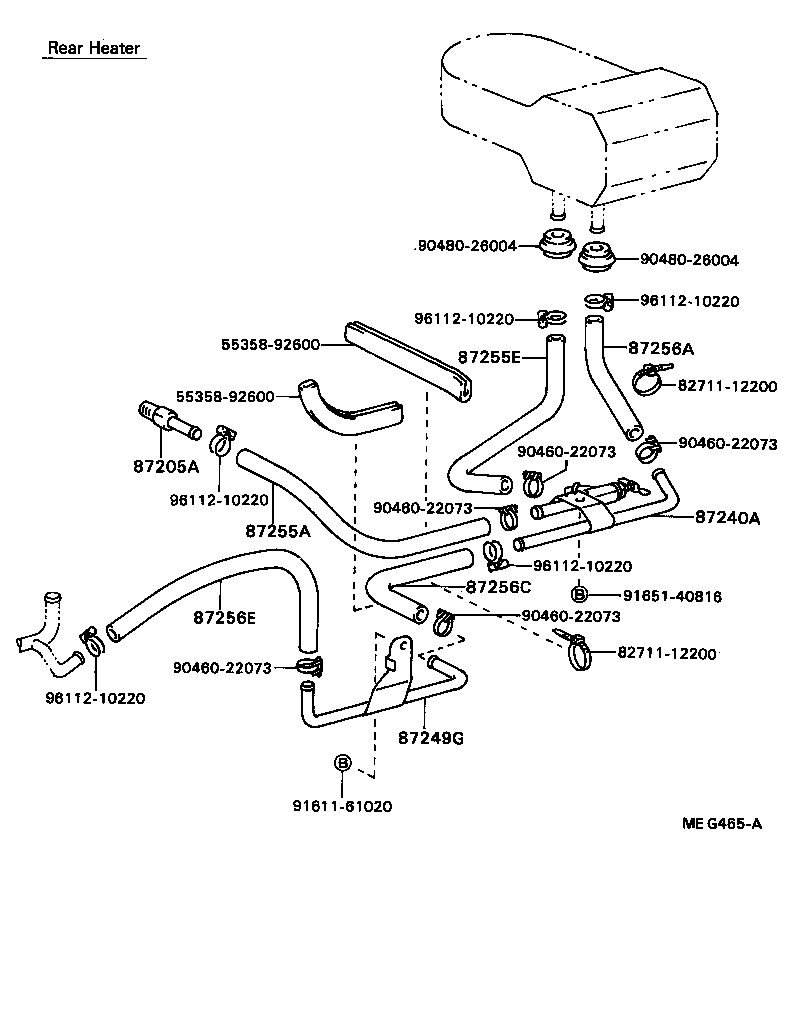

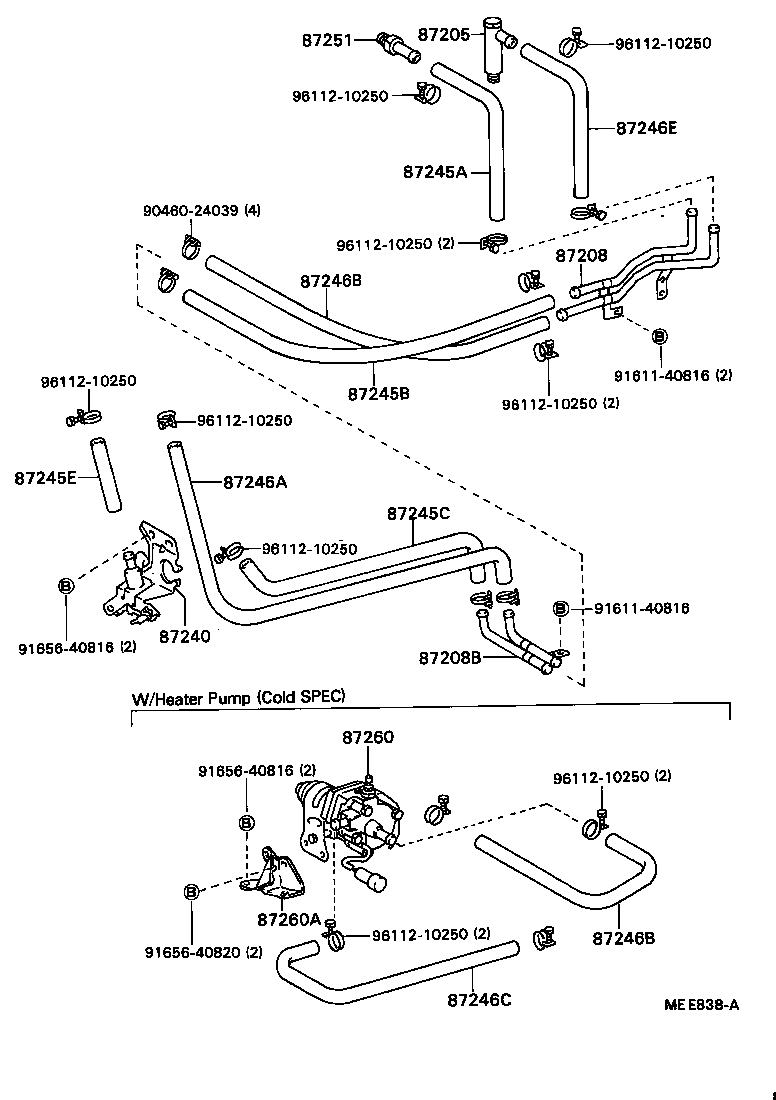

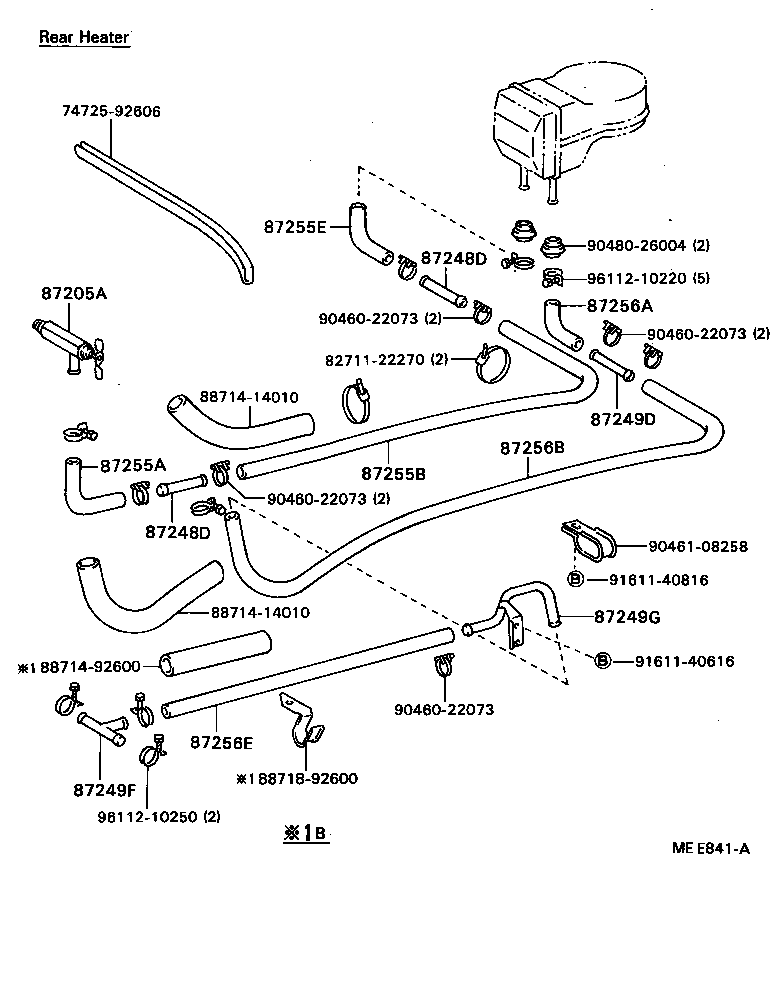

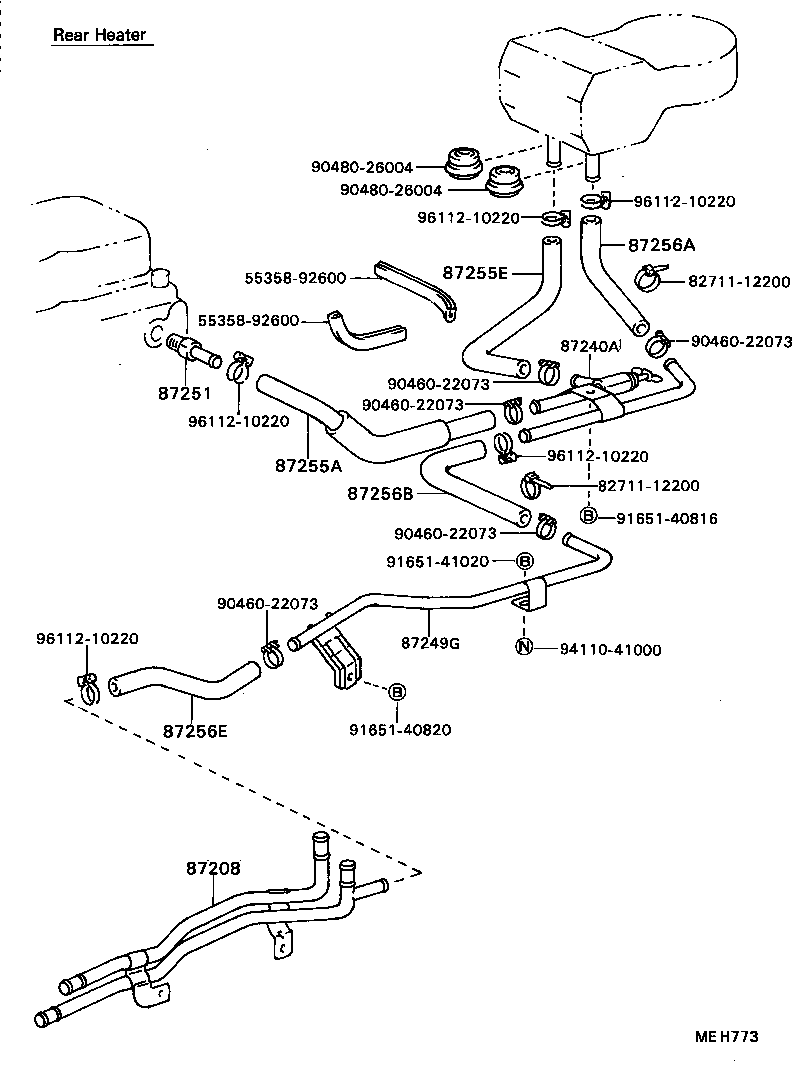

Figure MEE836D MEE836D 1984-09 → — Figure MEE838A MEE838A 1984-09 → — Figure MEE841A MEE841A 1984-09 → 1985-08 Figure MEE841A MEE841A 1984-09 → 1985-10 Figure MEG465A MEG465A 1985-08 → — Figure MEH773 MEH773 1985-10 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87205A Valve, Inlet Water Hose
87208 Pipe Sub-assy, Heater Water
87208B Pipe Sub-assy, Heater Water, B
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87260 Pump Assy, Heater
87260A Bracket, Heater Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
