Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis BU6#,7#,8#,9# · catalogue 751130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 3 illustrations

Illustrations

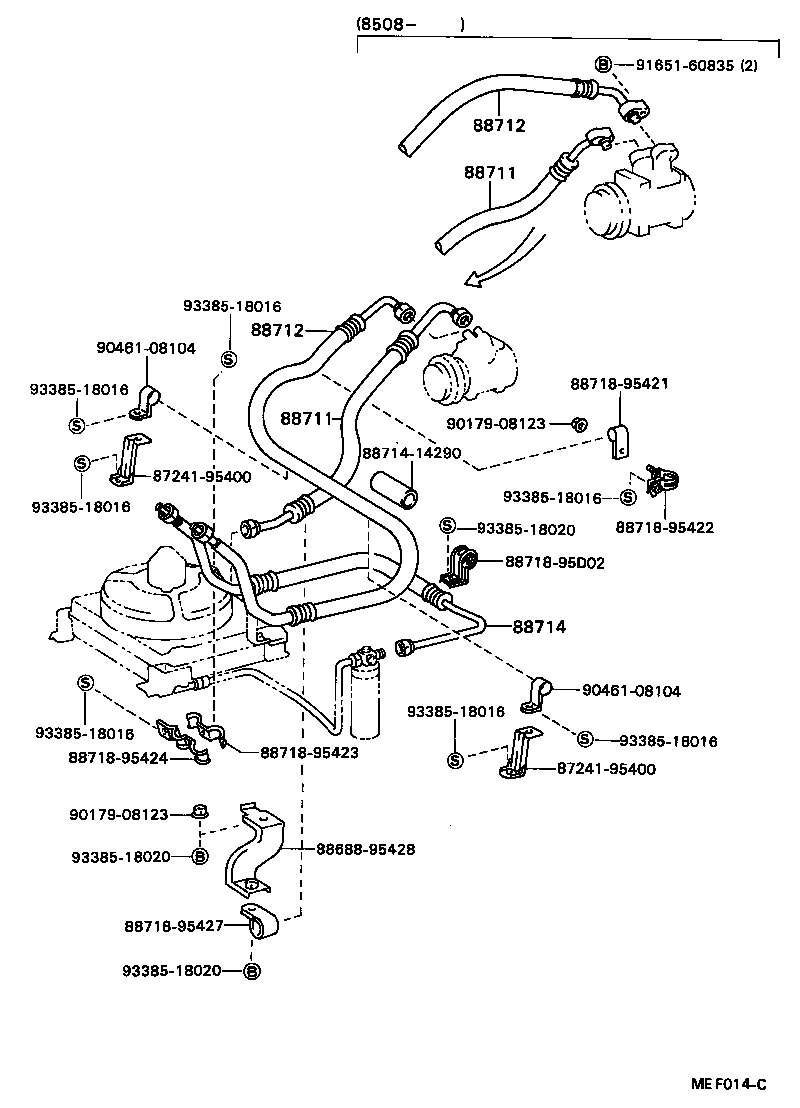

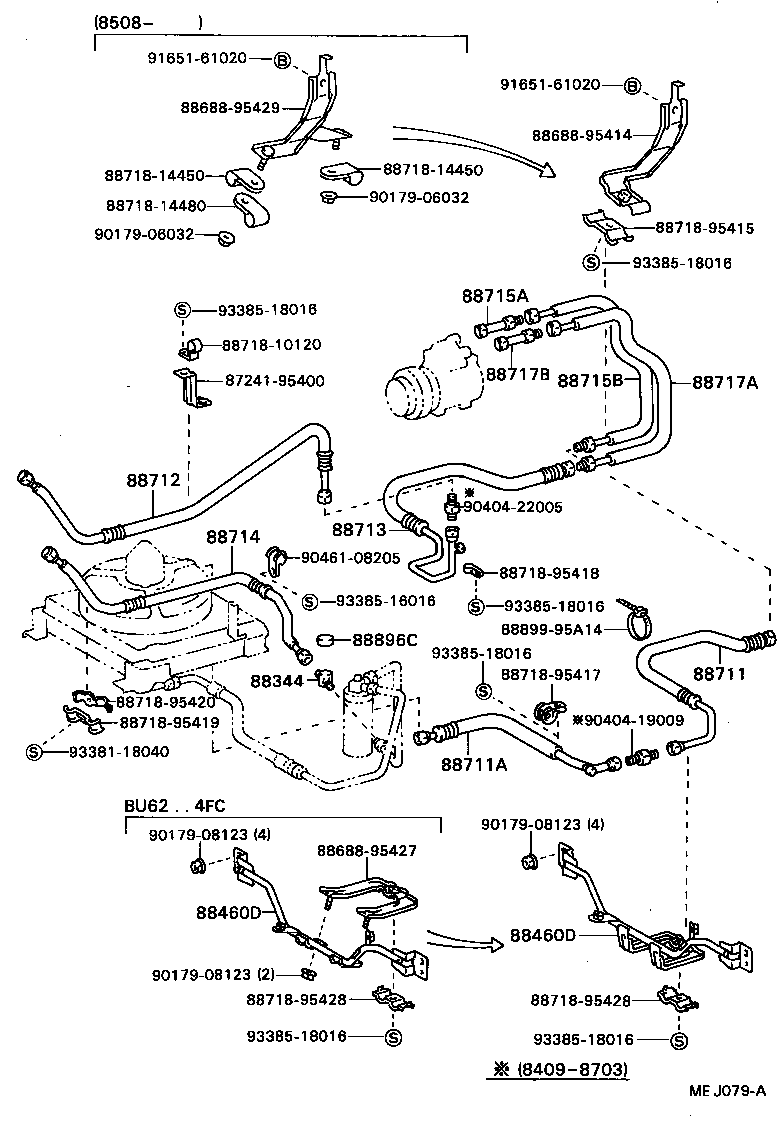

Figure MEF013D MEF013D 1984-09 → — Figure MEJ079A MEJ079A 1984-09 → — Figure MEF014C MEF014C 1984-09 → —

Part groups

PNCDescription
87138S Resistor, Blower
88344 Glass Sub-assy, Sight
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88896C Cover, Cooler Refrigerant Pipe, NO.1
