Toyota Dyna/Toyoace

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

36 part groups · 3 illustrations

Illustrations

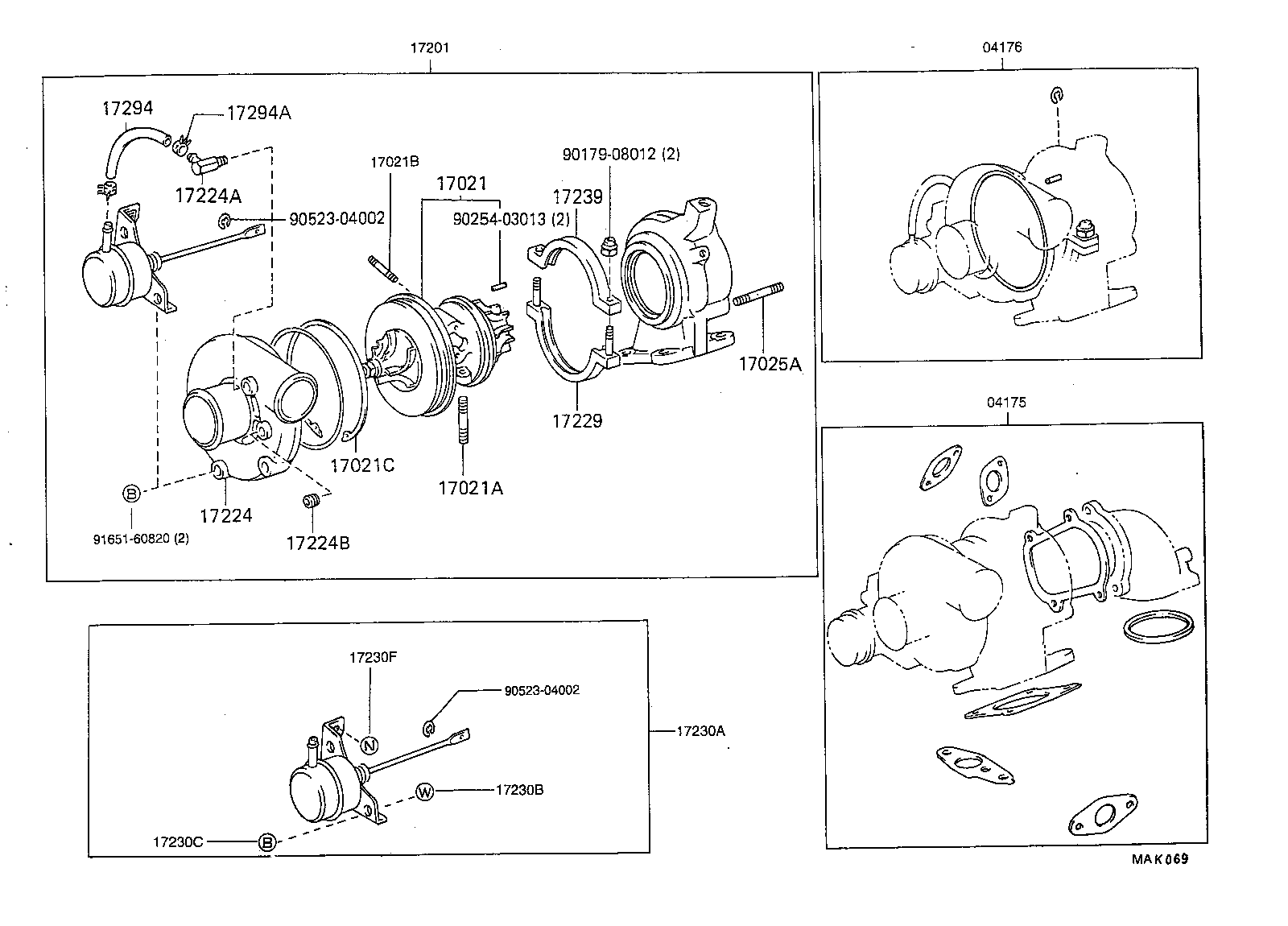

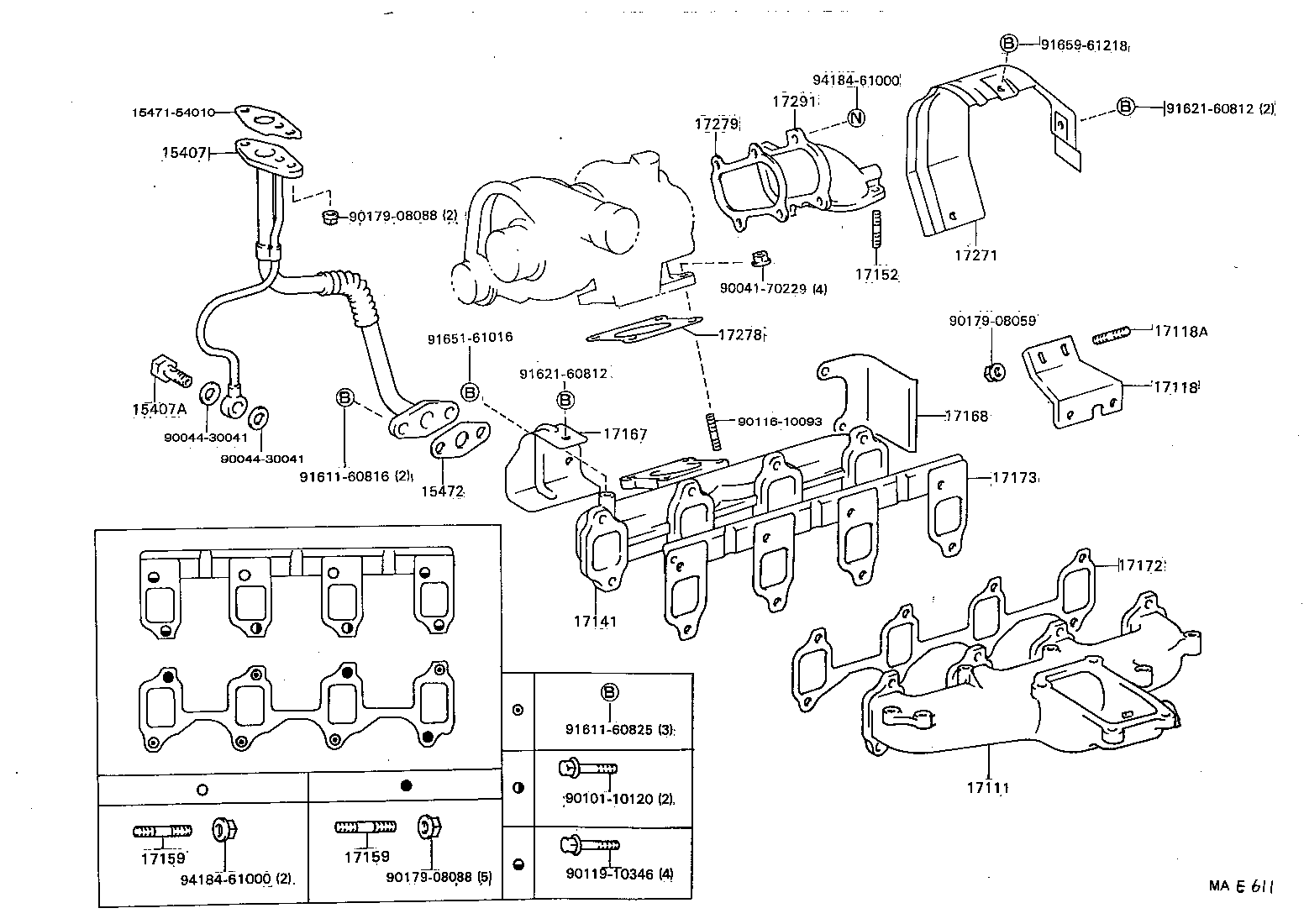

Figure MA7644B MA7644B 1987-08 → — Figure MAE611 MAE611 1987-08 → — Figure MAK069 MAK069 1987-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17224A Union(FOR COMPRESSOR HOUSING)
17224B Plug, Taper Screw
17229 Band, V
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17230F Nut(FOR REPAIR ACTUATOR SET)
17239 Clamp, V, NO.2
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
