Toyota Dyna/Toyoace

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

7 part groups · 2 illustrations

Illustrations

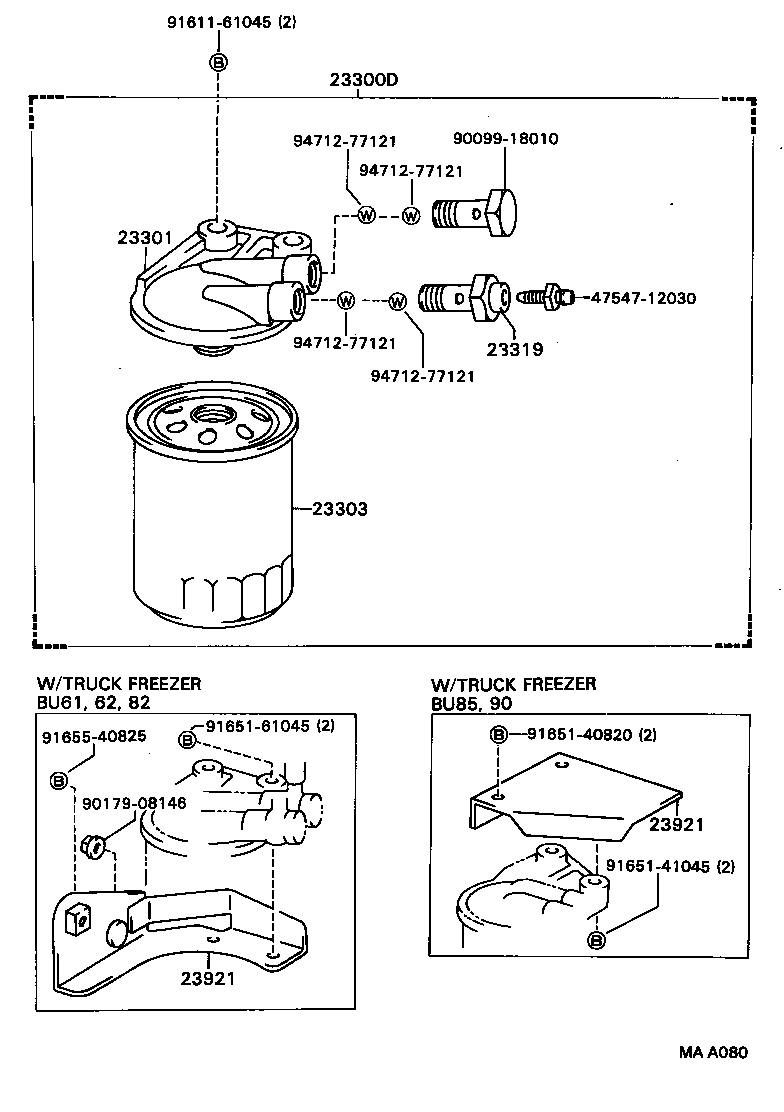

Figure MAA079 MAA079 1987-08 → — Figure MAA080 MAA080 1987-08 → —

Part groups

PNCDescription
23300D Filter Assy, Fuel(FOR DIESEL)
23301 Body Sub-assy, Fuel Filter
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23319 Screw, Fuel Pipe Follow
23322 Plug, Drain(FOR FUEL FILTER)
23921 Support, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
