Toyota Dyna/Toyoace
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan
Discontinued model
Data version 1989-04

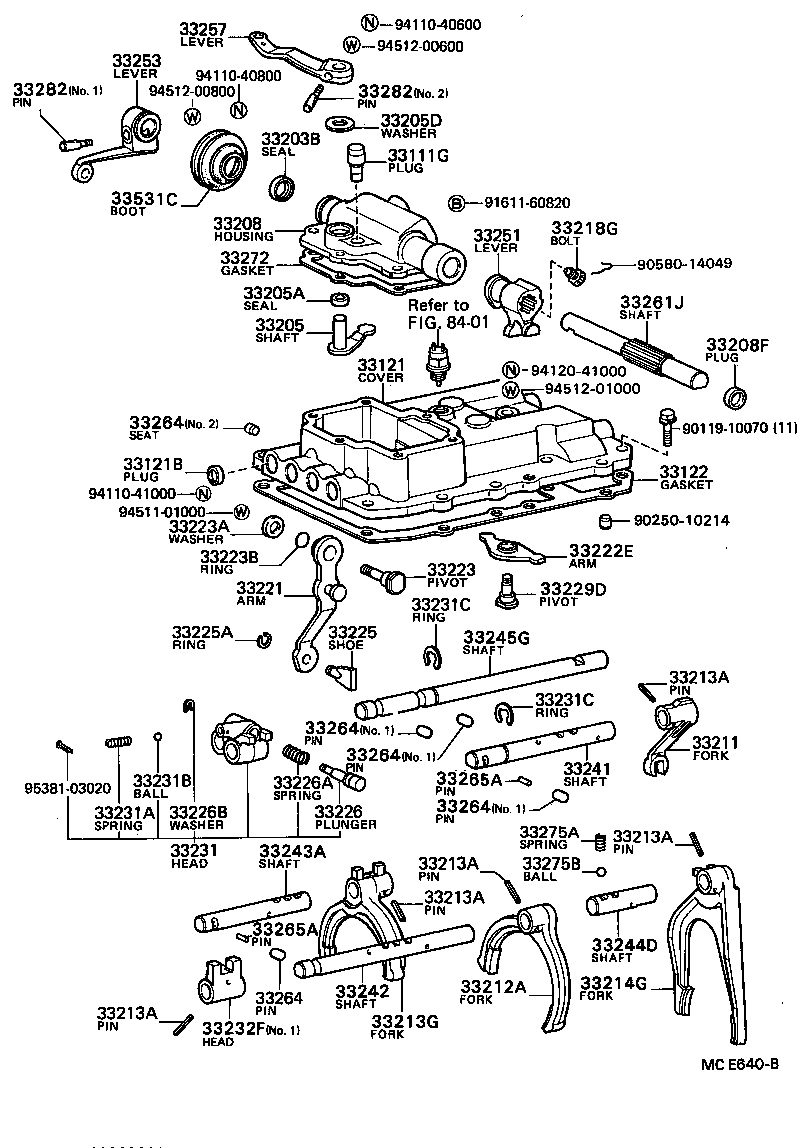

Gear Shift Fork & Lever Shaft (MTM)
66 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33111G | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33121 | Cover, Manual Transmission Case |
| 33121B | Plug, Expansion OR Tight(FOR TRANSMISSION CASE COVER) |
| 33121C | Pin(FOR TRANSMISSION CASE COVER) |
| 33122 | Gasket, Manual Transmission Case Cover |
| 33203B | Seal, Oil(FOR SHIFT LEVER SHAFT) |
| 33205 | Shaft Sub-assy, Select Lever |
| 33205A | Seal, Oil(FOR SHIFT LEVER NO.2 SHAFT) |
| 33205D | Washer(FOR OUTER LEVER OIL SETTING) |
| 33205H | Shaft Sub-assy, Gear Shift Fork, NO.1 |
| 33208 | Housing Sub-assy, Shift Lever Shaft |
| 33208F | Plug, Tight(FOR SHIFT LEVER SHAFT HOUSING) |
| 33211 | Fork, Reverse Shift |
| 33212A | Fork, Gear Shift, NO.1 |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33214G | Fork, Gear Shift, NO.3 |
| 33218G | Bolt, Shift Fork Lock |
| 33221 | Arm, Reverse Shift |
| 33222E | Arm, 5TH Shift |
| 33223 | Pivot, Shift Arm |
| 33223A | Washer(FOR SHIFT ARM PIVOT) |
| 33223B | Ring, O(FOR SHIFT ARM PIVOT) |
| 33225 | Shoe, Shift Arm |
| 33225A | Ring, Shaft Snap(FOR SHIFT ARM SHOE) |
| 33226 | Plunger, Reverse Shift Return |
| 33226A | Spring, Compression(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33226B | Washer, Type C(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33229D | Pivot, 5TH Shift Arm |
| 33231 | Head, Reverse Shift |
| 33231A | Spring, Reverse Shift Restrict |
| 33231B | Ball, Reverse Shift Restrict |
| 33231C | Ring(FOR REVERSE SHIFT HEAD) |
| 33232A | Pin, Slotted Spring (FOR SHIFT HEAD SET) |
| 33232F | Head, Gear Shift, NO.1 |
| 33234A | Head, Gear Shift, NO.3 |
| 33241 | Shaft, Reverse Shift Fork |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244D | Shaft, Gear Shift Fork, NO.3 |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33251 | Lever, Shift & Select |
| 33251F | Pin OR Bolt (FOR SHIFT & SELECT LEVER) |
| 33251P | Spring (FOR SHIFT & SELECT LEVER) |
| 33252A | Lever, Shift, Inner NO.2 |
| 33252B | Ring, E (FOR SHIFT INNER LEVER) |
| 33253 | Lever, Shift Outer, NO.1 |
| 33257 | Lever, Select Outer |
| 33261C | Shaft, Shift & Select Lever |
| 33261J | Shaft, Shift Lever |
| 33263C | Shaft, Shift Lever, NO.2 |
| 33263D | Pin (FOR SHIFT LEVER SHAFT) |
| 33263E | Plug (FOR SHIFT LEVER SHAFT) |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33264A | Plug, Interlock Hole |
| 33264B | Roller, NO.1 (FOR SHIFT INTERLOCK ) |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33265A | Roller, NO.2 (FOR INTERLOCK) |
| 33272 | Gasket, Shift Lever Shaft Housing |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33276E | Seat, Select Spring, NO.1 |
| 33282 | Pin, Lever Lock, NO.2 |
| 33531B | Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT) |
| 33531C | Boot, Dust (FOR 5TH SHIFT ARM SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
