Toyota Dyna/Toyoace
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan
Discontinued model
Data version 1989-04

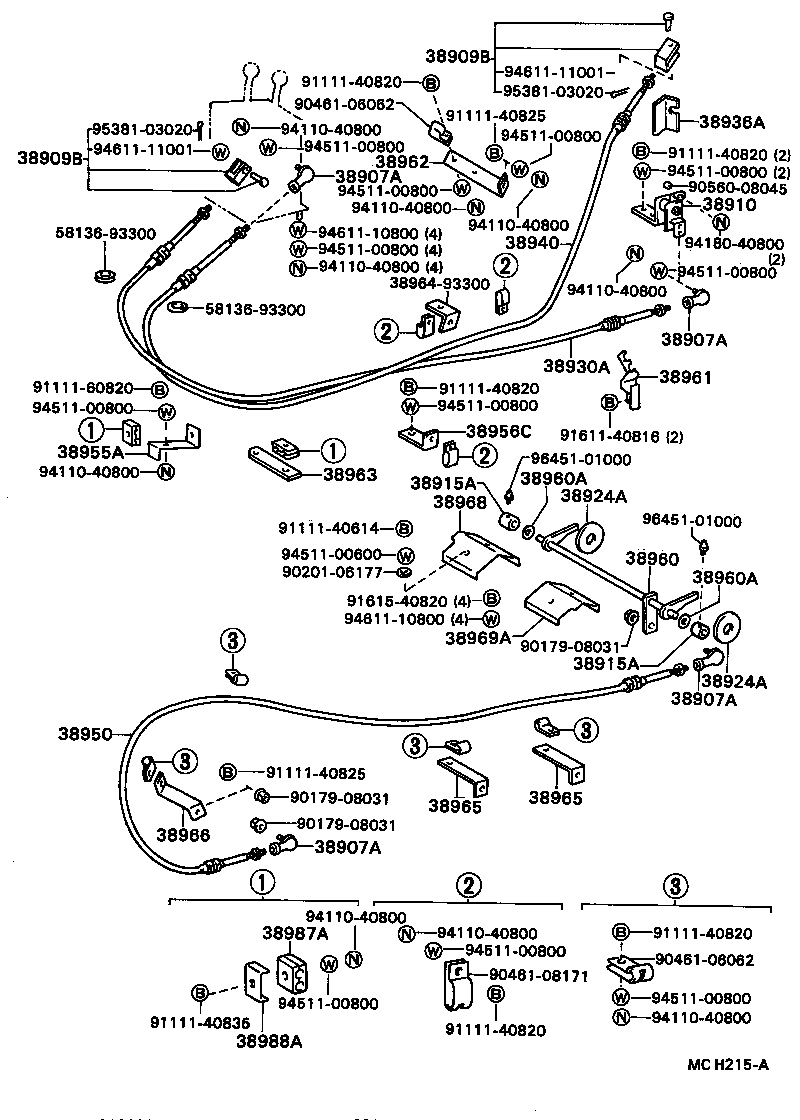

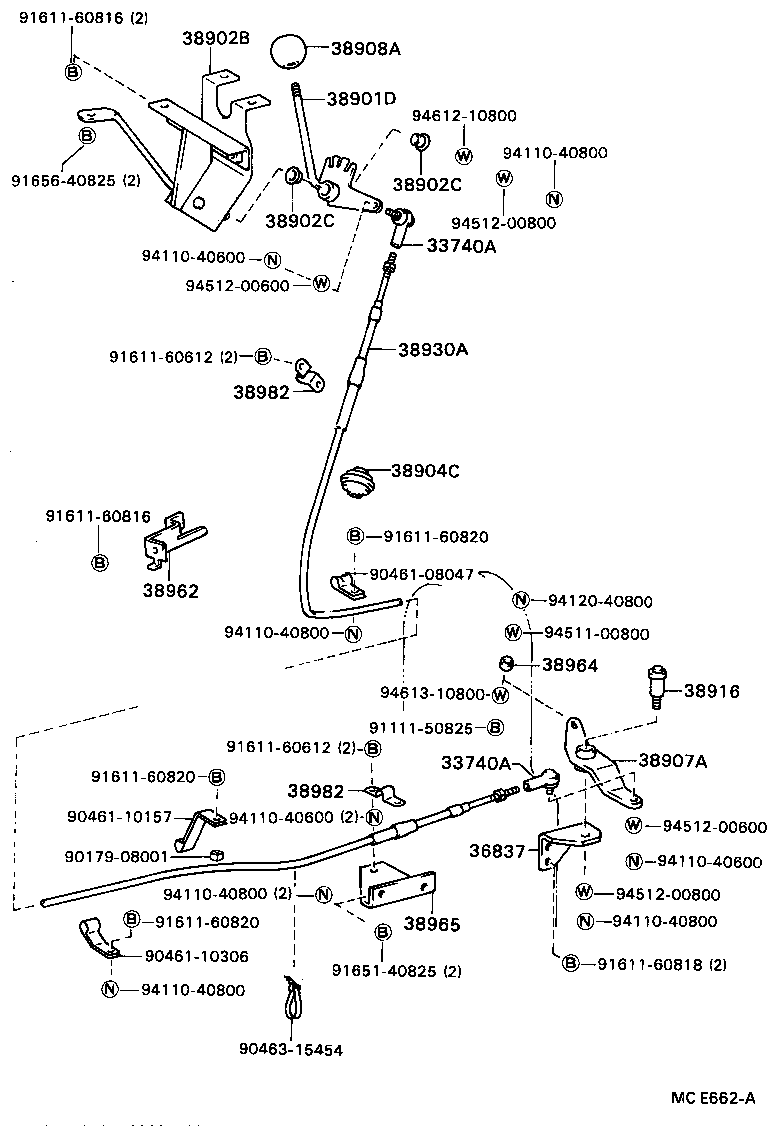

Power Take-off Lever & Link
68 part groups · 11 illustrations

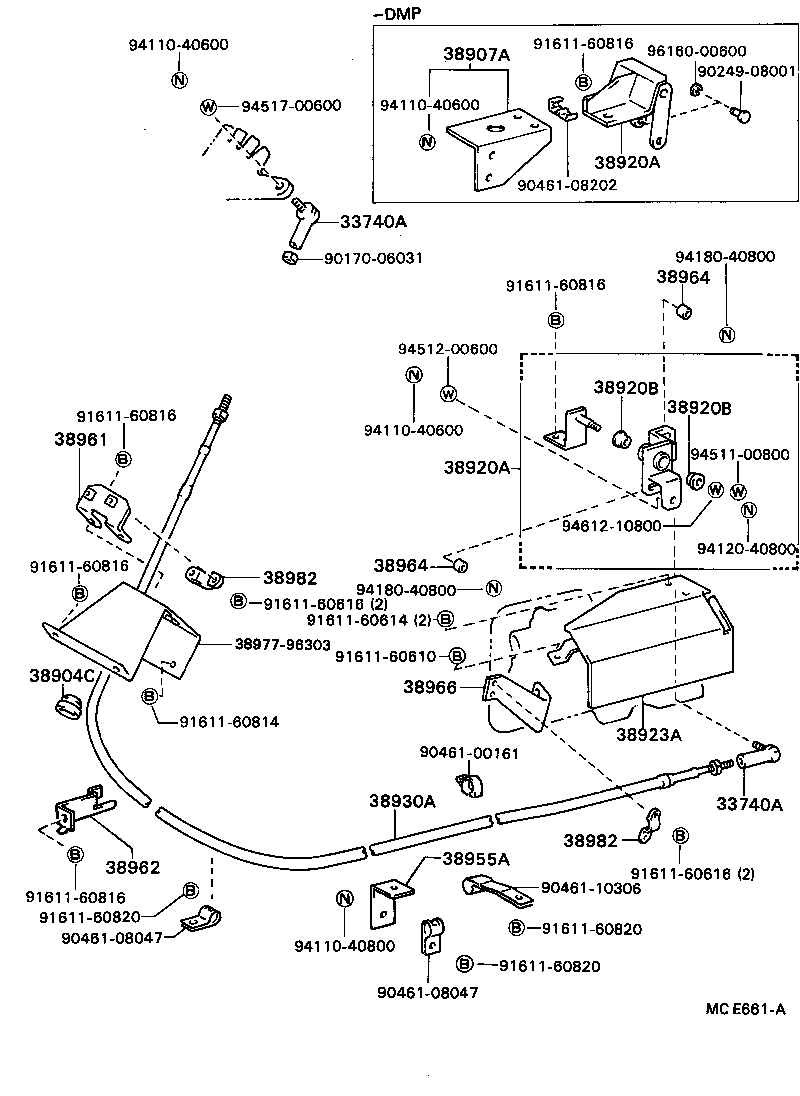

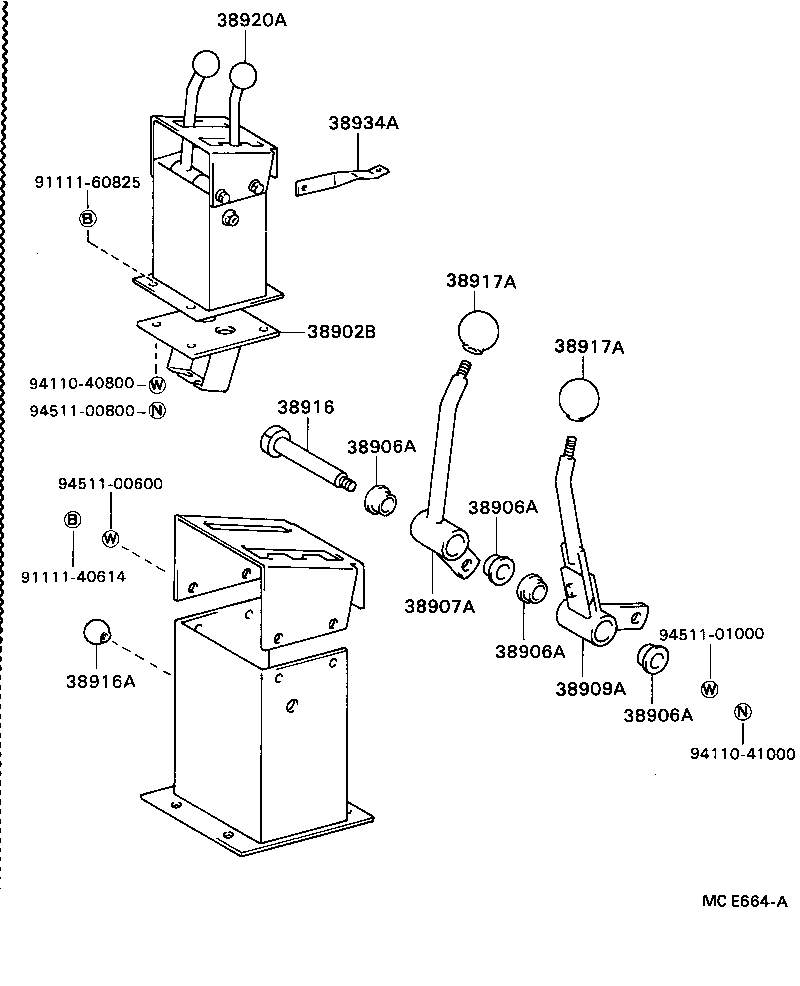

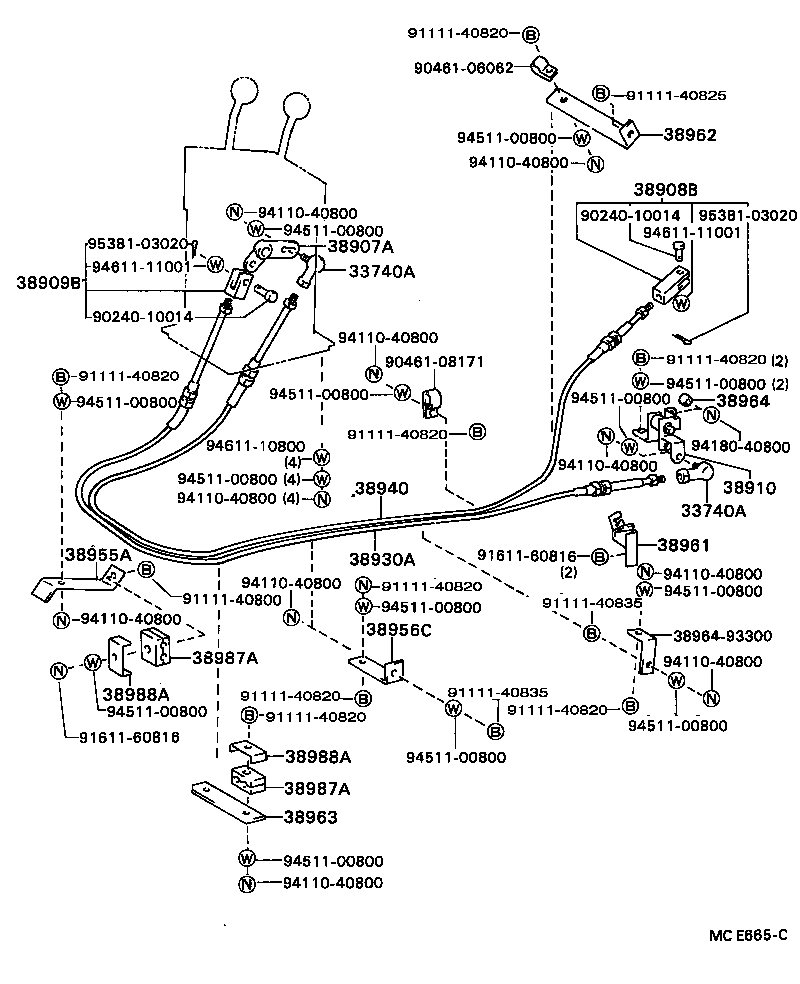

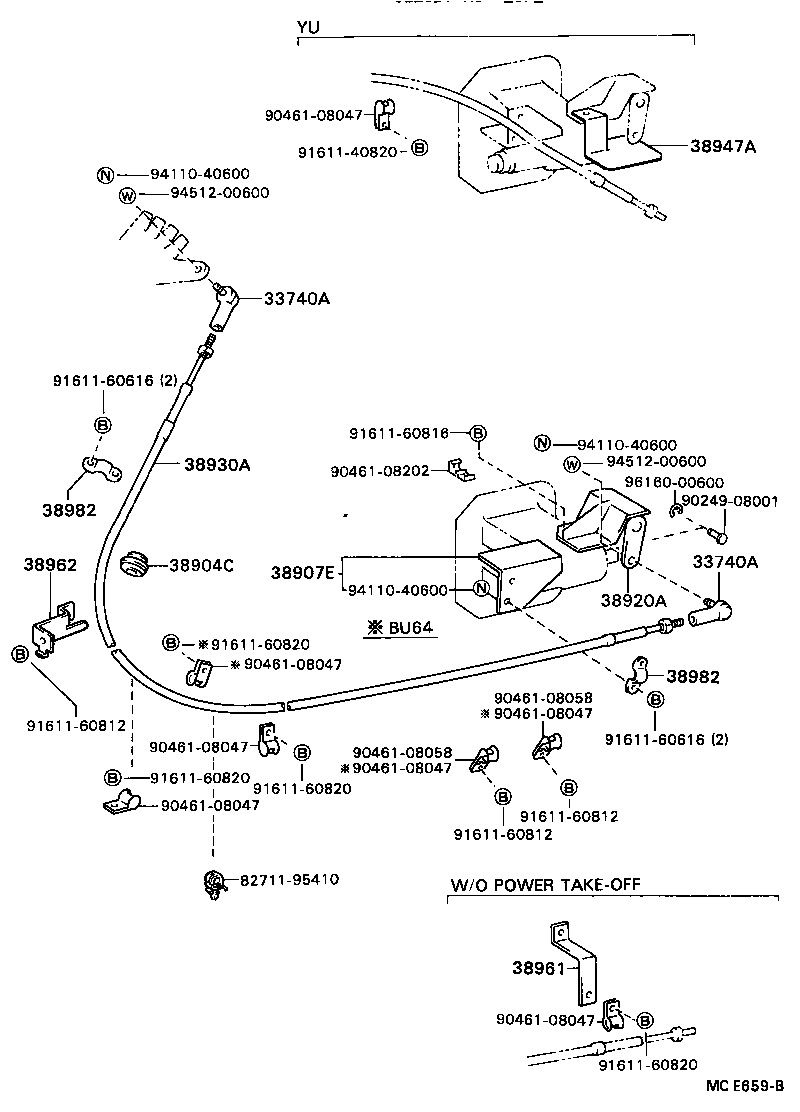

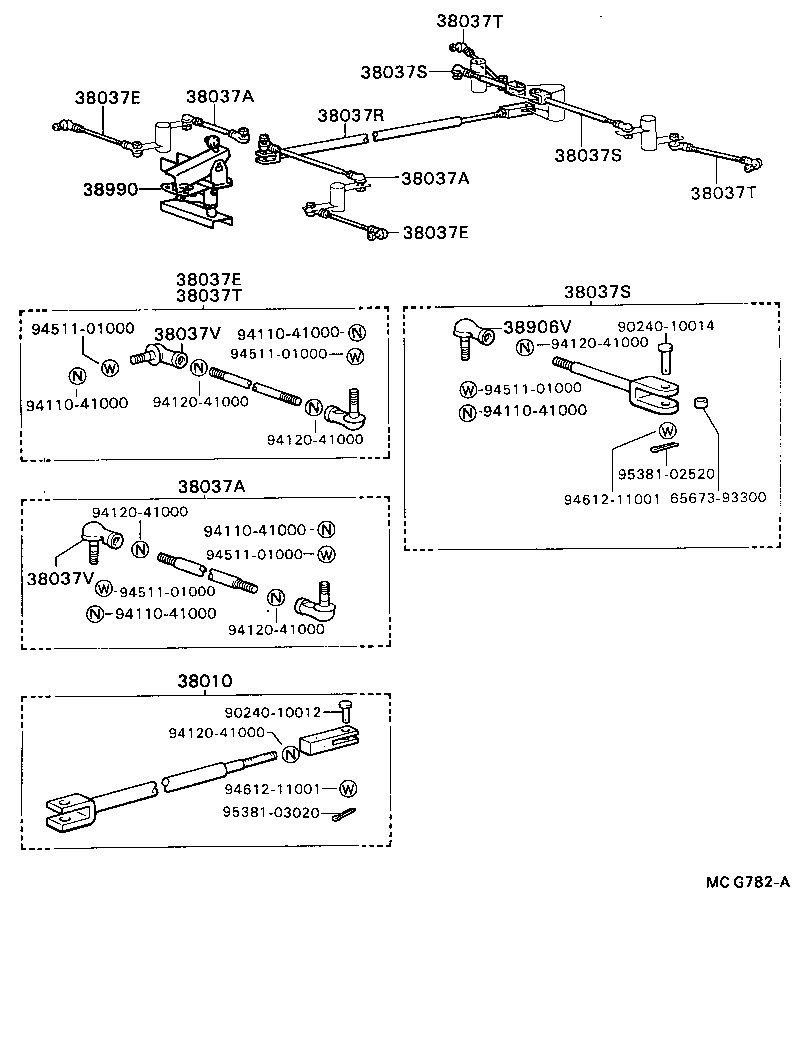

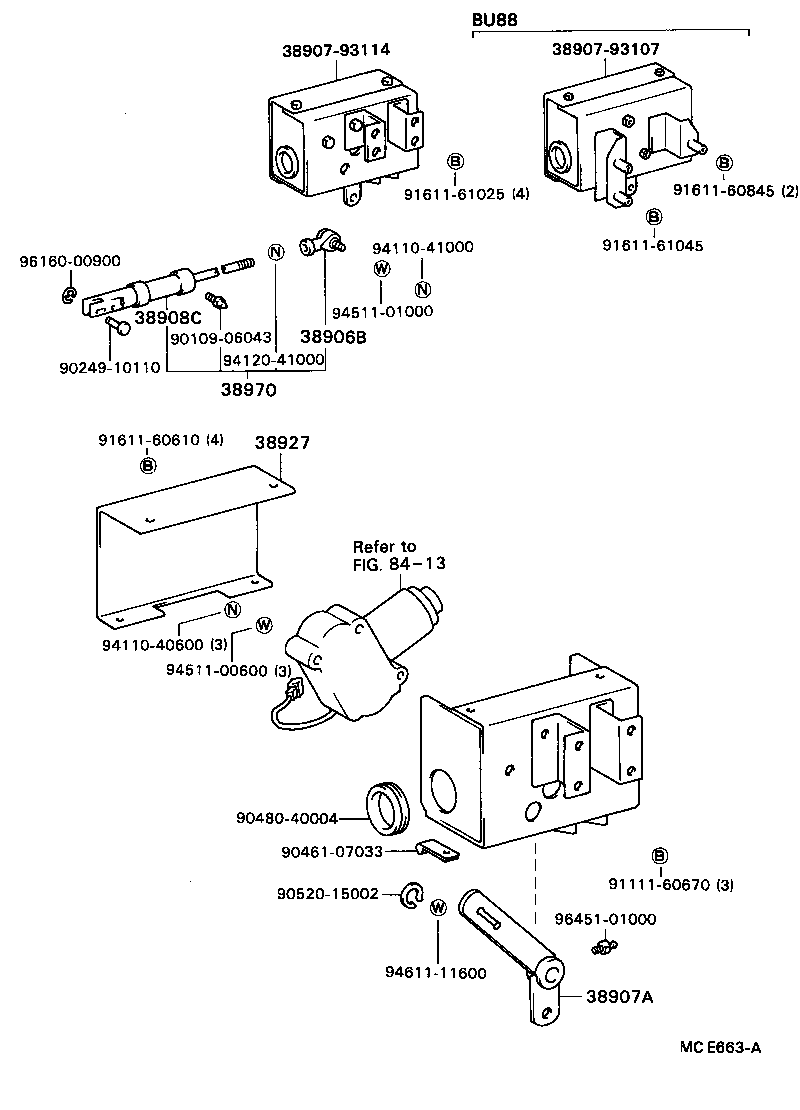

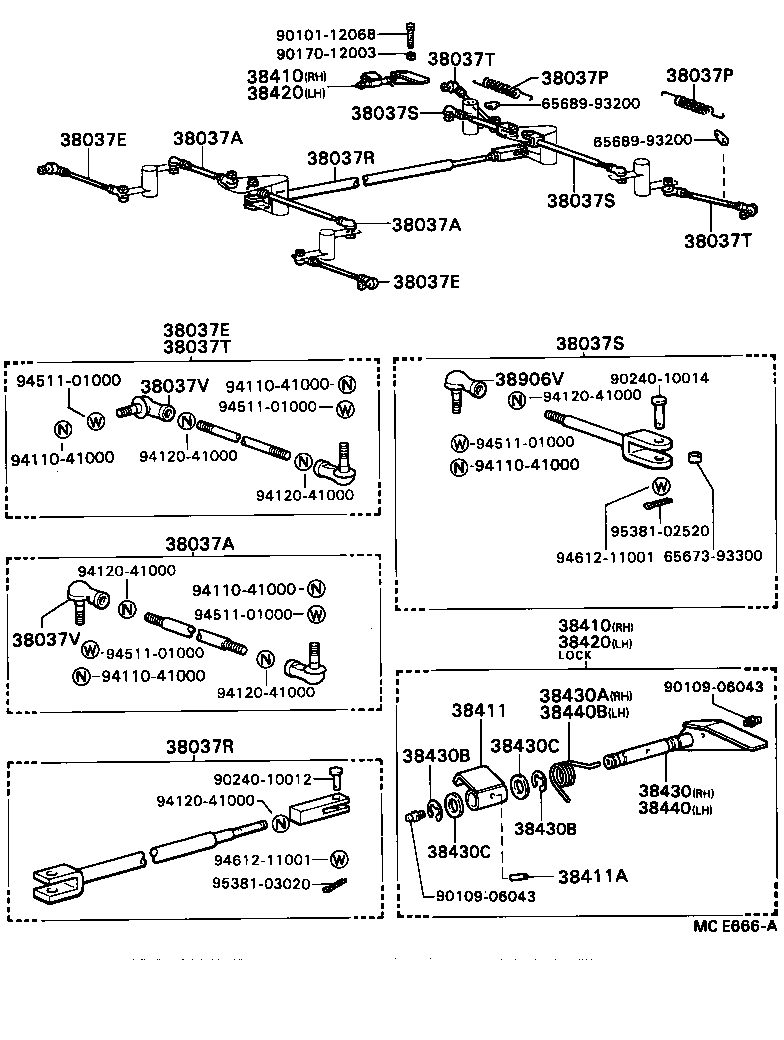

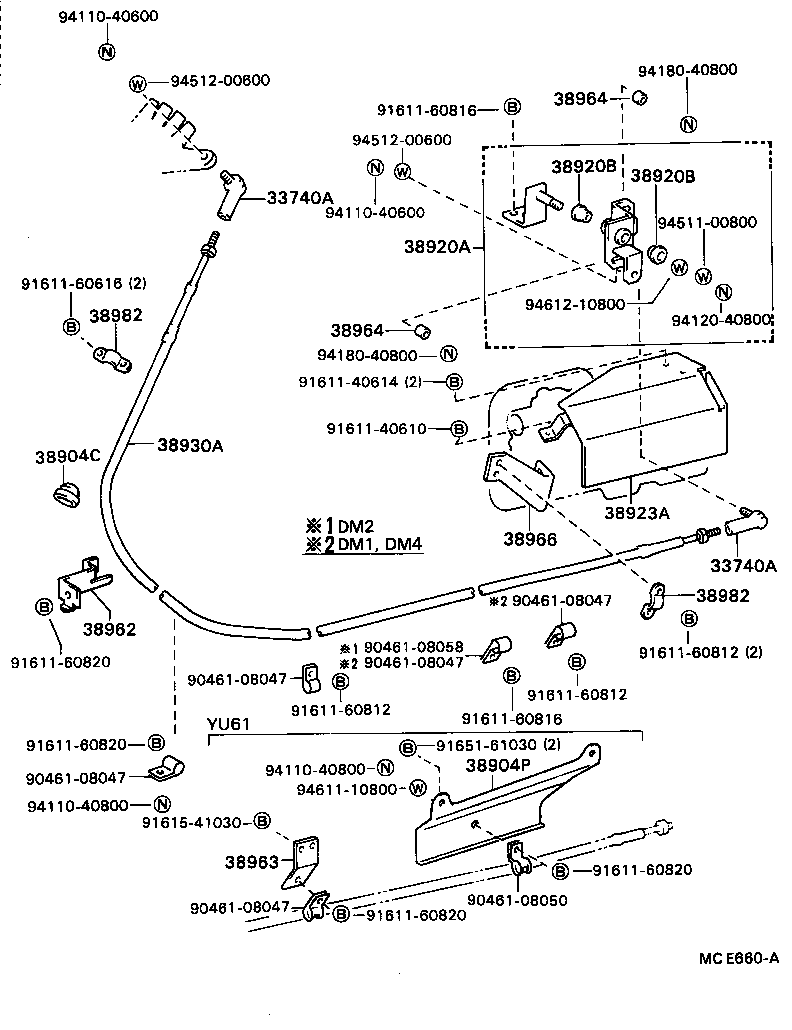

Illustrations
Part groups
| PNC | Description |
|---|---|
| 33740A | End Assy, Push-pull Control Cable |
| 36837 | Bracket, Power Take-off Shift Lever |
| 38010 | Rod Assy, Select Contorol |
| 38037A | Rod Assy, Select Control, Front NO.1 |
| 38037E | Rod Assy, Select Control Front NO.2 |
| 38037R | Rod Assy, Select Control, Center |
| 38037S | Rod Assy, Select Control, Rear NO.1 |
| 38037T | Rod Assy, Select Control, Rear NO.2 |
| 38037U | Spring, Tention (FOR SELECT CONTROL ROD) |
| 38037V | Joint Assy, Ball (FOR SELECT CONTROL ROD) |
| 38410 | Lock Assy, Rear Hinge, RH |
| 38411 | Hook, Rear Hinge Lock |
| 38411A | Pin, Slotted Spring |
| 38420 | Lock Assy, Rear Hinge, LH |
| 38430 | Lever Assy, Rear Hinge Lock, RH |
| 38430A | Spring, Torsion, RH |
| 38430B | Ring, E (FOR HINGE LOCK LEVER) |
| 38430C | Washer, Plate (FOR HINGE LOCK LEVER) |
| 38440 | Lever Assy, Rear Hinge Lock, LH |
| 38440B | Spring, Torsion, LH |
| 38901D | Lever Sub-assy, Valve Control |
| 38902B | Bracket Sub-assy, Valve Control Lever |
| 38902C | Bush (FOR VALVE CONTROL LEVER) |
| 38903A | Bracket Sub-assy, Valve Control Lever Lock |
| 38904C | Grommet, Push Pull Cable |
| 38906A | Bush, Control Link |
| 38906B | Joint Assy, Ball (FOR POWER TAKE-0FF CONTROL ROD) |
| 38906V | Joint Assy, Ball (FOR SELECT CONTROL ROD) |
| 38907A | Lever Sub-assy, Power Take-off Control |
| 38907E | Stay Sub-assy, Power Teke-off Control |
| 38908A | Knob Sub-assy, Control Lever |
| 38908B | End Set, Push-pull Control Cable, NO.2 |
| 38908C | Rod Sub-assy, Power Take-off Control |
| 38909A | Lock Sub-assy, Valve Control |
| 38909B | End Set, Push-pull Control Cable, NO.2 |
| 38910 | Lever Assy, Dump |
| 38915A | Boss, Valve Control Lever |
| 38916 | Pin, Control Shift |
| 38916A | Knob, Control Lever |
| 38917A | Knob, Valve Control Lever |
| 38920A | Lever Assy, Power Take-off Control, NO.1 |
| 38920B | Bush (FOR POWER TAKE-OFF CONTROL LEVER) |
| 38923A | Protector, Power Take-off Control |
| 38924A | Gide, Puwer Take-off |
| 38927 | Cover, Valve Control Lever |
| 38930A | Cable Assy, Push Pull |
| 38934A | Stay, Valve Control Lever Bracket |
| 38936A | Bracket, Select Contorol |
| 38940 | Cable Assy, Push Pull |
| 38946A | Knob, Valve Lock Lever |
| 38950 | Cable Assy, Push Pull |
| 38955A | Bracket, Control Cable, NO.5 |
| 38956C | Bracket, Control Cable, NO.6 |
| 38960 | Lever Assy, Valve Control |
| 38960A | Shim (FOR VALVE CONTROL LEVER ASSY) |
| 38961 | Bracket, Cable Clamp, NO.1 |
| 38962 | Bracket, Cable Clamp, NO.2 |
| 38963 | Bracket, Cable Clamp, NO.3 |
| 38964 | Collar, Control Lever |
| 38965 | Bracket, Cable Clamp, NO.5 |
| 38966 | Bracket, Cable Clamp, NO.6 |
| 38968A | Protector, Control Cable, NO.1 |
| 38969A | Protector, Control Cable NO.2 |
| 38970 | Rod Assy, Power Take-off Control |
| 38982 | Clamp, Push Pull Cable, NO.1 |
| 38987A | Clamp, Push Pull Cable |
| 38988A | Holder, Push Pull Cable |
| 38990 | Lever Assy, Select Contorol |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
