Toyota Dyna/Toyoace
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan
Discontinued model
Data version 1989-04
Hoist Cylinder

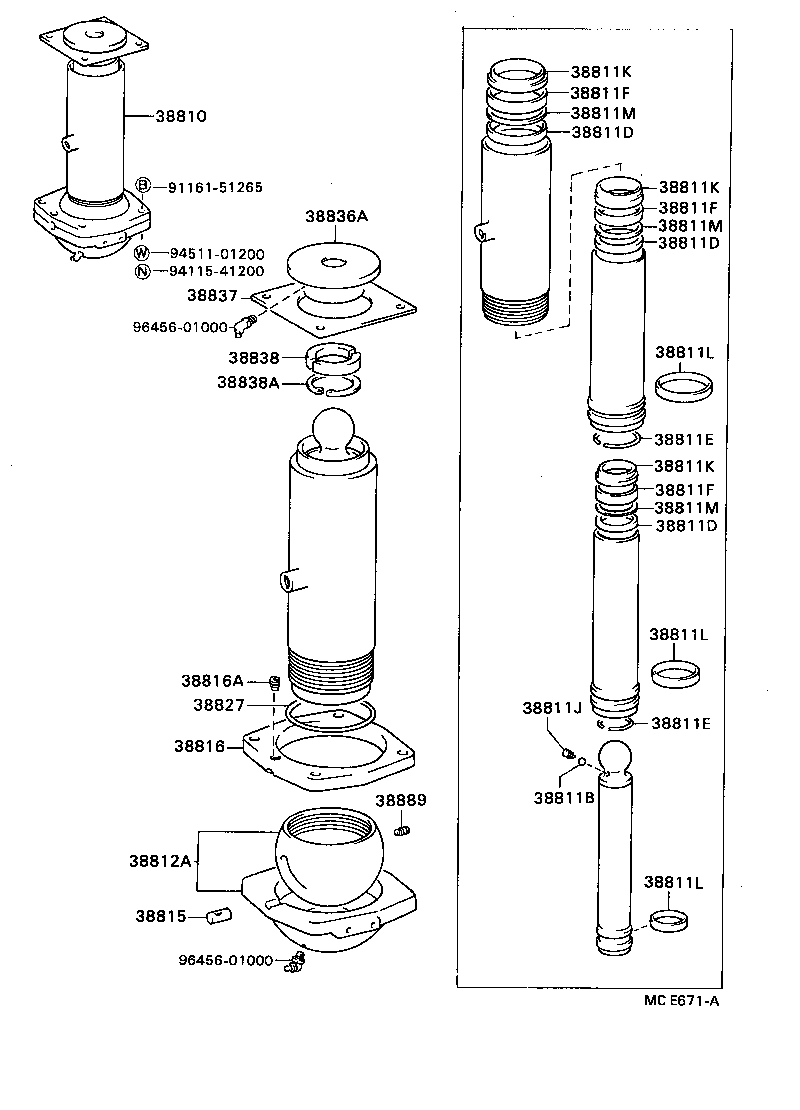

34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 38470 | Valve Assy, Dump Flow Control |
| 38802 | Head Sub-assy, Cylinder |
| 38802B | Seal, Oil (FOR CYLINDER HEAD) |
| 38803 | Valve Sub-assy, Slow Return |
| 38804C | Retainer Sub-assy, Slow Return Spring |
| 38806B | Head Sub-assy, Hoist Cylinder |
| 38810 | Cylinder Assy, Hoist |
| 38810B | Screw (FOR HOIST CYLINDER) |
| 38810C | Ring, O (FOR HOIST CYLINDER) |
| 38811B | Ball (FOR HOIST CYLINDER) |
| 38811D | Seal, Dust, NO.2 (FOR HOIST CYLINDER) |
| 38811E | Ring, Hole Snap (FOR HOIST CYLINDER) |
| 38811F | Ring Wear, NO.1 |
| 38811J | Plug, Straight Screw (FOR HOIST CYLINDER) |
| 38811K | Seal, Dust, NO.3 (FOR HOIST CYLINDER) |
| 38811L | Ring (FOR HOIST CYLINDER) |
| 38811M | Ring (FOR HOIST CYLINDER) |
| 38812A | Bottom, Hoist Cylinder |
| 38815 | Support, Hoist Cylinder |
| 38816 | Cover, Hoist Cylinder |
| 38816A | Plug, Straight (FOR HOIST CYLINDER COVER) |
| 38823 | Cover, Cylinder Head |
| 38827 | Ring, O (FOR HOIST CYLINDER) |
| 38829 | Plug, Seal, Hoist Cylinder |
| 38831A | Piston, Hoist Cylinder |
| 38833 | Rod, Hoist Cylinder Piston |
| 38834 | Nut, Dismounting |
| 38835 | Washer, Lock (FOR HOIST PISTON SET NUT) |
| 38836A | Support, Hoist Cylinder |
| 38837 | Cover, Hoist Cylinder |
| 38838 | Ring, Hoist Cylinder |
| 38838A | Ring, Hole Snap |
| 38842 | Ring, Hoist Cylinder Piston |
| 38889 | Plug, Screw (FOR HOIST CYLINDER) |
