Toyota Dyna/Toyoace

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

20 part groups · 8 illustrations

Illustrations

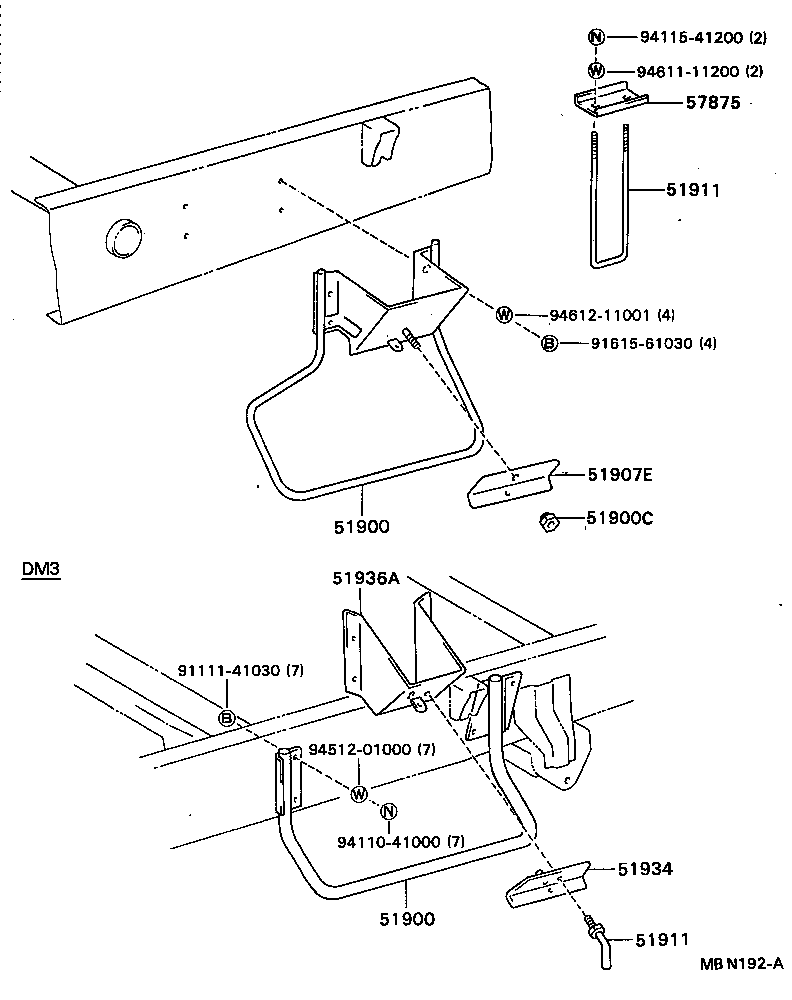

Figure MBN183A MBN183A 1987-08 → — Figure MBN186A MBN186A 1987-08 → — Figure MBN188A MBN188A 1987-08 → — Figure MBN190A MBN190A 1987-08 → — Figure MBN192A MBN192A 1987-08 → — Figure MBN196A MBN196A 1987-08 → — Figure MBN197 MBN197 1987-08 → — Figure MBN473A MBN473A 1987-08 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51900C Nut, Spare Wheel, Hub
51901 Rod Sub-assy, Spare Wheel Carrier
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51923A Guide, Spare Whell Carrier Handle
51931A Stay, Spare Wheel Carrier, RH
51932A Stay, Spare Wheel Carrier, LH
51933 Bolt, Spare Wheel Carrier Eye
51933A Stopper, Spare Wheel, NO.1
51934 Seat, Eye Bolt Clamp
51934A Stopper, Spare Wheel, NO.2
51935 Nut, Spare Wheel Carrier Eye
51936A Plate, Spare Wheel Carrier Keep
51943 Bracket, Spare Wheel Carrier, NO.1
51944 Bracket, Spare Wheel Carrier, NO.2
51948 Stopper, Spare Wheel Carrier Auxiliary
57875 Plate, U-bolt
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
