Toyota Dyna/Toyoace

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

8 part groups · 5 illustrations

Illustrations

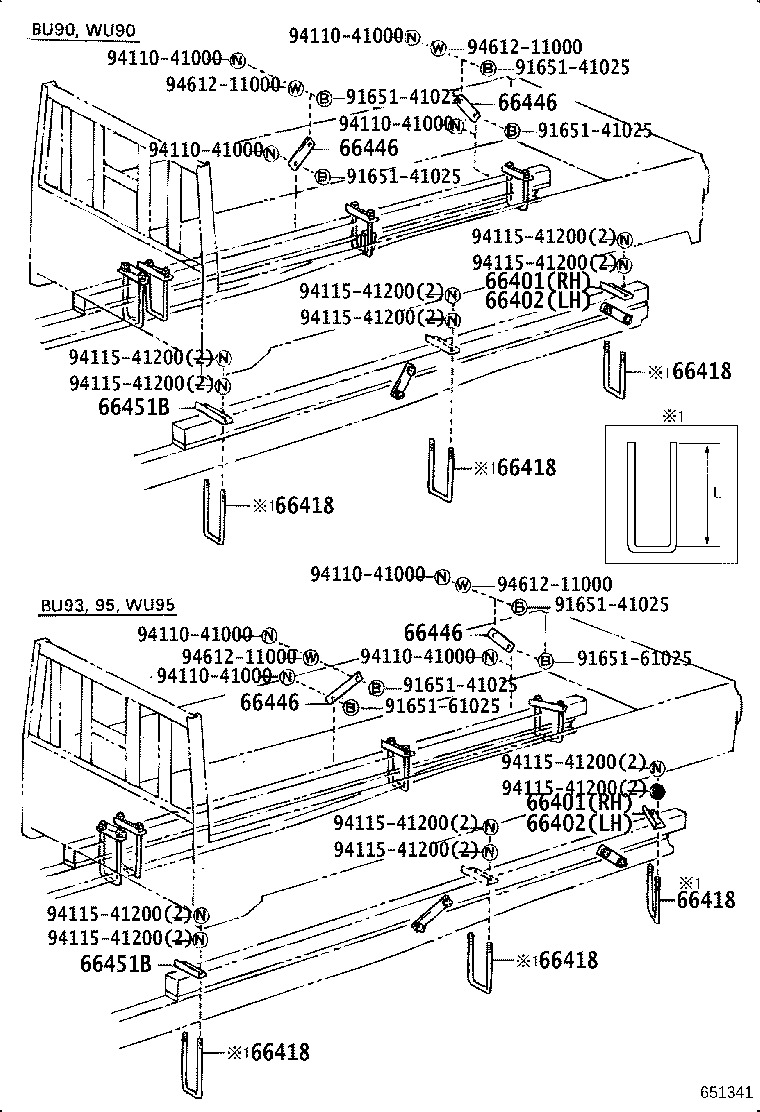

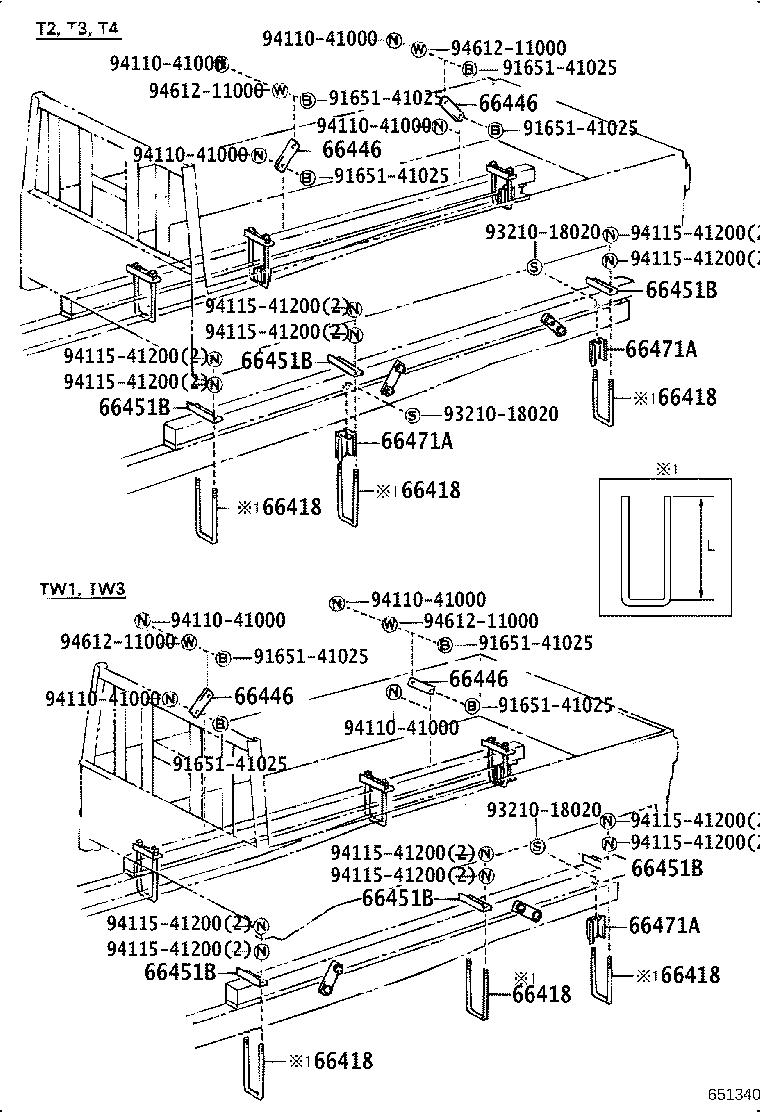

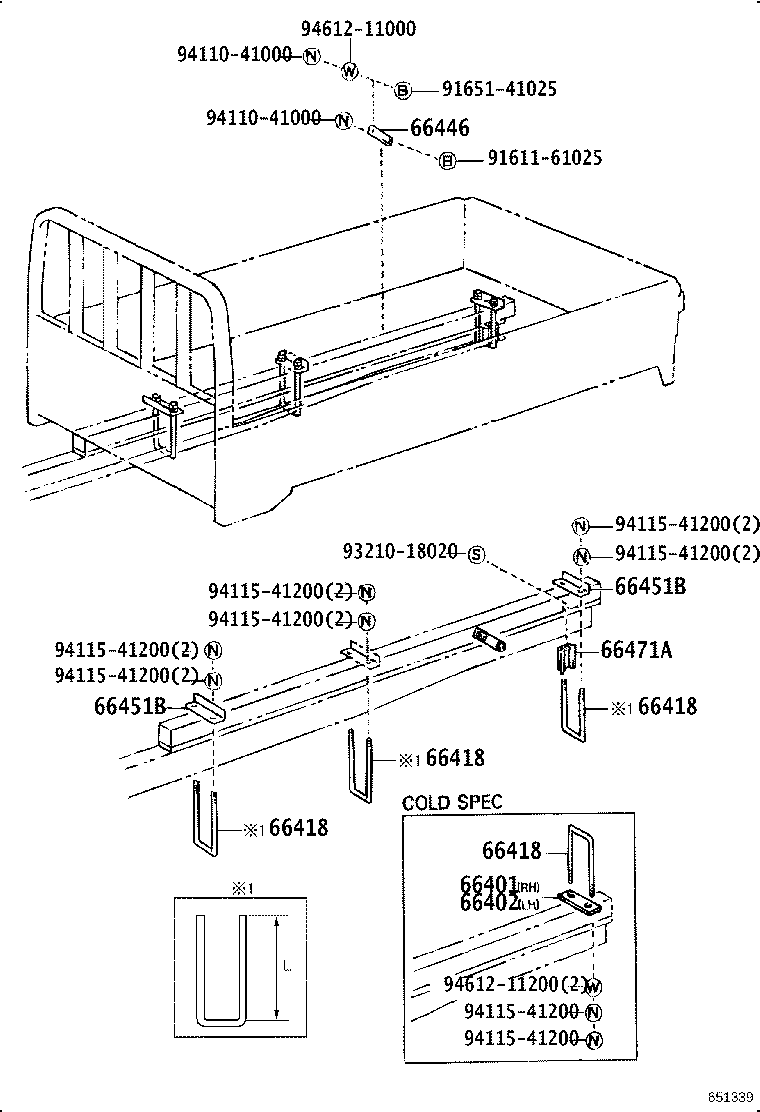

Figure MBN328A MBN328A 1987-08 → — Figure MBN330B MBN330B 1987-08 → — Figure 651339 651339 1987-08 → — Figure 651340 651340 1987-08 → — Figure 651341 651341 1987-08 → —

Part groups

PNCDescription
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
