Toyota Dyna/Toyoace

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

103 part groups · 8 illustrations

Illustrations

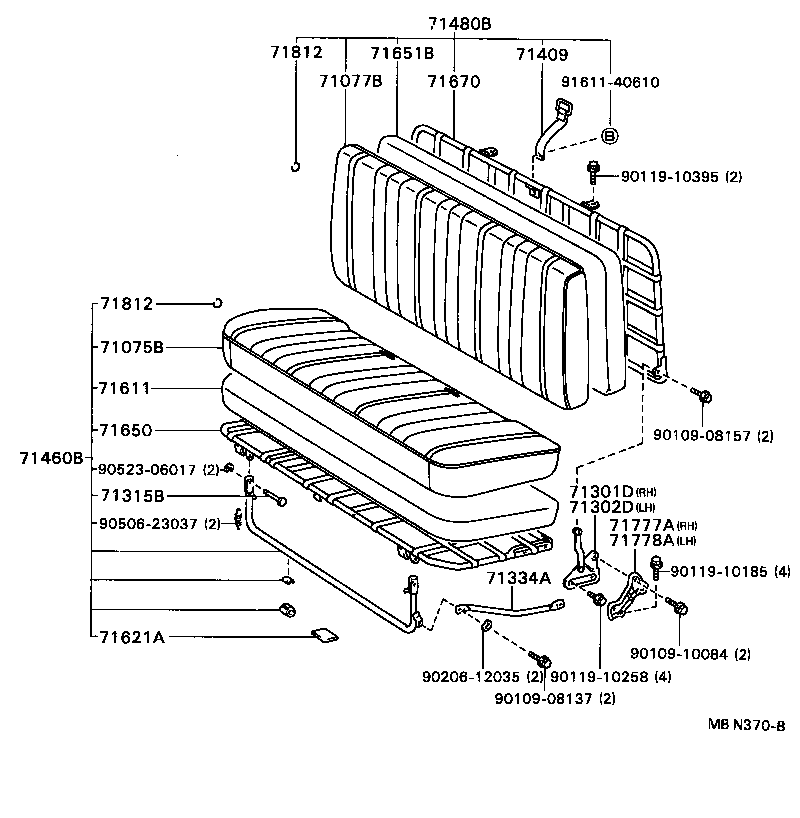

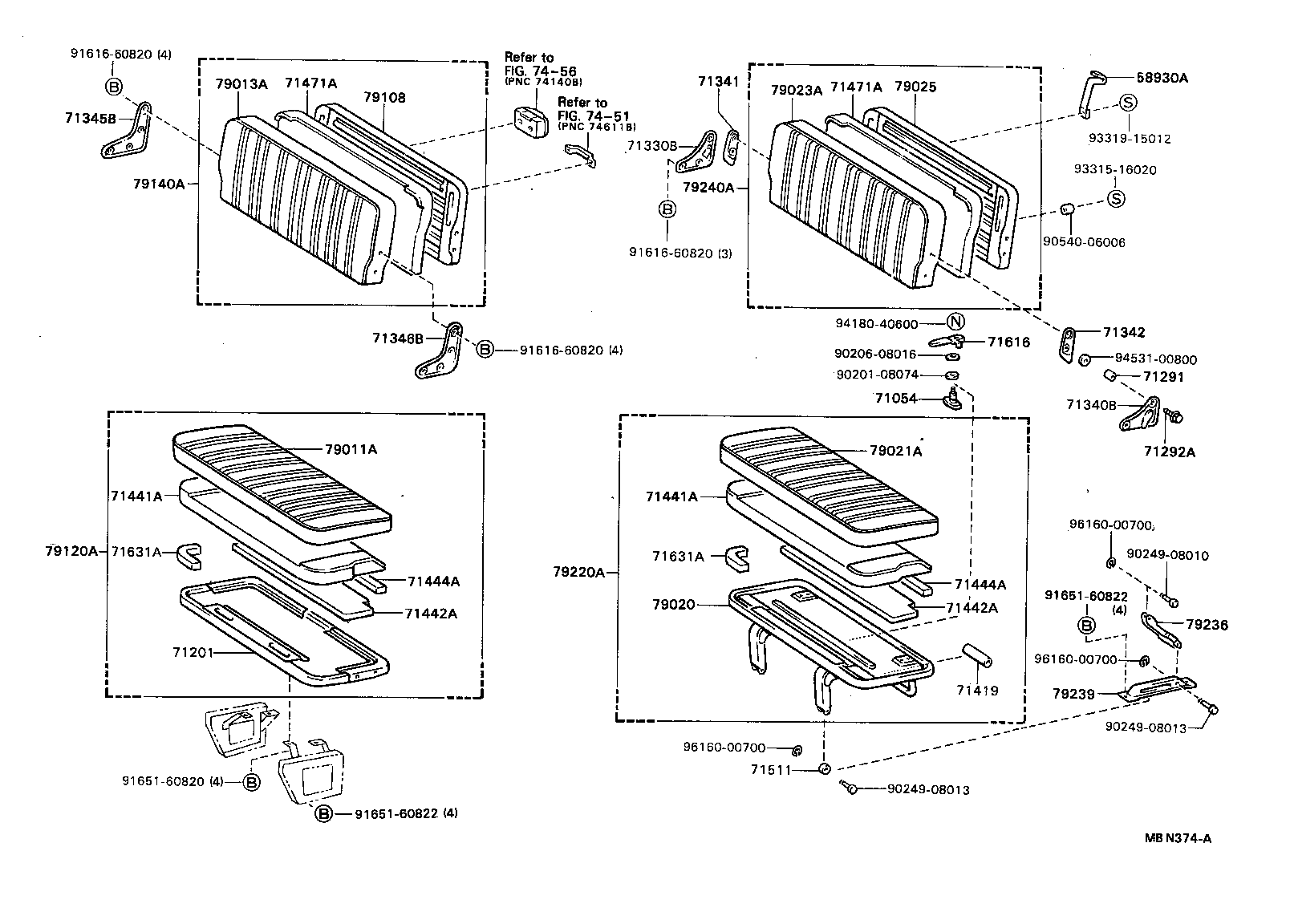

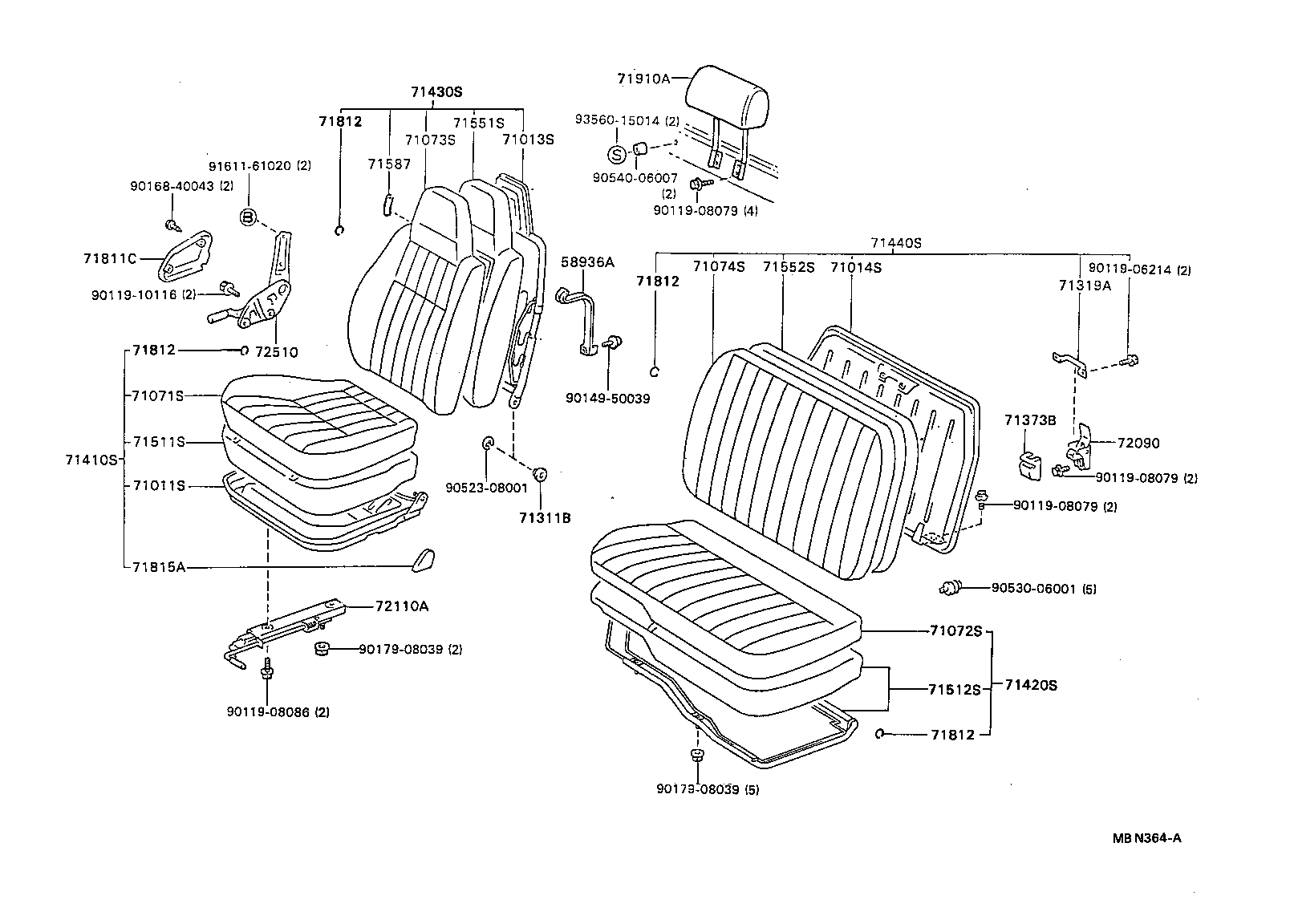

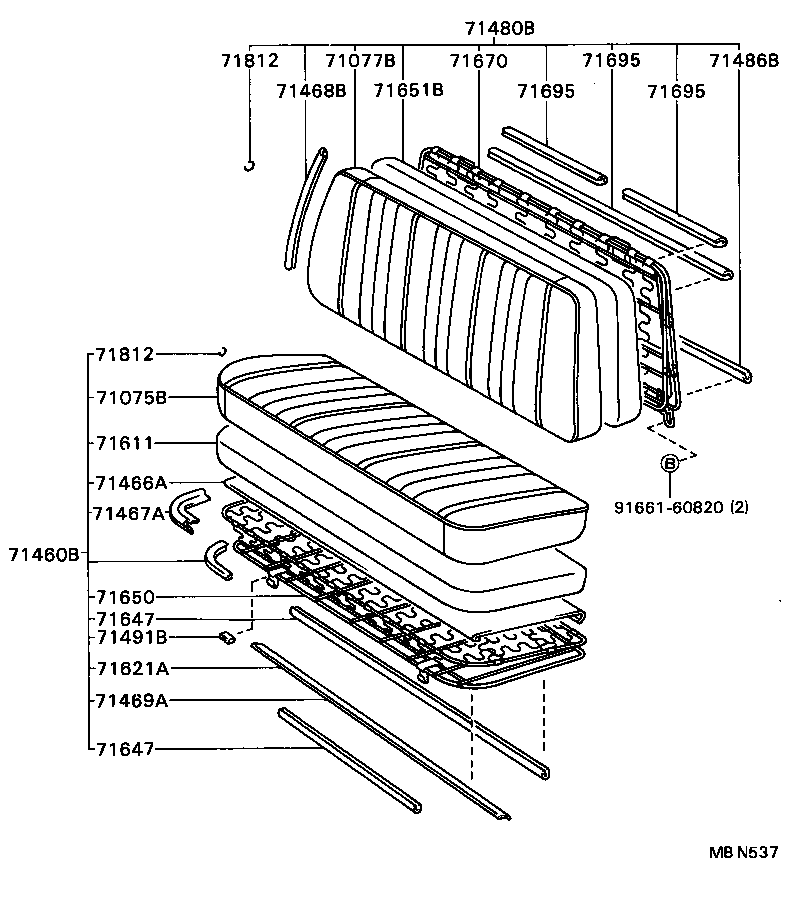

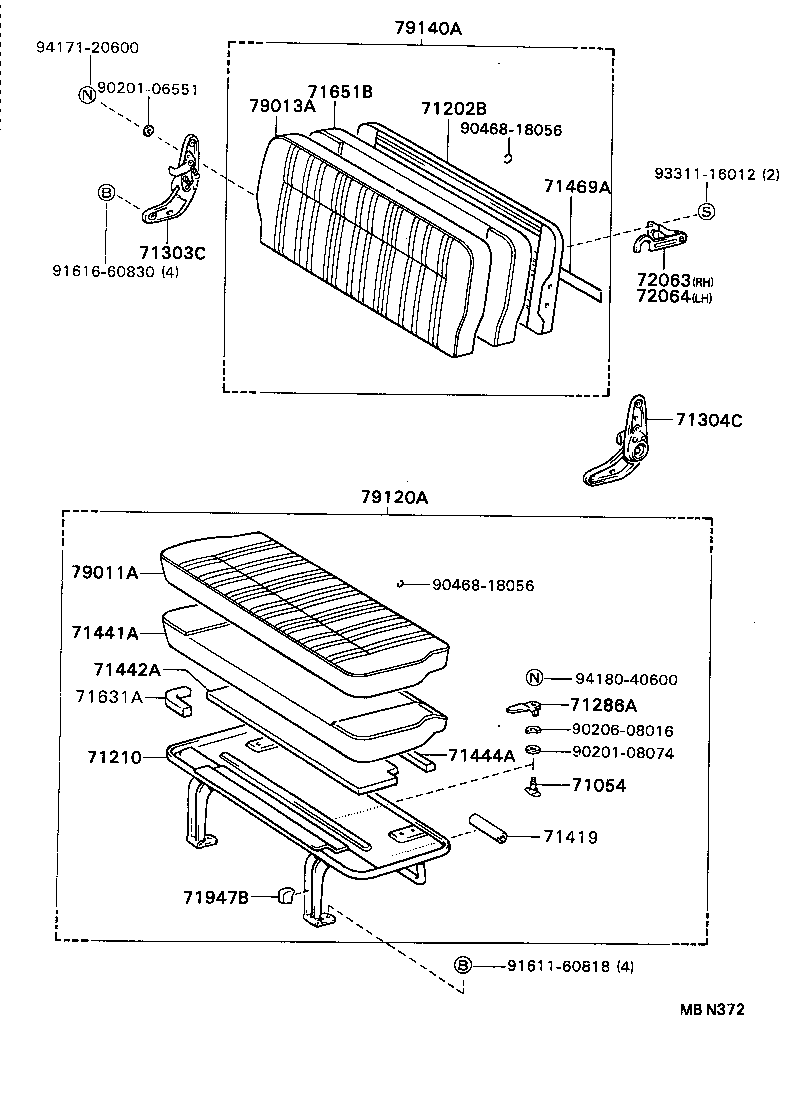

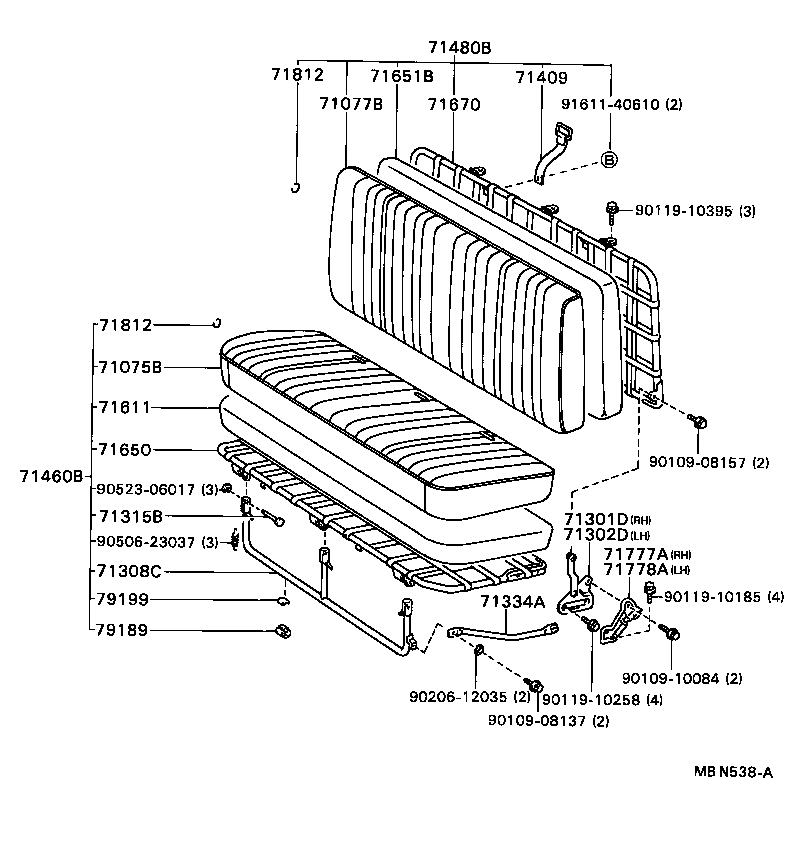

Figure MBN362C MBN362C 1987-08 → — Figure MBN364A MBN364A 1987-08 → — Figure MBN367 MBN367 1987-08 → — Figure MBN370B MBN370B 1987-08 → — Figure MBN537 MBN537 1987-08 → — Figure MBN538A MBN538A 1987-08 → — Figure MBN372 MBN372 1987-08 → — Figure MBN374A MBN374A 1987-08 → —

Part groups

PNCDescription
58839A Cover, Console Box Hole
58930A Band Assy, Engine Service Hole Cover Support
58936A Band, Engine Service Hole Cover Support
71011S Frame Sub-assy, Front Seat Cushion, RH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71035S Cover, Front Seatback, Center
71054 Stopper Sub-assy, Rear Seat Leg
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71202B Panel, Rear Seatback
71210 Panel, Rear Seat Cushion
71286A Handle, Rear Seat Leg Stopper
71291 Collar
71292A Bolt, Passenger Seat Hinge
71301D Hinge Sub-assy, Rear Seat, RH
71302D Hinge Sub-assy, Rear Seat, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305S Frame Sub-assy, Center Seatback
71308C Leg Sub-assy, Rear Seat, Front
71311B Bush (FOR FRONT SEAT HINGE PIN)
71315B Pin, Rear Seat Hinge
71319A Striker, Front Seatback
71330B Hinge Assy, Rear NO.2 Seat, RH
71334A Stopper, Rear Seat Leg
71340B Hinge Assy, Rear NO.2 Seat, LH
71341 Hinge, Rear Seatback, RH
71342 Hinge, Rear Seatback, LH
71345B Support, Rear Seat, RH
71346B Support, Rear Seat, LH
71350S Back Assy, Front Seat, Center
71365S Pad, Center Seatback
71373B Cover, Front Seatback Lock
71409 Stopper Sub-assy, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71419 Cushion (FOR REAR SEAT LEG)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71441A Pad, Rear Seat Cushion
71442A Pad, Rear Seat Cushion, Under
71444A Pad, Rear Seat Cushion, Rear
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71466A Pad, Rear Seat Cushion Under
71467A Pad, Corner
71468B Protector, Rear Seat, NO.1
71469A Pad, Rear Seatback
71471A Pad, Rear Seatback
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71486B Protector, Rear Seat, NO.3
71491B Cushion, Rear Seat Set
71511 Roller, Rear Seat Leg
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71611 Pad, Rear Seat Cushion
71616 Handle, Rear Seat Leg Stopper
71621A Pad, Rear Seat Cushion Silencer, A
71631A Pad, Rear Seat Cushion Corner
71647 Protector, Rear Seat Cushion Edge
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71695 Protector, Rear Seatback
71709B Cushion Sub-assy, Seat Support
71777A Plate, Rear Side Seat Hinge, Lower RH
71778A Plate, Rear Side Seat Hinge, Lower LH
71811C Cover, Reclining Adjuster, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71815A Cover, Front Seat Cushion Hinge, RH
71910A Headrest Assy, Front Seat
71947B Bumper, Rear Passenger Seat Cushion
72063 Hook Sub-assy, Rear Seat, RH
72064 Hook Sub-assy, Rear Seat, LH
72090 Lock Assy, Front Seatback
72110A Track Assy, Front Seat, Outer RH
72111A Rail, Front Inner Seat Track, Upper
72510 Adjuster Assy, Reclining Seatback, RH
73800 Suspension Assy, Seat, RH
73888 Handle, Seat Suspension Control
79011A Cover Sub-assy, NO.1 Seat Cushion
79013A Cover Sub-assy, NO.1 Seatback
79020 Panel NO.2 Seat
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79025 Panel, N0.2 Seatback
79108 Panel, Rear Seatback
79120A Cushion Assy, NO.1 Seat
79140A Back Assy, NO.1 Seat
79189 Stopper, NO.1 Seat Leg
79199 Holder, NO.1 Seat Leg Stopper
79220A Cushion Assy, NO.2 Seat
79236 Link, NO.2 LH Seat Leg
79239 Rail, NO.2 Seat Leg
79240A Back Assy, NO.2 Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
