Toyota Dyna/Toyoace
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan
Discontinued model
Data version 1989-04

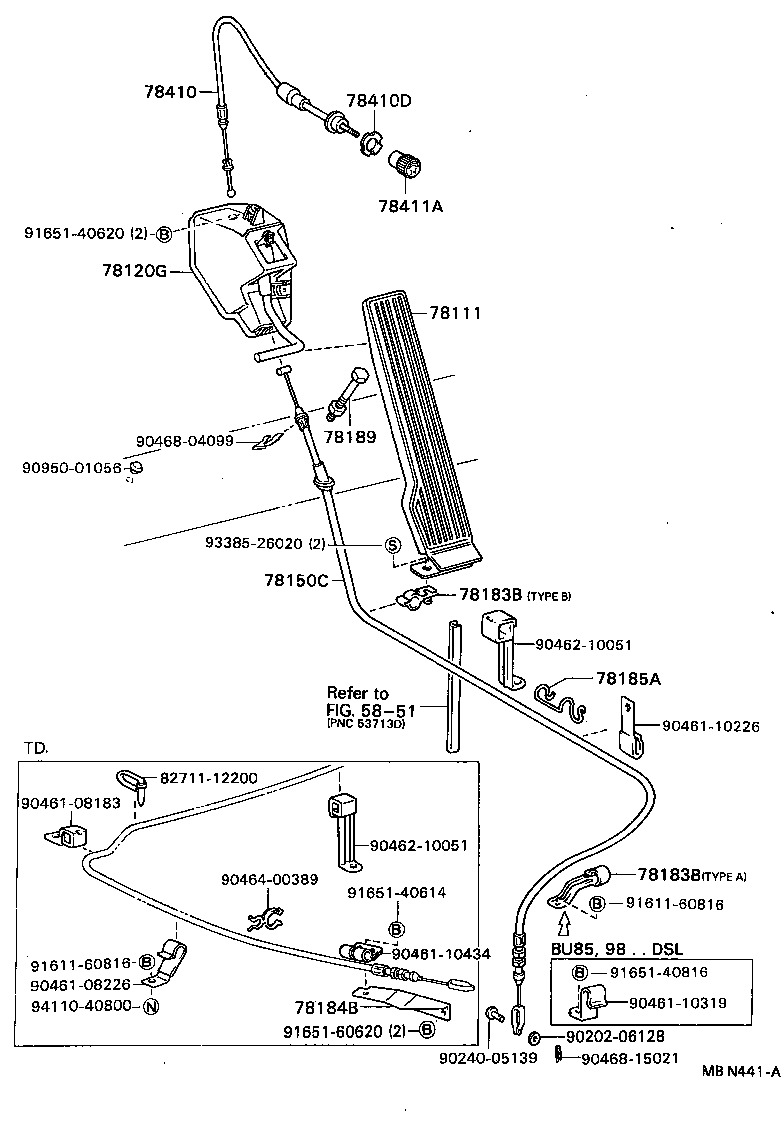

Accelerator Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78111 | Pedal, Accelerator |
| 78120G | Rod Assy, Accelerator Pedal |
| 78150C | Wire Assy, Accelerator Flexible |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78185A | Clamp, Accelerator Control Cable, NO.2 |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78410 | Cable Assy, Throttle Control |
| 78410D | Nut, Throttle |
| 78411A | Knob, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
