Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

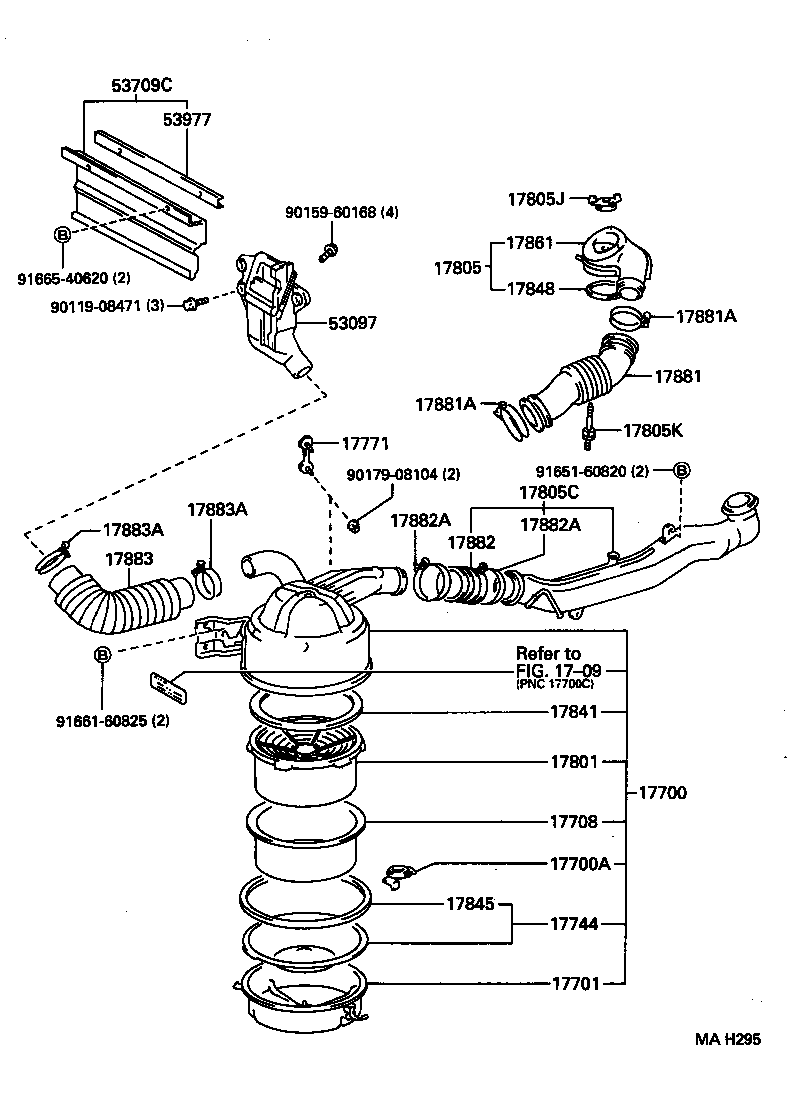

Exploded illustration MAH295 53709C — COVER SUB-ASSY, AIR CLEANER INLET (3 parts) 53977 — PLATE, AIR CLEANER INLET COVER (3 parts) 17805J — NUT, WING(FOR AIR CONNECTOR) (1 parts) 9015960168 — not listed in this catalogue 17861 — CONNECTOR, INTAKE AIR (2 parts) 17805 — CONNECTOR SUB-ASSY, INTAKE AIR (2 parts) 9166540620 — not listed in this catalogue 17848 — GASKET, AIR CLEANER TO CARBURETOR (1 parts) 9011908471 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (14 parts) 53097 — INLET SUB-ASSY (13 parts) 17881 — HOSE, AIR CLEANER, NO.1 (11 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (14 parts) 17805K — BOLT, STUD(FOR AIR CONNECTOR) (1 parts) 17771 — BRACKET, AIR CLEANER INLET DUCT (4 parts) 9165160820 — not listed in this catalogue 9017908104 — not listed in this catalogue 17805C — PIPE SUB-ASSY, AIR CLEANER, NO.1 (5 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (15 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (3 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (3 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (15 parts) 17882 — HOSE, AIR CLEANER, NO.2 (7 parts) 17883 — HOSE, AIR CLEANER, NO.3 (8 parts) 1709 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (4 parts) 9166160825 — not listed in this catalogue 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (4 parts) 17700 — CLEANER ASSY, AIR (13 parts) 17708 — BAFFLE SUB-ASSY, AIR CLEANER (1 parts) 17700A — NUT, WING(FOR AIR CLEANER) (10 parts) 17845 — GASKET, AIR CLEANER CAP (5 parts) 17744 — CUP, PRECLEANER (1 parts) 17701 — CASE SUB-ASSY, AIR CLEANER (9 parts)
MAH295 · 27 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
140 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-56460 Cleaner Assy, Air
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,83,84,87 ¥31,400
17700-56460 Cleaner Assy, Air
1990-08 → 1995-05 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,83,84,87 ¥31,400
17700-56470 Cleaner Assy, Air
1990-08 → 1995-05 ended
14B BU67 DM1 ¥31,400
17700-56480 Cleaner Assy, Air
1989-10 → 1991-09 ended
14B BU72,73,74 ¥31,400
17700-56480 Cleaner Assy, Air
1991-09 → 1995-05 ended
14B BU72,73,74 TR ¥31,400
17700-56490 Cleaner Assy, Air
1991-09 → 1995-05 ended
14B BU72 DMP ¥33,100
17700-58241 Cleaner Assy, Air
1988-08 → 1995-05 ended
14B BU88 06S ¥33,100
17700-58251 Cleaner Assy, Air
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# 5F ¥38,700
17700-58360 Cleaner Assy, Air
1988-08 → 1988-11 ended
14B BU88,91,94,96 03S ¥33,100
17700-58360 Cleaner Assy, Air
1988-11 → 1995-05 ended
14B BU96 5F;14B BU78,88,91,94 +1 ¥33,100
17700-58370 Cleaner Assy, Air
1988-11 → 1995-05 ended
14B# BU96 4FC ¥31,400
17700-58370 note Cleaner Assy, Air
1988-11 → 1995-05 ended
14B# BU96 5F IV3;14B +4 ¥31,400
17700-73101 Cleaner Assy, Air
1993-11 → 1995-05 ended
27LPG BU68 ¥31,400
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 note Nut, Wing(FOR AIR CLEANER)
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 —
90175-06003 note Nut, Wing(FOR AIR CLEANER)
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 —
90175-06003 note Nut, Wing(FOR AIR CLEANER)
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 —
90175-06003 Nut, Wing(FOR AIR CLEANER)
1988-08 → 1995-05 ended
27LPG BU68 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1991-09 → 1995-05 ended
14B BU72 DMP;14B BU67 +2 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1990-08 → 1991-09 ended
14B BU67 DM1;14B# BU78,88,9# —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1988-08 → 1990-08 ended
13BT,14B# BU78,85,88,9# —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 —
17701 — Case Sub-assy, Air Cleaner
17701-56130 Case Sub-assy, Air Cleaner
1993-11 → 1995-05 ended
27LPG BU68 —
17701-56150 Case Sub-assy, Air Cleaner
1988-08 → 1990-08 ended
14BT BU96 4FC;14B BU78,88,91,94,96 —
17701-56150 Case Sub-assy, Air Cleaner
1990-08 → 1991-09 ended
14B BU67 DM1;14BT BU96 +2 —
17701-56150 note Case Sub-assy, Air Cleaner
1989-10 → 1995-05 ended
14BT BU96 5F IV3 —
17701-56150 Case Sub-assy, Air Cleaner
1991-09 → 1995-05 ended
14B BU72 DMP;14B BU67 +4 —
17701-56170 Case Sub-assy, Air Cleaner
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 —
17701-56170 Case Sub-assy, Air Cleaner
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 —
17701-56170 Case Sub-assy, Air Cleaner
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 —
17701-58040 Case Sub-assy, Air Cleaner
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# 5F —
17708 — Baffle Sub-assy, Air Cleaner
17708-56010 Baffle Sub-assy, Air Cleaner
1993-11 → 1995-05 ended
27LPG BU68 —
17744 — Cup, Precleaner
17744-56010 Cup, Precleaner
1993-11 → 1995-05 ended
27LPG BU68 —
17771 — Bracket, Air Cleaner Inlet Duct
17771-56020 Bracket, Air Cleaner Inlet Duct
1991-09 → 1995-05 ended
14B BU72 TR;B,11B,14B,27LPG,3B BU60,61,66,68,70,73,74,83,84,87 ¥1,800
17771-56020 Bracket, Air Cleaner Inlet Duct
1988-08 → 1991-09 ended
B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 ¥1,800
17771-56030 Bracket, Air Cleaner Inlet Duct
1991-09 → 1995-05 ended
14B BU72 DMP ¥1,950
17771-58020 Bracket, Air Cleaner Inlet Duct
1990-08 → 1995-05 ended
14B BU67 DM1 ¥820
17801 — Element Sub-assy, Air Cleaner Filter
17801-56020 note Element Sub-assy, Air Cleaner Filter
1989-10 → 1995-05 ended
14BT BU96 5F IV3 ¥4,100
17801-56020 Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05 ended
14BT BU96 4FC;B,11B,14B,3B BU6#,7#,83,84,87,88,91,94,96 ¥4,100
17801-56031 Element Sub-assy, Air Cleaner Filter
1993-11 → 1995-05 ended
27LPG BU68 ¥3,890
17801-68020 Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# 5F ¥3,990
17805 — Connector Sub-assy, Intake Air
17805-75060 Connector Sub-assy, Intake Air
1993-11 → 1995-05 ended
27LPG BU68 ¥10,600
17805-95400 Connector Sub-assy, Intake Air
1988-08 → 1995-05 ended
14B BU78,88,91,94,96 03S ¥5,400
17805C — Pipe Sub-assy, Air Cleaner, NO.1
17805-58060 Pipe Sub-assy, Air Cleaner, NO.1
1993-11 → 1995-05 ended
27LPG BU68 ¥14,900
17805-58090 Pipe Sub-assy, Air Cleaner, NO.1
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,83,84,87 ¥12,800
17805-58090 Pipe Sub-assy, Air Cleaner, NO.1
1990-08 → 1995-05 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,83,84,87 ¥12,800
17805-58120 Pipe Sub-assy, Air Cleaner, NO.1
1989-10 → 1991-09 ended
14B BU72,73,74 ¥14,400
17805-58120 Pipe Sub-assy, Air Cleaner, NO.1
1991-09 → 1995-05 ended
14B BU72,73,74 TR ¥14,400
17805J — Nut, Wing(FOR AIR CONNECTOR)
90175-08008 Nut, Wing(FOR AIR CONNECTOR)
1993-11 → 1995-05 ended
27LPG BU68 —
17805K — Bolt, Stud(FOR AIR CONNECTOR)
90116-08161 Bolt, Stud(FOR AIR CONNECTOR)
1993-11 → 1995-05 ended
27LPG BU68 ¥250
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
1988-08 → 1995-05 ended
14BT BU96 4FC;B,11B,14B,3B BU6#,7#,83,84,87,88,91,94,96 —
17841-44030 note Gasket, Filter Element
1989-10 → 1995-05 ended
14BT BU96 5F IV3 —
17841-56031 Gasket, Filter Element
1993-11 → 1995-05 ended
27LPG BU68 —
17841-68010 Gasket, Filter Element
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# 5F ¥0
17845 — Gasket, Air Cleaner Cap
17845-17010 Gasket, Air Cleaner Cap
1995-02 → 1995-05 ended
14BT BU88,9# 5F —
17845-56020 Gasket, Air Cleaner Cap
1988-08 → 1995-05 ended
14BT BU96 4FC;B,11B,14B,3B BU6#,7#,83,84,87,88,91,94,96 —
17845-56020 note Gasket, Air Cleaner Cap
1989-10 → 1995-05 ended
14BT BU96 5F IV3 —
17845-56050 Gasket, Air Cleaner Cap
1993-11 → 1995-05 ended
27LPG BU68 —
17845-68020 Gasket, Air Cleaner Cap
1988-08 → 1995-02 ended
13BT,14BT BU85,88,9# 5F —
17848 — Gasket, Air Cleaner TO Carburetor
90430-72003 Gasket, Air Cleaner TO Carburetor
1993-11 → 1995-05 ended
27LPG BU68 ¥0
17861 — Connector, Intake Air
17861-58010 Connector, Intake Air
1989-10 → 1995-05 ended
14BT BU88,9# ¥17,800
17861-75010 Connector, Intake Air
1993-11 → 1995-05 ended
27LPG BU68 ¥10,000
17881 — Hose, Air Cleaner, NO.1
17881-36030 Hose, Air Cleaner, NO.1
1993-11 → 1995-05 ended
27LPG BU68 ¥6,100
17881-56120 Hose, Air Cleaner, NO.1
1990-08 → 1995-05 ended
14B BU67 DM1 ¥4,150
17881-56130 Hose, Air Cleaner, NO.1
1991-09 → 1995-05 ended
14B BU72 DMP ¥4,500
17881-58060 Hose, Air Cleaner, NO.1
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# ¥1,620
17881-58130 Hose, Air Cleaner, NO.1
1988-08 → 1989-09 ended
11B,14B BU61,66,67,84,87 ¥4,530
17881-58140 Hose, Air Cleaner, NO.1
1988-08 → 1995-05 ended
B,3B BU60,68,70,83 ¥4,150
17881-58150 Hose, Air Cleaner, NO.1
1988-08 → 1995-05 ended
14B BU78,88,91,94,96 ¥4,940
17881-58180 Hose, Air Cleaner, NO.1
1991-09 → 1995-05 ended
14B BU72,73,74 TR ¥5,900
17881-58180 Hose, Air Cleaner, NO.1
1989-10 → 1991-09 ended
14B BU72,73,74 ¥5,900
17881-58190 Hose, Air Cleaner, NO.1
1990-08 → 1995-05 ended
14B BU67 DM4,T3;11B,14B BU61,66,84,87 ¥4,510
17881-58190 Hose, Air Cleaner, NO.1
1989-09 → 1990-08 ended
11B,14B BU61,66,67,84,87 ¥4,510
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1995-05 ended
B,27LPG,3B BU60,68,70,83 ¥160
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1990-08 ended
14B BU78,88,91,94,96 ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1991-09 → 1995-05 ended
14B BU67 DM1;14B BU78,88,9#;14B,27LPG +2 ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-08 → 1991-09 ended
14B BU67 DM1;14B BU78,88,9# ¥190
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1991-09 → 1995-05 ended
14B BU72 DMP ¥160
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# ¥160
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 ¥240
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 ¥240
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 ¥240
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1990-08 ended
11B,14B BU61,66,67,72,73,74,84,87 ¥520
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-08 → 1991-09 ended
14B BU67 DM4,T3;11B,14B BU61,66,72,73,74,84,87 ¥520
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 ¥520
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-08 → 1995-05 ended
14B BU67 DM1;14B BU78,88,9# ¥410
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1990-08 ended
14B BU78,88,91,94,96 ¥410
17882 — Hose, Air Cleaner, NO.2
17882-54220 Hose, Air Cleaner, NO.2
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 ¥1,470
17882-54220 Hose, Air Cleaner, NO.2
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 ¥1,470
17882-54220 Hose, Air Cleaner, NO.2
1991-09 → 1995-05 ended
14B 7 BU72 TR;14B +3 ¥1,470
17882-58041 Hose, Air Cleaner, NO.2
1988-08 → 1989-10 ended
13BT BU85,90,95 ¥11,400
17882-58090 Hose, Air Cleaner, NO.2
1990-08 → 1995-05 ended
14B BU67 DM1 ¥2,900
17882-58100 note Hose, Air Cleaner, NO.2
1988-08 → 1990-01 ended
13BT BU85,90 IV3 ¥4,330
17882-58120 Hose, Air Cleaner, NO.2
1989-10 → 1995-05 ended
14BT BU88,9# ¥6,700
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.2)
1988-08 → 1991-09 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.2)
1991-09 → 1995-05 ended
14B BU72 TR;B,11B,14B,27LPG,3B BU6#,70,73,74,83,84,87 ¥190
96111-10930 Clamp(FOR AIR CLEANER HOSE, NO.2)
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# ¥120
17883 — Hose, Air Cleaner, NO.3
17883-58010 note Hose, Air Cleaner, NO.3
1988-08 → 1988-10 ended
13BT BU85,90 IV3 ¥2,640
17883-58040 Hose, Air Cleaner, NO.3
1988-08 → 1995-05 ended
14B BU78,88,91,94,96 ¥2,260
17883-58050 Hose, Air Cleaner, NO.3
1988-08 → 1995-05 ended
13BT,14BT BU85,88,9# ¥2,630
17883-92600 note Hose, Air Cleaner, NO.3
1988-08 → 1995-05 ended
14B BU88 06S ¥3,330
17883-95402 Hose, Air Cleaner, NO.3
1993-11 → 1995-05 ended
27LPG BU68 ¥2,640
17883-95405 Hose, Air Cleaner, NO.3
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 ¥3,710
17883-95405 Hose, Air Cleaner, NO.3
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 ¥3,710
17883-95405 Hose, Air Cleaner, NO.3
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 ¥3,710
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
90460-65004 Clamp(FOR AIR CLEANER HOSE, NO.3)
1989-10 → 1995-05 ended
14BT BU88,9# ¥400
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.3)
1993-11 → 1995-05 ended
27LPG BU68 ¥160
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1988-08 → 1995-05 ended
14B BU78,88,91,94,96 ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 ¥190
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.3)
1990-08 → 1991-09 ended
14B BU67 DM1 ¥410
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1988-08 → 1995-05 ended
14B BU88 06S ¥410
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1989-10 → 1990-08 ended
14B BU67 DM1 ¥410
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.3)
1991-09 → 1995-05 ended
14B BU72 DMP;14B BU67 +1 ¥410
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1991-09 → 1995-05 ended
14B BU72 TR;14B BU67 +2 ¥180
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1988-08 → 1990-08 ended
B,11B,14B,3B BU6#,70,72,73,74,83,84,87 ¥180
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1990-08 → 1991-09 ended
14B BU67 DM4,T3;B,11B,14B,3B BU60,61,66,68,70,72,73,74,83,84,87 ¥180
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1988-08 → 1995-05 ended
14B BU78,88,91,94,96 ¥120
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1988-08 → 1995-05 ended
14B BU88 06S ¥120
53097 — Inlet Sub-assy
53097-37010 Inlet Sub-assy
1991-09 → 1995-05 ended
BU72 TR;BU67 DM4,T3;BU60,61,66,68,70,73,74,83,84,87 DSL ¥5,400
53097-37010 Inlet Sub-assy
1989-12 → 1990-08 ended
BU6#,70,72,73,74,83,84,87 ¥5,400
53097-37010 Inlet Sub-assy
1990-08 → 1991-09 ended
BU67 DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 ¥5,400
53097-37060 Inlet Sub-assy
1991-09 → 1995-05 ended
BU72 DMP ¥14,400
53097-37070 Inlet Sub-assy
1992-10 → 1995-05 ended
BU88,9# TD ¥7,900
53097-37080 Inlet Sub-assy
1992-10 → 1995-05 ended
BU78,88,9# 03S DSL ¥4,130
53097-92601 Inlet Sub-assy
1988-08 → 1995-05 ended
BU88 06S ¥9,200
53097-95417 note Inlet Sub-assy
1989-10 → 1990-08 ended
BU67 DM1 ¥14,600
53097-95417 Inlet Sub-assy
1990-08 → 1995-05 ended
BU67 DM1 ¥14,600
53097-95418 Inlet Sub-assy
1988-08 → 1992-10 ended
BU85,88,9# TD ¥7,900
53097-95422 Inlet Sub-assy
1993-11 → 1995-05 ended
BU68 LPG ¥4,130
53097-95427 Inlet Sub-assy
1988-08 → 1989-12 ended
BU6#,70,72,74,83,84,87 ¥5,100
53097-95428 Inlet Sub-assy
1988-08 → 1992-10 ended
BU78,88,91,94,96 03S DSL ¥4,100
53709C — Cover Sub-assy, Air Cleaner Inlet
53709-95403 Cover Sub-assy, Air Cleaner Inlet
1988-08 → 1990-08 ended
BU6#,70,72,73,74,83,84,87 ¥2,870
53709-95403 Cover Sub-assy, Air Cleaner Inlet
1990-08 → 1991-09 ended
BU67 DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 ¥2,870
53709-95403 Cover Sub-assy, Air Cleaner Inlet
1991-09 → 1995-05 ended
BU72 TR;BU67 DM4,T3;BU60,61,66,68,70,73,74,83,84,87 ¥2,870
53977 — Plate, Air Cleaner Inlet Cover
53977-95402 Plate, Air Cleaner Inlet Cover
1988-08 → 1990-08 ended
BU6#,70,72,73,74,83,84,87 ¥2,050
53977-95402 Plate, Air Cleaner Inlet Cover
1990-08 → 1991-09 ended
BU67 DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 ¥2,050
53977-95402 Plate, Air Cleaner Inlet Cover
1991-09 → 1995-05 ended
BU72 TR;BU67 DM4,T3;BU60,61,66,68,70,73,74,83,84,87 ¥2,050
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
