Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

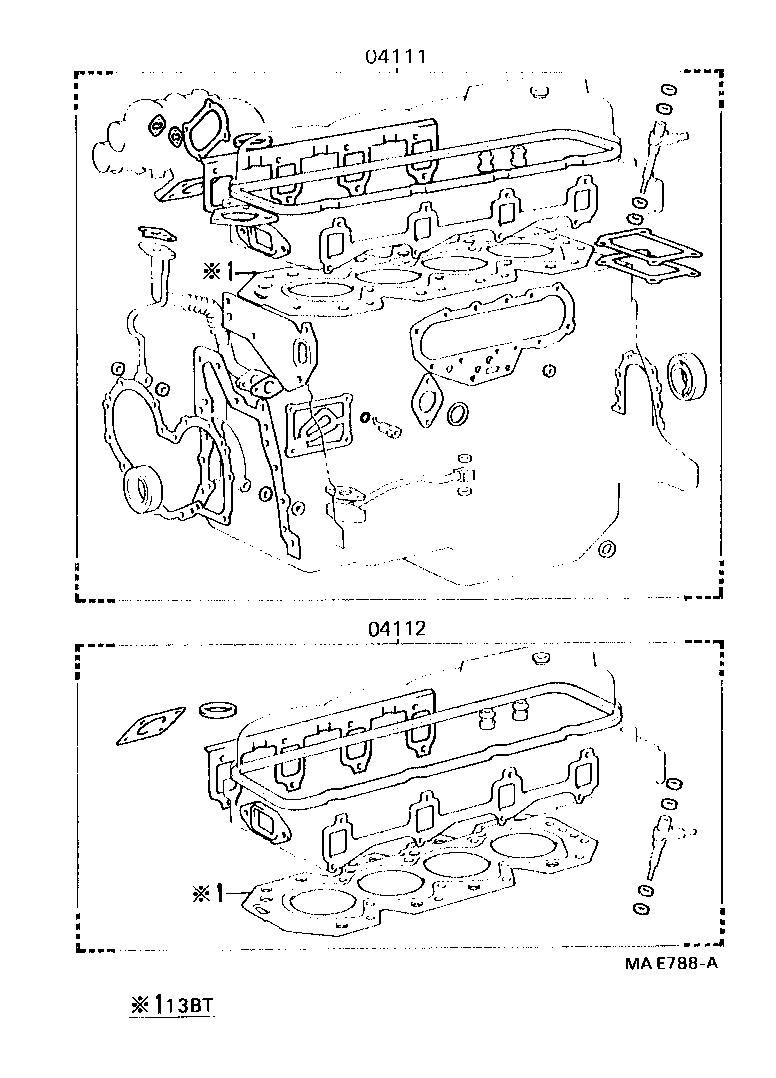

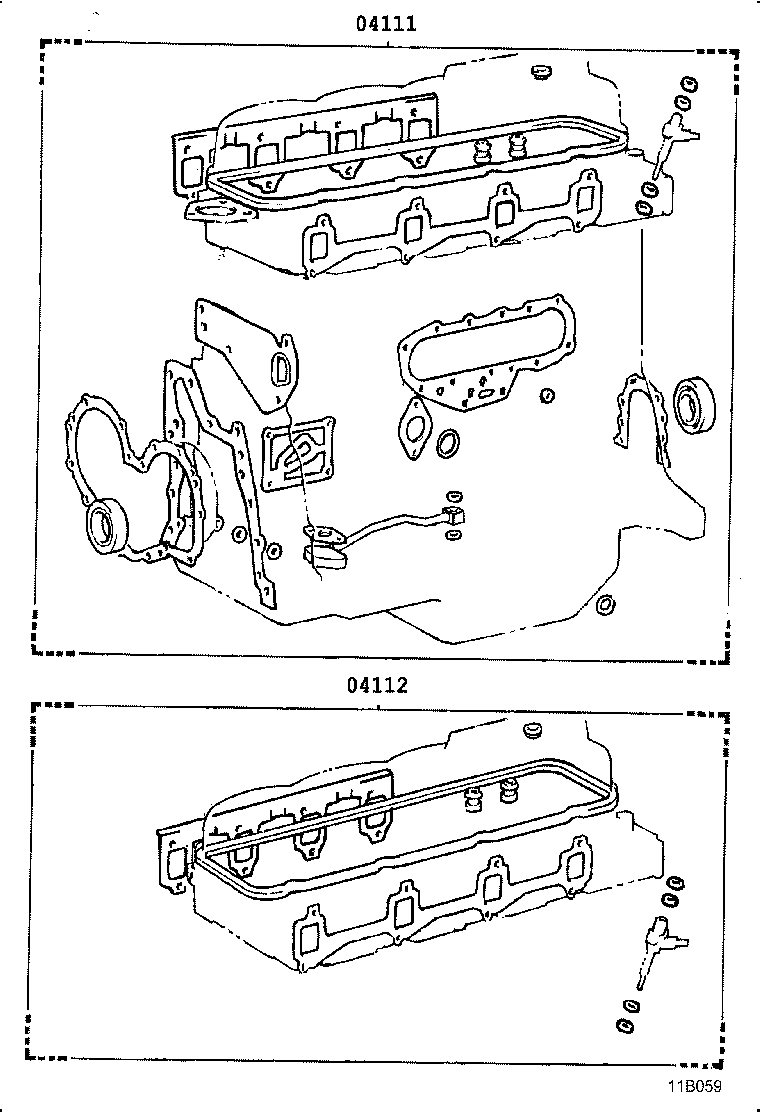

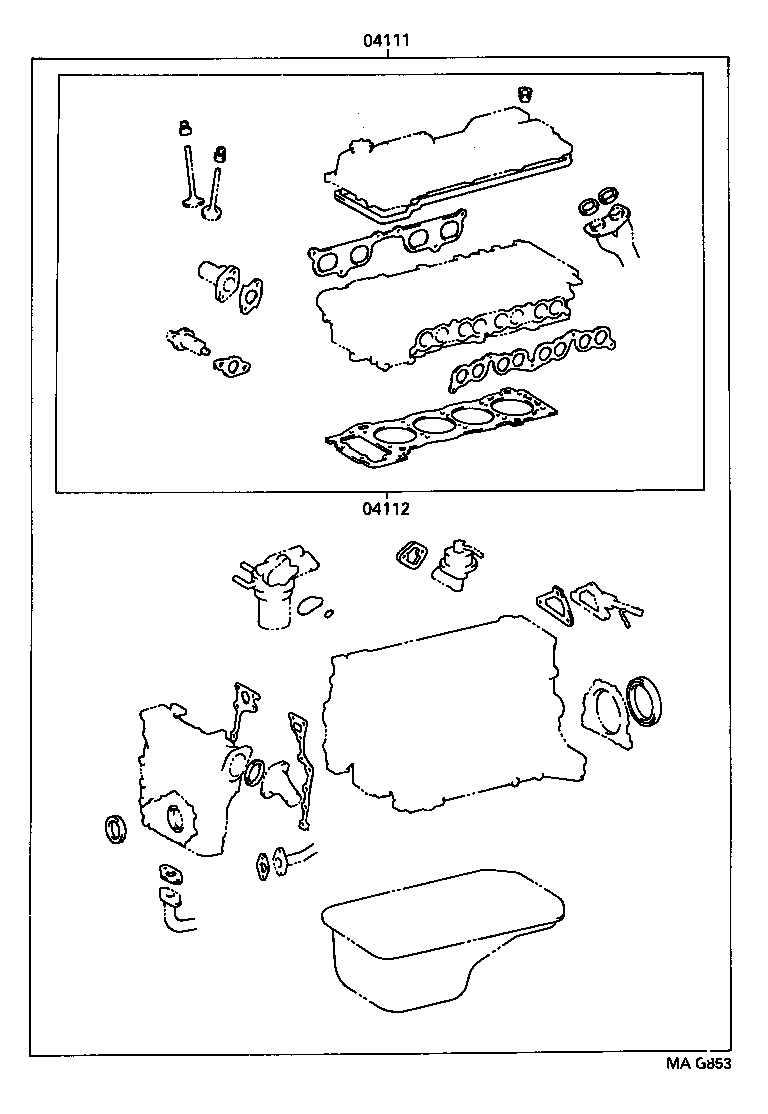

Figure MAB497B MAB497B 1988-08 → — Figure 11B059 11B059 1988-08 → — Figure MAE788A MAE788A 1988-08 → — Figure MAG853 MAG853 1993-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
