Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

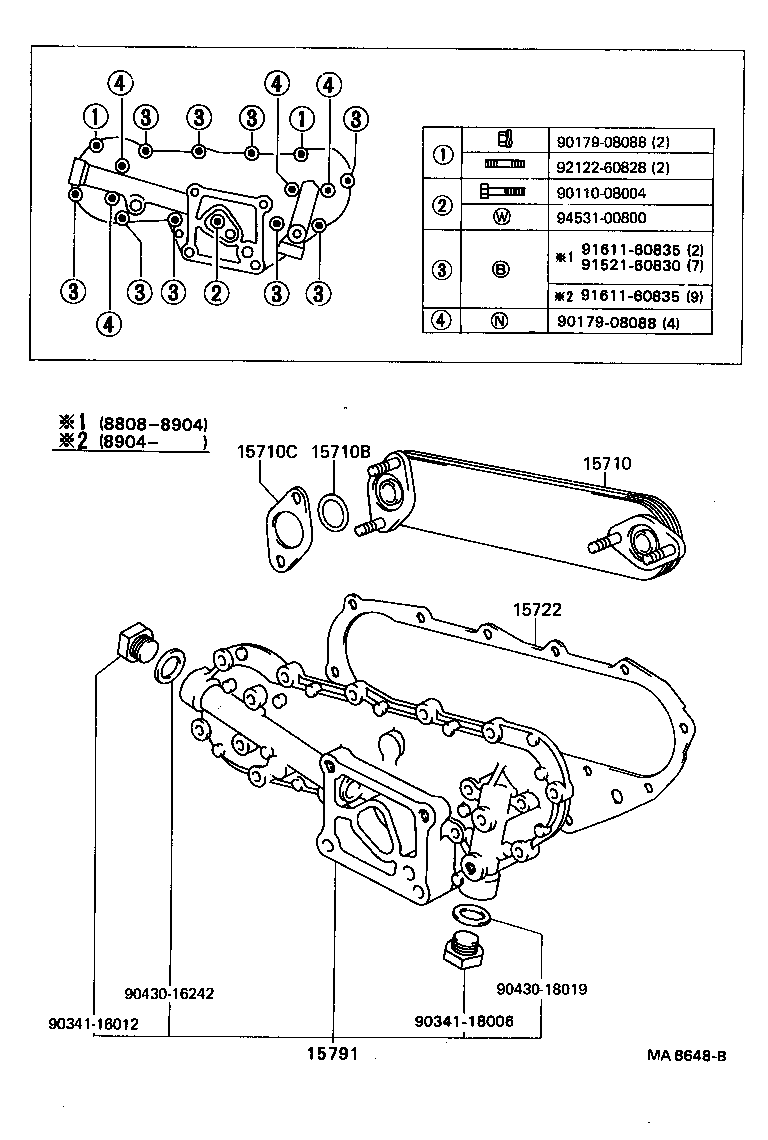

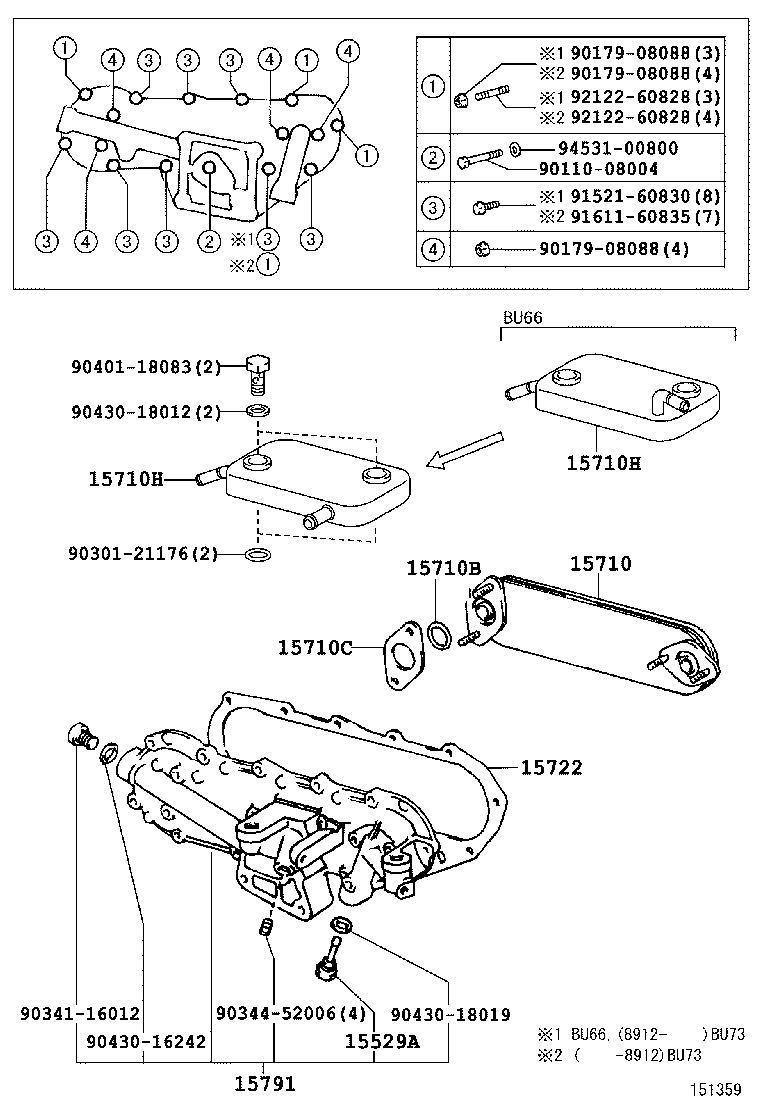

Engine Oil Cooler
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15529A | Plug |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15710H | Cooler Assy, Oil, NO.2 |
| 15722 | Gasket, Oil Cooler |
| 15791 | Case, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
