Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

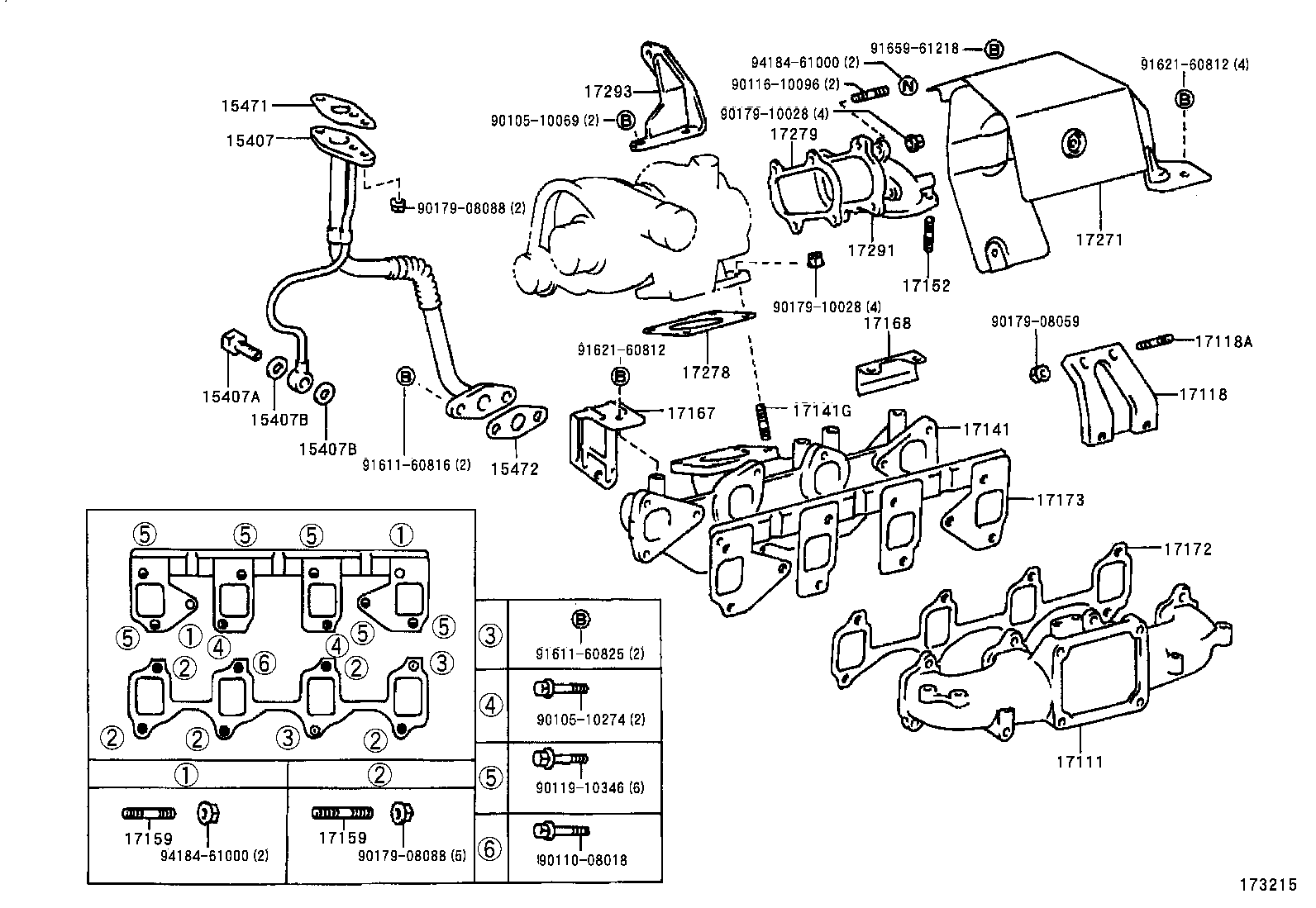

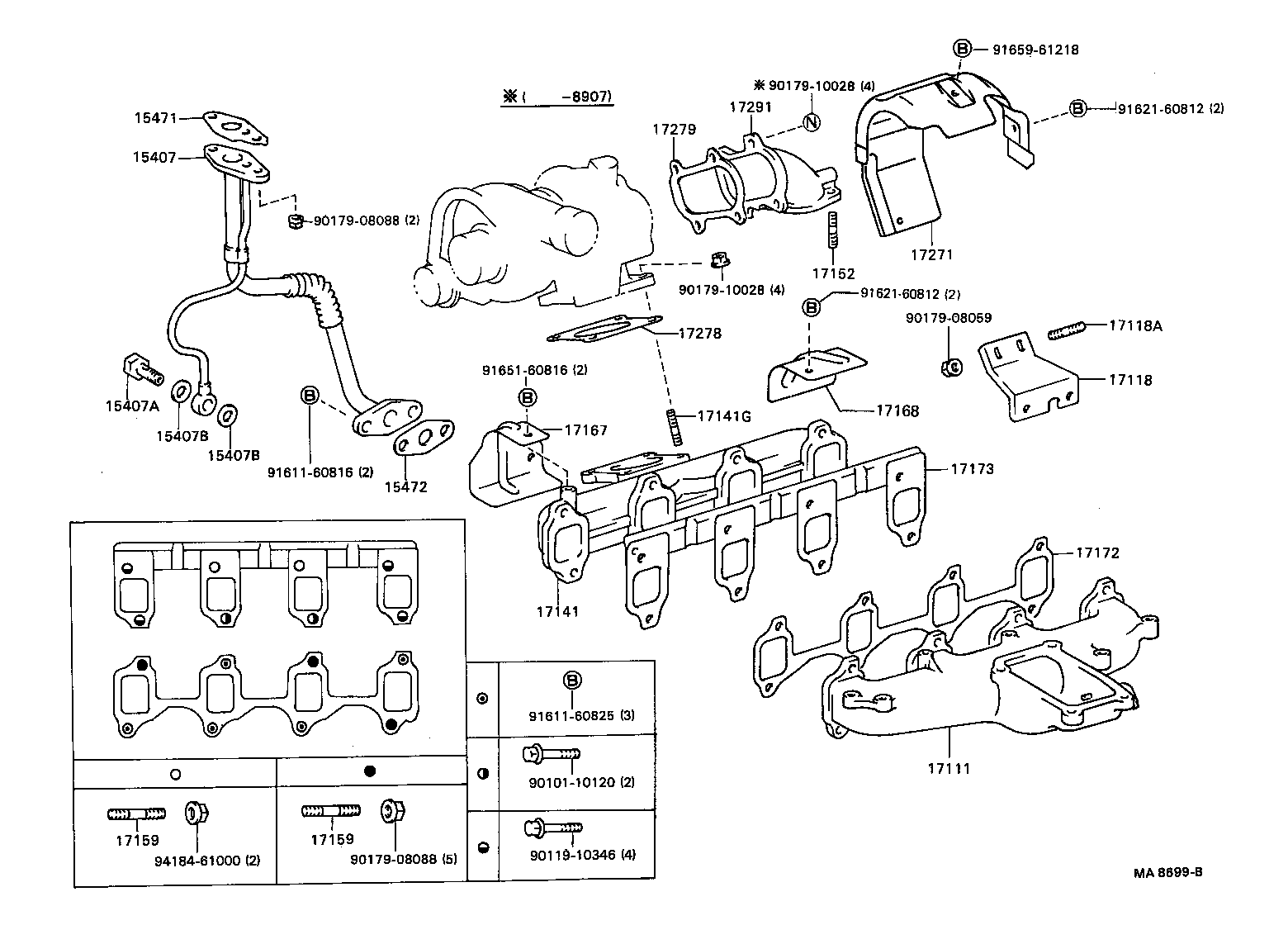

Manifold
45 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 04176 | Seal Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 16347C | Gasket(FOR TURBO WATER PIPE) |
| 17021 | Housing Sub-assy, Bearing |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17021C | Ring, Hole Snap(FOR BEARING HOUSING) |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |

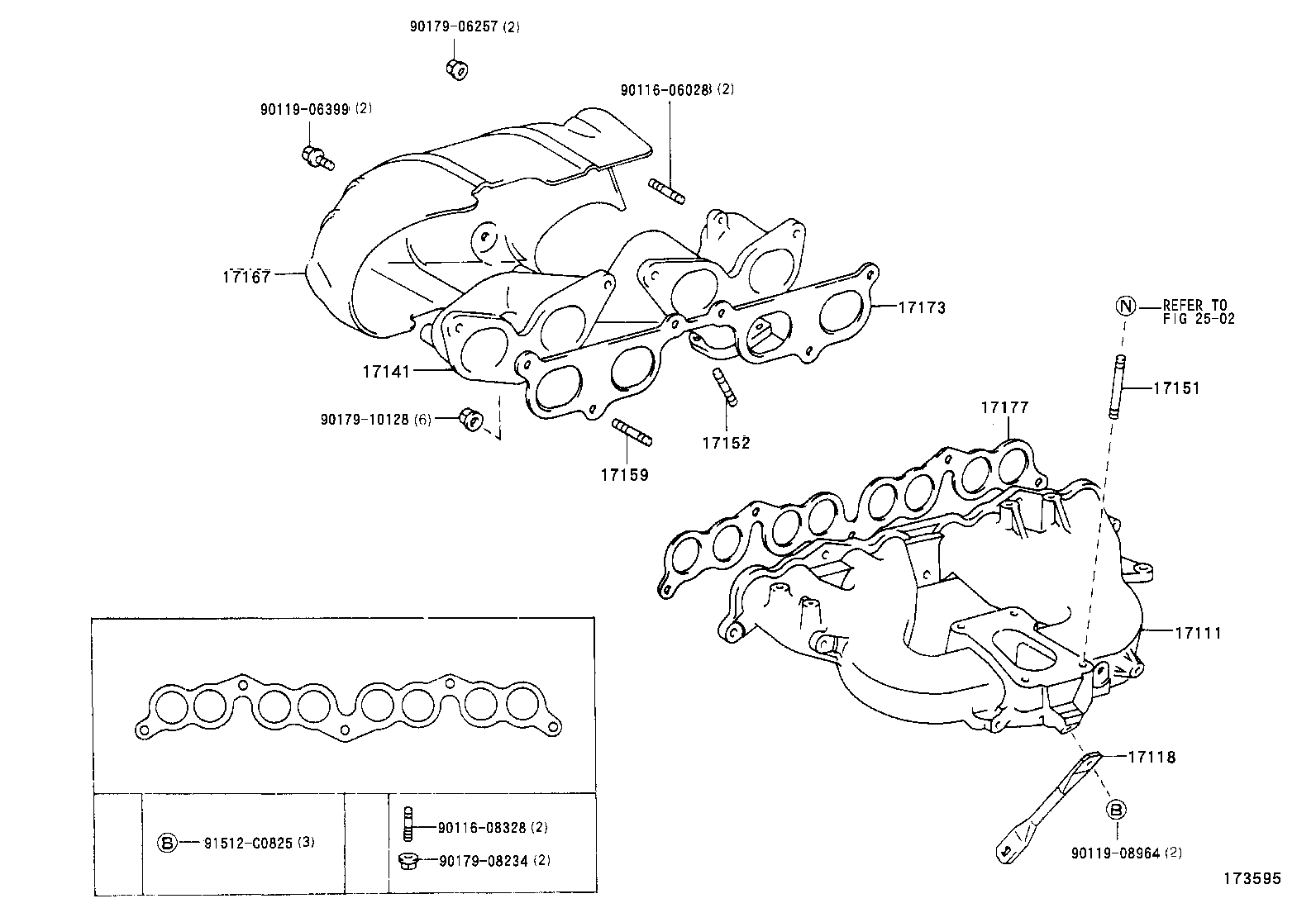

| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17118A | Bolt, Stud(FOR MANIFOLD STAY) |
| 17141 | Manifold, Exhaust |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |

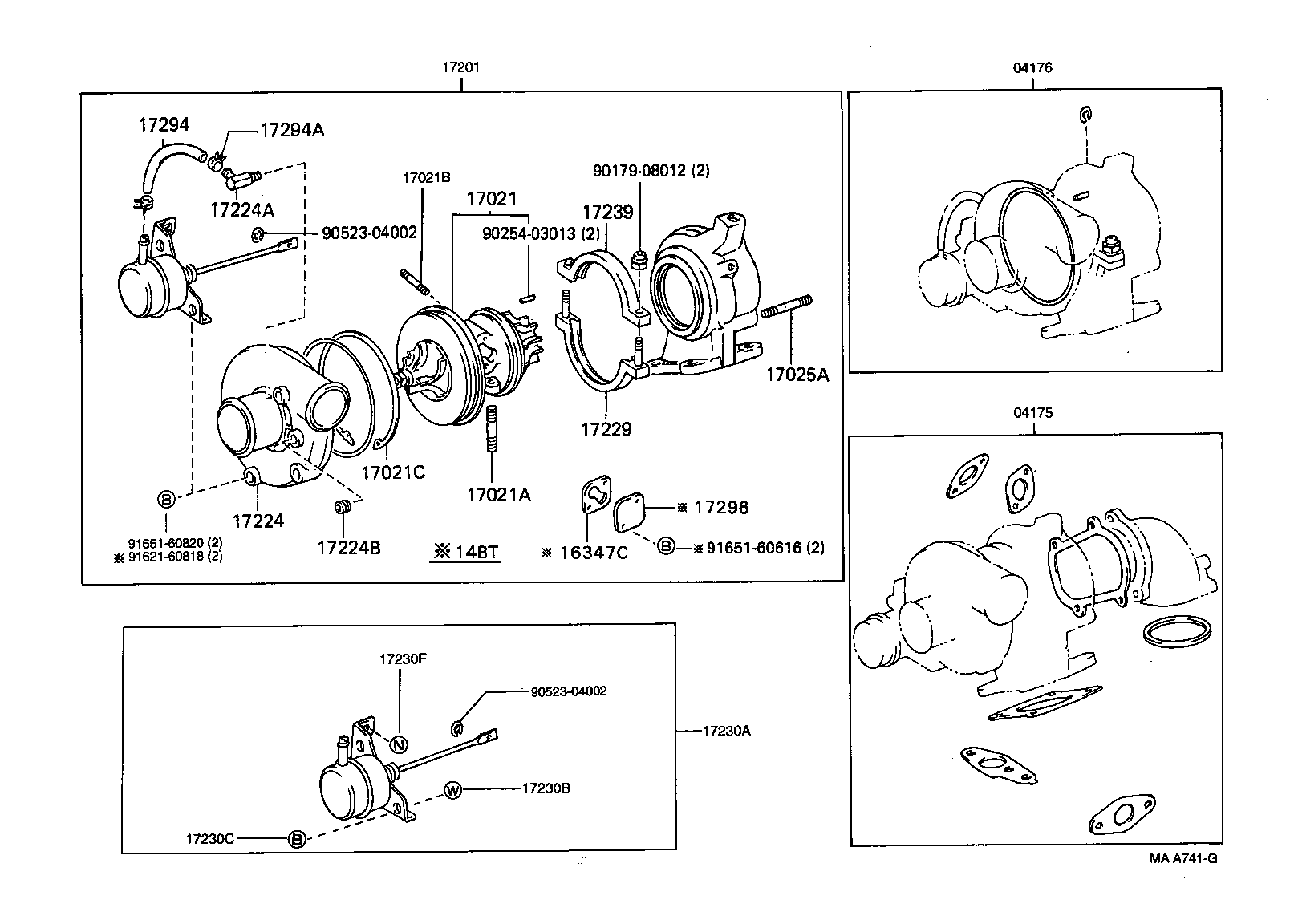

| 17201 | Turbocharger Sub-assy |
| 17224 | Housing, Compressor |
| 17224A | Union(FOR COMPRESSOR HOUSING) |
| 17224B | Plug, Taper Screw |
| 17229 | Band, V |
| 17230A | Repair Actuaor Assy, W/Bracket |
| 17230B | Washer, Plate(FOR REPAIR ACTUATOR SET) |
| 17230C | Bolt, W/Washer(FOR REPAIR ACTUATOR SET) |
| 17230F | Nut(FOR REPAIR ACTUATOR SET) |
| 17239 | Clamp, V, NO.2 |
| 17271 | Insulator, Turbo, NO.1 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 21928B | Support, Throttle Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
