Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

31 part groups · 10 illustrations

Illustrations

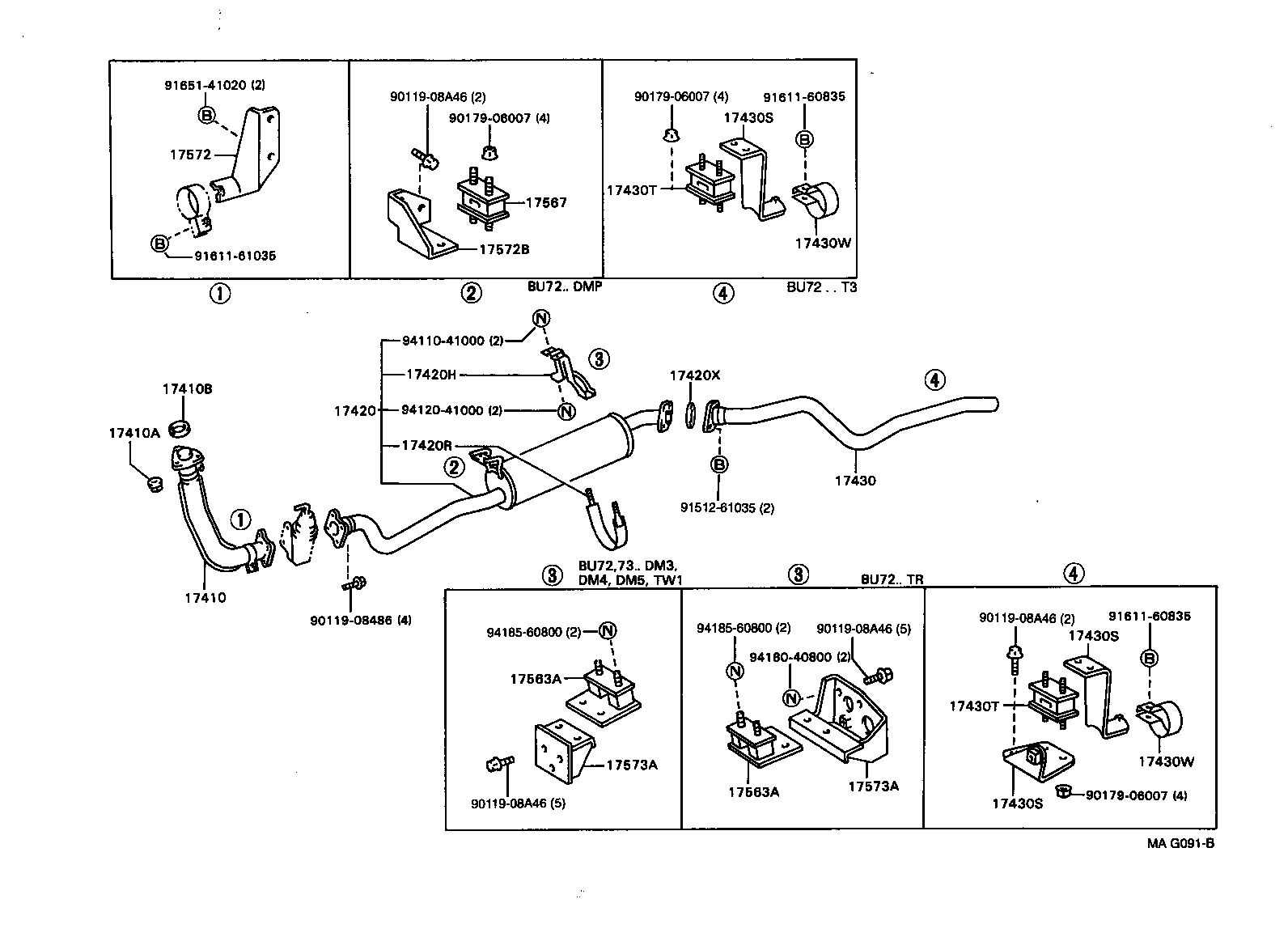

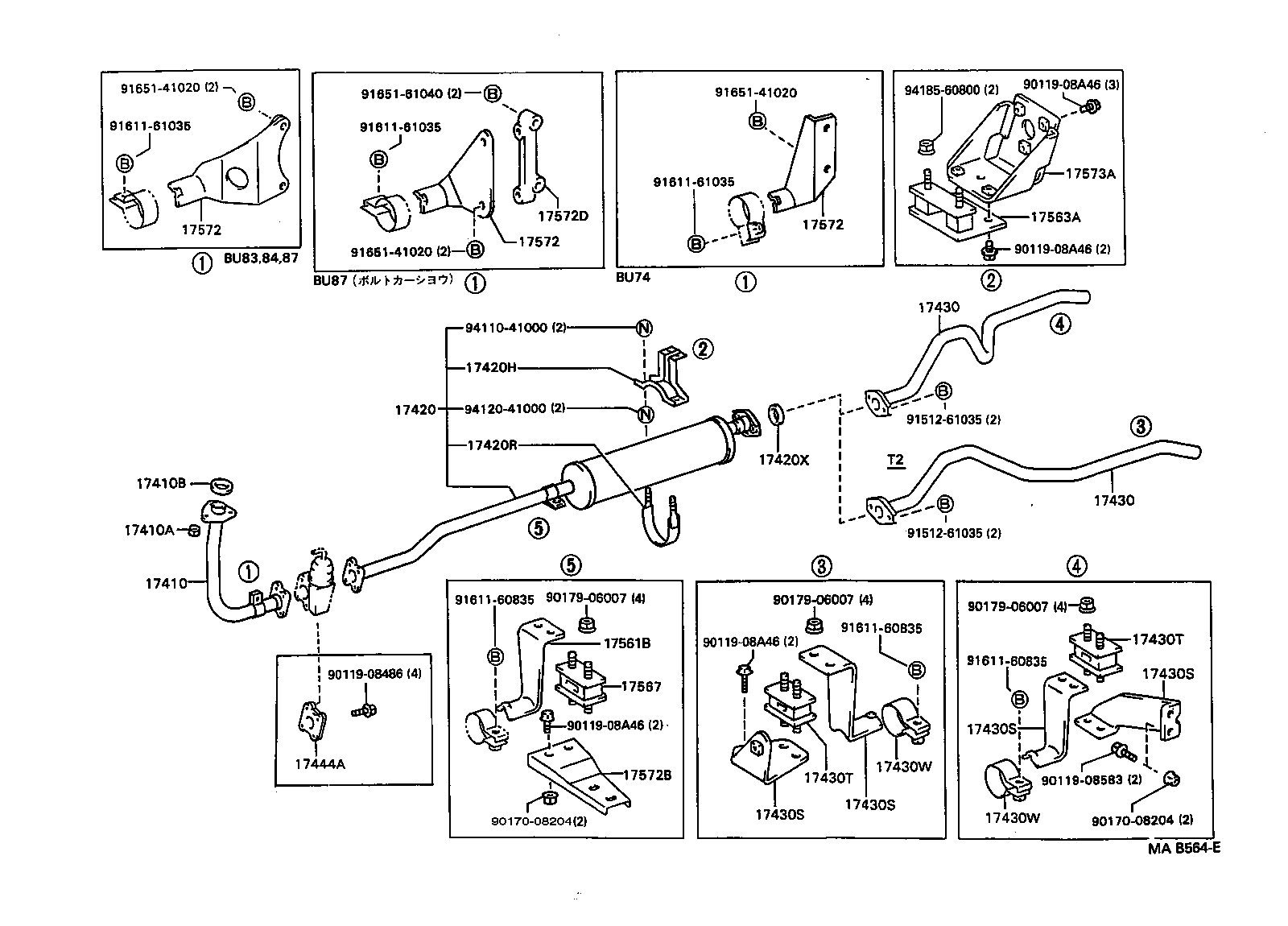

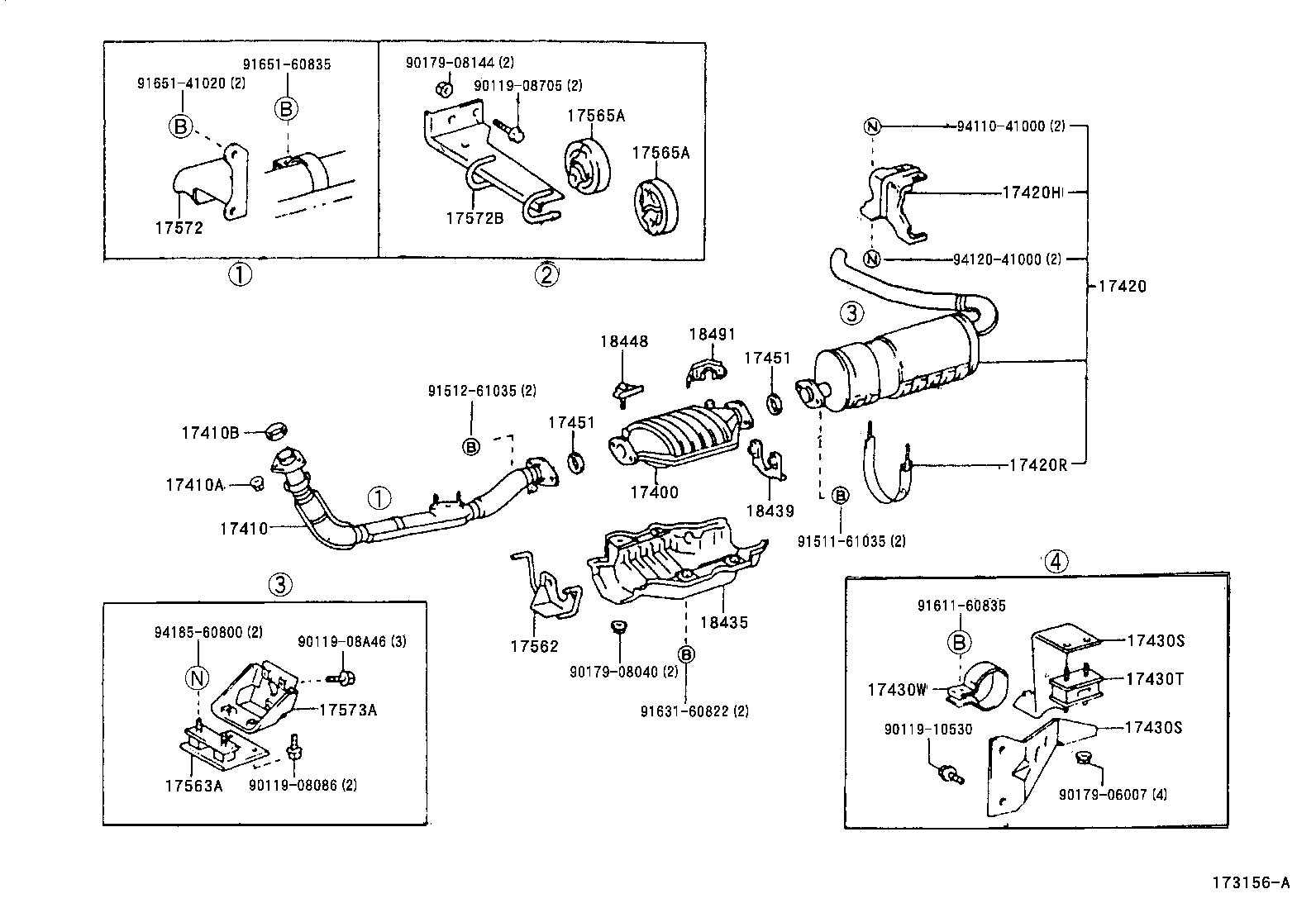

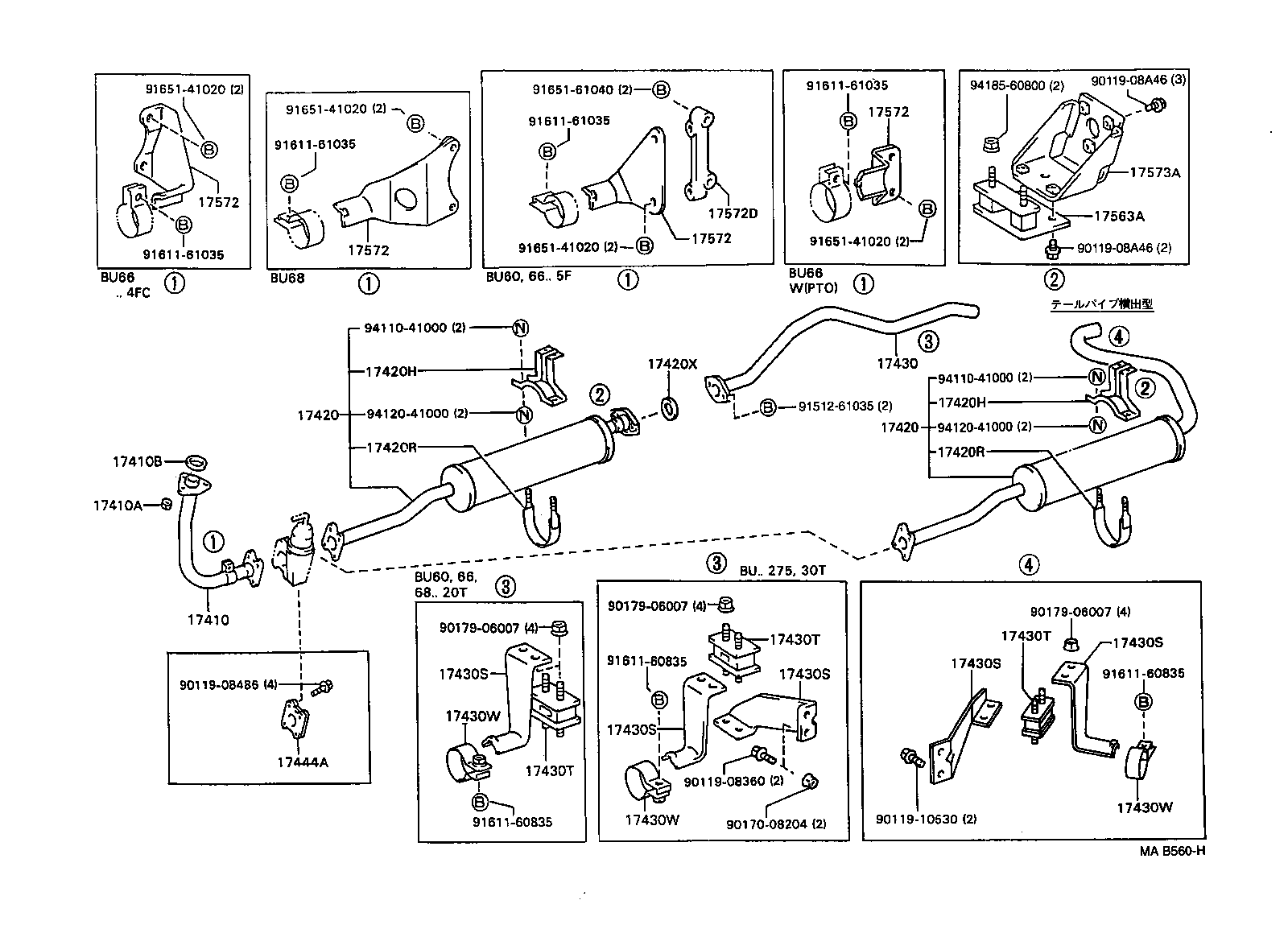

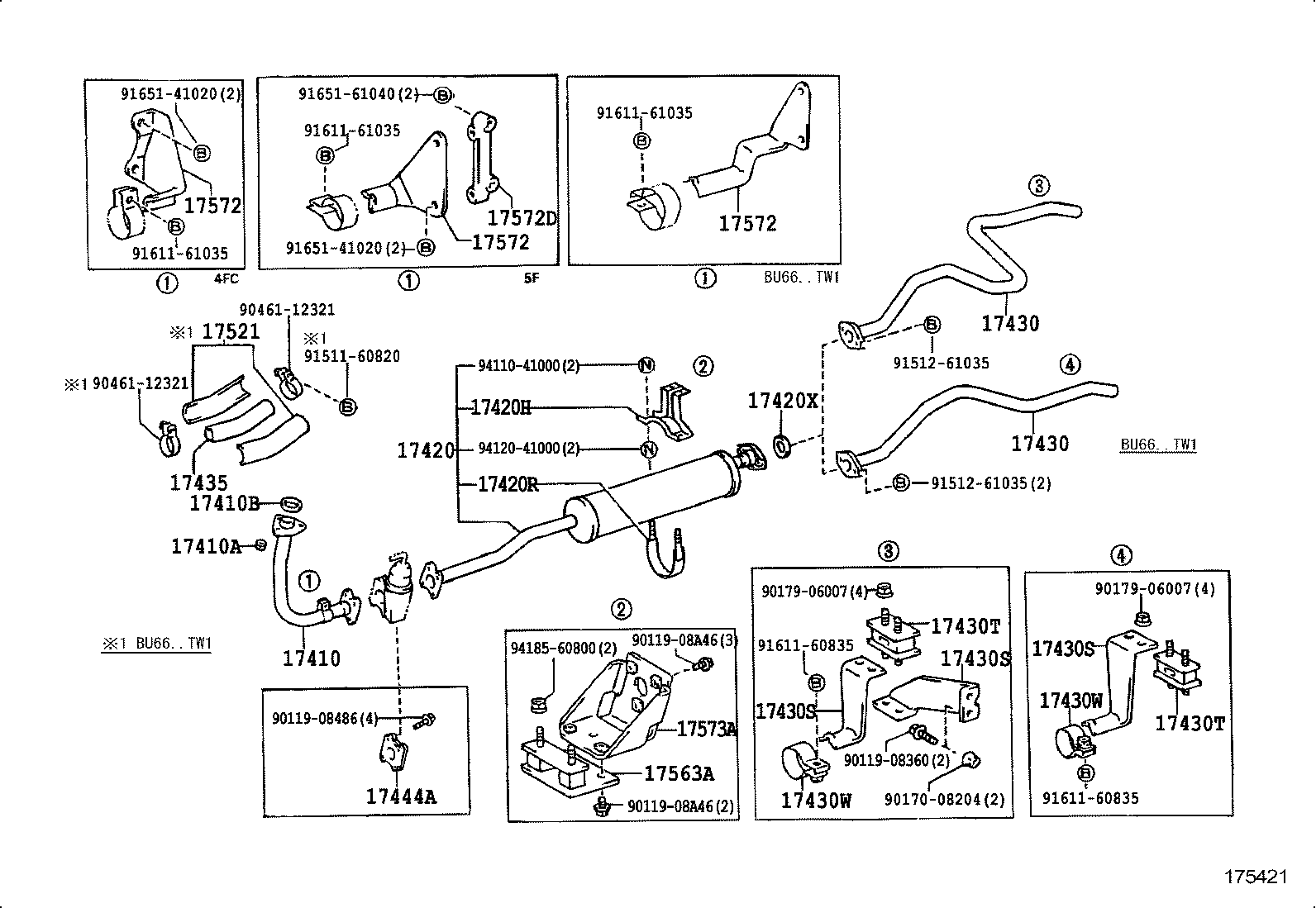

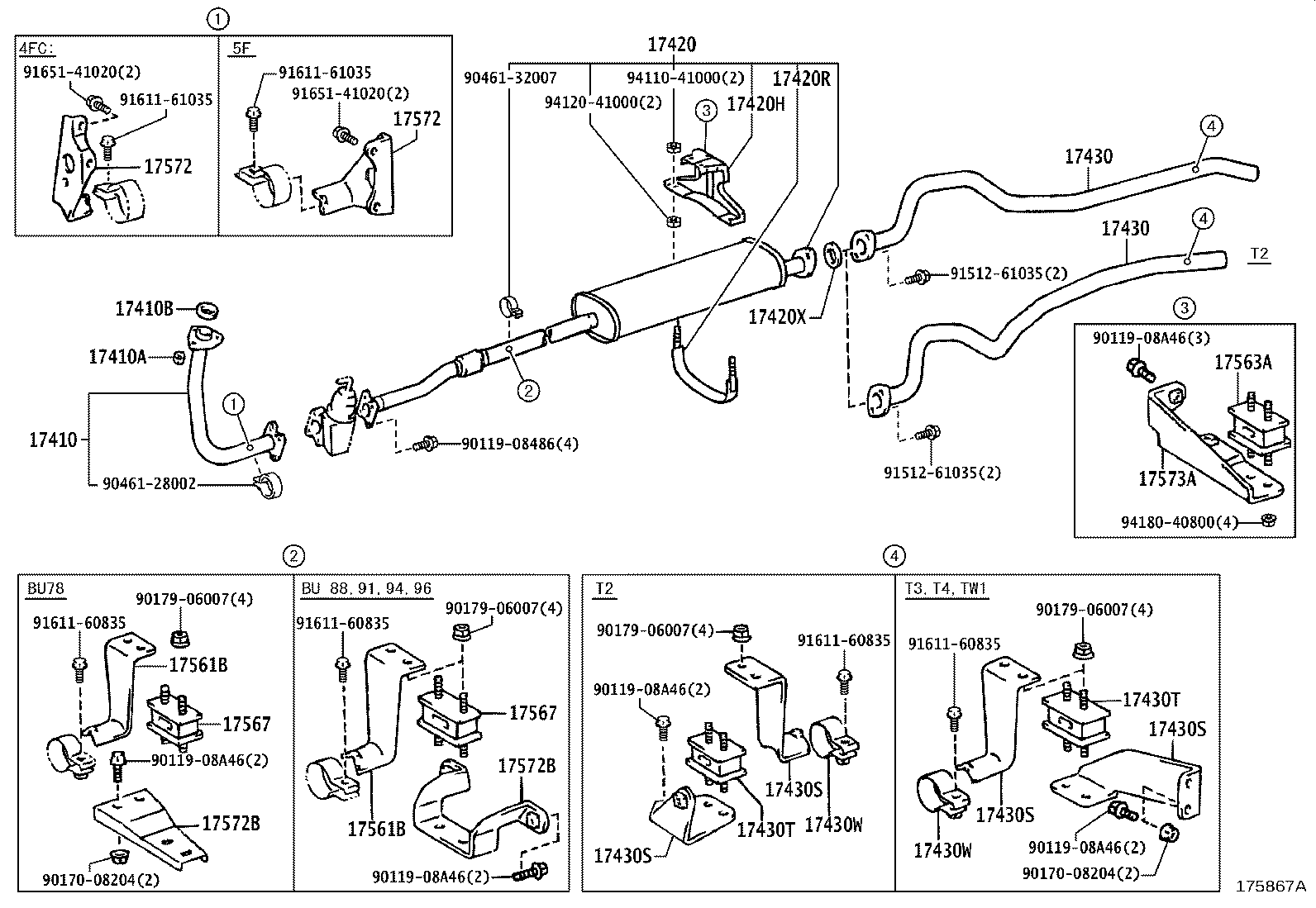

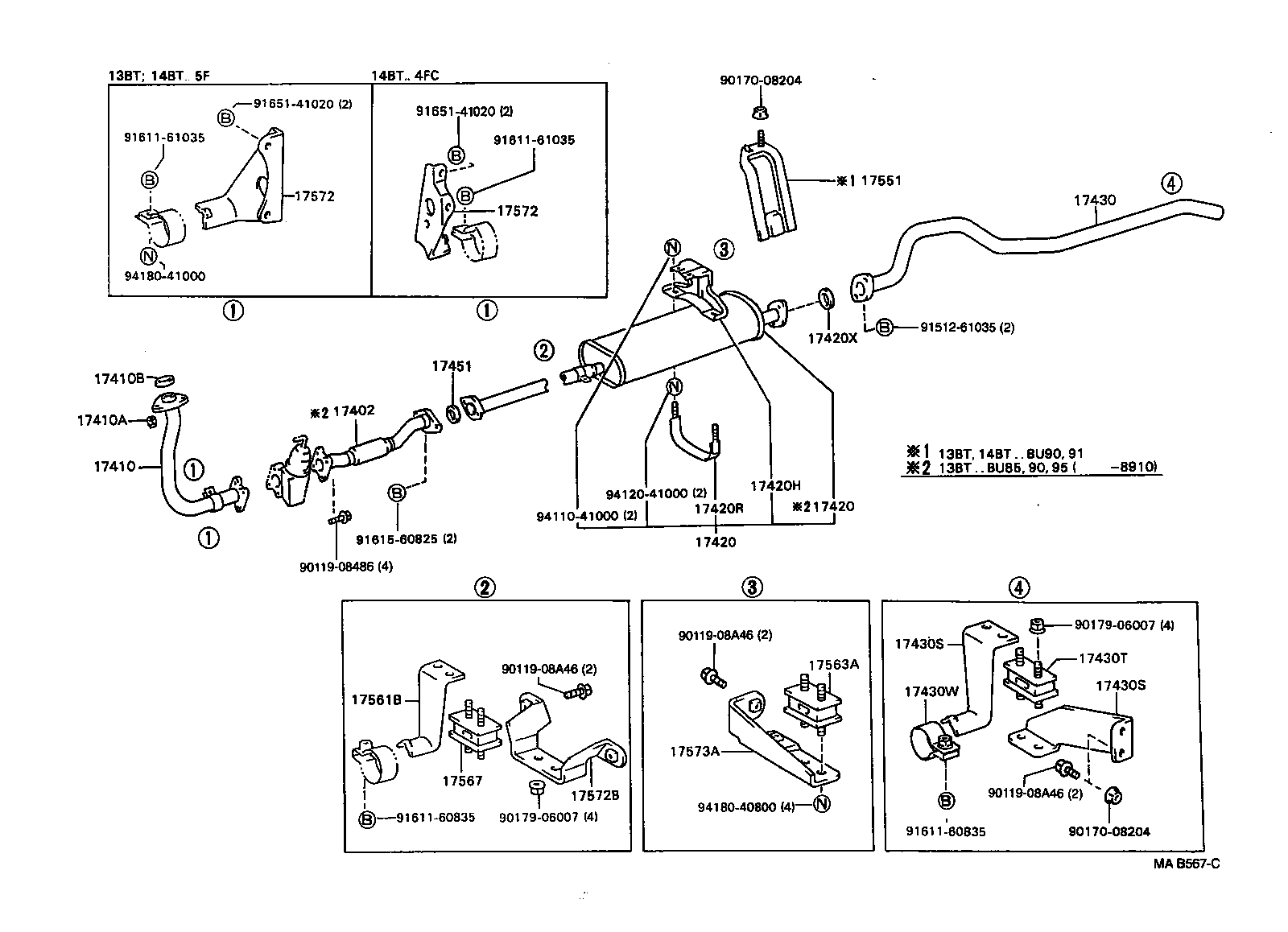

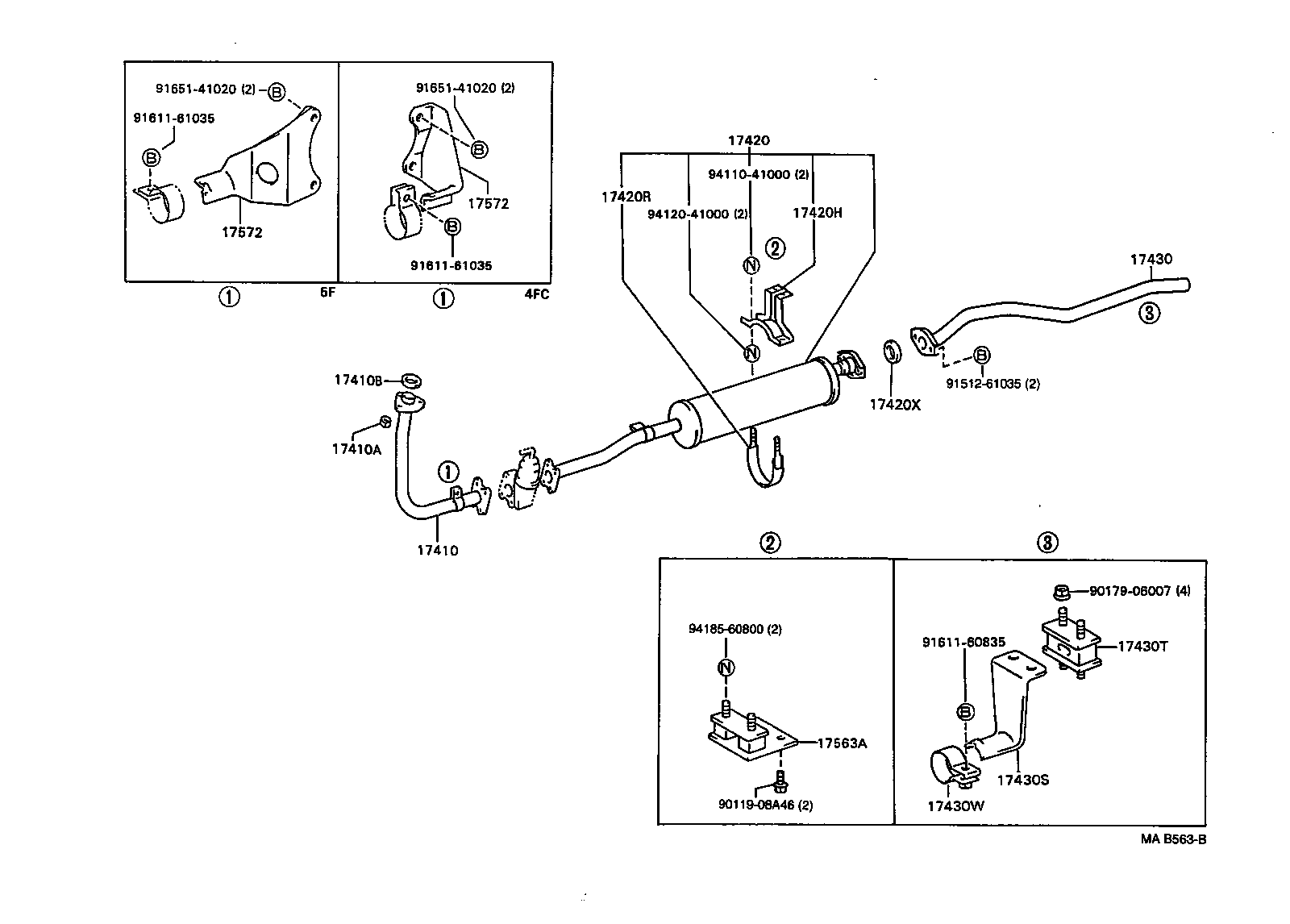

Figure MAB562C MAB562C 1988-08 → — Figure MAB560H MAB560H 1988-08 → — Figure 175421 175421 1988-08 → — Figure MAG091B MAG091B 1988-08 → — Figure MAB564E MAB564E 1988-08 → — Figure MAB563B MAB563B 1988-08 → — Figure 175867A 175867A 1988-08 → — Figure MAB567C MAB567C 1988-08 → — Figure MAB567C MAB567C 1990-08 → — Figure 173156A 173156A 1993-11 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17435 Insulator, Exhaust Pipe Heat
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17521 Protector, Exhaust Pipe, Front NO.1
17551 Insulator, Exhaust Pipe Heat, NO.1
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
18435 Protector, Catalytic Converter
18439 Bracket, Convertor Protector, Rear
18448 Bracket, Converter Protector, Center
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
