Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

44 part groups · 15 illustrations

Illustrations

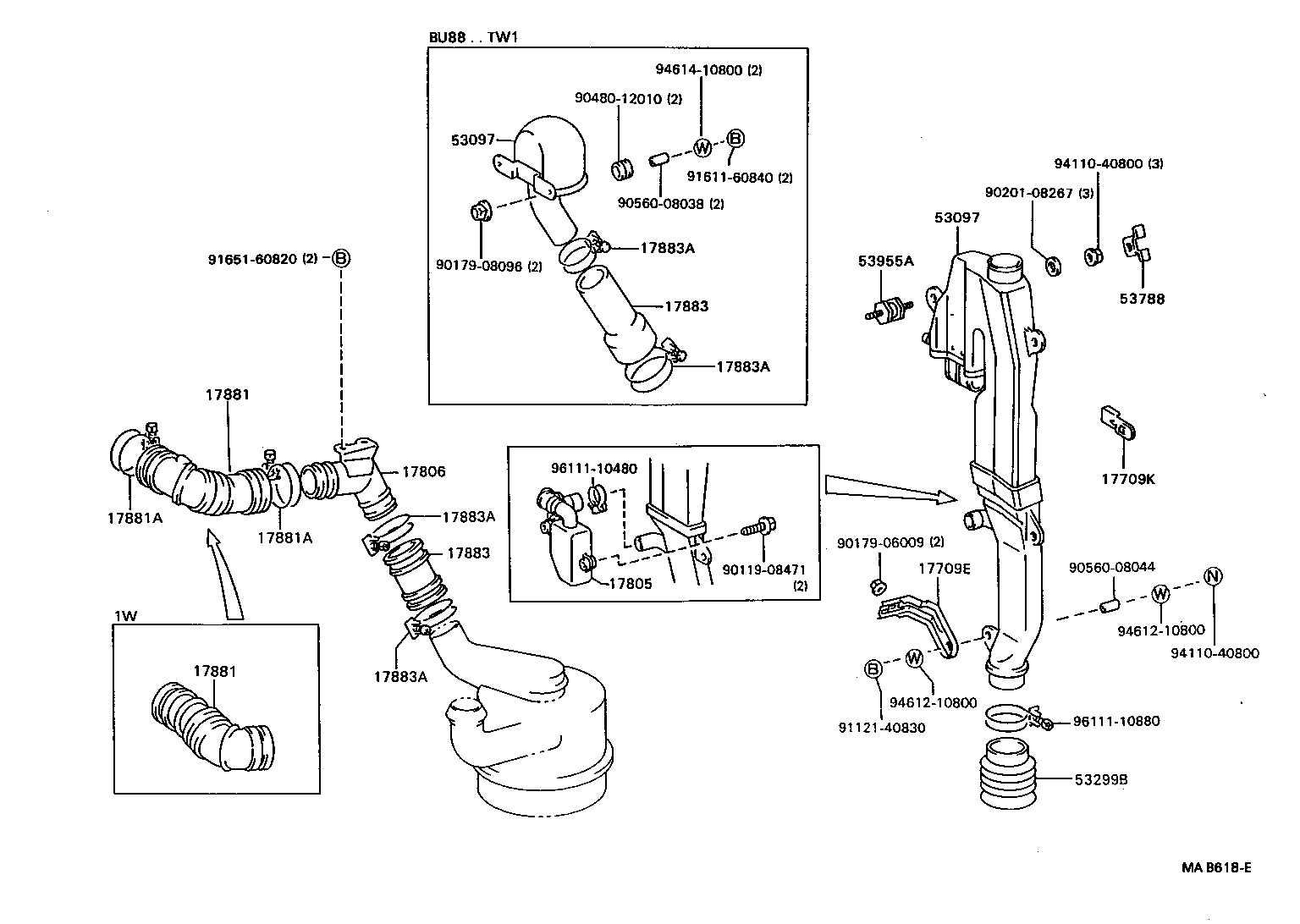

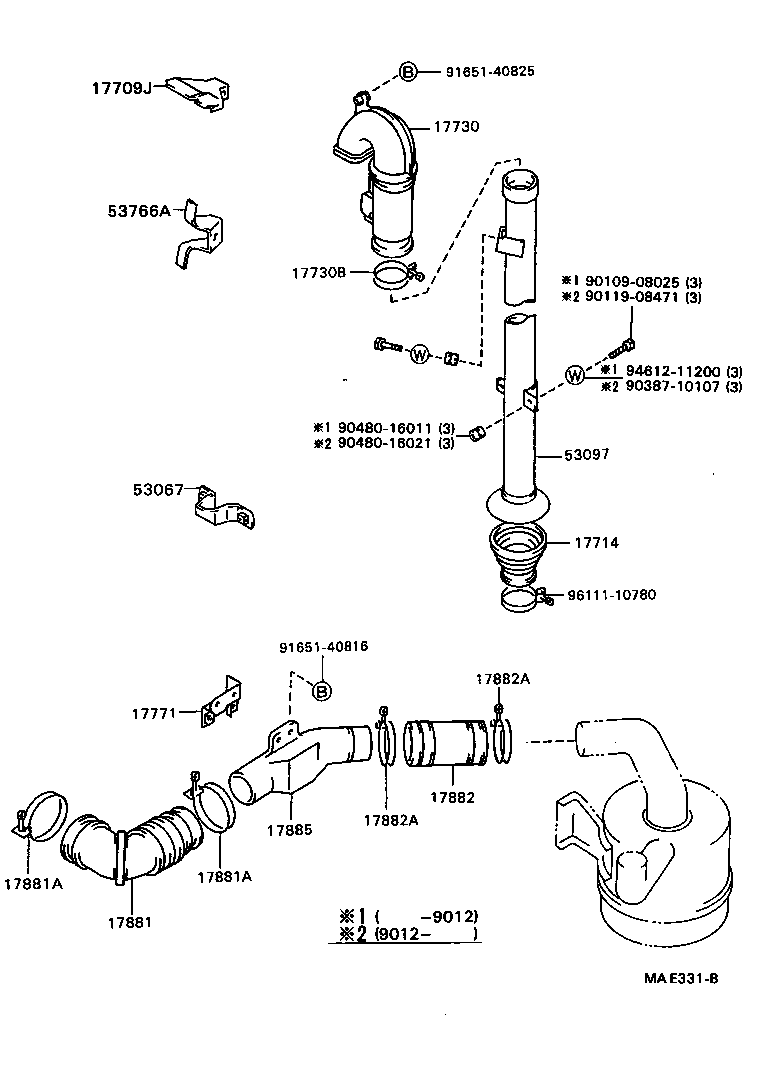

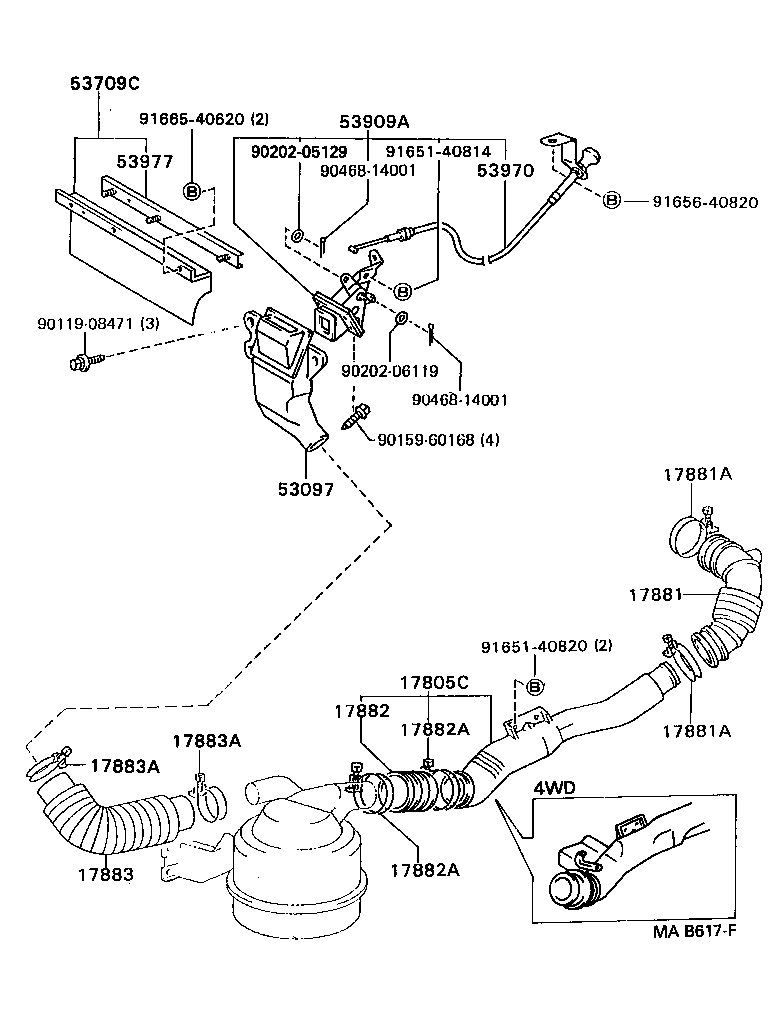

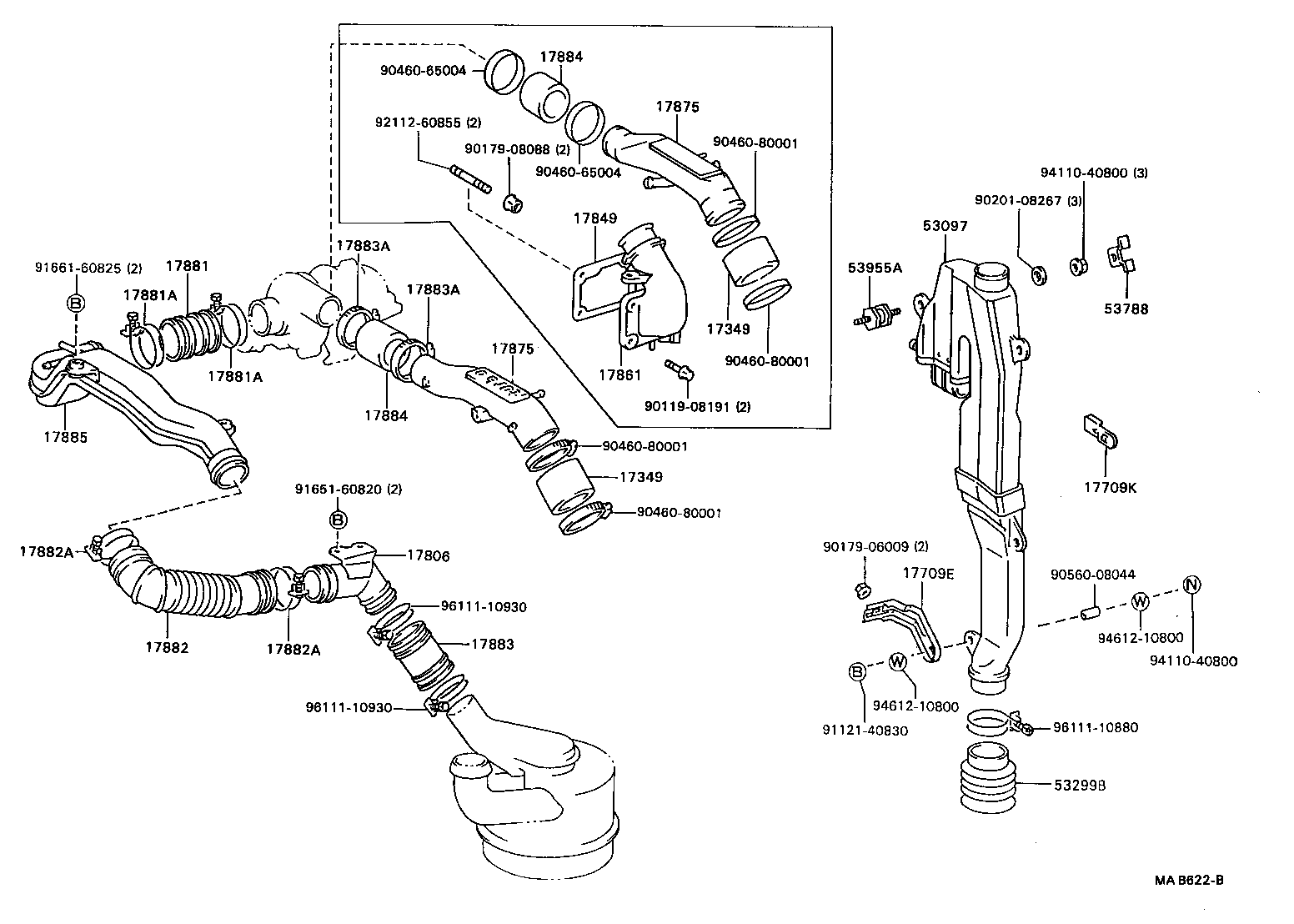

Figure MAB616B MAB616B 1988-08 → 1990-08 Figure MAB616B MAB616B 1989-10 → 1991-09 Figure MAB616B MAB616B 1990-08 → — Figure MAB616B MAB616B 1990-08 → — Figure MAB616B MAB616B 1991-09 → — Figure MAA103F MAA103F 1988-08 → — Figure MAA103F MAA103F 1990-08 → — Figure MAB617F MAB617F 1988-08 → 1990-08 Figure MAB617F MAB617F 1990-08 → — Figure MAE331B MAE331B 1990-08 → — Figure MAB618E MAB618E 1988-08 → — Figure MAB622B MAB622B 1988-08 → — Figure MAE945 MAE945 1991-09 → — Figure MAE959A MAE959A 1991-09 → — Figure MAH295 MAH295 1993-11 → —

Part groups

PNCDescription
17349 Hose, Intake Pipe
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17708 Baffle Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17714 Rubber Seal, Air Intake
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17744 Cup, Precleaner
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805J Nut, Wing(FOR AIR CONNECTOR)
17805K Bolt, Stud(FOR AIR CONNECTOR)
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17885 Pipe, Air Cleaner
53067 Bracket Sub-assy, Air Cleaner Inlet
53097 Inlet Sub-assy
53299B Duct, Cool Air Intake
53709C Cover Sub-assy, Air Cleaner Inlet
53766A Bracket, Air Cleaner Inlet Pipe
53788 Bracket, Air Cleaner Inlet, NO.6
53909A Bracket Sub-assy, Air Cleaner Shutter, NO.1
53955A Cushion, Air Cleaner Inlet NO.1
53970 Cable Assy, Air Cleaner Inlet Shutter Control
53977 Plate, Air Cleaner Inlet Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
