Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 4 illustrations

Illustrations

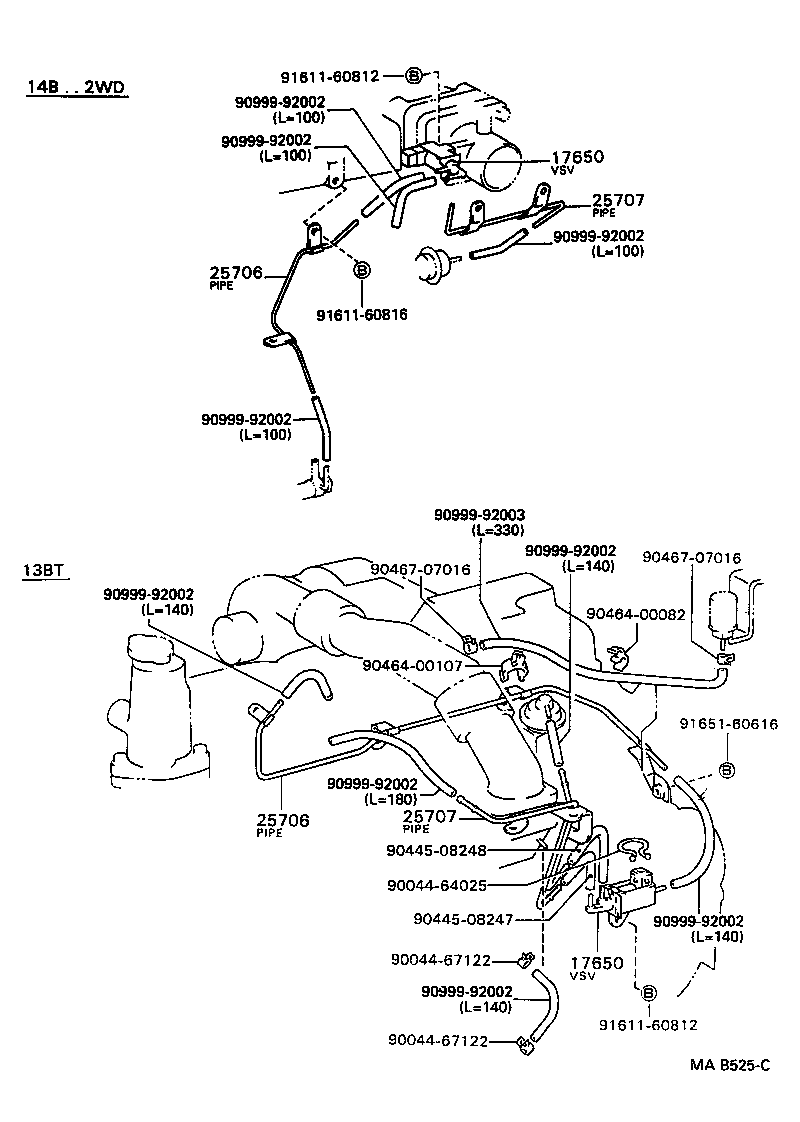

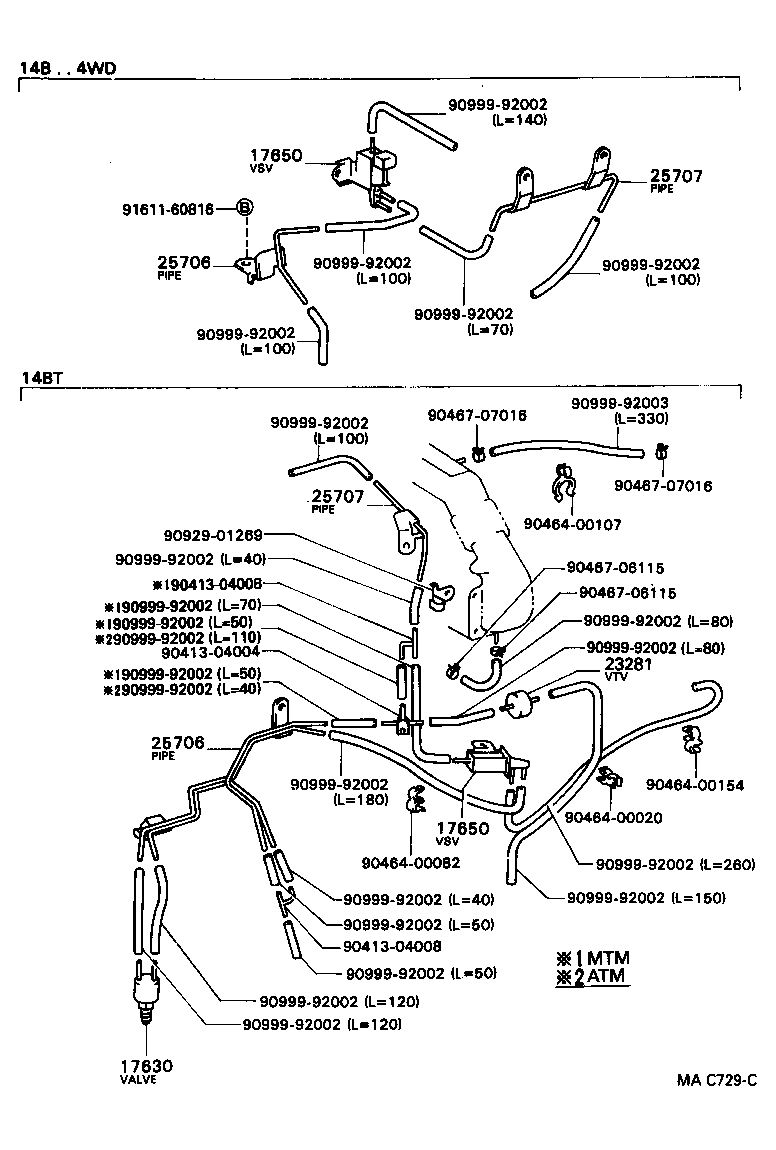

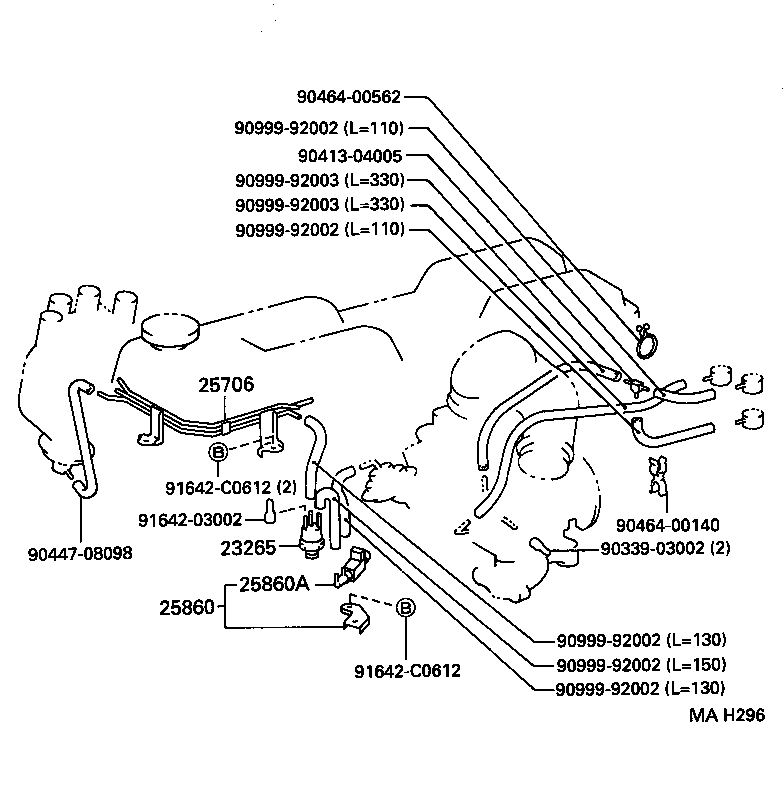

Figure MA9503A MA9503A 1988-08 → — Figure MAB525C MAB525C 1988-08 → — Figure MAC729C MAC729C 1989-10 → — Figure MAH296 MAH296 1993-11 → —

Part groups

PNCDescription
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
