Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

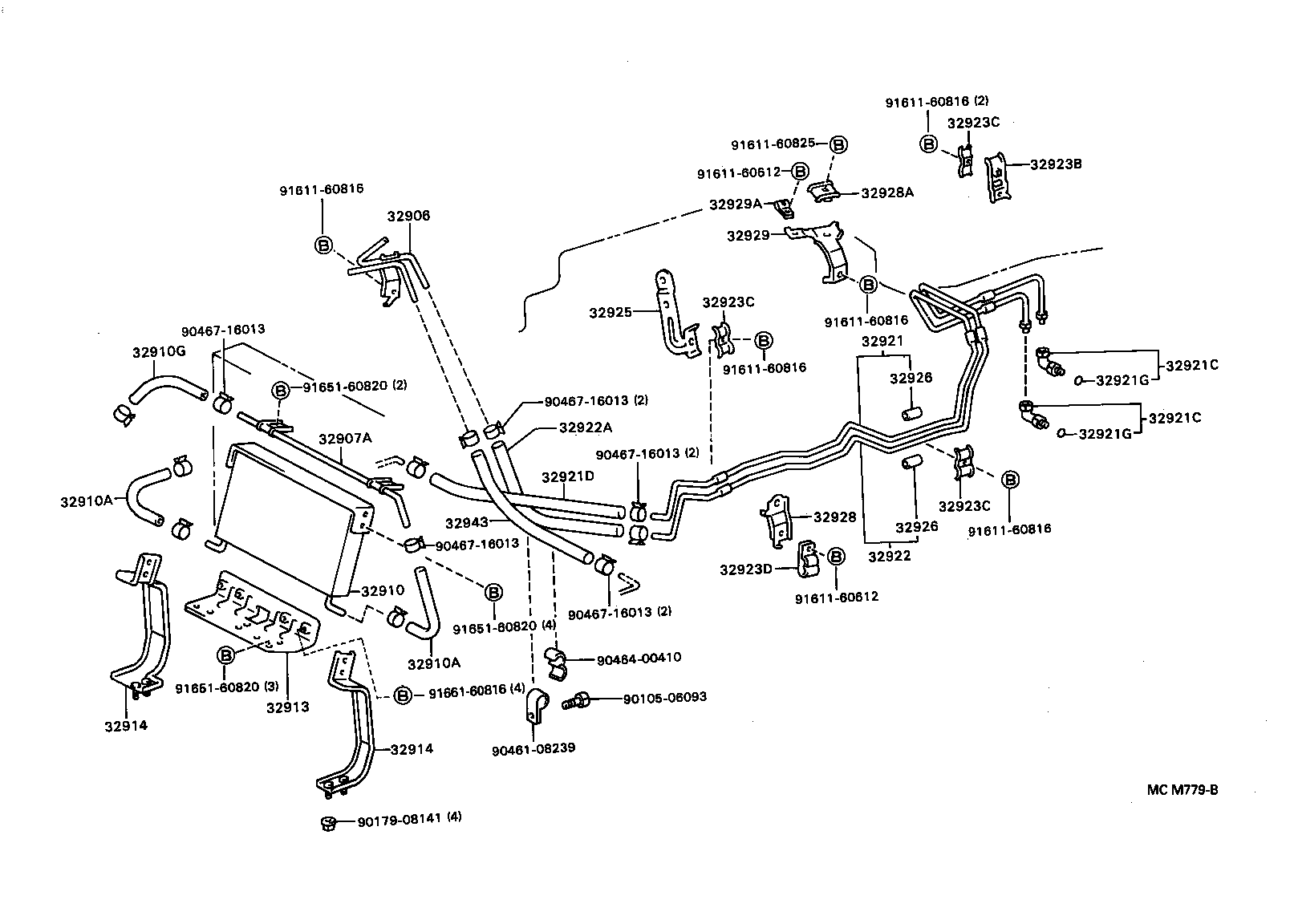

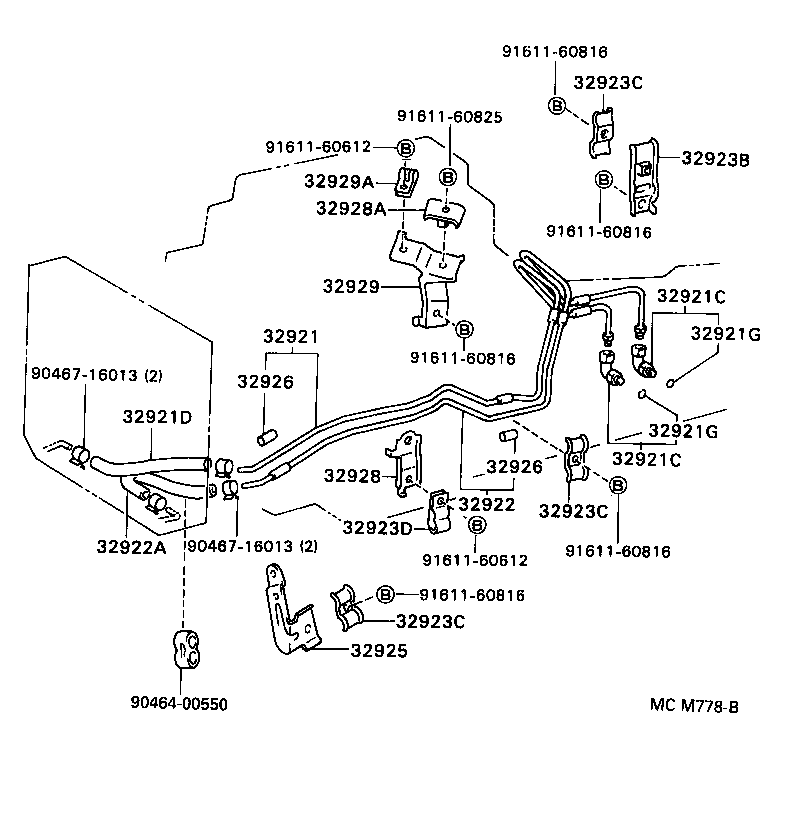

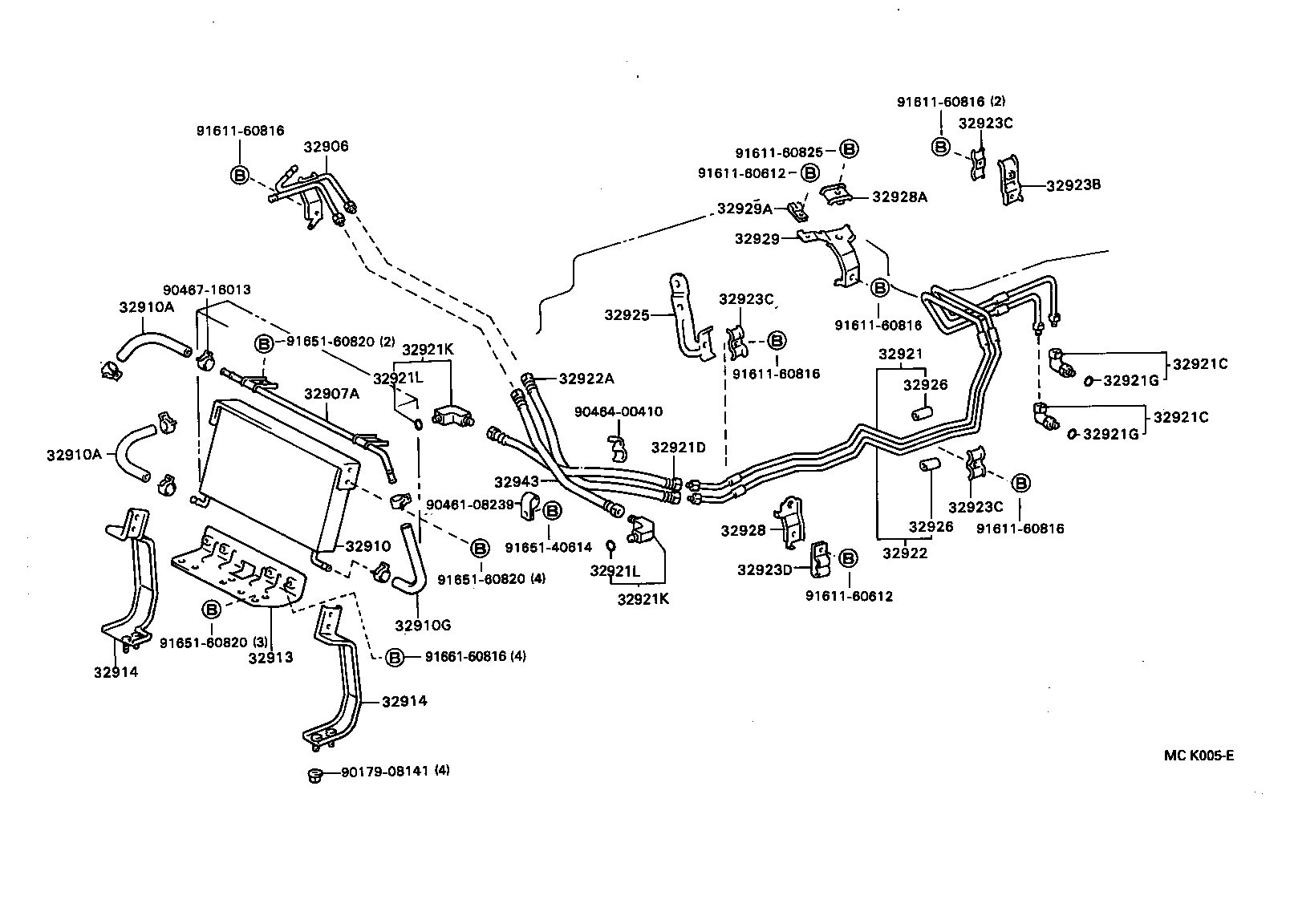

Oil Cooler & Tube (ATM)
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 32906 | Tube Sub-assy, Oil Cooler |
| 32907A | Tube, Oil Cooler |
| 32910 | Cooler Assy, Oil |
| 32910A | Hose, Oil Cooler Water Outlet |
| 32910G | Hose, Oil Cooler Outlet |
| 32913 | Bracket, Oil Cooler |
| 32914 | Stay, Oil Cooler |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921K | Union, NO.2(FOR OIL COOLER TUBE) |
| 32921L | Ring, O(FOR OIL COOLER TUBE UNION NO.2) |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
| 32923B | Clamp, Automatic Transmission Oil Cooler Tube, NO.1 |
| 32923C | Clamp, Automatic Transmission Oil Cooler Tube, NO.4 |
| 32923D | Clamp, Automatic Transmission Oil Cooler Tube, NO.5 |
| 32925 | Clamp, Oil Cooler Tube, NO.3 |
| 32926 | Cushion, Oil Cooler Tube(ATM) |
| 32928 | Clamp, Flexible Hose, NO.1 |
| 32928A | Clamp(FOR FLEXIBLE HOSE CLAMP) |
| 32929 | Clamp, Flexible Hose, NO.2 |
| 32929A | Clamp(FOR FLEXIBLE HOSE CLAMP) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
