Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hoist Cylinder Trunnion & Lift Arm

41 part groups · 7 illustrations

Illustrations

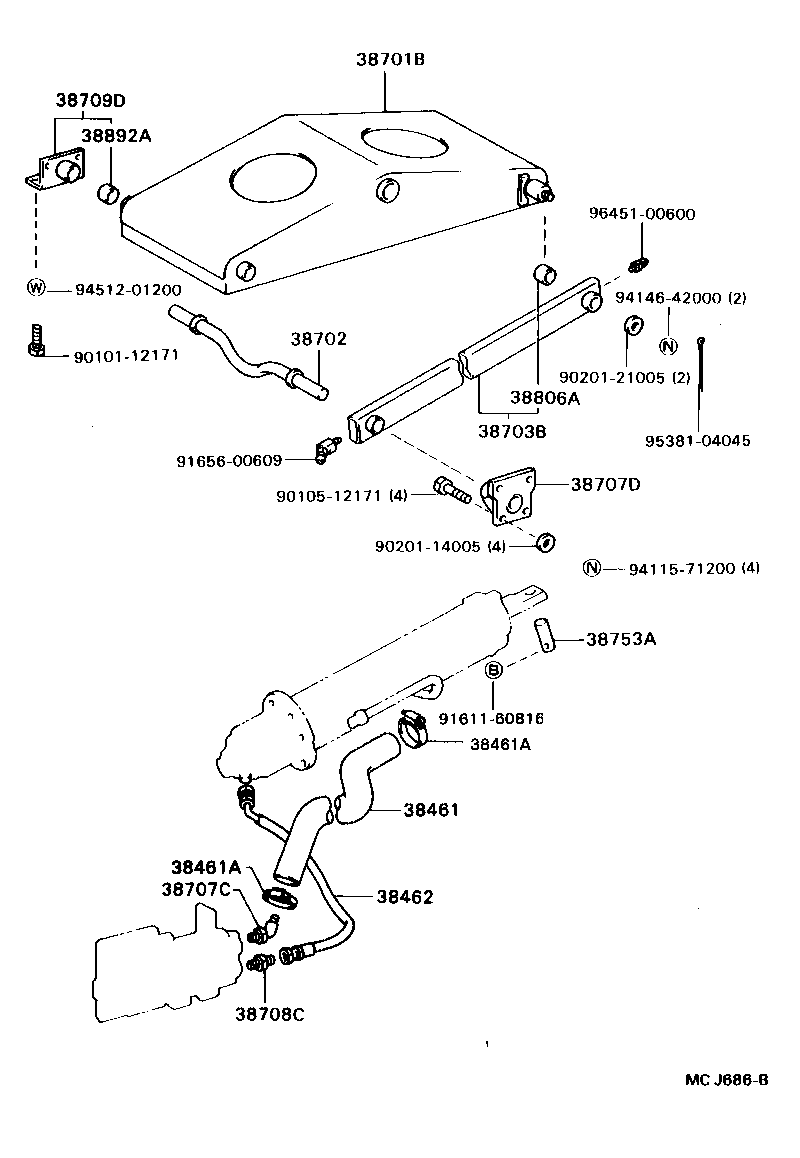

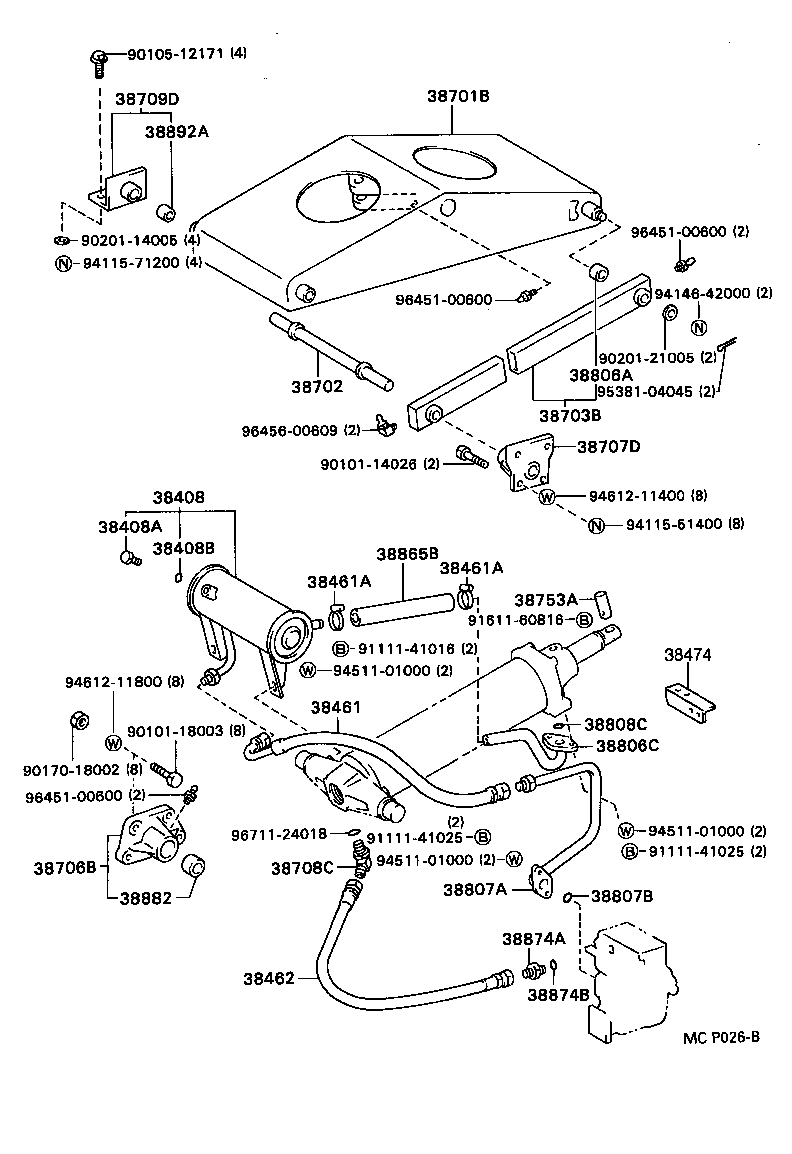

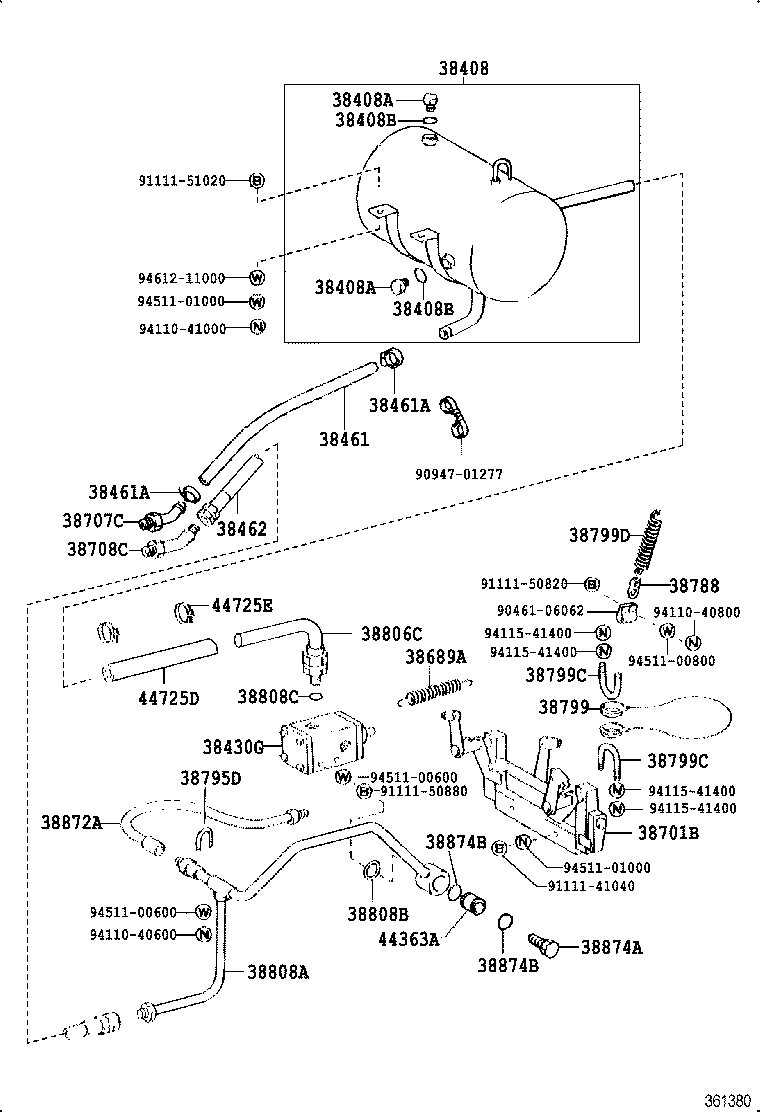

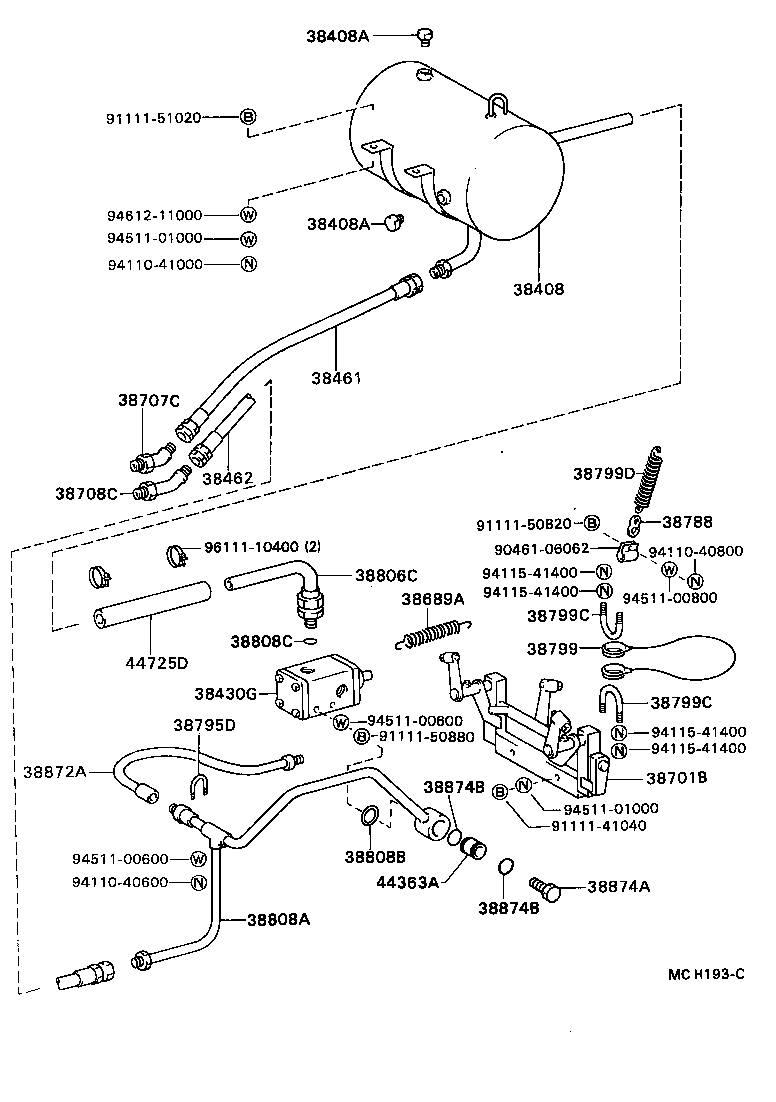

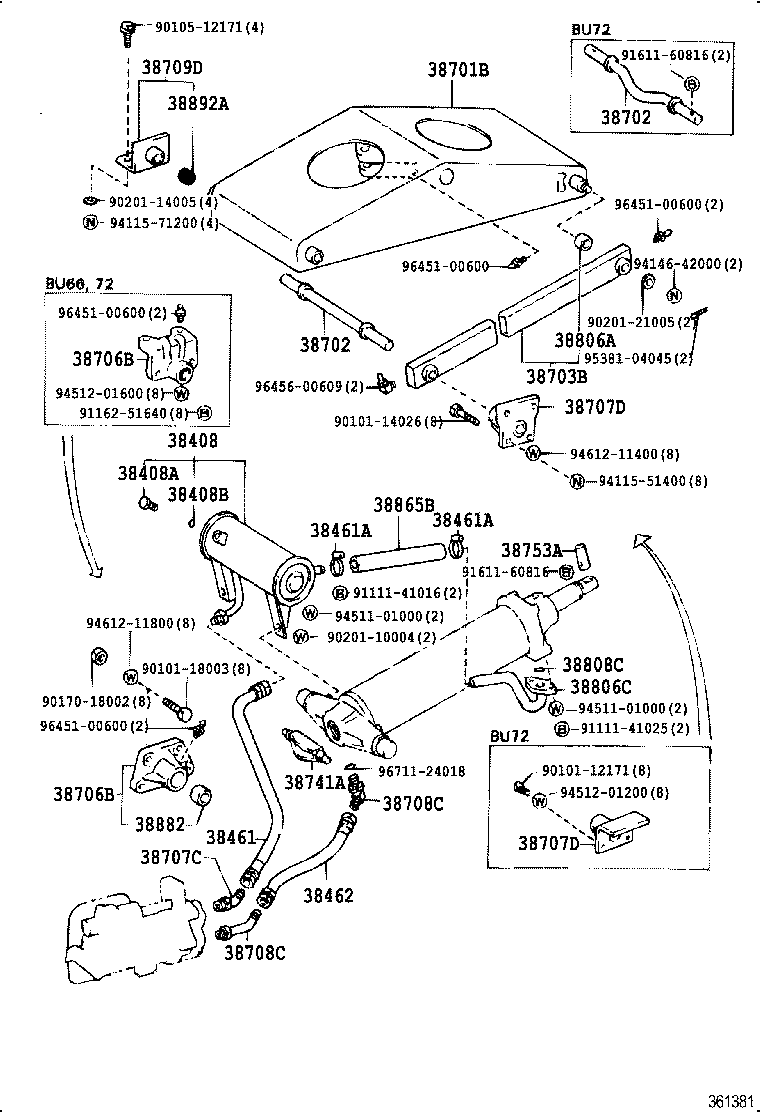

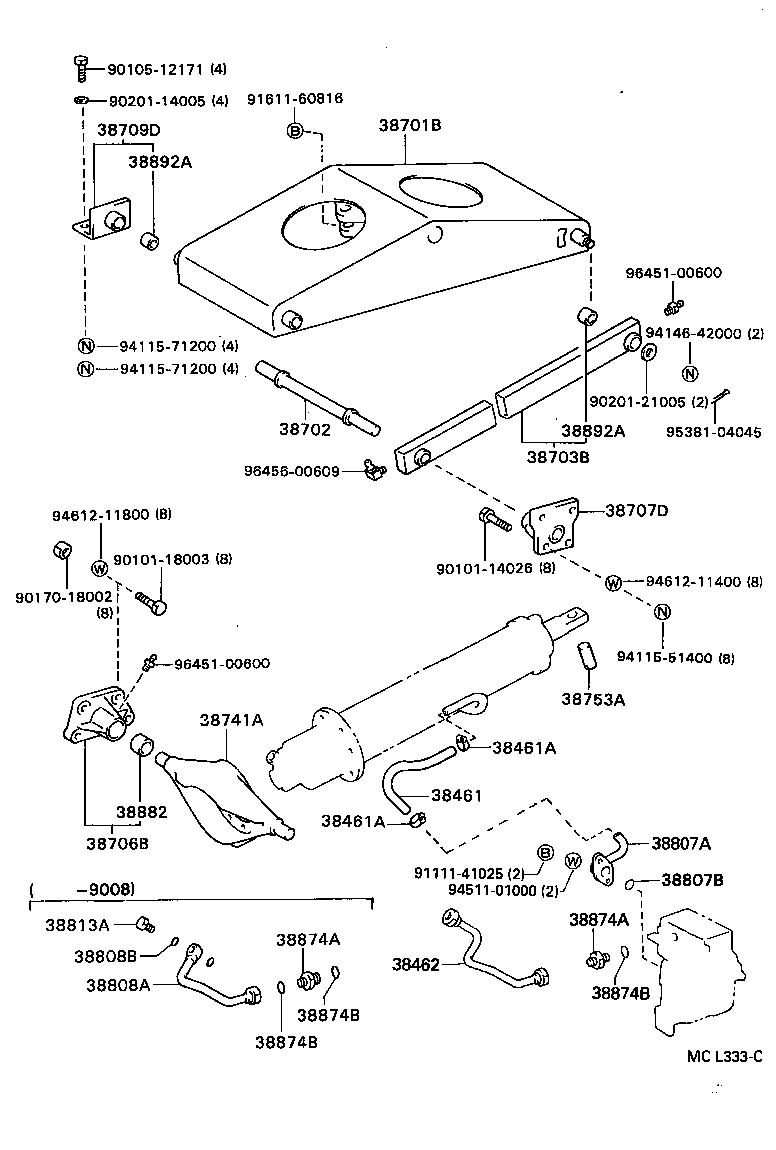

Figure 360587A 360587A 1988-08 → 1992-10 Figure 361381 361381 1992-10 → — Figure MCH193C MCH193C 1988-08 → 1989-10 Figure 361380 361380 1989-10 → — Figure MCL333C MCL333C 1988-08 → 1992-10 Figure MCP026B MCP026B 1992-10 → — Figure MCJ686B MCJ686B 1989-10 → 1992-10

Part groups

PNCDescription
38408 Tank Sub-assy, Power
38408A Plug (FOR POWER TANK)
38408B Ring, O (FOR POWER TANK PLUG)
38430G Valve Assy, Power
38461 Hose, Power Oil Pump Suction
38461A Clamp (FOR POWER OIL PUMP SUCTION)
38462 Hose, Power Oil Pump Delivery
38474 Stay, Power Oil Pump
38689A Spring, Tension (FOR STOP LEVER RETURN)
38701B Arm Sub-assy, Lift
38702 Shaft Sub-assy, Tension Arm
38703B Arm Sub-assy, Tension
38706B Bracket Sub-assy, Trunnion
38707C Union (FOR SUCTION HOSE)
38707D Bracket Sub-assy, Tension Arm Shaft
38708C Union (FOR DELIVERY HOSE)
38709D Bracket Sub-assy, Lift Arm
38741A Trunnion, Hoist Cylinder
38753A Pin, Crosshead
38788 Hook, Wire Joint
38795D Bolt, U (FOR DELIVERY PIPE)
38799 Rope, Wire
38799C Bolt, U (FOR LIFT ARM)
38799D Spring, Tension (FOR LIFT ARM)
38806A Bush, Tension Arm Head
38806C Pipe Sub-assy, Hoist Cylinder Suction, NO.1
38807A Pipe Sub-assy, Hoist Cylinder Suction, NO.2
38807B Ring, O (FOR HOIST CYLINDER SUCTION NO.2 PIPE)
38808A Pipe Sub-assy, Hoist Cylinder Delivery
38808B Ring, 0 (FOR HOIST CYLINDER DELIVERY)
38808C Ring, O (FOR HOIST CYLINDER SUCTION)
38813A Flange, Hoist Cylinder Bottom
38865B Hose, Hoist Cylinder Suction
38872A Pipe, Hoist Cylinder
38874A Nipple, Hoist Cylinder
38874B Ring O (FOR HOIST CYLINDER NIPPLE)
38882 Bush, Trunnion
38892A Bush (FOR LINK ARM BODY BRACKET)
44363A Strainer, Oil(FOR HOIST CYLINDER PIPE)
44725D Hose, Suction(FOR POWER OIL PUMP)
44725E Clamp(FOR POWER OIL PUMP SUCTION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
