Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

26 part groups · 3 illustrations

Illustrations

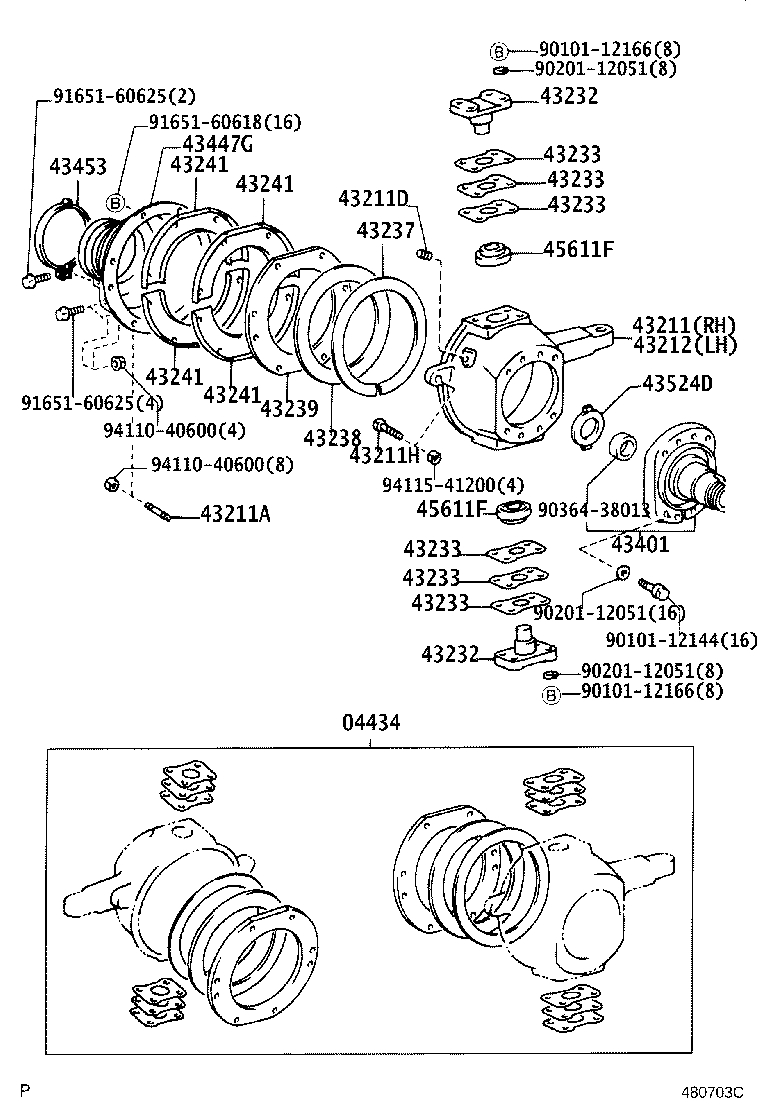

Figure MCL510 MCL510 1988-08 → — Figure 480703C 480703C 1989-10 → — Figure MCL511 MCL511 1988-08 → —

Part groups

PNCDescription
04431 Pin Kit, Steering Knuckle King
04434 Gasket Kit, Front Axle Overhaul
43111 I Beam, Front Axle
43112 Pin, King Pin Lock
43132A Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT)
43211 Knuckle, Steering, RH
43211A Bolt, Stud (FOR STEERING SET)
43211D Plug (FOR STEERING KNUCKLE)
43211F Plug, Bleeder (FOR STEERING KNUCKLE)
43211H Bolt, Round Hexagon
43212 Knuckle, Steering, LH
43231A Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH)
43231C Bearing (FOR STEERING KNUCKLE KING PIN)
43231D Shim (FOR KING PIN)
43232 Cap, Steering Knuckle Bearing
43233 Shim, Steering Knuckle Adjust, NO.1
43237 Ring, Steering Knuckle Oil Seal, Inner
43238 Seal, Steering Knuckle Oil, Inner
43239 Seal, Steering Knuckle Oil, Outer
43241 Cover, Steering Kunckle Oil Seal
43401 Spindle Sub-assy, Steering Knuckle
43447G Boot, Steering Kuckle
43453 Cover, Steering Kunckle
43524D Spacer, Steering Knuckle Spindle
45311D Ring, O(FOR STEERING KNUCKLE KING PIN)
45611F Bearing(FOR STEERING KNUCKLE ARM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
