Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

10 part groups · 3 illustrations

Illustrations

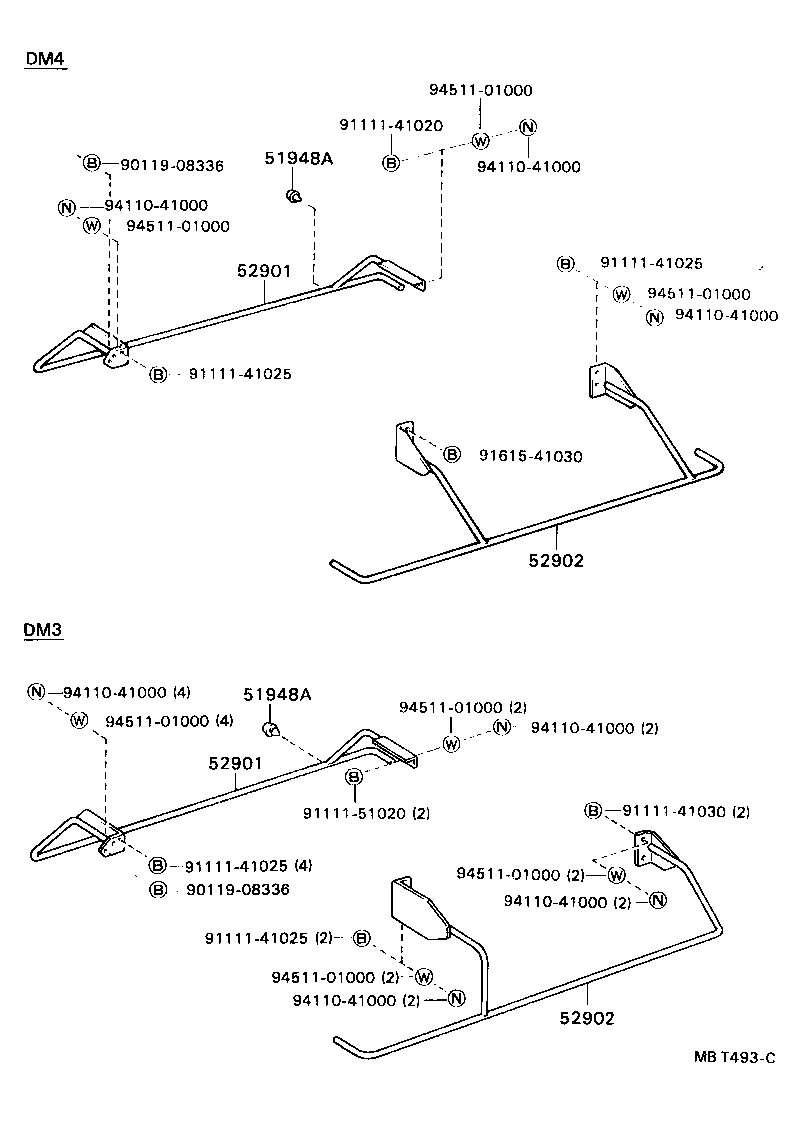

Figure MBR220F MBR220F 1988-08 → — Figure MBT493C MBT493C 1989-10 → — Figure MBV739 MBV739 1991-09 → —

Part groups

PNCDescription
51948A Stopper, Spare Wheel
52091A Stay Sub-assy, Side Bumper, Front RH
52092A Stay Sub-assy, Side Bumper, Front LH
52093 Stay Sub-assy, Side Bumper, Rear RH
52094 Stay Sub-assy, Side Bumper, Rear LH
52901 Bumper Sub-assy, Side, RH NO.1
52902 Bumper Sub-assy, Side, LH NO.1
52911 Bar, Side Bumper
52913 Stay, Side Bumper, NO.1
52913A Stay, Side Bumper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
