Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

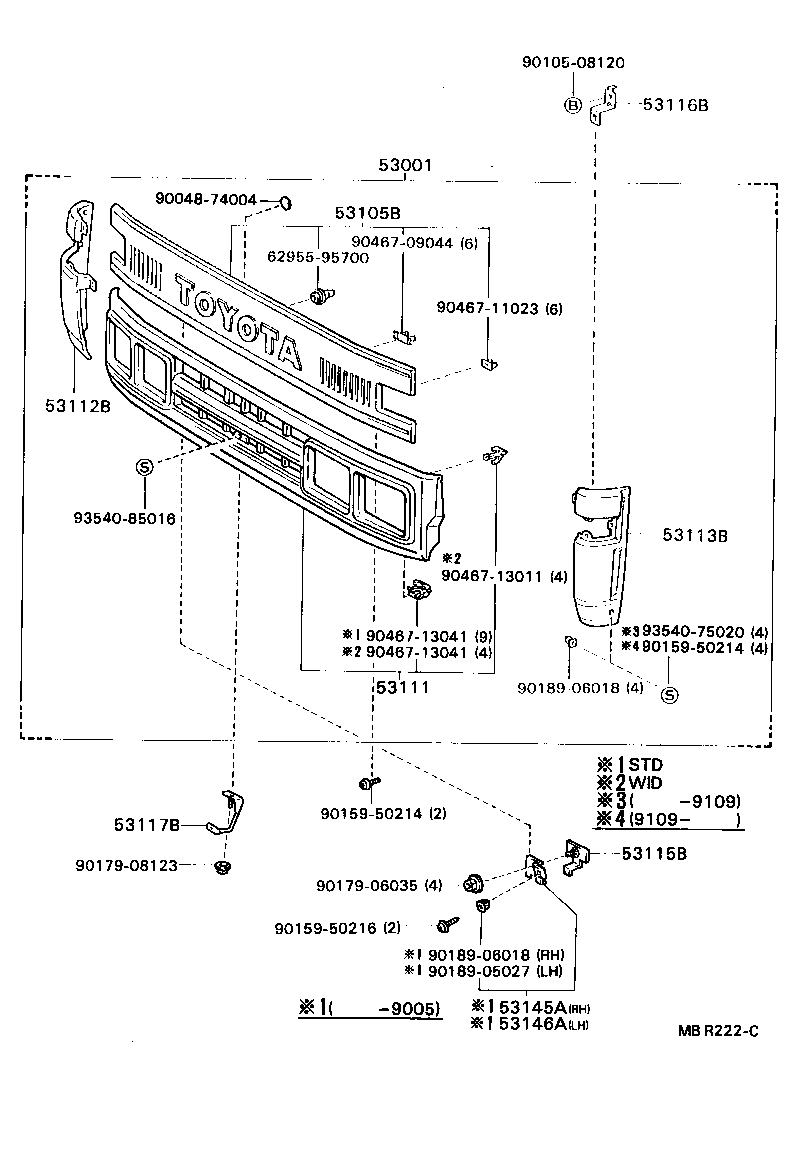

Radiator Grille
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53001 | Radiator Grille Set |
| 53105B | Garnish Sub-assy, Radiator Grille |
| 53111 | Grille, Radiator |
| 53112B | Grille, Radiator Side, RH |
| 53113B | Grille, Radiator Side, LH |
| 53115B | Bracket, Radiator Grille |
| 53116B | Bracket, Radiator Grille, NO.2 |
| 53117B | Bracket, Radiator Grille, Lower |
| 53145A | Bracket, Radiator Grille, Garnish, NO.1 |
| 53146A | Bracket, Radiator Grille, Garnish, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
