Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

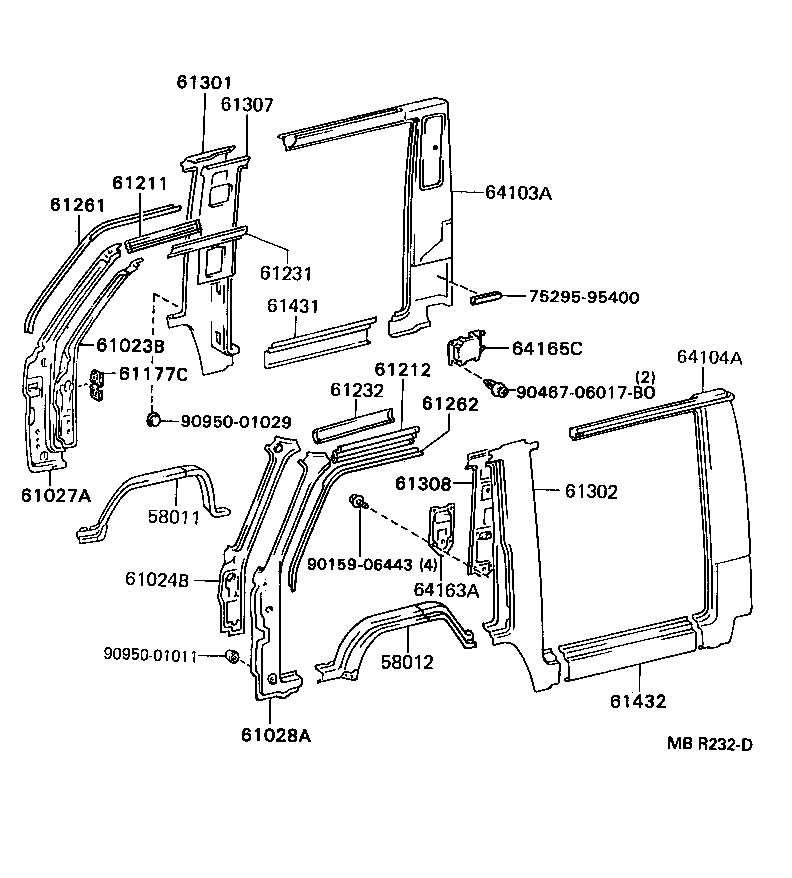

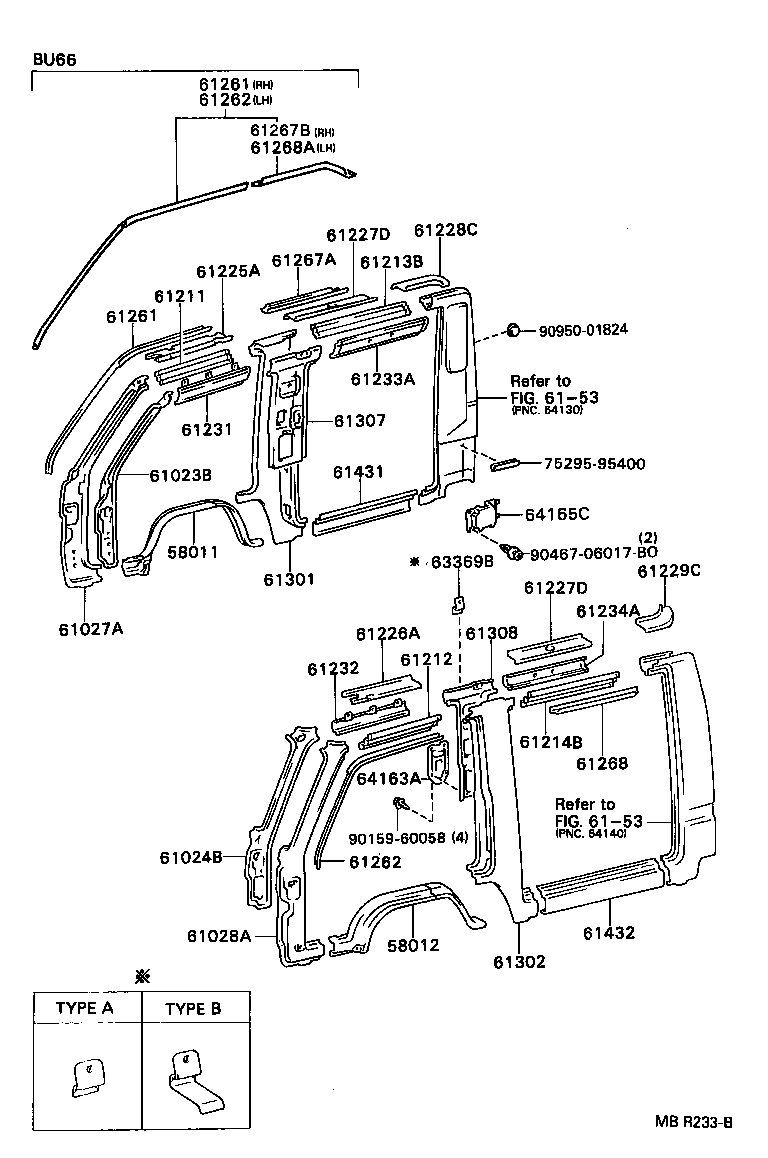

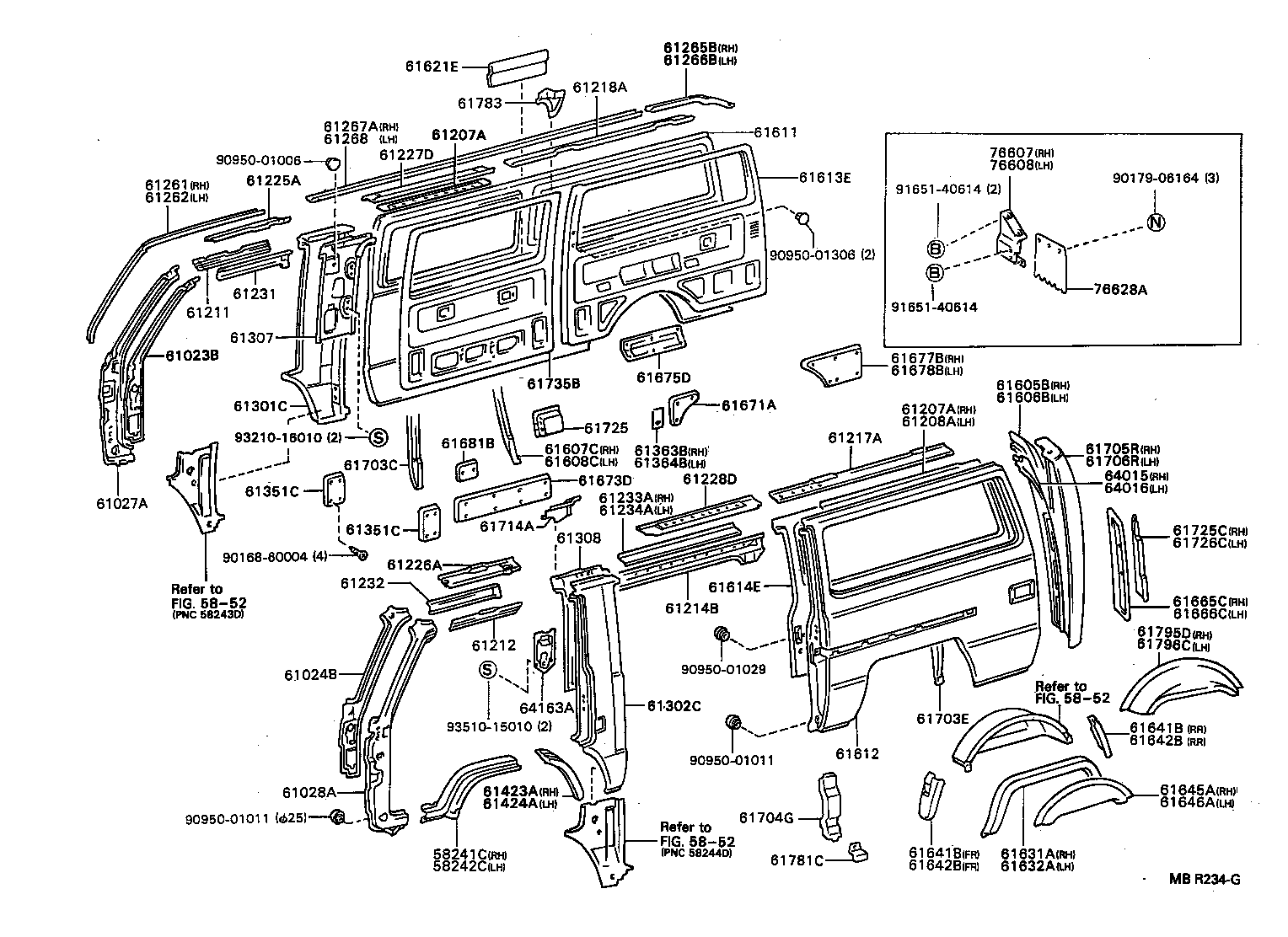

Side Member
101 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 58011 | Panel Sub-assy, Front Floor Side, RH |
| 58012 | Panel Sub-assy, Front Floor Side, LH |
| 58241C | Panel, Floor Side, RH |
| 58242C | Panel, Floor Side, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61044 | Extension Sub-assy, Front Body Pillar, Outer LH |
| 61108C | Cover Sub-assy, Front Pillar Door Hinge, LH |
| 61177C | Bracket, Door Check Arm |
| 61188 | Bracket, Front Pillar Door Hinge Cover, LH |
| 61207A | Rail Sub-assy, Roof Side, Inner NO.3 RH |
| 61208A | Rail Sub-assy, Roof Side, Inner NO.3 LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61213B | Rail, Roof Side, Outer NO.2 RH |
| 61214B | Rail, Roof Side, Outer NO.2 LH |
| 61217A | Rail Sub-assy, Roof Side, Outer Upper NO.3 LH |
| 61218A | Rail Sub-assy, Roof Side, Outer Upper NO.3 RH |
| 61225A | Rail, Roof Side Outer Upper NO.1, RH |
| 61226A | Rail, Roof Side Outer Upper NO.1, LH |
| 61227D | Rail, Roof Side Outer Upper NO.2 |
| 61228C | Rail, Roof Side Outer Upper NO.3, RH |
| 61228D | Rail, Roof Side Outer Upper NO.2, LH |
| 61229C | Rail, Roof Side Outer Upper NO.3. LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61233A | Rail, Roof Side, Inner NO.2 RH |
| 61234A | Rail, Roof Side, Inner NO.2 LH |
| 61261 | Channel, Roof Drip, RH |
| 61262 | Channel, Roof Drip, LH |
| 61265B | Channel, Roof Drip Side Rear Corner, RH |
| 61266B | Channel, Roof Drip Side Rear Corner, LH |
| 61267A | Channel, Roof Drip Side, Rear RH |
| 61267B | Channel, Roof Drip Side,Rear RH |
| 61268 | Channel, Roof Drip Side, Rear LH |
| 61268A | Channel, Roof Drip Side, Rear LH |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61301C | Pillar Sub-assy, Center Body, Outer RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61302C | Pillar Sub-assy, Center Body, Outer LH |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61351C | Cover, Center Body Pillar, Inner RH |
| 61363B | Reinforcement, Seat Belt Anchor Side, RH |
| 61364B | Reinforcement, Seat Belt Anchor Side, LH |
| 61423A | Panel, Fender, Inner Lower RH |
| 61424A | Panel, Fender, Inner Lower LH |
| 61431 | Panel, Rocker, Outer Rear RH |
| 61432 | Panel, Rocker, Outer Rear LH |
| 61605B | Frame Sub-assy, Quarter Back, RH |
| 61606B | Frame Sub-assy, Quarter Back, LH |
| 61607C | Pillar Sub-assy, Quarter Lock, Inner RH |
| 61608C | Pillar Sub-assy, Quarter Lock, Inner LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61613E | Panel, Quarter, Inner RH |
| 61614E | Panel, Quarter, Inner LH |
| 61621E | Seat, Quarter Outer Panel |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61641B | Gusset, Quarter Wheel House, RH |
| 61642B | Gusset, Quarter Wheel House, LH |
| 61645A | Panel, Quarter Fender Inner, RH |
| 61646A | Panel, Quarter Fender Inner, LH |
| 61665C | Cover, Quarter Corner Inner, RH |
| 61666C | Cover, Quarter Corner Inner, LH |
| 61671A | Cover, Quarter Inner, NO.1 |
| 61673D | Cover, Ouarter Inner, NO.2 |
| 61675D | Cover, Quarter Inner, NO.3 |
| 61677B | Cover, Quarter Inner, NO.4, RH |
| 61678B | Cover, Quarter Inner, NO.4, LH |
| 61681B | Cover, Quarter Inner, NO.6 |
| 61703C | Reinforcement Sub-assy, Quarter Panel, Inner |
| 61703E | Reinforcement Sub-assy, Quarter Panel, Inner |
| 61704G | Reinforcement Sub-assy, Quarter Panel, Outer |
| 61705R | Panel Sub-assy, Quarter Outer Corner, RH |
| 61706R | Frame Sub-assy, Quarter Outer Corner, LH |
| 61714A | Extension, Roof Side, Outer LH |
| 61725 | Box, Fuel Inlet |
| 61725C | Brace, Quarter Panel Corner, RH |
| 61726C | Brace, Quarter Panel Corner, LH |
| 61735B | Extension, Quarter Panel, Inner RH |
| 61781C | Brace, Quarter Panel Inner |
| 61783 | Patch, Quarter Panel Inner |
| 61795D | Extension, Quarter Wheel House, NO.1 RH |
| 61796C | Extension, Quarter Wheel House, NO.1 LH |
| 61992A | Protector, Front Pillar Door Hinge Cover, LH |
| 63369B | Bracket, Roof Silencer, Side |
| 64015 | Panel Sub-assy, Back Corner, Inner RH |
| 64016 | Panel Sub-assy, Back Corner, Inner LH |
| 64103A | Panel Sub-assy, Back Corner, Outer RH |
| 64104A | Panel Sub-assy, Back Corner, Outer LH |
| 64163A | Cover, Back Corner, Inner |
| 64165C | Cover, Back Corner, Inner Rear |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76628A | Mudguard, Rear Body, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
