Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

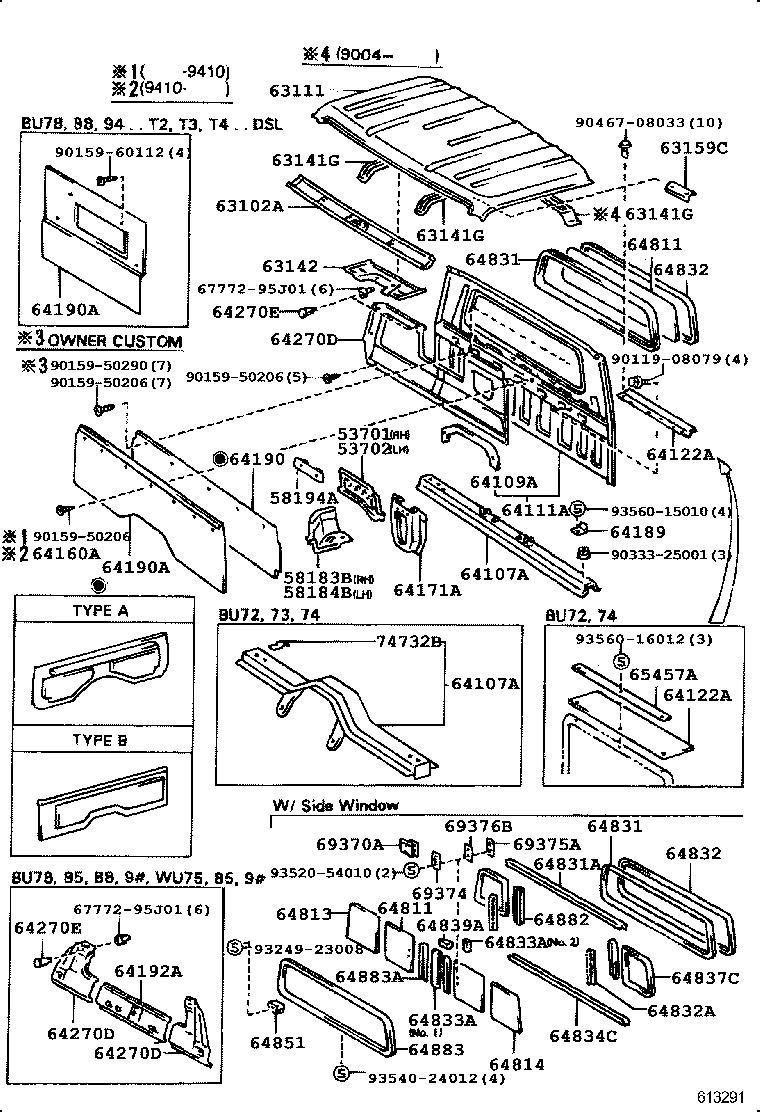

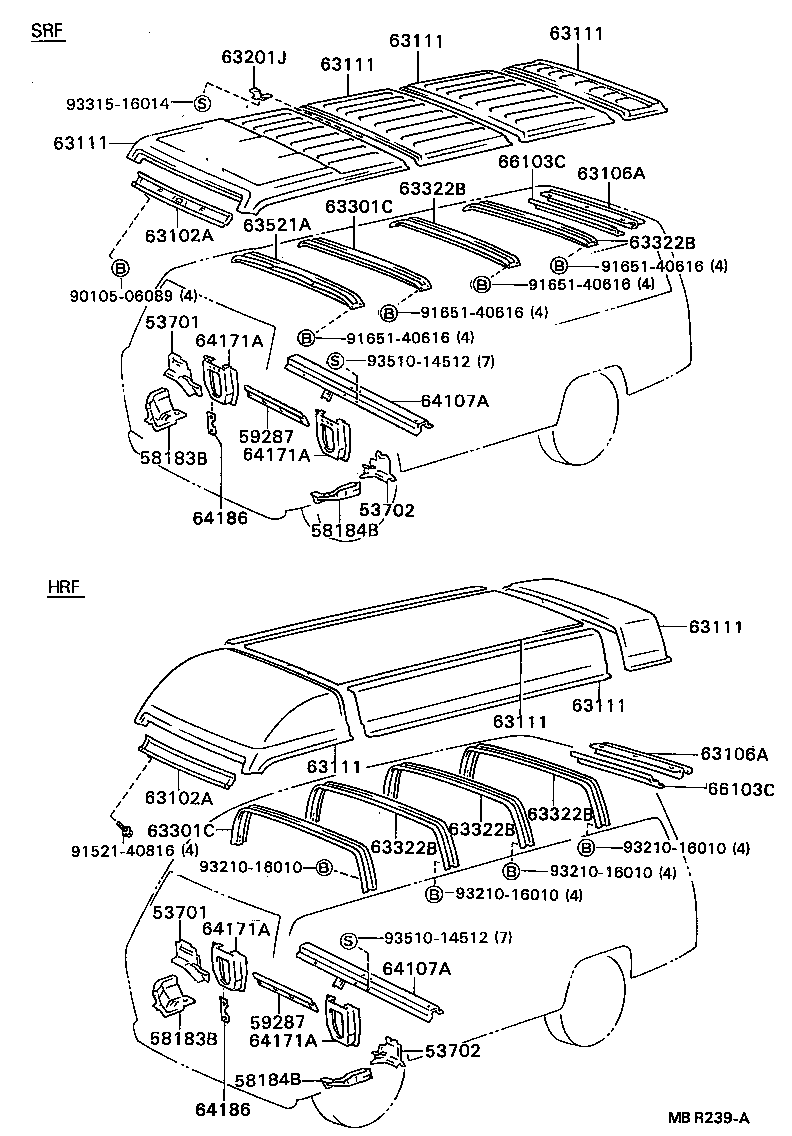

Roof Panel & Back Panel
78 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 55358E | Protector, Edge |
| 58183B | Reinforcement, Rear Mounting, RH |
| 58184B | Reinforcement, Rear Mounting, LH |
| 58194A | Retainer, Engine Cover Hinge |
| 59287 | Base, Transmission Cover, Center |
| 61441A | Silencer, Rear Pillar |

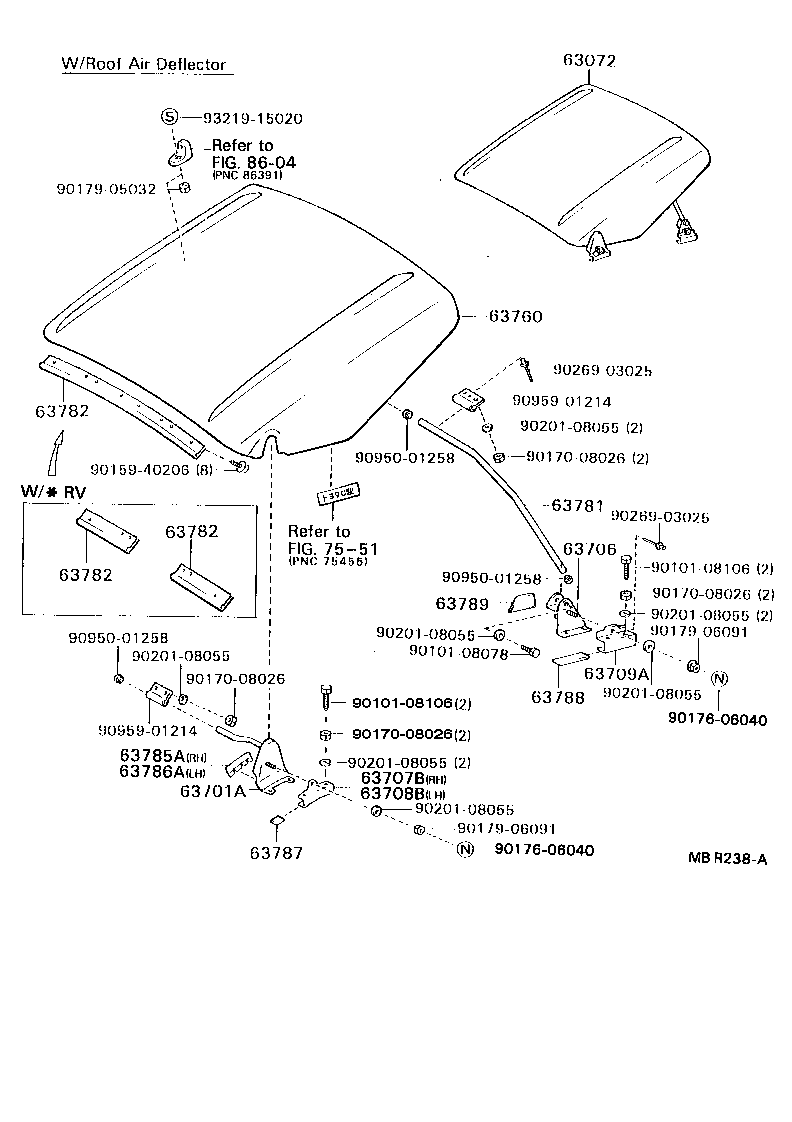

| 63072 | Deflector Set, Roof Air |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63106A | Rail Sub-assy, Roof Back Outer |
| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63159C | Spacer, Roof Reinforcement |
| 63201J | Bracket Sub-assy, Roof Panel |
| 63214E | Channel, Roof Drip, Rear, RH |
| 63215E | Channel, Roof Drip, Rear, LH |
| 63301C | Strength Sub-assy, Roof |
| 63322B | Strength, Roof, NO.2 |
| 63521A | Strength, Roof Panel |
| 63701A | Bracket Sub-assy, Roof Air Deflector, Front |
| 63706 | Bracket Sub-assy, Roof Air Deflector, Rear |
| 63707B | Holder Sub-assy, Roof Air Deflector, Front RH |
| 63708B | Holder Sub-assy, Roof Air Deflector, Front LH |
| 63709A | Holder Sub-assy, Roof Deflector, Rear |
| 63760 | Panel Assy, Roof Air Deflector |
| 63781 | Stay, Roof Air Deflector |
| 63782 | Seal, Roof Air Deflector |
| 63785A | Pad, Roof Air Deflector, Front RH |
| 63786A | Pad, Roof Air Deflector, Front LH |
| 63787 | Pad, Roof Air Deflector, NO.1 |
| 63788 | Pad, Roof Air Deflector, NO.2 |
| 63789 | Pad, Roof Air Deflector, NO.3 |
| 64107A | Frame Sub-assy, Back |
| 64109A | Frame Sub-assy, Back, Lower |
| 64111A | Panel, Back |
| 64122A | Baffle, Dust Rear Body |
| 64130 | Panel Assy, Back Corner, RH |
| 64140 | Panel Assy, Back Corner, LH |
| 64160A | Clip(FOR BACK PANEL UPPER SILENCER) |
| 64171A | Bracket Sub-assy, Rear Mounting |
| 64186 | Retainer, Rear Mounting Bracket |
| 64189 | Clamp, Back Panel Silencer |
| 64190 | Silencer Assy, Back Panel |
| 64190A | Silencer Assy, Back Panel |
| 64192A | Board, Back Panel Silencer, Upper |
| 64270D | Trim Assy, Back Panel |
| 64270E | Clip |
| 64811 | Glass, Back Window |
| 64813 | Glass, Back Window Corner, RH |
| 64814 | Glass, Back Window Corner, LH |
| 64831 | Weatherstrip, Back Window Glass |
| 64831A | Weatherstrip, Back Window Glass, Upper |
| 64832 | Key, Back Window Weatherstrip |
| 64832A | Weatherstrip, Back Window Vertical |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64834C | Weatherstrip, Back Window Glass, Lower |
| 64835A | Weatherstrip, Back Window Glass, Center |
| 64837C | Weatherstrip, Back Window Corner Glass |
| 64839A | Packing, Back Window |
| 64851 | Stop, Back Window Slide Glass |
| 64882 | Frame, Back Window Vertical |
| 64883 | Frame, Back Window |
| 64883A | Channel, Back Window Slide |
| 65457A | Plate, Baffle Dust Rear Body |
| 66103C | Rail Sub-assy, Roof Back, Inner |
| 69370A | Lock Assy, Back Window |
| 69374 | Catch, Back Window Lock |
| 69375A | Retainer, Back Window Lock |
| 69376B | Packing, Back Window Lock |
| 74620D | Grip Assy, Assist, Rear |
| 74630F | Grip Assy, Assist, Rear LH |
| 74655 | Bar, Hand Rail |
| 74656 | Cover, Hand Rail Bar |
| 74658B | Cover, Hand Rail |
| 74732B | Bracket, Tool Bag Set Band |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
