Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

36 part groups · 9 illustrations

Illustrations

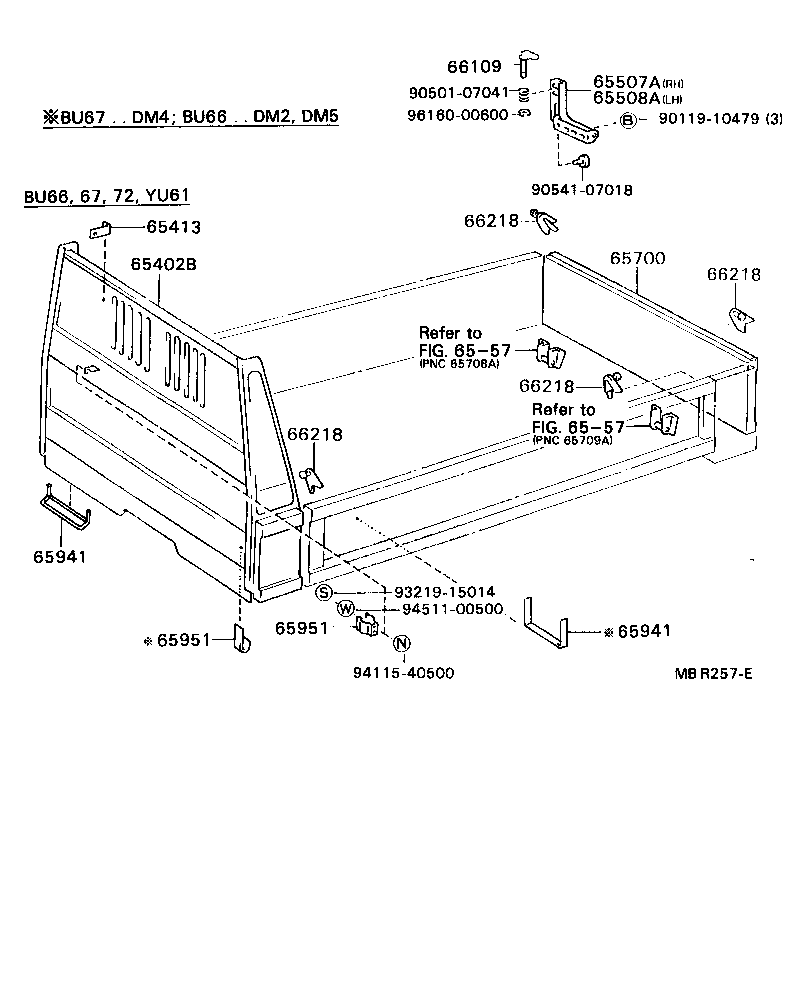

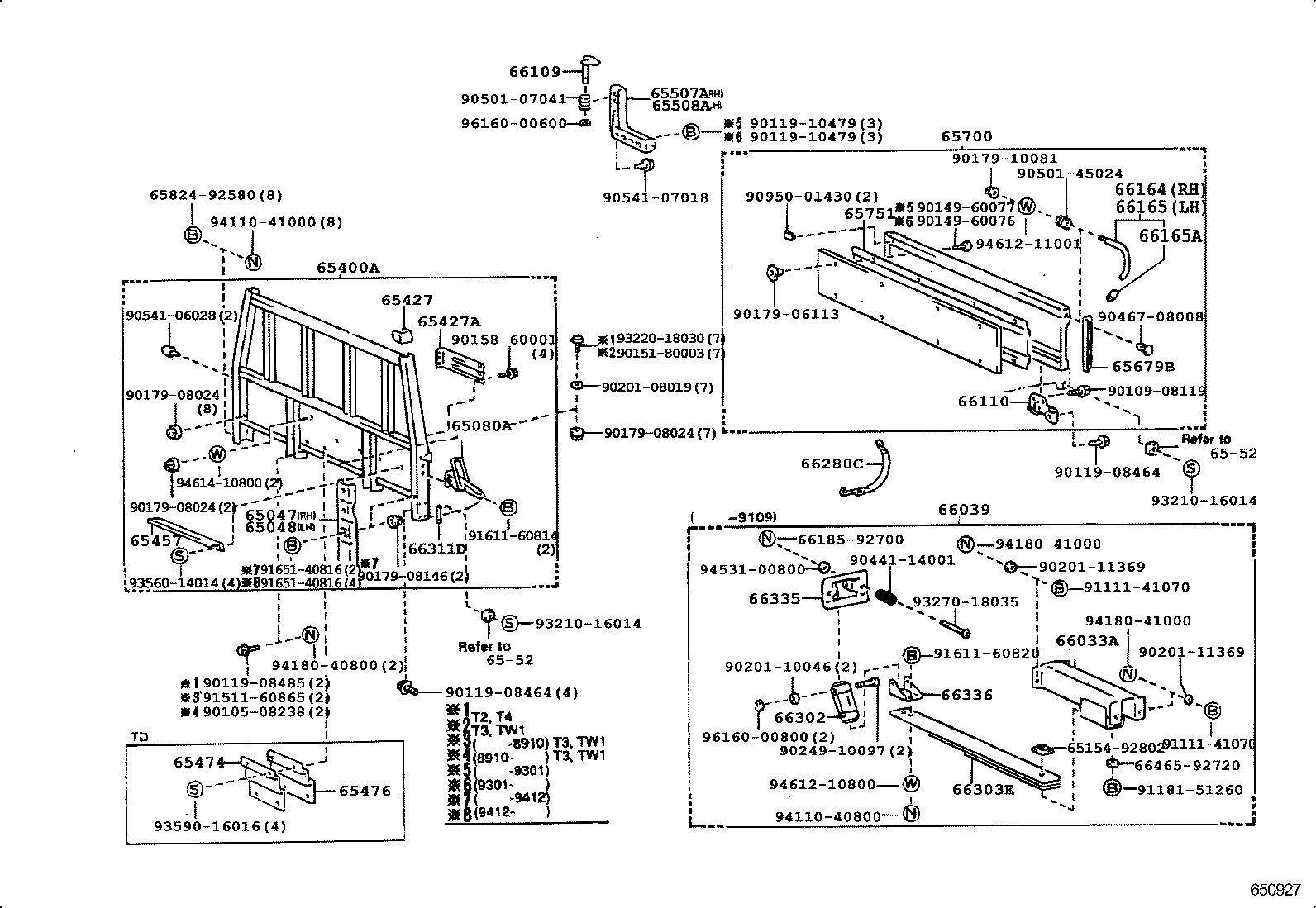

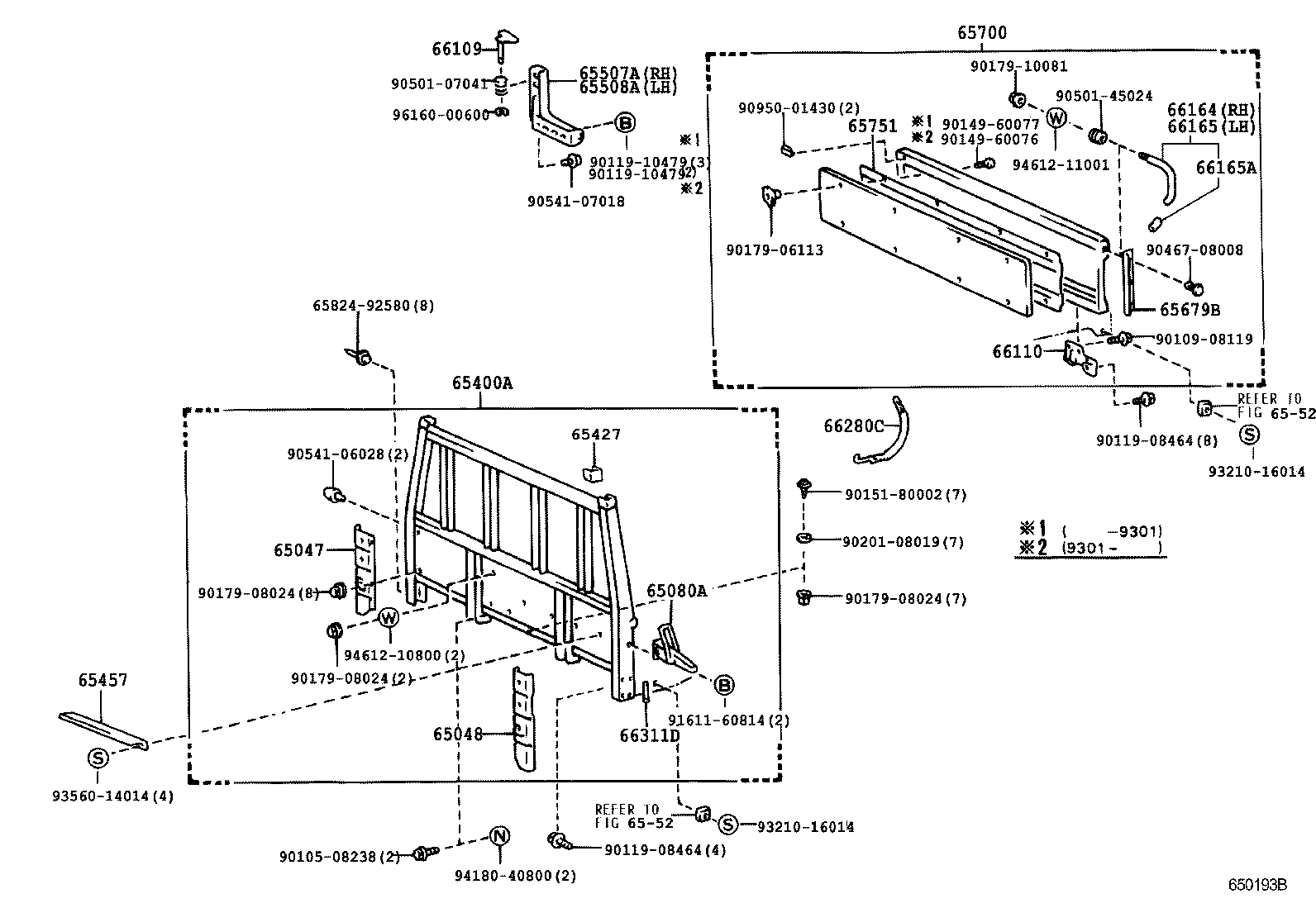

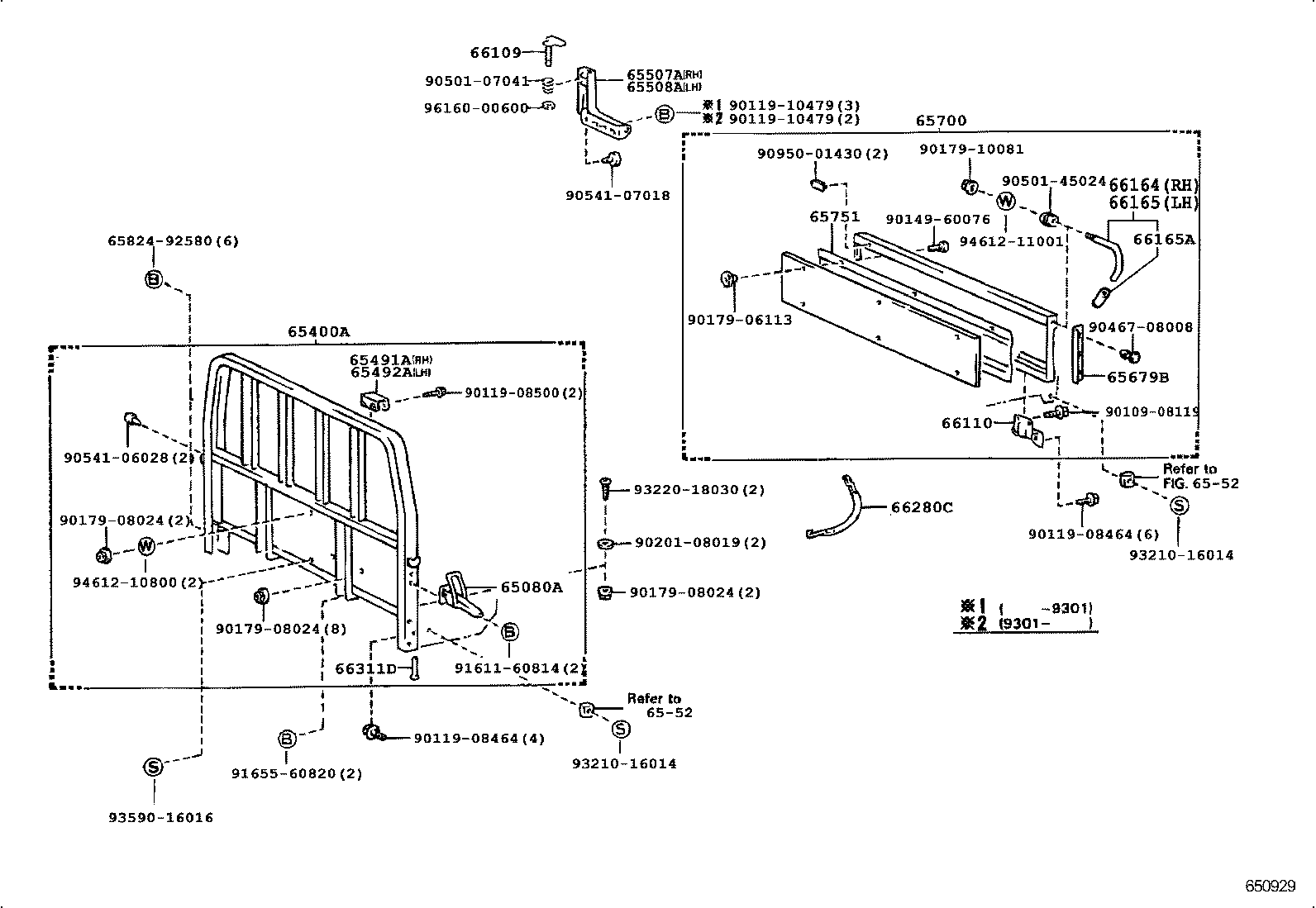

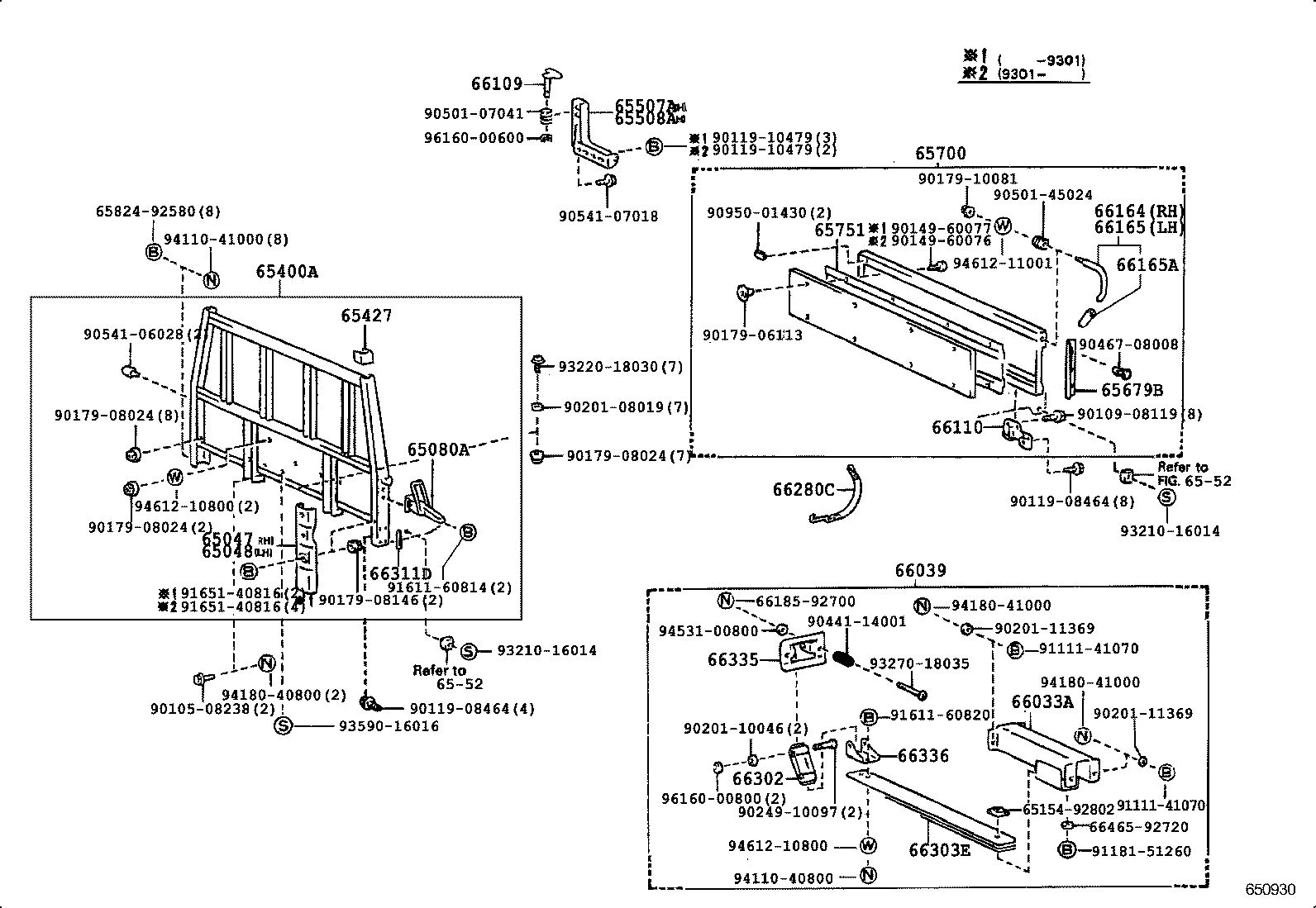

Figure 650928 650928 1988-08 → — Figure 650927 650927 1988-08 → — Figure 650927 650927 1989-10 → — Figure MBR256C MBR256C 1988-08 → — Figure MBR257E MBR257E 1988-08 → — Figure 650929 650929 1989-10 → — Figure 650930 650930 1991-09 → — Figure 650193B 650193B 1991-09 → — Figure MBV743 MBV743 1991-09 → —

Part groups

PNCDescription
65047 Protector Sub-assy, Guard Frame, RH
65048 Protector Sub-assy, Guard Frame, LH
65080A Handle Assy, Side Gate Latch
65400A Guard Assy, Rear Body
65402B Frame Sub-assy, Rear Body
65413 Bracket, Guard Frame
65427 Cover, Guard Frame
65427A Plate, Rear Body Guard, LH
65457 Plate, Baffle Dust Rear Body
65474 Insulator, Header
65476 Insulator, Header Board, NO.2
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65679B Seal, Tail Gate
65700 Gate Assy, Rear Body Tail
65751 Panel, Tail Gate
65941 Stopper, Shovel
65951 Clamp, Shovel
66033A Bracket Sub-assy, Gate Helper, NO.3
66039 Gate Helper Set, Tail
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66121A Bolt, Tail Gate Male
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66218 Bracket, Tail Gate Latch Pin
66280C Chain Assy, Tail Gate
66302 Link Sub-assy, Gate Helper
66303E Spring Sub-assy, Gate Helper Set
66311D Hook, Rope
66335 Bracket, Gate Helper
66336 Bracket, Gate Helper
