Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

8 part groups · 11 illustrations

Illustrations

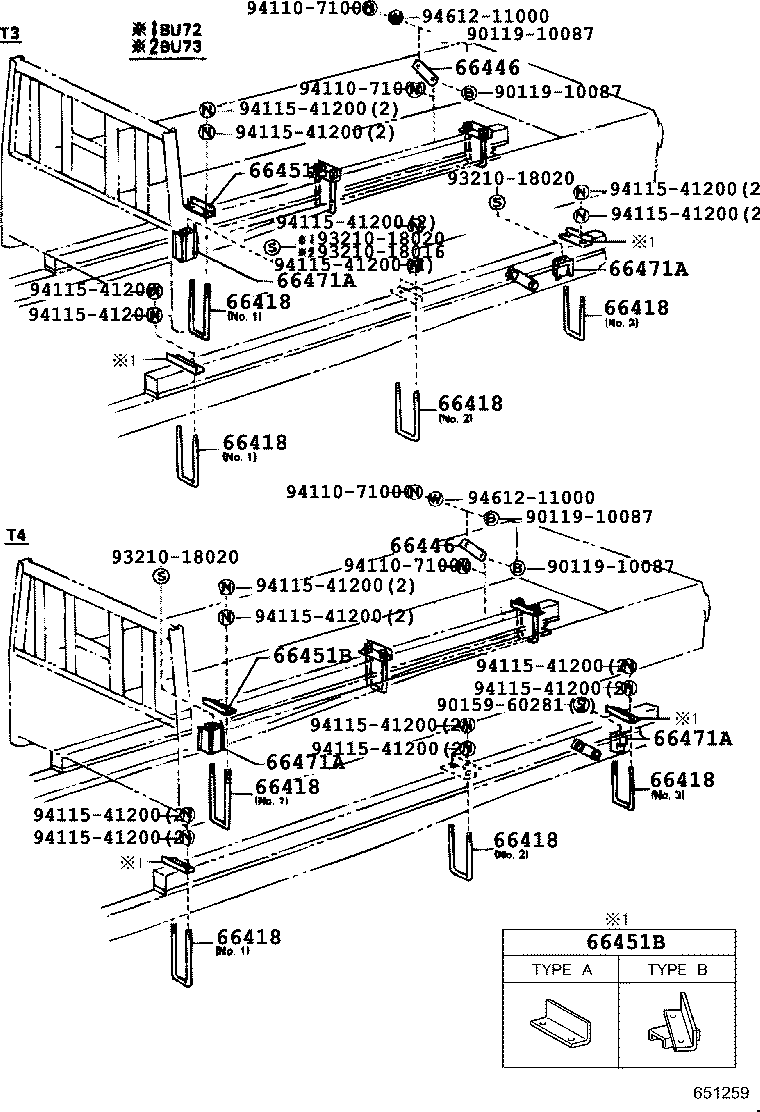

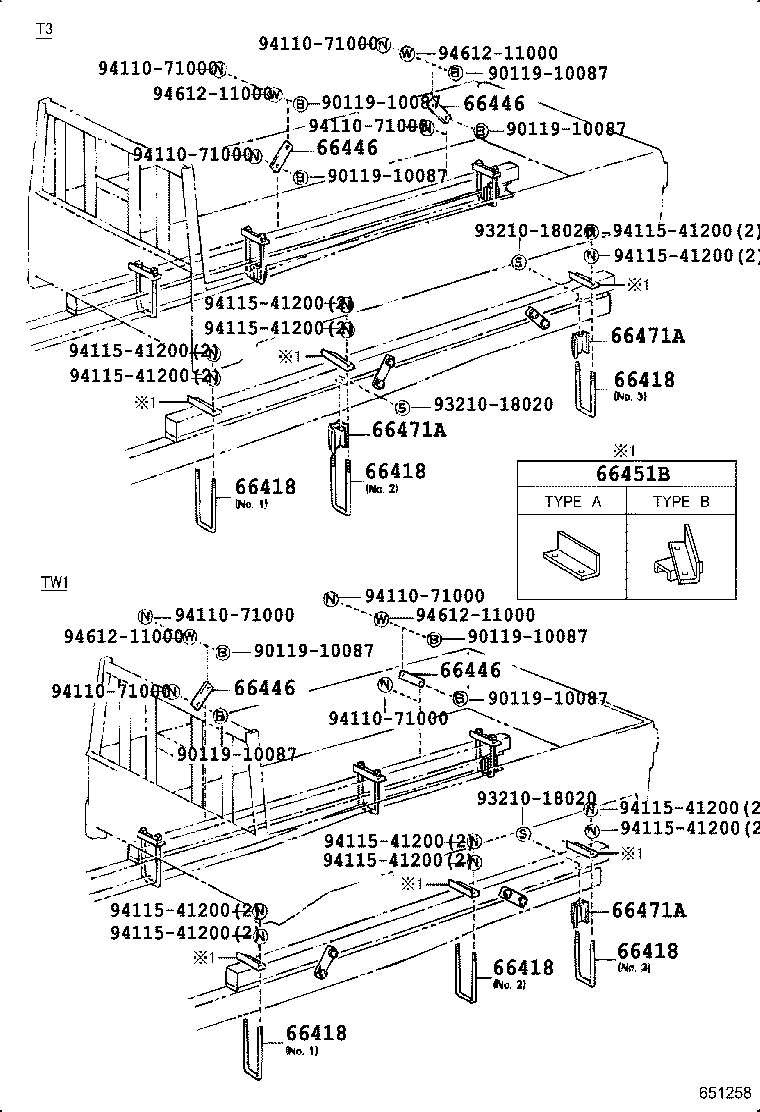

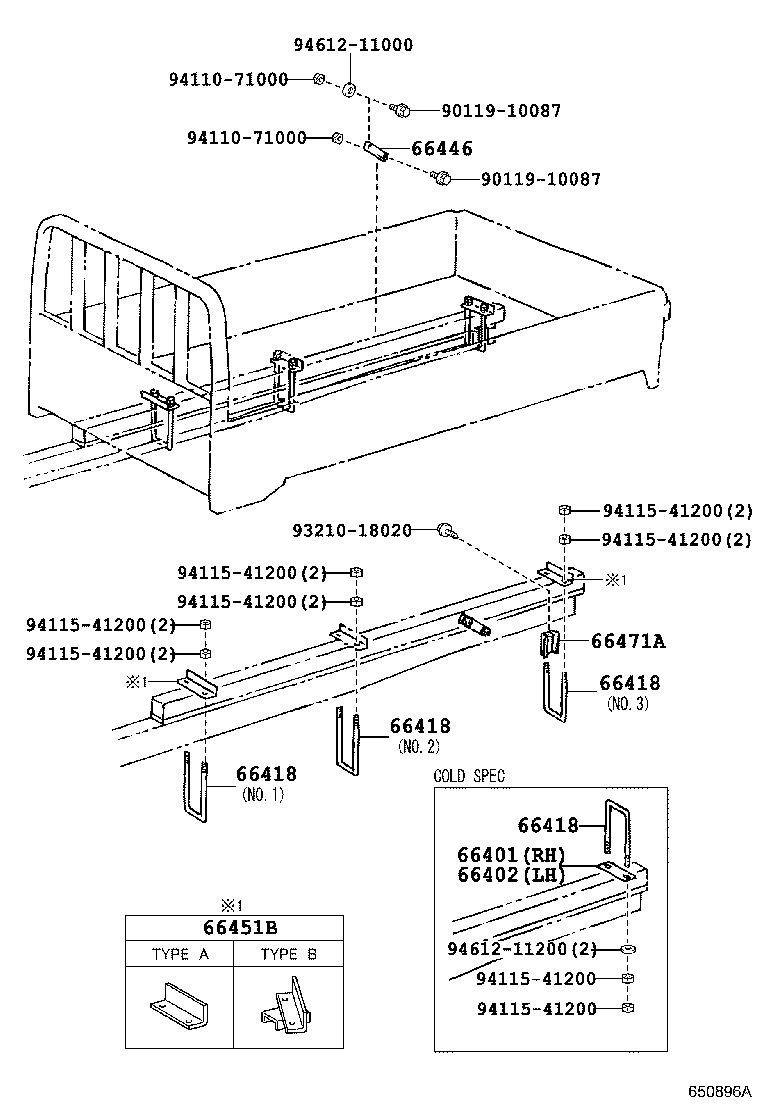

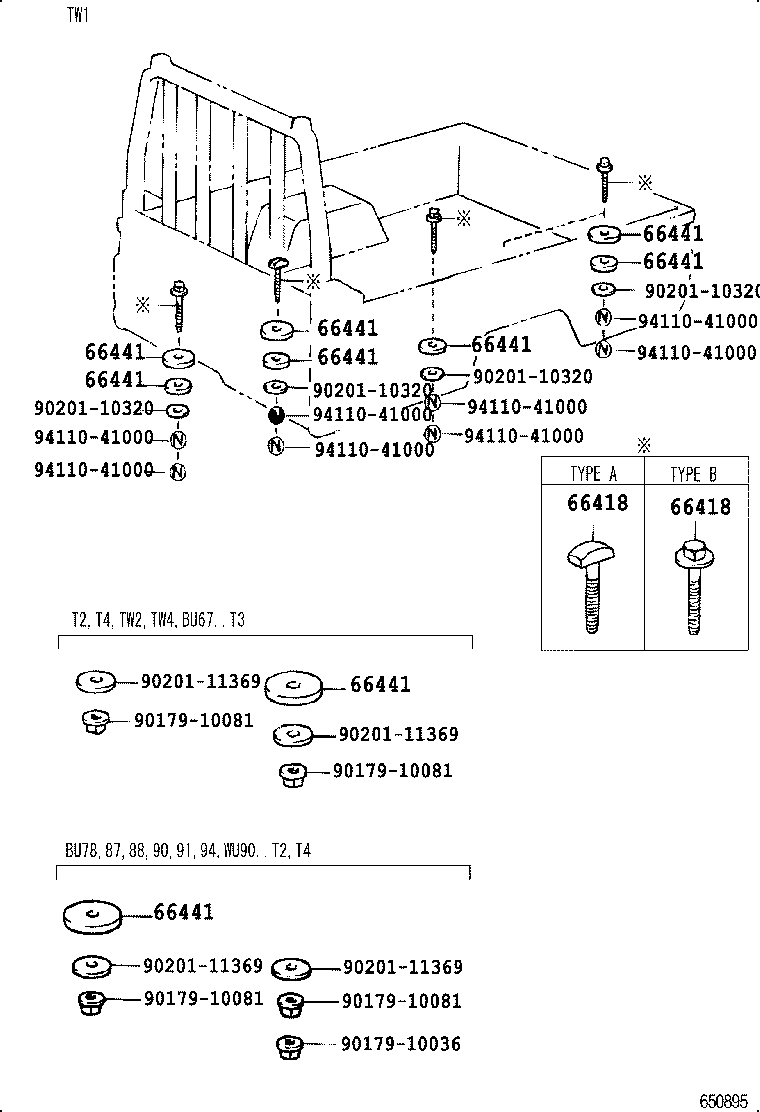

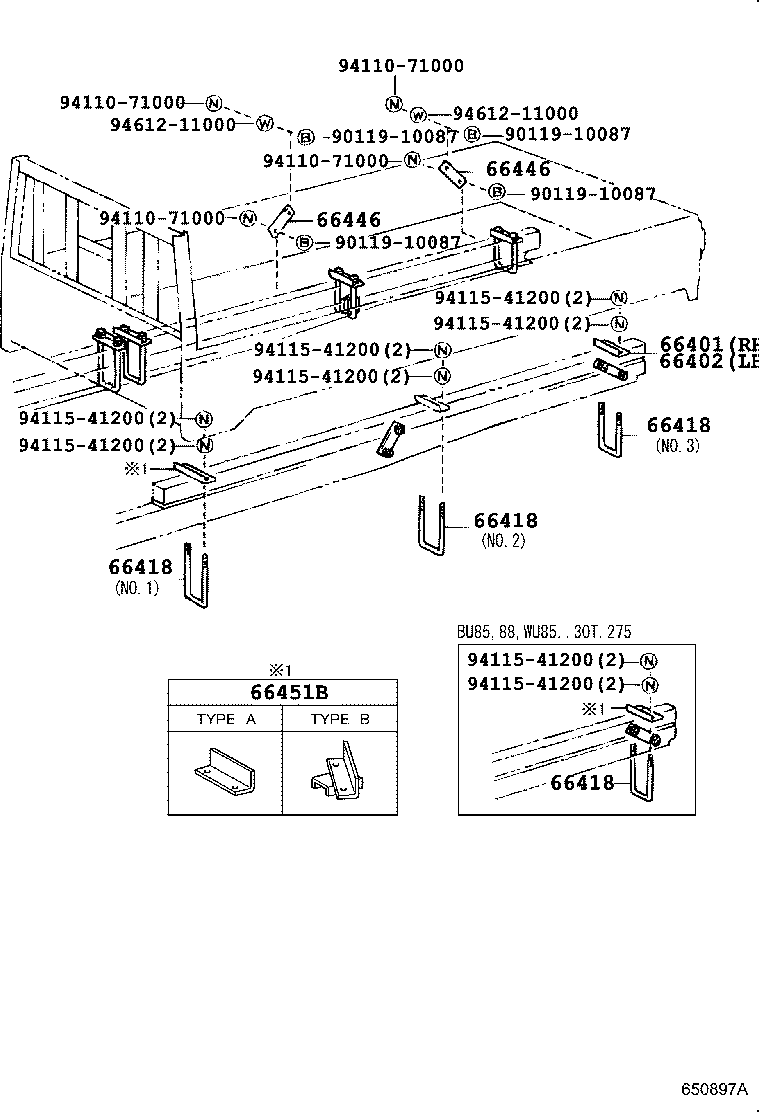

Figure 650894 650894 1988-08 → — Figure 650895 650895 1988-08 → — Figure 650895 650895 1989-10 → — Figure 650896A 650896A 1988-08 → — Figure 651258 651258 1988-08 → — Figure 651258 651258 1989-10 → — Figure 651258 651258 1993-09 → — Figure 650897A 650897A 1988-08 → — Figure 650897A 650897A 1989-10 → — Figure 651259 651259 1988-08 → — Figure 651260 651260 1991-09 → —

Part groups

PNCDescription
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
