Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

18 part groups · 2 illustrations

Illustrations

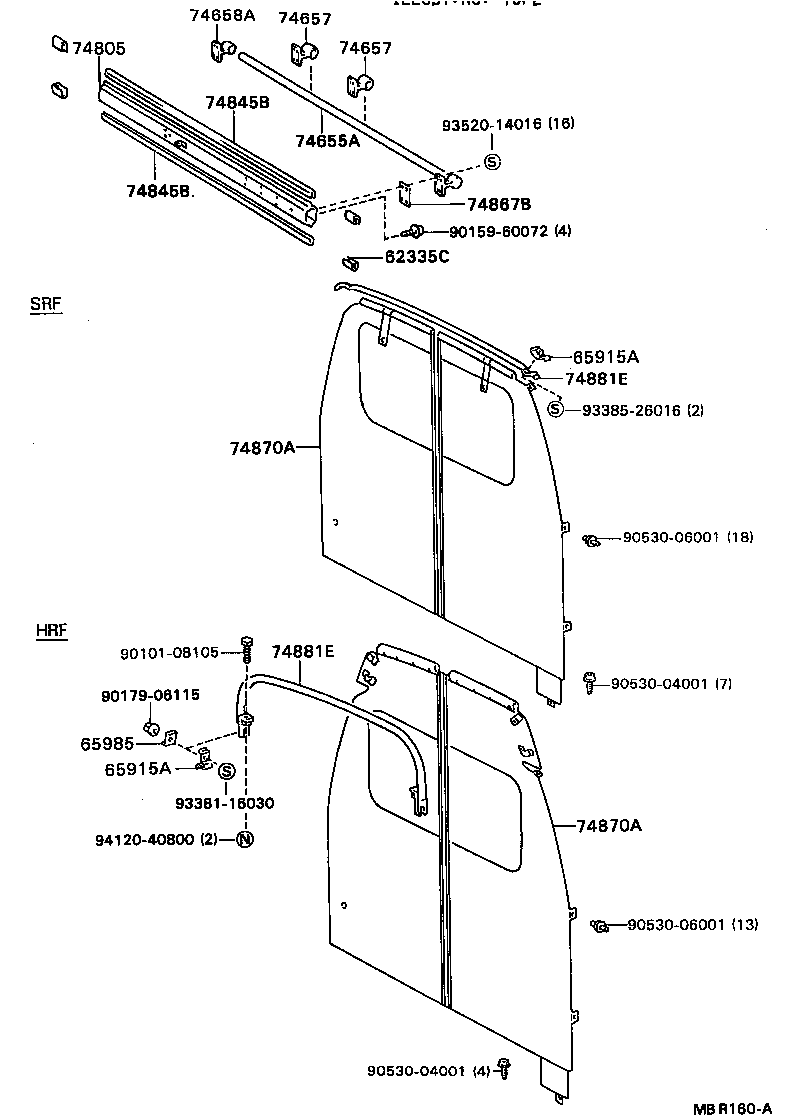

Figure MBR159 MBR159 1988-08 → — Figure MBR160A MBR160A 1988-08 → —

Part groups

PNCDescription
62335C Cover, Separator Bar
65915A Bracket, Curtain Rail
65985 Holder, Curtain Rail
74655A Bar, Hand Rail
74657 Bracket, Hand Rail, NO.1
74658A Bracket, Hand Rail, NO.2
74805 Separator Sub-assy
74827B Bracket, Separator Bar, RH
74828B Bracket, Separator Bar, LH
74835A Bracket, Separator
74836B Bracket, Separator Bar, NO.2
74845B Ornament, Front Seatback Panel, C
74851 Bar, Separator
74863B Rod, Separator
74864A Handle, Rear Separator
74867B Spacer, Separator, NO.1
74870A Curtain Assy, Separator
74881E Rail, Separator Curtain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
